  5. TYP F

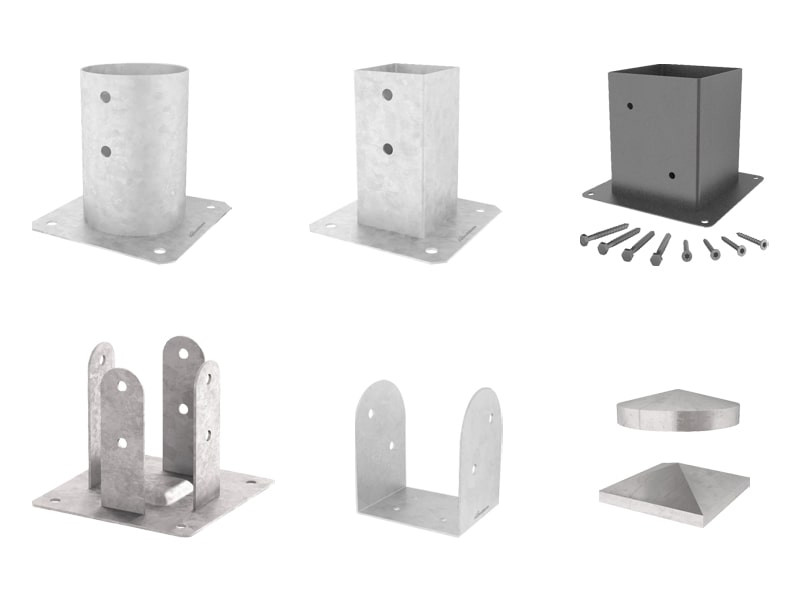

FIXED POST BASES

TYP F

Hot dip galvanizing for use in service classes 1, 2 and 3.

Stainless steel A2 | AISI304 versions for excellent durability .

Internal holes designed to allow the accumulated water to drain. Versions with integrated riser.

Documents

Technical data sheets
ETA Certificate
Declaration of performance (DOP) Download
Item specification
File CAD
File BIM.ifc
File BIM.rfa
Find the nearest agent Download the catalogue

F10

CODE B
[mm]
 P
[mm]
 H
[mm]
 s
[mm]
 pcs.
F1070 71 71 150 2 1
F1080 81 81 150 2 1
F1090 91 91 150 2 1

FI10 A2 | AISI304

CODE B
[mm]
 P
[mm]
 H
[mm]
 s
[mm]
 pcs.
FI1070 71 71 150 2 1
FI1090 91 91 150 2 1

F50

CODE B
[mm]
 P
[mm]
 H
[mm]
 s
[mm]
 pcs.
F50100 101 101 150 2.5 1
F50120 121 121 150 2.5 1
F50140 141 141 150 2.5 1
F50160 161 161 200 2.5 1
F50180 181 181 200 2.5 1
F50200 201 201 200 2.5 1

FI50 A2 | AISI304

CODE B
[mm]
 P
[mm]
 H
[mm]
 s
[mm]
 pcs.
FI50100 101 101 150 2.5 1
FI50120 121 121 150 2.5 1
FI50140 141 141 150 2.5 1
FI50160 161 161 200 2.5 1
FI50200 201 201 200 2.5 1

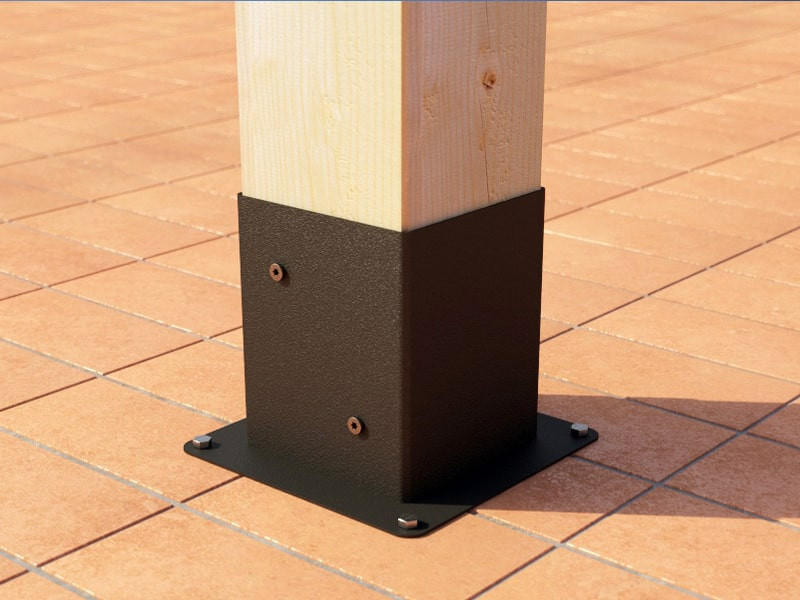

FM50 COLOR

CODE B
[mm]
 P
[mm]
 H
[mm]
 s
[mm]
 pcs.
FM50100 101 101 150 2.5 1
FM50120 121 121 150 2.5 1
FM50160 161 161 200 2.5 1
FM50200 201 201 200 2.5 1

FR50 COLOR

CODE B
[mm]
 P
[mm]
 H
[mm]
 s
[mm]
 pcs.
FR50100 101 101 150 2.5 1
FR50120 121 121 150 2.5 1

F12

CODE B
[mm]
 P
[mm]
 H
[mm]
 s
[mm]
 pcs.
F1270 72 60 100 2.5 1
F1280 82 60 100 2.5 1
F1290 92 70 120 2.5 1
F12100 102 80 120 2.5 1
F12120 122 100 140 2.5 1
F12140 142 120 160 3 1
F12160 162 140 180 3 1

F11

CODE B
[mm]
 P
[mm]
 H
[mm]
 s
[mm]
 pcs.
F1190 91 91 150 2.5 1
F11100 101 101 150 2.5 1
F11120 121 121 150 2.5 1
F11140 141 141 200 3 1
F11160 161 161 200 3 1

F51

CODE B
[mm]
 P
[mm]
 H
[mm]
 s
[mm]
 pcs.
F51120 121 121 150 3 1
F51140 141 141 200 3 1
F51160 161 161 200 4 1
F51200 201 201 225 4 1

F69

CODE B
[mm]
 P
[mm]
 H
[mm]
 s
[mm]
 pcs.
F69100 101 101 150 2.5 1
F69120 121 121 150 2.5 1
F69160 161 161 200 3 1
F69200 201 201 220 3 1

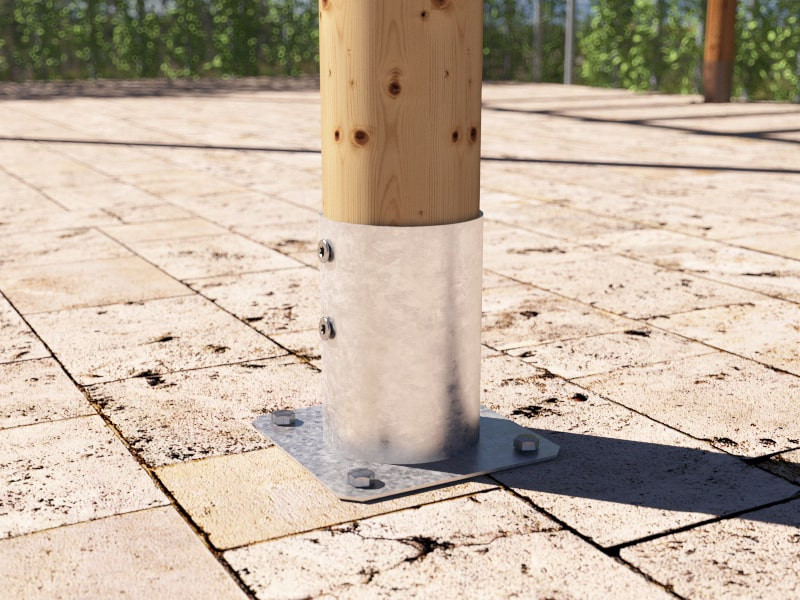

F20

CODE Ø
[mm]
 H
[mm]
 s
[mm]
 pcs.

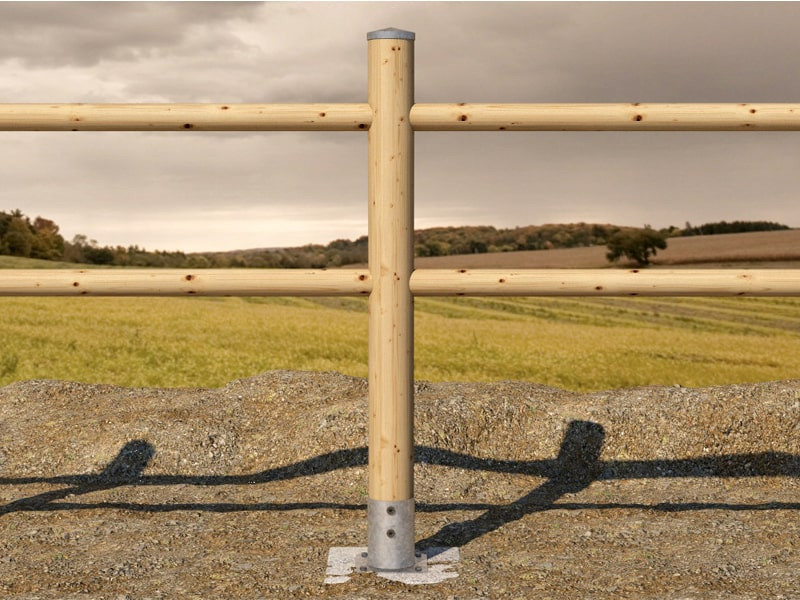

F2080 Ø81 150 2 1
F20100 Ø101 150 2 1
F20120 Ø121 150 2 1
F20140 Ø141 150 2 1

LIFT

CODE B
[mm]
 P
[mm]
 H
[mm]
 s
[mm]
 pcs.
LIFT20 60 60 20 3 1

Specifications

Supply and installation of “T” shaped post base with internal knife plate for timber structures, Type TYP F70.

Field of use:

  • Concealed joints for columns

Material:

  • Hot dip bright zinc plated carbon steel

Geometry:

  • H (mm) = :
  • Bottom plate (mm) = :
  • Thickness s (mm) = :

Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
