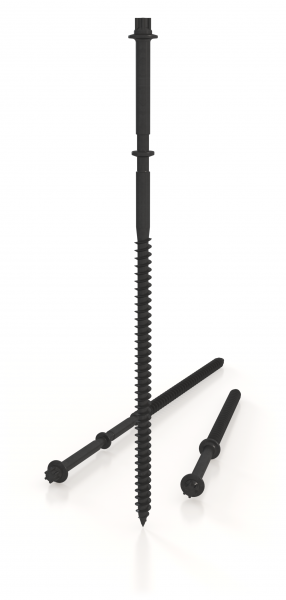

VB

Connector for wood-concrete floors

SPECIAL PERFORMANCE
Optimum static and noise performance, both for new projects and structural restoration.

RAPID DRY SYSTEM
Approved system, self-perforating, reversible, extremely fast to install and minimally invasive.

OPTIMISED GEOMETRY
Self-perforating tip, hexagonal head and limiter ring to limit seepage.

FIELDS OF USE
Screw connection system for wood-concrete floors, approved for solid wood, glulam, X-Lam, LVL, and wood-based panels. Service classes 1 and 2.

FLOOR SLAB
The connectors placed at 45° in an “X” configuration make it possible to obtain perfect coupling and excellent static performance between the concrete slab and the wood beams.

INSTALLATION
The connectors are installed with a simple screwdriver, without any pre-bored holes and without interrupting the wooden planking. Installation is extremely fast (between 200 and 300 connectors an hour, on average).

STRUCTURAL RESTORATION
The reduced diameter of the connector (7.5mm) and the dry installation (reversible) make the system minimally invasive and hence ideal for structural recovery and restoration.

APPLICATIONS

  • Rigid ”knee“ joint with double internal plate;
  • Floor slab on X-Lam panel;
  • Alternative placement near the walls for structural recovery.
Documentation
Technical data sheets
Technical data sheets 2
Declaration of performance (DOP)
ETA Certificate
Item specification
"Zulassung" certificate
FILE CAD
