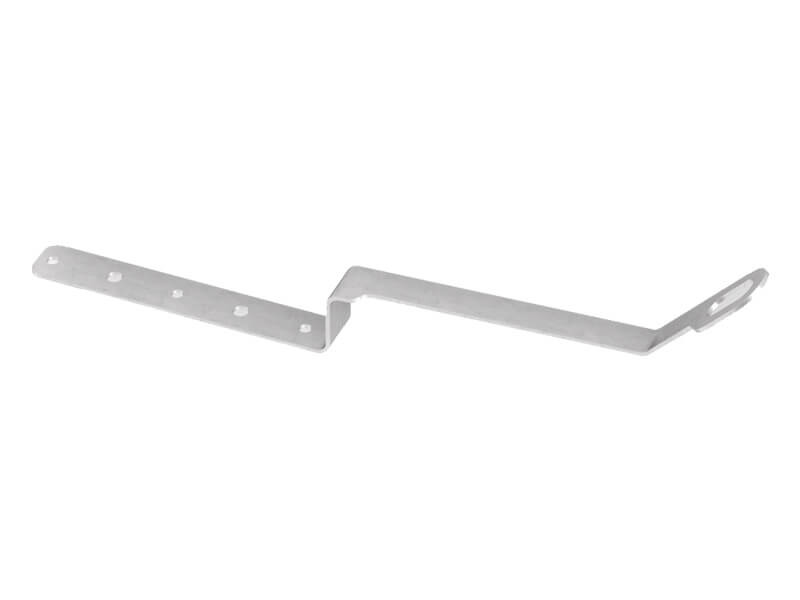

HOOK anchor point: reliability and simplicity for safety at work on roofs.
HOOK has no welding points, for greater safety: made from a single piece of stainless steel, it is certified for applying force in all directions (360°).
Available in 3 different heights, it adjusts to the thickness of the insulation and tiles of any timber or concrete roof.

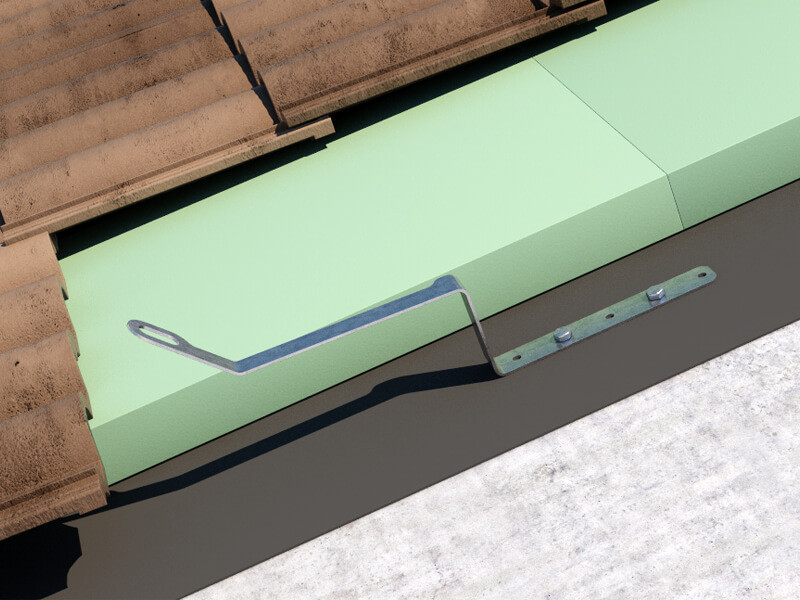

The special shape of the fastening holes has been optimised to allow the device to be mounted even on concrete structures.

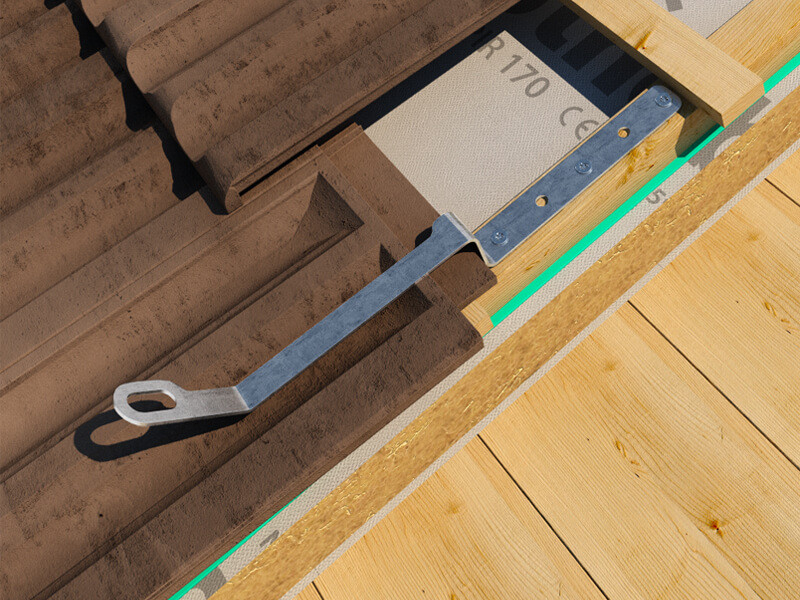

Once installed, thanks to the under-tile fastening HOOK ensures a discreet visual impact, for an aesthetically satisfactory result.
Maximum load: 2 users
Features
| Application | SINGLE POINT |
|---|---|
| Substructure | TIMBER, CONCRETE |
| Field of use | MIN. TIMBER STRUCTURE 80 X 100MM - MIN. CONCRETE STRUCTURE 100MM |
| Number of workers | 2 |
| Material | STAINLESS STEEL 1.4016 / AISI430 |
Documents
| Technical data sheets | |
|---|---|
| Certificate Hook20 | |
| Certificate Hook50 | |
| Certificate Hook100 | |
| Certificate Hook140 | |
| Declaration of Installation and inspection |
Laying Instructions
| Manual for installation and use |
|---|
HOOK
| CODE | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|
| HOOK20 | stainless steel 1.4016 – AISI430 | 35 | 20 | 517 | 10 |
| HOOK50 | stainless steel 1.4016 – AISI430 | 35 | 50 | 517 | 10 |
| HOOK100 | stainless steel 1.4016 – AISI430 | 35 | 100 | 517 | 10 |
