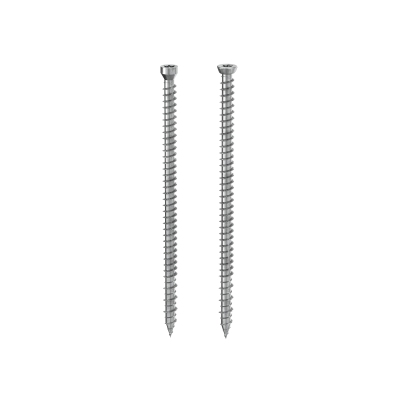

SELF-TAPPING SCREW WITH CYLINDRICAL HEAD FOR MASONRY
MBS | MBZ
MBS is the screw for direct fastening on compact and semi-solid materials: natural stone, concrete, solid bricks and hollow bricks.

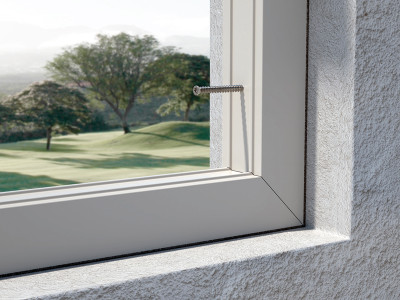

Thanks to the cylindrical head, it is ideal for fastening wood frames directly to brickwork supports.
MBS, the self-tapping screw for fastening frames onto brick.
The HI-LOW thread of the MBS screw allows for safe fastening even near the edges of the support, thanks to the reduced tension induced on the material.

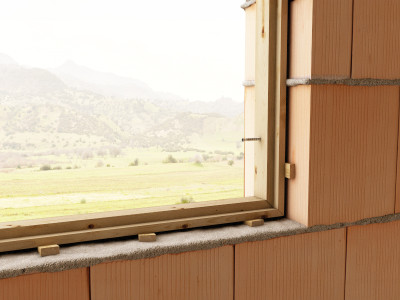

The cylindrical head makes the MBS screw ideal for fastening directly on the brick support of frames and wooden profiles in general.
In carbon steel with bright zinc plated.
Documents
| Technical data sheets | |
|---|---|
| File CAD |
MBS
| CODE | d₁
[mm]
|
L
[mm]
|
TX | pcs. |
|---|---|---|---|---|
| MBS7552 | 7.5 | 52 | TX30 | 100 |
| MBS7572 | 7.5 | 72 | TX30 | 100 |
| MBS7592 | 7.5 | 92 | TX30 | 100 |
| MBS75112 | 7.5 | 112 | TX30 | 100 |
| MBS75132 | 7.5 | 132 | TX30 | 100 |
| MBS75152 | 7.5 | 152 | TX30 | 100 |
| MBS75182 | 7.5 | 182 | TX30 | 100 |
| MBS75212 | 7.5 | 212 | TX30 | 100 |
| MBS75242 | 7.5 | 242 | TX30 | 100 |
MBZ
| CODE | d₁
[mm]
|
L
[mm]
|
TX | pcs. |
|---|---|---|---|---|
| MBZ7552 | 7.5 | 52 | TX30 | 100 |
| MBZ7572 | 7.5 | 72 | TX30 | 100 |
| MBZ7592 | 7.5 | 92 | TX30 | 100 |
| MBZ75112 | 7.5 | 112 | TX30 | 100 |
| MBZ75132 | 7.5 | 132 | TX30 | 100 |
| MBZ75152 | 7.5 | 152 | TX30 | 100 |
| MBZ75182 | 7.5 | 182 | TX30 | 100 |
| MBZ75212 | 7.5 | 212 | TX30 | 100 |
| MBZ75242 | 7.5 | 242 | TX30 | 100 |
