DISC FLAT A2

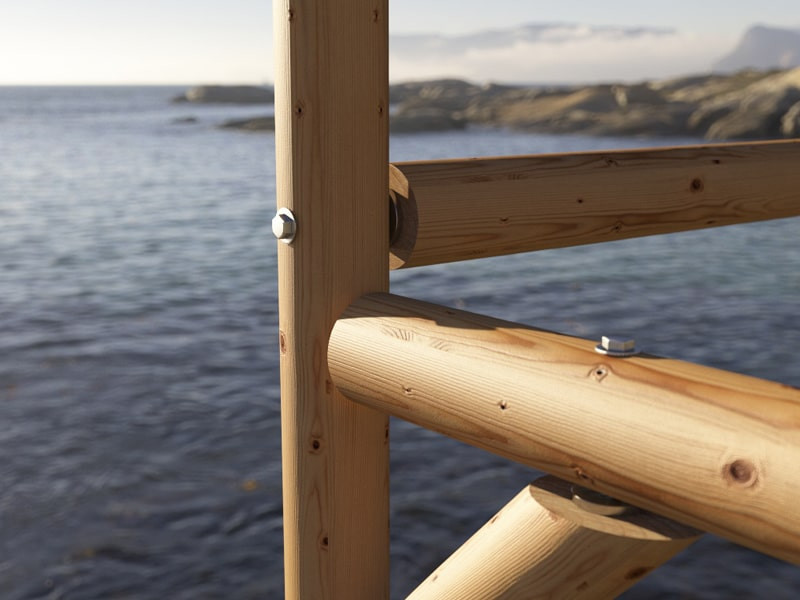

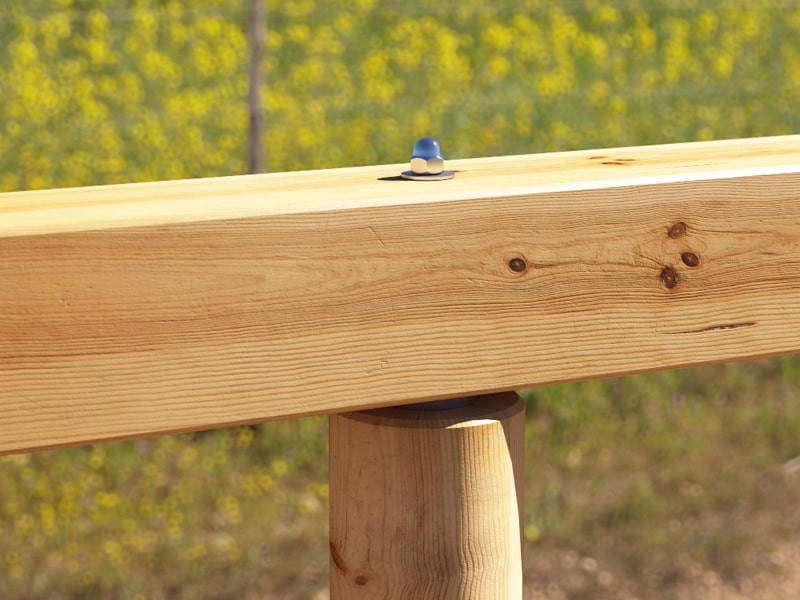

DISC FLAT A2 is the concealed removable connector suitable for outdoor use.

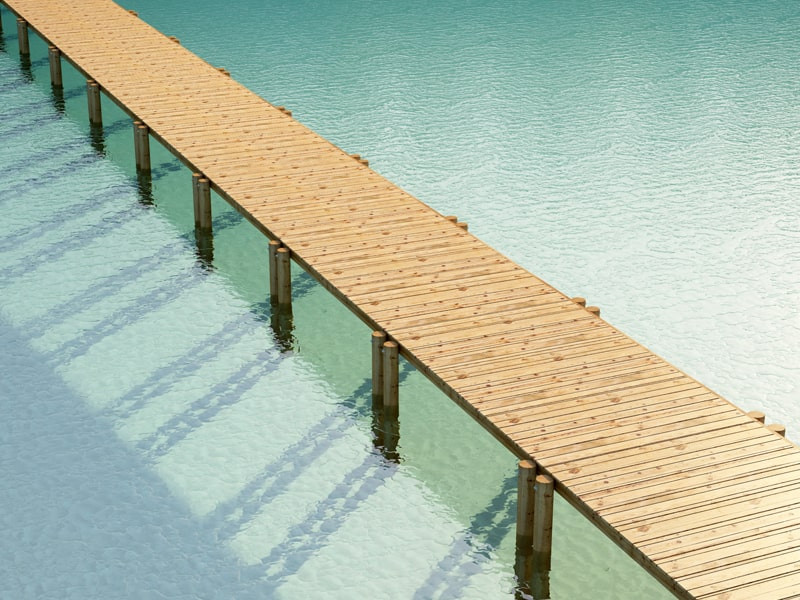

Usable for temporary structures, it can be easily removed thanks to the pass-through rod.

Videos

DISC FLAT A2, THE UNIVERSAL REMOVABLE CONNECTOR FOR CONCEALED OUTDOOR JOINTS

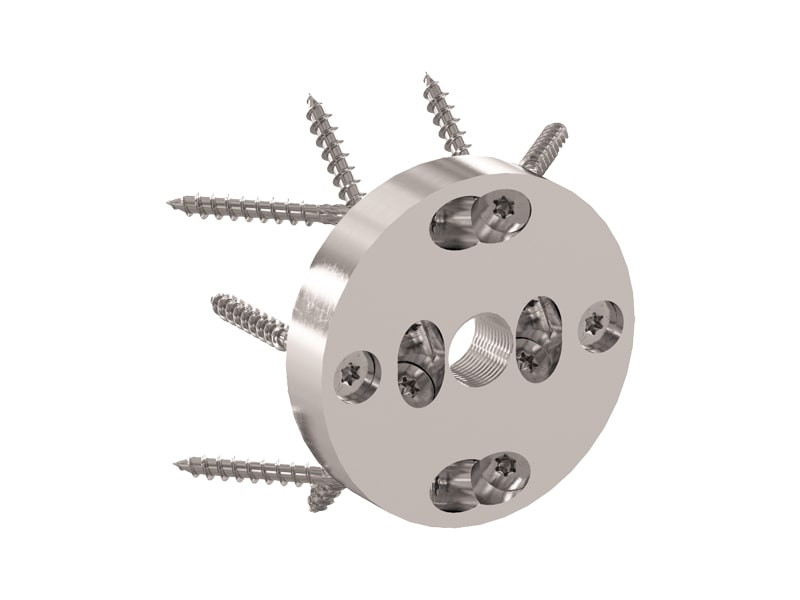

The removable concealed connector DISC FLAT A2 withstands both tensile and shear loads due to tightening provided by the pass-through rod. Its installation is simple thanks to the possibility of being tightened after the assembly.

For shear and tensile timber-to-timber joints in all directions of the secondary beam; ideal for application on solid timber, glulam, CLT, LVL and timber-based panels. The connector is made of stainless steel A2 | AISI 304 with CE mark according to ETA and martensitic stainless steel screws allow the joint to be used in service class 3.
