OUTDOOR CONCEALED HOOK TIMBER-TO-TIMBER CONNECTOR

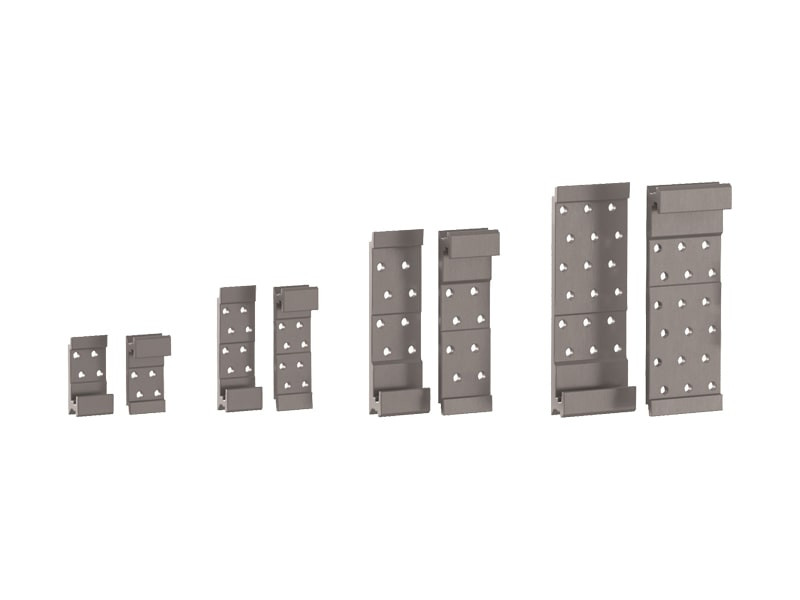

LOCK T EVO

The LOCK T EVO hook connector is the ideal system for the construction of temporary structures exposed to weather.

Perfect for applications with woods containing tannin or treated with impregnating agents and other chemical processes.

Videos

LOCK T EVO HOOK PLATE, FOR CONNECTIONS THAT HOLDS OUT AGAINST AGGRESSIVE ENVIRONMENTS

Easy and quick to install, the LOCK T EVO concealed plate can be fixed with a single type of screw and is equally easy to remove. The specially painted aluminium alloy together with the C4 EVO coated screws or martensitic stainless steel screws allow the joint to be used in service class 3.

Ideal for fastening aggressive woods containing tannin, such as chestnut and oak. Made of aluminium alloy with special graphite black paint, it can be used for timber-to-timber shear joints in outdoor environments, on solid timber, glulam, CLT, LVL, aggressive wood and chemically treated timber.

Find the nearest agent Download the catalogue

Documents

Technical data sheets
ETA Certificate
Declaration of performance (DOP) Download
File CAD
File BIM.ifc
File BIM.rfa
Find the nearest agent Download the catalogue

LOCK T EVO Ø5

CODE B
[mm]
 H
[mm]
 s
[mm]
 pcs.
LOCKTEVO3580 35 80 20 50
LOCKTEVO35120 35 120 20 25

LOCK STOP Ø5

CODE B
[mm]
 H
[mm]
 s
[mm]
 pcs.
LOCKSTOP5 19 27.5 13 100

LOCK T EVO Ø6

CODE B
[mm]
 H
[mm]
 s
[mm]
 pcs.
LOCKTEVO50175 50 175 22 18
LOCKTEVO75215 75 215 22 12

LOCK STOP Ø6

CODE B
[mm]
 H
[mm]
 s
[mm]
 pcs.
LOCKSTOP7 26.5 38 15 50

Specifications

Supply and installation of outdoor concealed hook timber-to-timber connector, Type LOCK T EVO.
CE marking in accordance with ETA 19/0831

Field of use:

  • Outdoor timber-to-timber joints

Material:

  • Aluminium alloy with special paint in graphite black colour

Geometry:

  • Angle bracket: :

  • H (mm) = :

  • Bottom plate (mm) = :

  • Thickness s (mm) = :

Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
