CONCEALED HOOK TIMBER-TO-CONCRETE CONNECTOR

UV-C

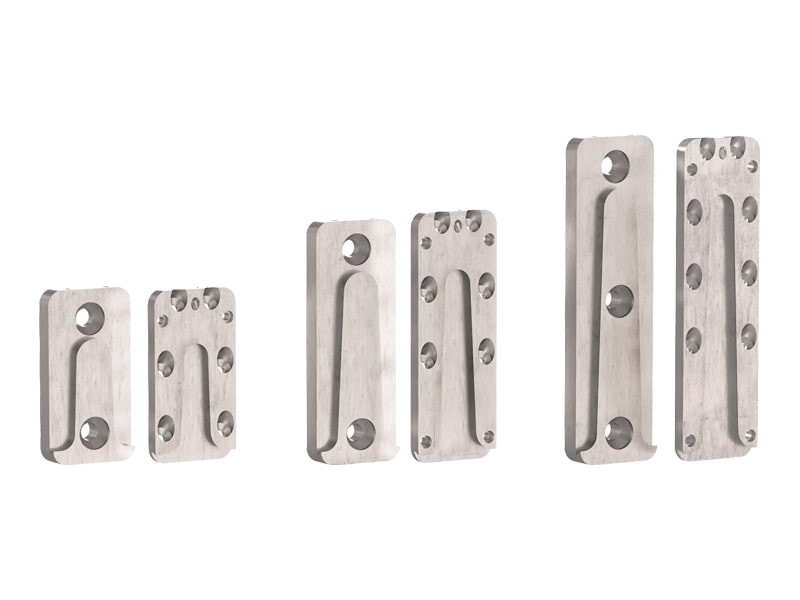

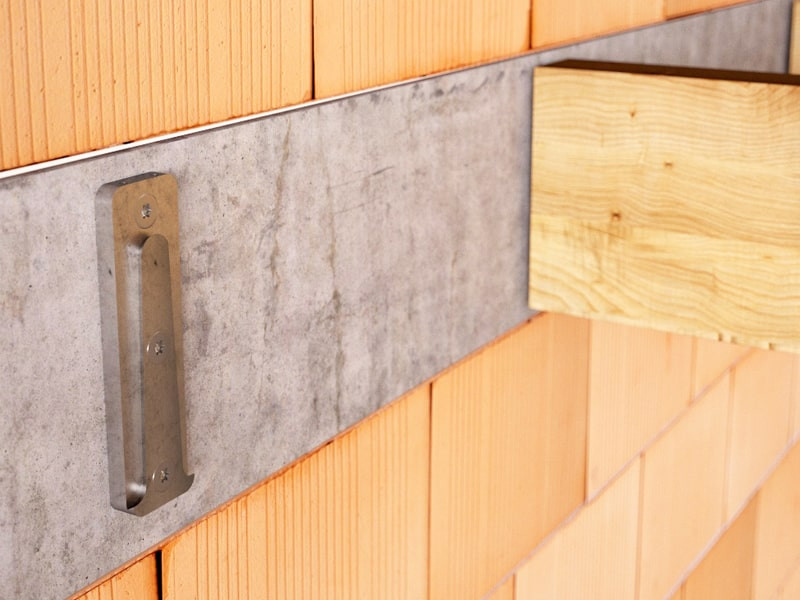

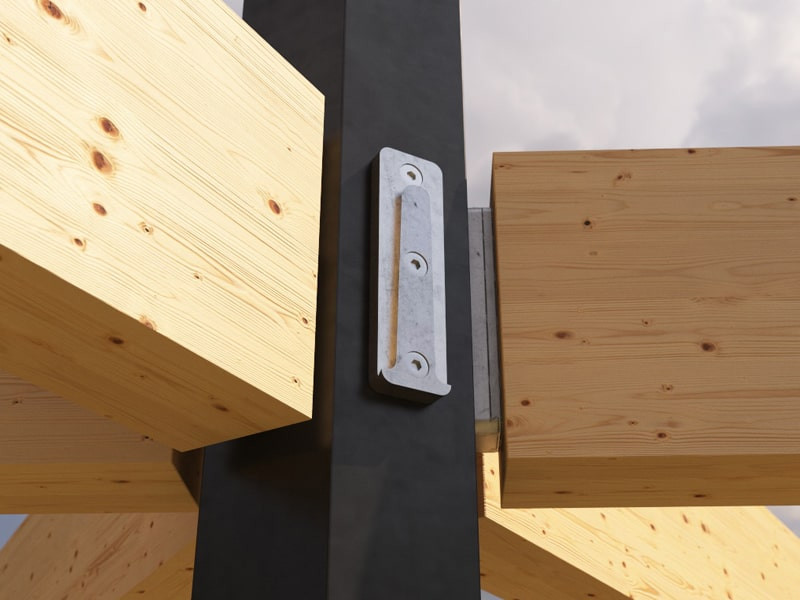

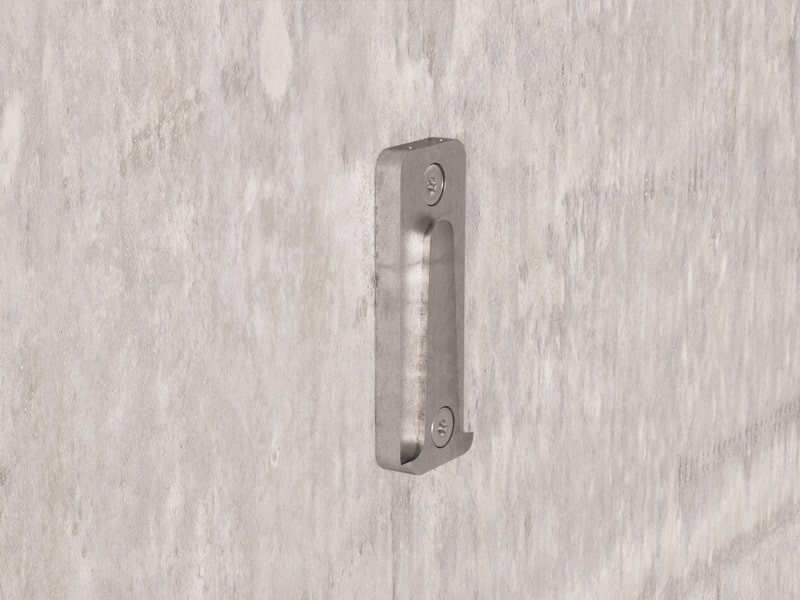

Calculated and certified joint for fastening secondary beams to concrete supports (beams or columns) and steel supports. The hanging system is quick to install and can be easily removed ; ideal for the construction of temporary structures.

The UV-C concealed connector makes it really easy to build composite structures that are easy to disassemble

Videos

The additional locking screws included in the package guarantee strength for bottom-to-up forces.

The aluminium alloy three dimensional perforated plate is ideal for making timber-to-concrete shear joints and applications requiring strength in all directions; it is also suitable for use with solid timber and glulam, CLT and LVL.

Documents

Technical data sheets
Declaration of performance (DOP) Download
File CAD

UV-C

CODE B
[mm]
H
[mm]
s
[mm]
pcs.
UVC60115 60 115 24 10
UVC60160 60 160 24 10
UVC60215 60 215 24 10

Specifications

Supply and installation of concealed hook timber-to-concrete connector, Type UV-C.
CE marking in accordance with ETA

Field of use:

  • Timber to concrete joints

Material:

  • Aluminium alloy three dimensional perforated plate

Geometry:
Angle bracket: :

  • H (mm) = :
    -Bottom plate (mm) = :

  • Thickness s (mm) = :

Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
