SEPARATING WASHER FOR WHT ANGLE BRACKET

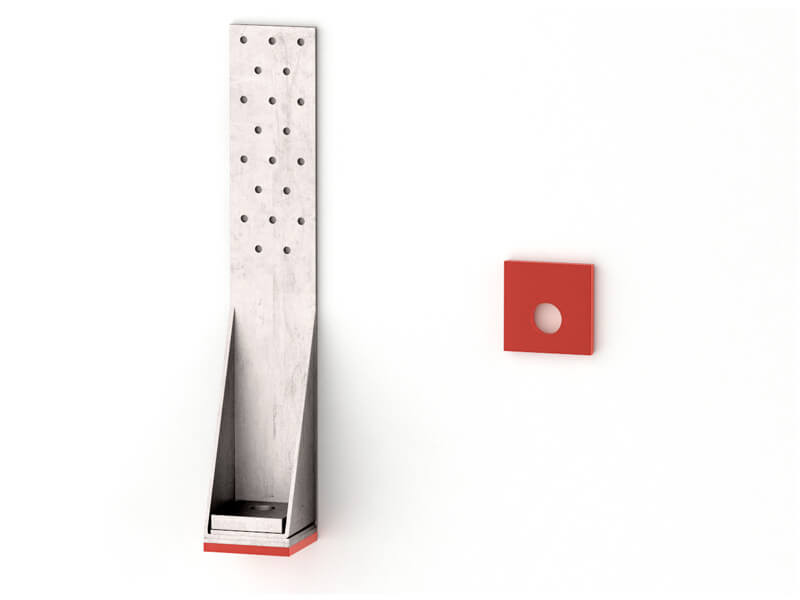

XYLOFON WASHER WHT

XYLOFON WASHER WHT is the solution for sound insulation which, together with XYLOFON, ensures the soundproofing of timber structures and houses.

It offers effective sound insulation where there are metal connections made with WHT hold-down angle brackets, a detail that it is fundamental to observe in seeking acoustic excellence in a wooden structure.

The details are important. Do not forget the soundproofing of metal connections and avoid acoustic bridges.

XYLOPHON WASHER WHT is the solution developed for mechanical desolidarisation of shear wood-wood junctions made with WHT angle brackets.

The reliability of XYLOFON WASHER WHT over time is ensured by the homogeneity of the polyurethane compound (80 shore), whose monolithic structure ensures watertightness and the absence of subsidence over time.

Extremely chemically stable and without deformations over time, it ensures durability without the function losing effectiveness.

Product free of VOCs and harmful substances.

Features

Material Monolithic polyurethane mixture from 80 shore
Thickness 6,0 mm
Dimensions from 60 x 60 mm to 80 x 140 mm
Stability over time ★ ★ ★ ★ ★
Application Washer for WHT angle bracket

Documents

Technical data sheets

XYLOFON WASHER WHT

CODE d₁
[mm]
P
[mm]
B
[mm]
s
[mm]
pcs.
XYLW806060 23 60 60 6 10
XYLW808080 27 80 80 6 10
XYLW8080140 30 80 140 6 1

Specifications

Supply and installation of separating washer for WHT angle brackets, type XYLOFON WASHER WHT

Composition:

  • Polyurethane compound with stable monolithic structure and highly waterproof 80 shore. Product free of VOCs and harmful substances. High stability and deformation free in time.

Properties:

  • Reaction to fire : classe E
  • Elastic modulus 10% (MPa) : 24,3
  • Creep : < 0,5 %
  • Damping factor Tan : 0,134

Suitable for timber-to-steel profiles installation such as WHT and TITAN, thus avoiding the transmission of vibrations caused by impact sound. Position the profile on the lower section of the steel element and fasten it mechanically with HBS screw and steel washer. Release liner to be placed between the structure and the angle bracket such as WHT and TITAN to reduce vibration and noise transmission in the building.
