SPREADABLE WATERPROOFING SHEATH/REINFORCING LAYER

BYTUM LIQUID | REINFORCEMENT

Product made of distilled bitumen with elastoplastomeric polymer, with cold flexibility down to -15°C and resistance to heat up to 100°C.

Suitable for outdoor waterproofing using a specific product depending on the required technical solution.

Documents

Technical data sheets
Declaration of performance (DOP)

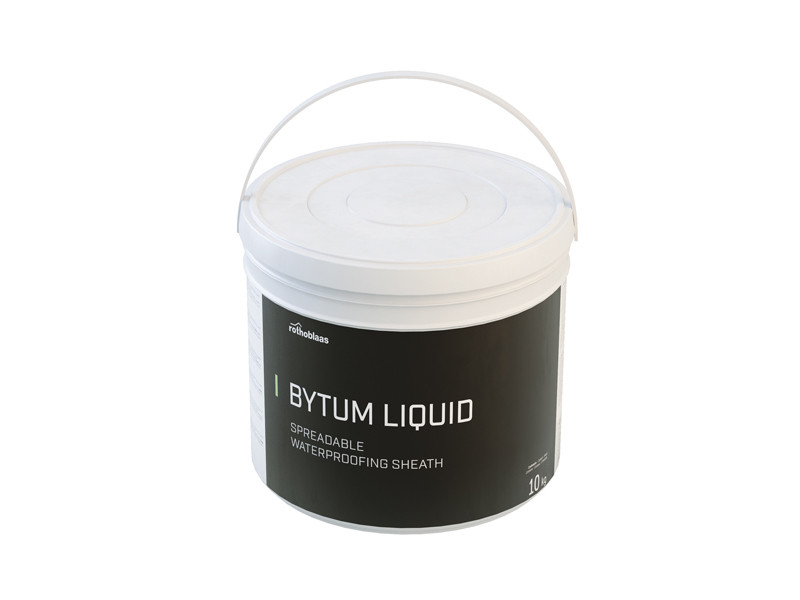

BYTUM LIQUID

CODE content
[kg]
pcs./pallet
BYTL 10 50

BYTUM REINFORCEMENT

CODE H
[m]
L
[m]
A
[m²]
H
[ft]
L
[ft]
A
[sft]
pcs./pallet
BYTR 1 50 50 3.29 165 539 24

Technical Data BYTUM LIQUID
EN 1504-2 EN 15814 EN 14891
BITUMEN B A SED

Classification (1) EN 15814 - -
Classification (2) EN 1504-2 - -
Classification (3) EN 14891 - -
Colour (wet/dry) - - -
Density EN 2811-1 1,5 kg/L 361 oz/gal
Maximum application thickness - 3 mm -
Material yield per 1 mm thickness - 1,5 kg/m² -
Water vapour transmission (Sd) EN ISO 7783 - -
Watertightness EN 1928 > 500 kPa -
Elongation ISO 37 240 % -
Elongation with BYTUM REINFORCEMENT EN 12311-1 80 % -
Reaction to fire EN 13501-1 class E -
Thermal conductivity λ - 0,2 W/(m·K) 0.116 BTU/(h·ft²·°F)
Crack bridging ability EN 1062-7 > 2,5 mm -
Crack bridging ability con BYTUM REINFORCEMENT - > 10 mm -
Resistance to static loading - method A EN 12730 45 kg -
Resistance to static loading - method B EN 12730 25 kg -
Resistance to impact - method A EN 12691 1000 mm -
Resistance to impact - method B EN 12691 1000 mm -
Specific heat - 1500 J/(kg·K) -
Flexibility at low temperatures EN 1109 -10 °C -
Thermal resistance - -30 / 80 °C -22 / 176 °F
Application temperature (ambient) - 5 / 35 °C 41 / 95 °F
Time required for application of each layer on the previous one 23 °C/50% RH (4) - 24 hours -
Time required for complete hardening 23 °C / 50% RH (4) - 4 hours -
Time required for covering with ceramics or paint 23 °C/50% RH (4) - 4 days -
Time required for complete hardening 23 °C / 50% RH (4) - 4 days -
Storage temperature (5) - ≥ 5 °C ≥ 41 °F
1.
2.
3.
4. The data expressed may vary depending on the thickness of the product applied and the specific installation conditions: temperature, humidity, ventilation, absorbency of the substrate.
5.

Technical Data BYTUM REINFORCEMENT

Mass per unit area EN 1849-2 100 g/m² 0.33 oz/ft²
Thickness - 0,5 mm 19.7 mil

Specifications

Supply and installation of spreadable waterproofing sheath - reinforcing layer, type BYTUM LIQUID - REINFORCEMENT
CE marking in accordance with: : EN1504-2 EN14891 EN15814

Properties:

  • Thickness [mm] : 3
  • Temperature resistance [°C] : -30/+80
  • Reaction to fire : classe E
  • Water vapour transmission Sd [m] : 5/50
  • Application temperature [°C] : +5/+35
  • Watertightness [kPa] : >500

It can be applied on various smooth building substrates such as timber, OSB boards without additional surface treatment. The surfaces must be dry, free of dust and solvents such as grease or oil. We recommend the use of PRIMER for rough surfaces such as rough OSB boards. After the separation film has been partially separated, the tape can be applied easily and precisely at the corner point without further corrections. The sealing is completed by separating the remaining film and adhering the tape to the support. Once the tape has been applied, it is recommended to use the special roller RLL45 to obtain a perfect application.

Composition BYTUM REINFORCEMENT

polyester reinforcing grid
