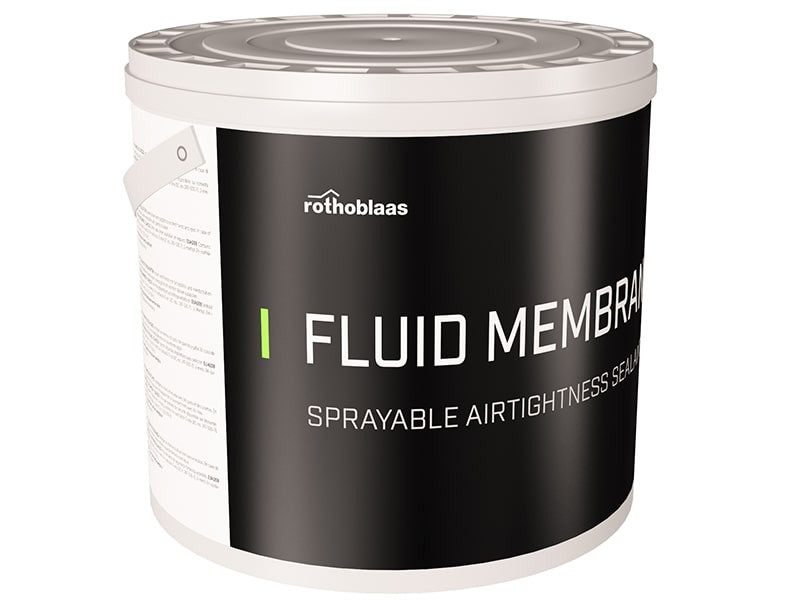

FLUID MEMBRANE WATERPROOFING MEMBRANE: PERFECT ADHESION, SUPERIOR DURABILITY.
The FLUID MEMBRANE fluid membrane offers also the possibility of inserting a synthetic reinforcement fabric.
The synthetic resin mix is elastic and resistant to any movement of the sealed cracks.
Thanks to its formulation, it offers perfect adhesion; is suitable for complex construction details and resists micro-cracks.
Odourless, non-toxic and solvent-free product.
|Technical data sheets|
|Declaration of performance (DOP)||Download|
|Fluid Membrane Coverage Spreadsheet|
|Property||Standard||Tested Values||USC Conversion|
|Classification (1)||EN 14891||DM O1||-|
|Classification (2)||EN 1504-2||C PI-MC-IR||-|
|Density at +20 °C||ISO 2811-1||1,45 kg/L||232.52 oz/gal|
|Material yield per 1 mm thickness||-||≥ 1,5 kg/m²||-|
|Surface cross-linking time 23 °C / 50% RH (3)||-||4 hours||-|
|Time required for complete drying 23 °C / 50% RH (3)||-||24 hours||-|
|Dry residue by mass||ISO 3251||65 %||-|
|Dynamic viscosity||EN ISO 3219||48 / 72 Pa·s||-|
|Adhesion on concrete by direct traction||EN 1542||> 1 N/mm²||> 145 lbf/in²|
|Liquid water permeability (W)||EN 1062-3||< 0,1 kg/(m²·h⁰’⁵)||-|
|Water vapour resistance factor (μ)||UNI EN 1931||ca. 9000||-|
|Water vapour transmission (Sd) (4)||EN ISO 7783||1,8 m||1.943 US perm|
|Carbon dioxide permeability (C)||EN 1062-2||> 50 m||-|
|VOC content||Dir. 2004/42/CE||0 g/L||-|
|Application temperature||-||5 / 35 °C||41 / 95 °F|
|Storage temperature (5)||-||≥ 5 °C||≥ 41 °F|
Supply and installation of synthetic sealing membrane for brush and spray application, type FLUID MEMBRANE
CE marking in accordance with: : EN1504-2 EN14891
- Water vapour transmission Sd [m] : < 5
- Application temperature [°C] : +5/+35
- Air permeability : no
- Watertightness [kPa] : conforme

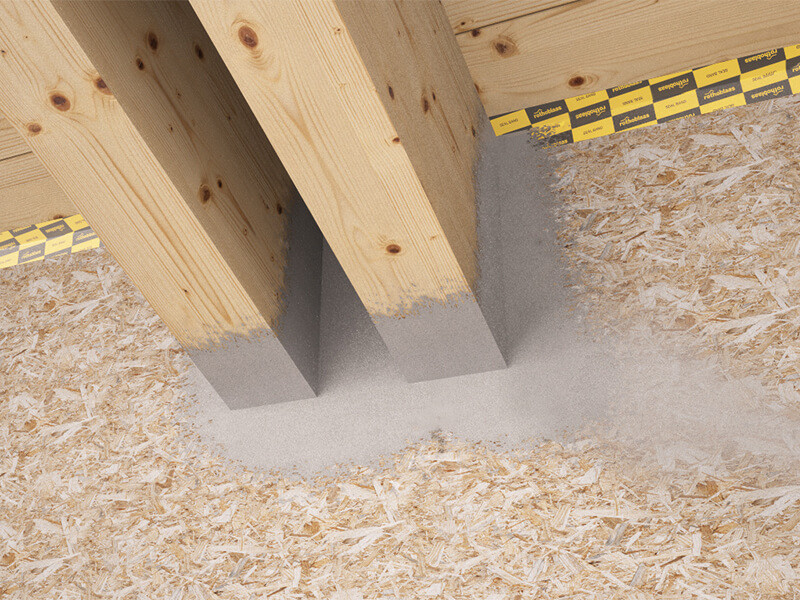

It can be applied on various smooth building substrates such as timber, OSB boards without additional surface treatment. The surfaces must be dry, free of dust and solvents such as grease or oil. We recommend the use of PRIMER for rough surfaces such as rough OSB boards. After the separation film has been partially separated, the tape can be applied easily and precisely at the corner point without further corrections. The sealing is completed by separating the remaining film and adhering the tape to the support. Once the tape has been applied, it is recommended to use the special roller RLL45 to obtain a perfect application.
