INTUMESCENT THERMO-INFLATABLE FLEXIBLE GASKET

FIRE STRIPE

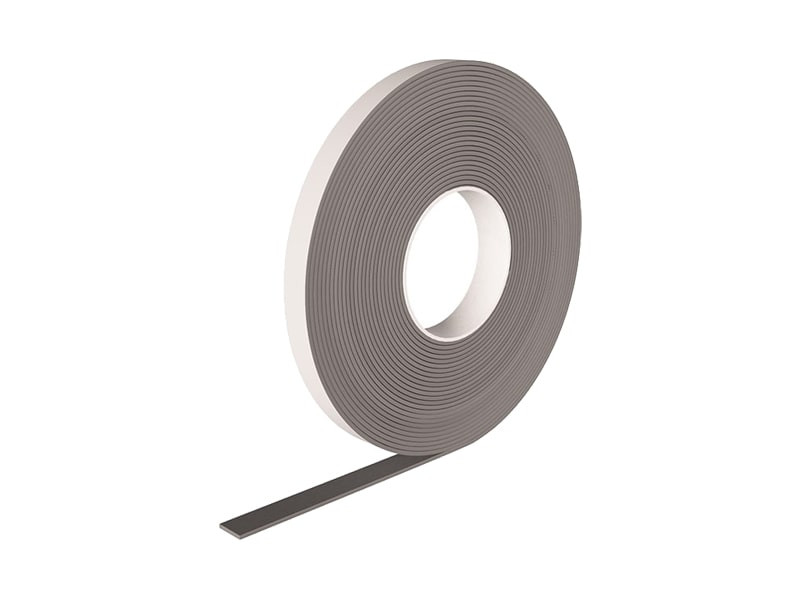

FIRE STRIPE is the flexible gasket that swells under the effect of strong heat: as it expands, it seals the cavity in which it is positioned, blocking the passage of flames. Installable in tight spaces, it is perfect for the fire protection of our concealed fastening systems.

FIRE STRIPE, the flexible intumescent gasket that provides fire protection for your joints

FIRE STRIPE intumescent profile has good resistance to UV and thermal stress, and is not subject to rotting: durability is guaranteed. It is an adhesive tape, which can be applied quickly and without any support tools.

Documents

Technical data sheets

FIRE STRIPE

CODE B
[mm]
s
[mm]
L
[m]
B
[in]
s
[mil]
L
[ft]
pcs.
FIRESTRIPE10 10 2 6 0.4 79 20 1

Technical Data
EN 13501-1 B,s3-d0
NF P92-501 M1

Colour - grey -
Reaction to fire NF P92-501 m1 -
Reaction to fire EN 13501-1 - -
French VOC classification ISO 16000 A+ -
Application temperature - 5 / 35 °C 41 / 95 °F
Storage temperature (1) - 1 / 25 °C 34 / 77 °F
1. Store the product in a cool, dry place for no more than 12 months.

Composition

SUPPORT -
GLUE acrylic dispersion without solvents
release liner silicone coated paper
