SKR - SKS: SCREW ANCHOR FOR CONCRETE CE1

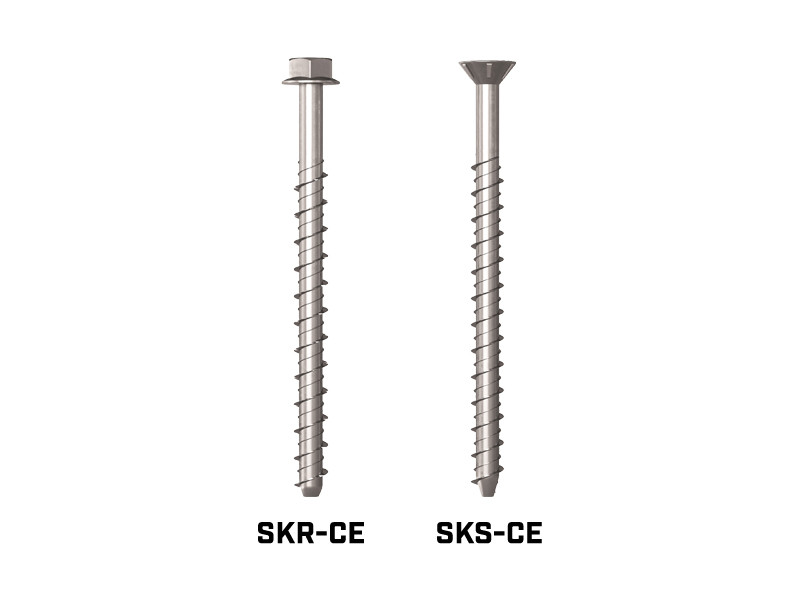

SKR-CE SKS-CE
Certified for applications on cracked and non-cracked concrete and in performance class for seismic actions C1 (M10-M16) and C2 (M12-M16).
Its operating principle allows the load to be applied after zero waiting times.
Certified for fire exposure class R120 according to Technical Report TR 020.
Documents
| Technical data sheets | |
|---|---|
| ETA Certificate | |
| Declaration of performance (DOP) | Download |
| Item specification |
SKR-CE
| CODE | d₁
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|
| SKR8100CE | 8 | 100 | 50 |
| SKR1080CE | 10 | 80 | 50 |
| SKR10100CE | 10 | 100 | 25 |
| SKR10120CE | 10 | 120 | 25 |
| SKR1290CE | 12 | 90 | 25 |
| SKR12110CE | 12 | 110 | 25 |
| SKR12150CE | 12 | 150 | 25 |
| SKR12210CE | 12 | 210 | 20 |
| SKR12250CE | 12 | 250 | 15 |
| SKR12290CE | 12 | 290 | 15 |
| SKR16130CE | 16 | 130 | 10 |
SKS-CE
| CODE | d₁
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|
| SKS75100CE | 8 | 100 | 50 |
| SKS10100CE | 10 | 100 | 50 |
