  5. TYP M

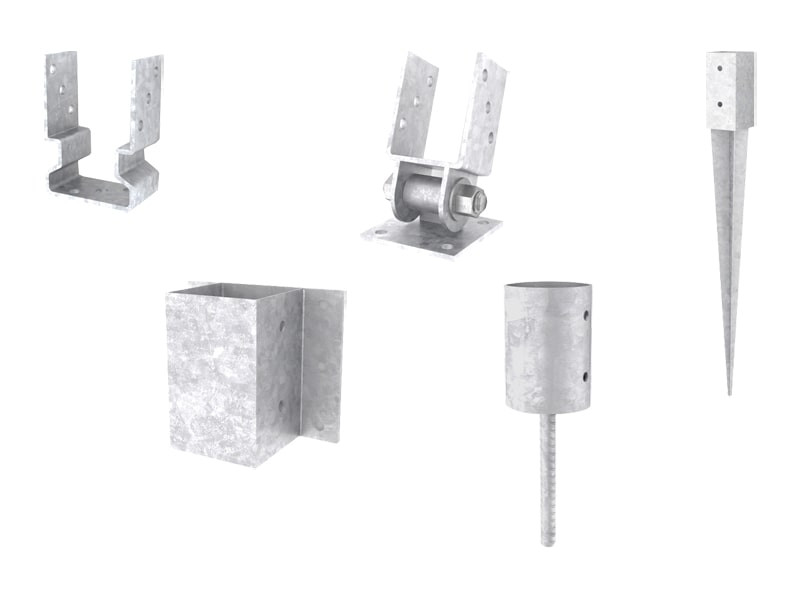

MIXED POST BASES

TYP M

Hot dip galvanizing for use in service classes 1, 2 and 3.

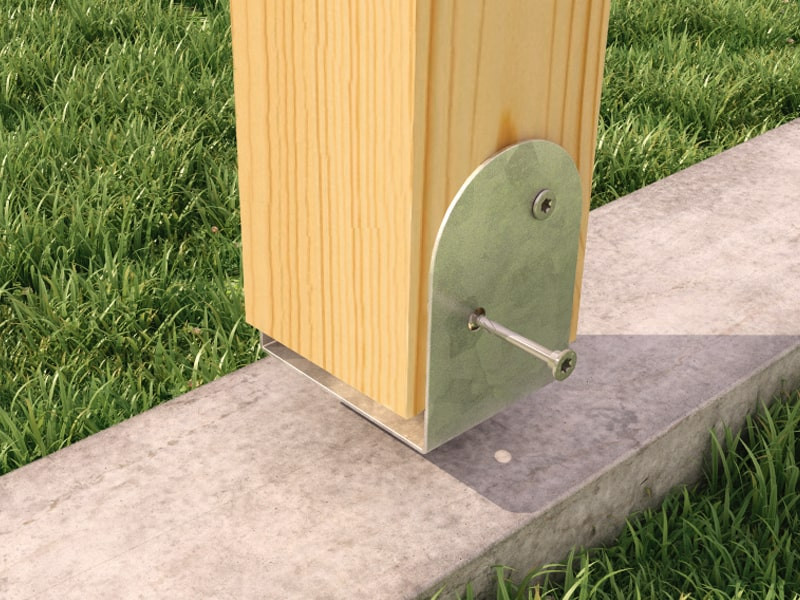

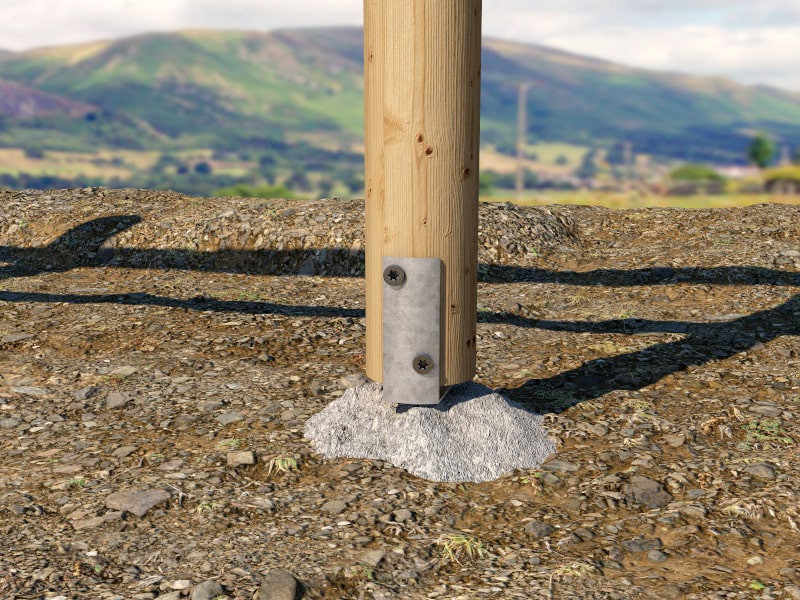

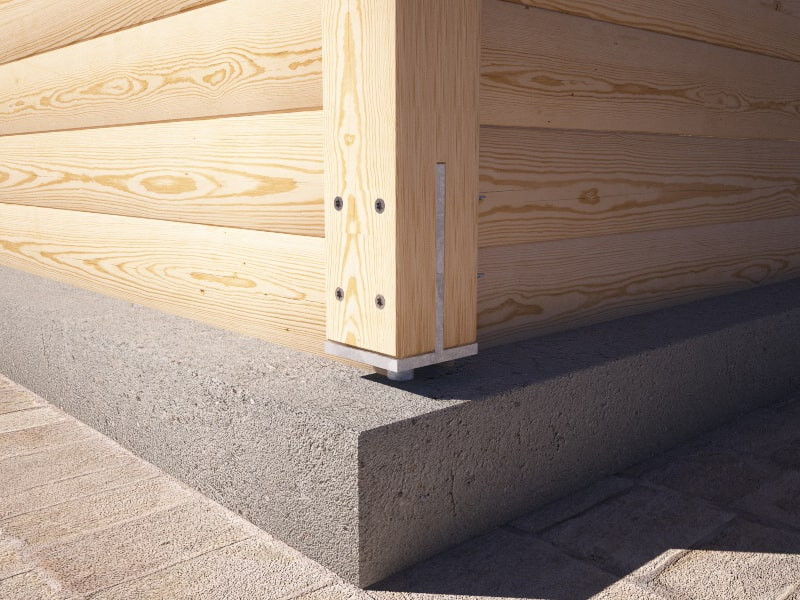

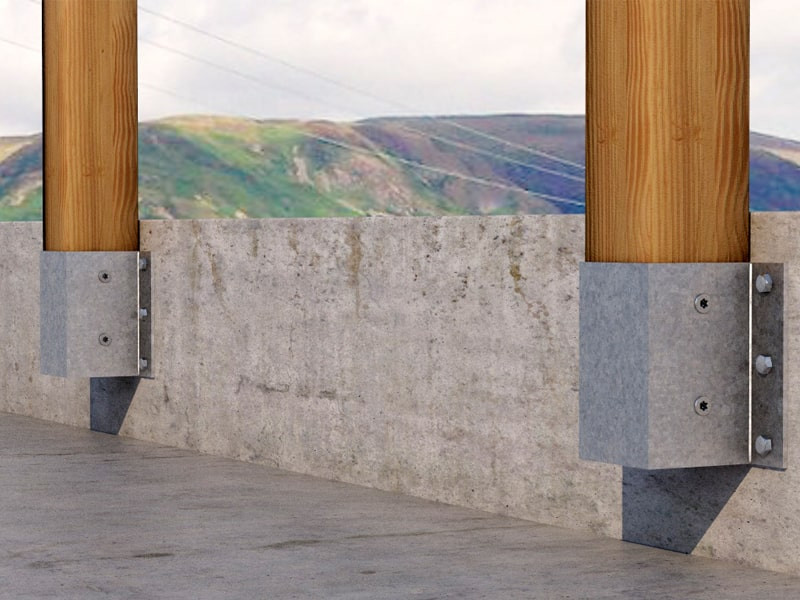

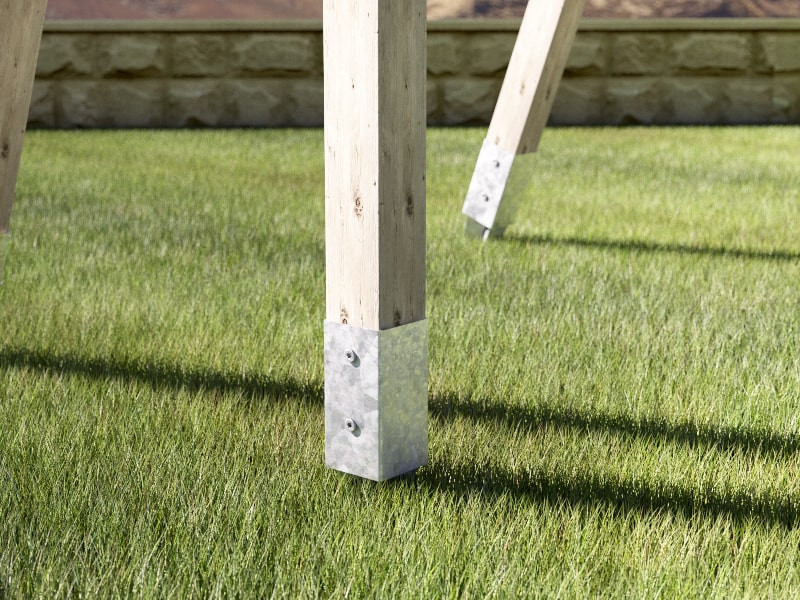

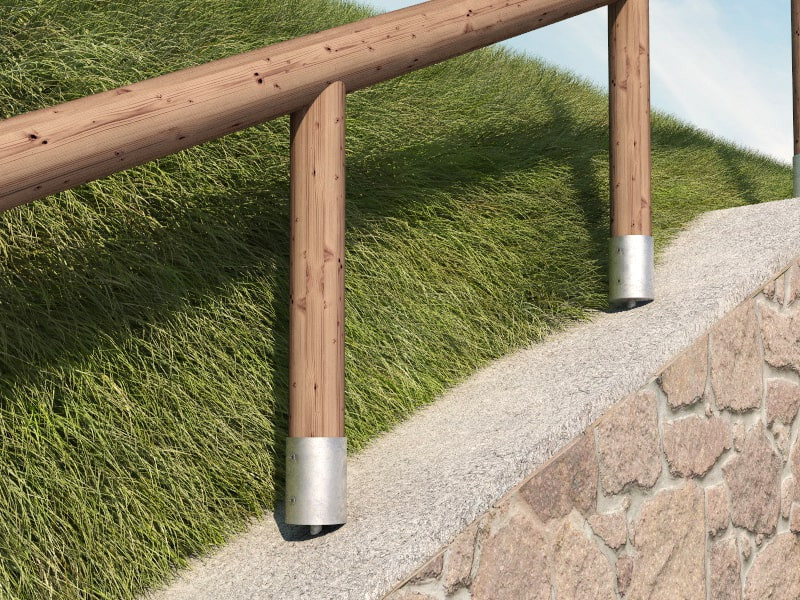

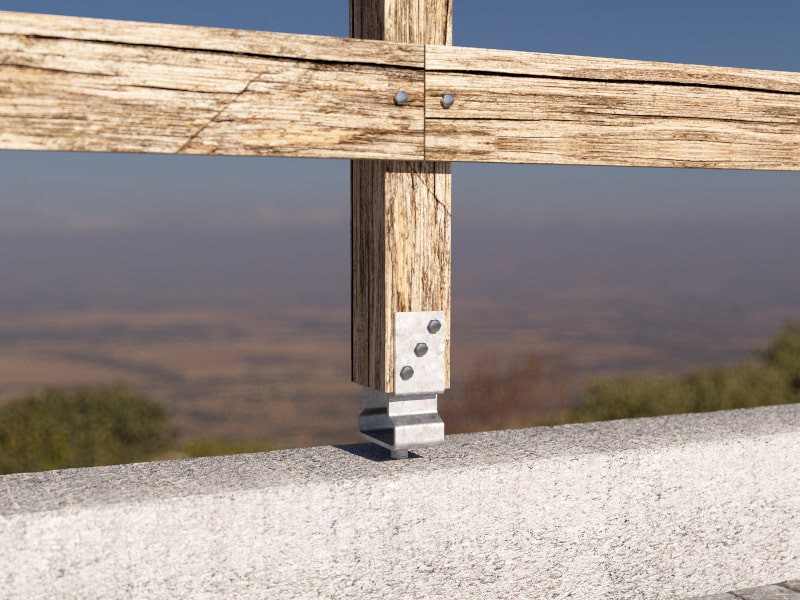

Specific solutions for fastening in the ground, on the wall or in concrete.

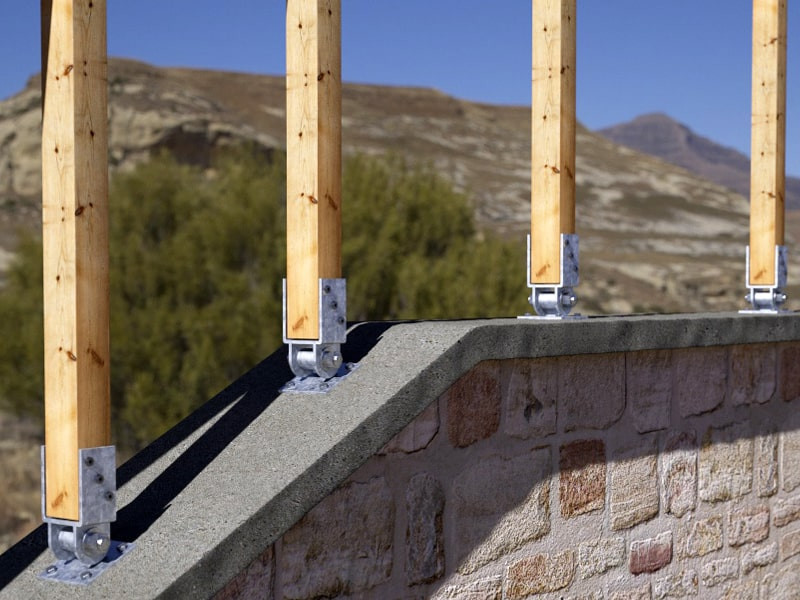

Inclinable versions.

Documents

Technical data sheets
ETA Certificate
Declaration of performance (DOP) Download
File CAD

M70 S

CODE B
[mm]
P
[mm]
H
[mm]
s
[mm]
pcs.
M70S70 71 71 150 2 1
M70S90 91 91 150 2 1
M70S100 101 101 150 2 1
M70S120 121 121 150 2 1

M70 R

CODE Ø
[mm]
H
[mm]
s
[mm]
pcs.
M70R80 Ø81 150 2 1
M70R100 Ø101 150 2 1
M70R120 Ø121 150 2 1

M50

CODE B
[mm]
P
[mm]
H
[mm]
s
[mm]
pcs.
M5070 71 60 150 5 1
M5090 91 60 150 5 1
M50100 101 60 150 5 1
M50120 121 60 150 5 1

M53

CODE Ø
[mm]
H
[mm]
s
[mm]
pcs.
M5380 Ø81 150 3 1
M53100 Ø101 150 3 1
M53120 Ø121 150 3 1

M52

CODE B
[mm]
P
[mm]
H
[mm]
s
[mm]
pcs.
M5290 91 70 120 2.5 1
M52100 101 80 120 2.5 1
M52120 121 100 140 2.5 1

M51

CODE Ø
[mm]
H
[mm]
s
[mm]
pcs.
M51100 Ø101 150 3 1
M51120 Ø121 150 3 1

M60

CODE B
[mm]
P
[mm]
H
[mm]
s
[mm]
pcs.
M6080 80 80 130 8 1

S40

CODE B
[mm]
P
[mm]
H
[mm]
s
[mm]
pcs.
S4070 71 60 100 5 1
S4090 91 60 100 5 1

M10

CODE B
[mm]
P
[mm]
H
[mm]
s
[mm]
pcs.
M1070 71 71 150 2 1
M1090 91 91 150 2 1

M20

CODE B
[mm]
P
[mm]
H
[mm]
s
[mm]
pcs.
M2070 71 60 150 5 1
M2090 91 60 150 5 1
M20100 101 60 150 5 1
M20120 121 60 150 5 1

M30

CODE B
[mm]
P
[mm]
H
[mm]
s
[mm]
pcs.
M3070 71 50 200 5 1
M3080 81 50 200 5 1
M3090 91 50 200 5 1
M30100 101 50 200 5 1
M30120 121 50 200 5 1
