EMBEDDED TUBULAR POST BASE

P10 - P20

The P10 and P20 post bases can be embedded in concrete, allowing the column to be spaced more than 300 mm from the ground, in accordance with DIN 68800, ensuring high durability of the timber.

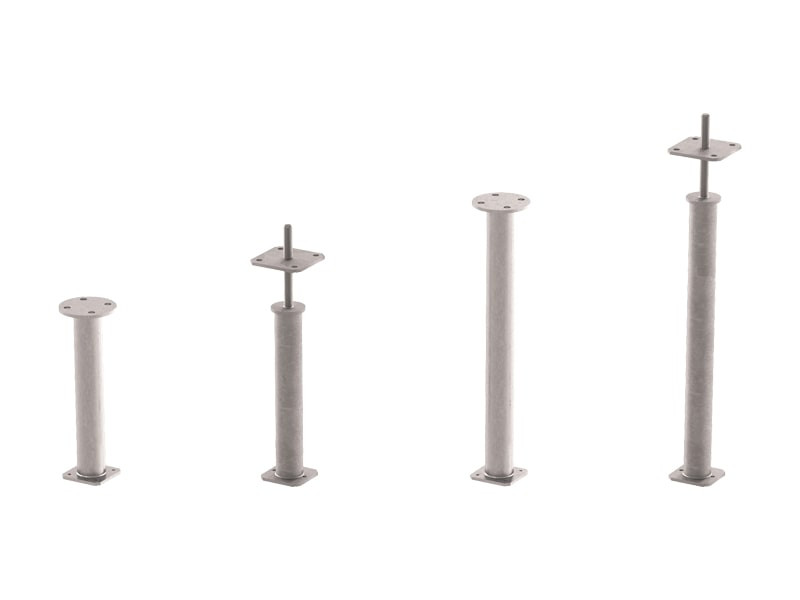

P10 and P20 concealed post bases for embedding in concrete.

P10 and P20 post bases are ideal for creating high durability concealed joints for outdoor wooden columns.

In the P20 model, the height can be adjusted as required. In the 500 mm height versions it guarantees a distance between the ground and the column head greater than 300 mm. Made of hot dip bright zinc plated carbon steel (P10) and Dac Coat zinc plating (P20) they are ideal for creating outdoor joints with solid timber, glulam,

CLT and LVL. Suitable for service classes 1, 2 and 3.

Documents

Technical data sheets
ETA Certificate
Declaration of performance (DOP) Download
File CAD

P10

CODE Ø
[mm]
H
[mm]
s
[mm]
pcs.
P10300 Ø100 312 6 1
P10500 Ø100 512 6 1

P20

CODE B
[mm]
P
[mm]
H
[mm]
s
[mm]
pcs.
P20300 100 100 312 8 1
P20500 100 100 512 8 1

Specifications

P10

Supply and installation of hot dip galvanized embedded tubular post base, Type P10.
CE marking in accordance with ETA 10/0422

Field of use:

  • Joints for timber columns, classes 1, 2 and 3

Material:

  • Hot dip bright zinc plated carbon steel

Geometry:

Angle bracket:

  • H (mm) = :

  • Bottom plate (mm) = :

  • Thickness s (mm) = :

Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.

P20

Supply and installation of Dac Coat galvanized embedded tubular post base, Type P20.
CE marking in accordance with ETA 10/0422

Field of use:

  • Joints for timber columns, classes 1, 2 and 3

Material:

  • Bright zinc plated carbon steel Dac Coat

Geometry:
Angle bracket: :

  • H (mm) = :
  • Bottom plate (mm) = :
  • Thickness s (mm) = :

Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
