SAFE CONSTRUCTION ON ROPE

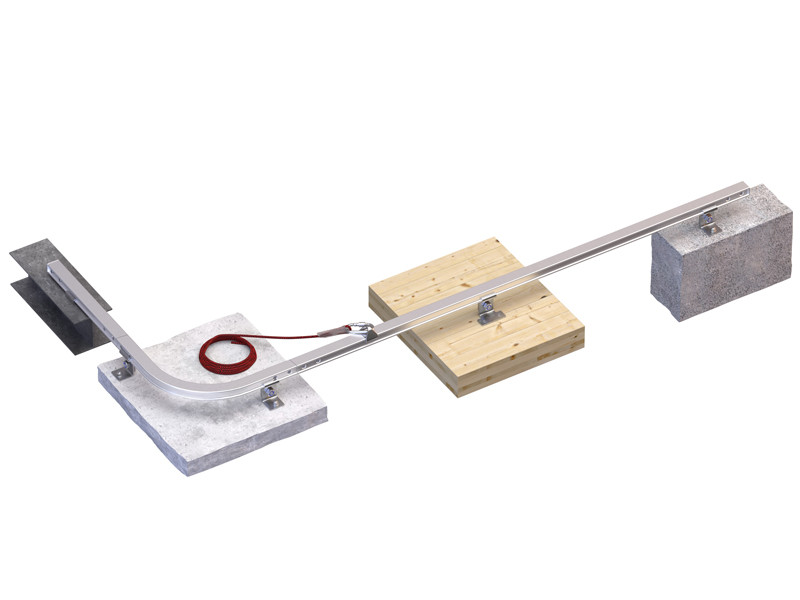

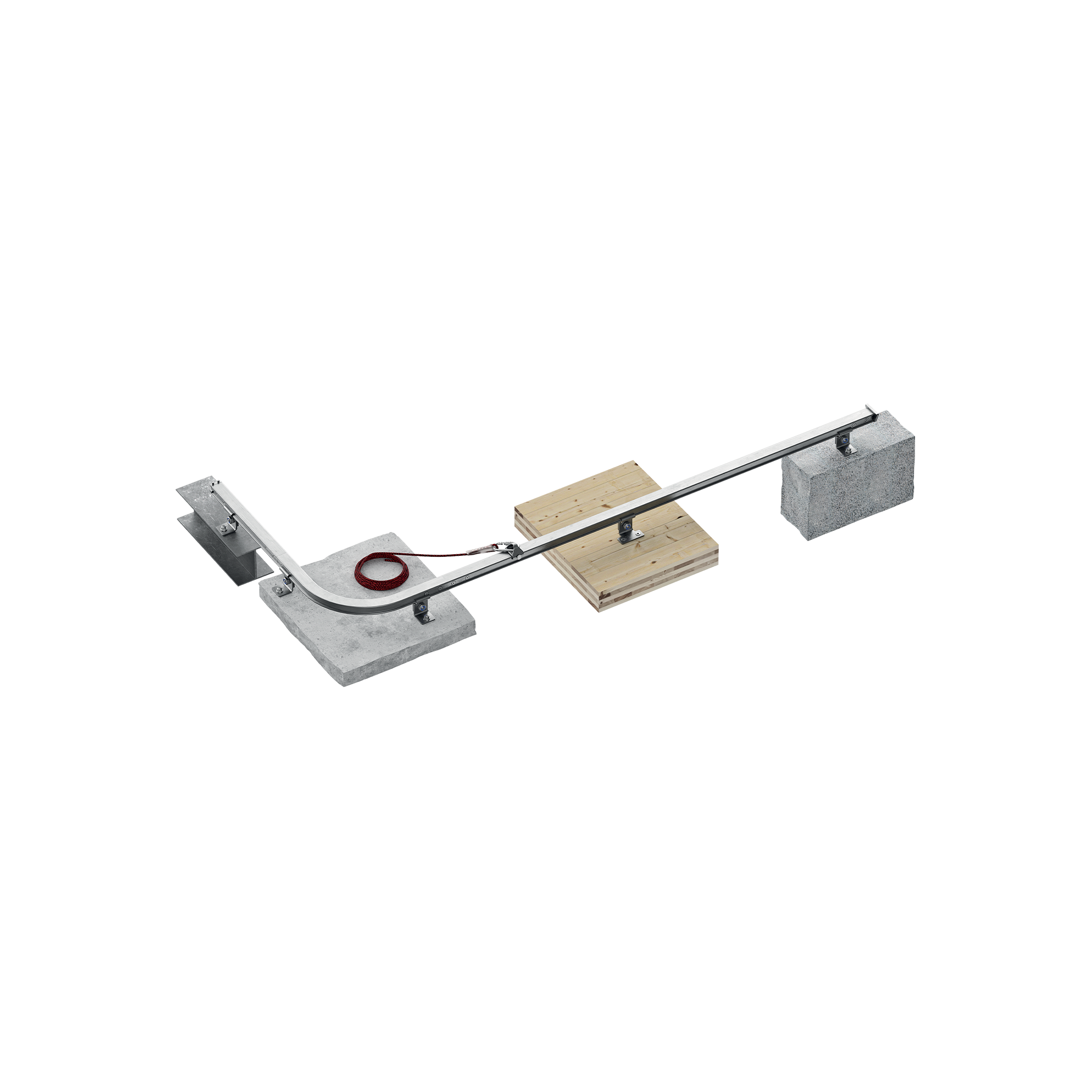

H-RAIL ON FLOOR

New

Construction work on rope and working at heights in general are easier and safer with this rail system for horizontal use. Compared to other safety systems for working at height, in fact, the rail fixed on the roof ensures a reduced footprint, guaranteeing minimal visual impact.

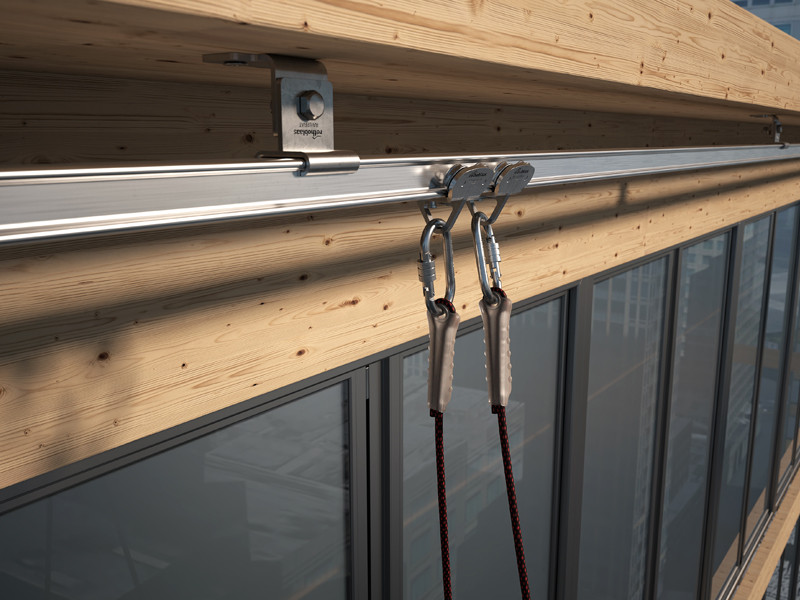

H-RAIL can be used for various applications. Assembly requires a limited number of fastening points with support spacing up to 6 m. Compared to the other H-RAIL models, H-RAIL ON FLOOR is installed on the roof covering, with the possibility of being raised to overcome any obstacles (H-RAIL+TOWER). Otherwise, H-RAIL ON WALL is installed on the wall, while H-RAIL OVERHEAD is installed below the supporting structure.

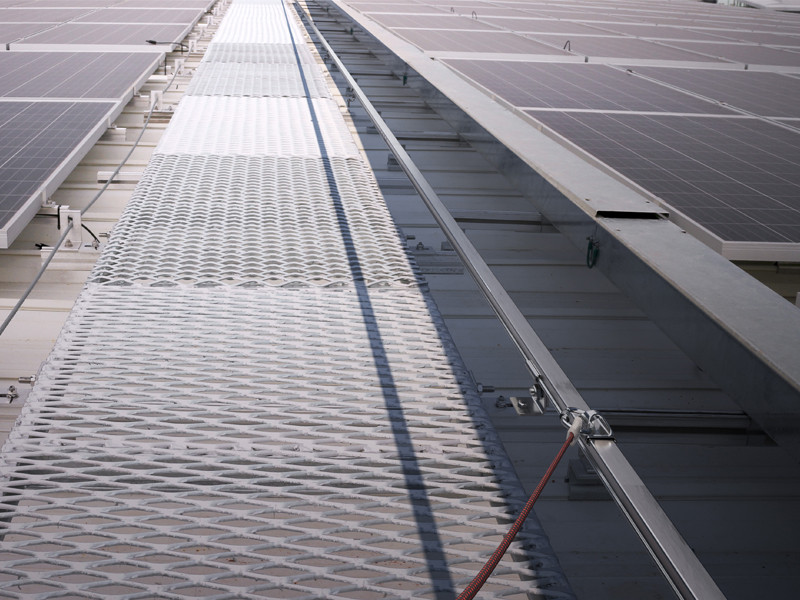

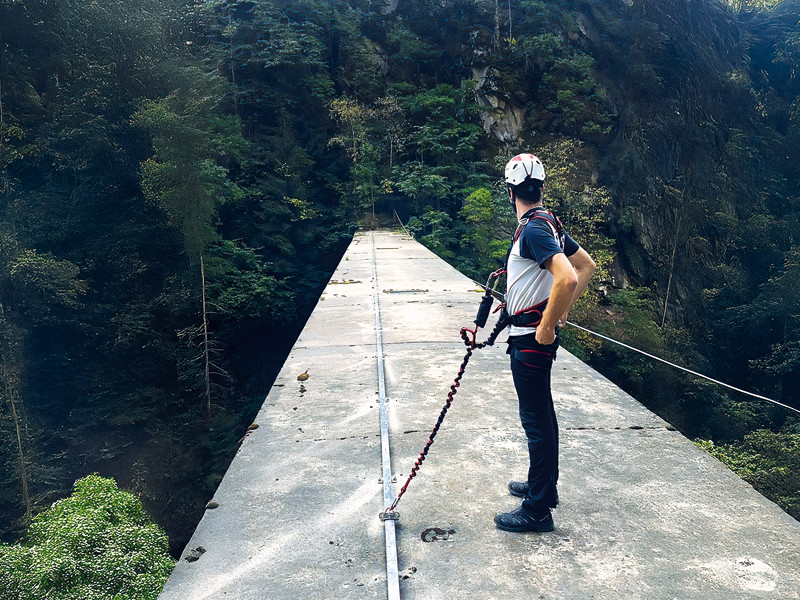

Work on rope with H-RAIL ON FLOOR

There is often little room for manoeuvre in façade maintenance. When it comes to window cleaning, for example, there are few alternatives that guarantee the execution of work on rope and the safety of rope operators. Among these, the most common are BMUs (Building Maintenance Units or "baskets") and systems that integrate horizontal rails for rope access, such as H-RAIL. In contrast to BMUs, systems such as Rothoblaas H-RAIL are a discreet, elegant and quickly installed solution.

The advantages of H-RAIL in work on rope

In addition to improved aesthetics, small footprint and low weight, H-RAIL also has safety advantages. Whereas in BMUs, during work, operators have to lean out to reach the facade, risking swinging the basket, H-RAIL's rail allows suspended work, with the operator on the rope being harnessed and at the correct distance from the wall.

Also with regard to the speed of execution of work on rope, H-RAIL allows the presence of 4 operators at the same time on the same span, with a greater speed of execution of the work, even on inclined façades, with angles and narrow spaces.

Another advantage of a rigid system such as the H-RAIL rail system, this time in comparison to a traditional flexible lifeline, is the absence of falling cambers and the need to take this into account when calculating the vertical clearance.

Documents

Technical data sheets
Declaration of conformity
Safety regulations, instructions for installation and use
Declaration of Installation and inspection

Installation manual

Installation manual

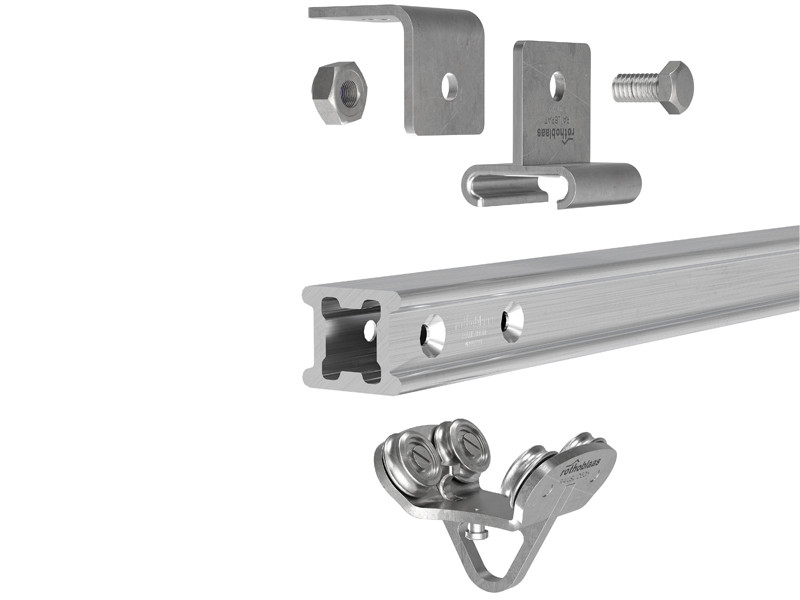

RAIL

CODE description pcs.
RAIL3000 3m aluminium rail 1
RAILC90 90° aluminium bend for rail 1
RAILC120 120° aluminium bend for rail 1
RAILC135 135° aluminium bend for rail 1
RAILC150 150° aluminium bend for rail 1

SUPPORT

CODE description pcs.
RAILBRAT support element for rail 1
RAILBRAT12 M12 plate for RAILBRAT 1
RAILBRATW for fixing on wood 1
RAILBRAS for direct fixing on steel 1
RAILBRAW for direct fixing on wood/concrete 1

TERMINAL ELEMENT

CODE description pcs.
RAILEND rail end-stop without exit 1
RAILENDOPEN rail end-stop with exit 1

JOINT

CODE description pcs.
RAILJUN junction for rails and bends 1

TOOL

CODE description pcs.
RAILJUNTOOL template for rail junction holes 1
RAILPLATE Rail system ID plate 1

FASTENING

CODE description pcs.
RAILOCKSCREW Lock screw 250
RAILSCREW DIN 7991 A2-70 50

TARGAHORxy

CODE description pcs.
TARGAHORIT New Label plate for PATROL and H-RAIL systems IT 1
TARGAHORDE New Label plate for PATROL and H-RAIL systems DE 1
TARGAHOREN New Label plate for PATROL and H-RAIL systems EN 1
TARGAHORES New Label plate for PATROL and H-RAIL systems ES 1
TARGAHORFR New Label plate for PATROL and H-RAIL systems FR 1
TARGAHORPT New Label plate for PATROL and H-RAIL systems PT 1
TARGAHORRU New Label plate for PATROL and H-RAIL systems RU 1
TARGAHORCS New Label plate for PATROL and H-RAIL systems CS 1
TARGAHORDA New Label plate for PATROL and H-RAIL systems DA 1
TARGAHOREL New Label plate for PATROL and H-RAIL systems EL 1
TARGAHORET New Label plate for PATROL and H-RAIL systems ET 1
TARGAHORFI New Label plate for PATROL and H-RAIL systems FI 1
TARGAHORHR New Label plate for PATROL and H-RAIL systems HR 1
TARGAHORHU New Label plate for PATROL and H-RAIL systems HU 1
TARGAHORIS New Label plate for PATROL and H-RAIL systems IS 1
TARGAHORJA New Label plate for PATROL and H-RAIL systems JA 1
TARGAHORLT New Label plate for PATROL and H-RAIL systems LT 1
TARGAHORLV New Label plate for PATROL and H-RAIL systems LV 1
TARGAHORNL New Label plate for PATROL and H-RAIL systems NL 1
TARGAHORNO New Label plate for PATROL and H-RAIL systems NO 1
TARGAHORPL New Label plate for PATROL and H-RAIL systems PL 1
TARGAHORRO New Label plate for PATROL and H-RAIL systems RO 1
TARGAHORSK New Label plate for PATROL and H-RAIL systems SK 1
TARGAHORSL New Label plate for PATROL and H-RAIL systems SL 1
TARGAHORSV New Label plate for PATROL and H-RAIL systems SV 1
TARGAHORTR New Label plate for PATROL and H-RAIL systems TR 1
TARGAHORZH New Label plate for PATROL and H-RAIL systems ZH 1
TARGAHORAR New Label plate for PATROL and H-RAIL systems AR 1
