BITUMINOUS UNDERLAY CONTROL LAYER

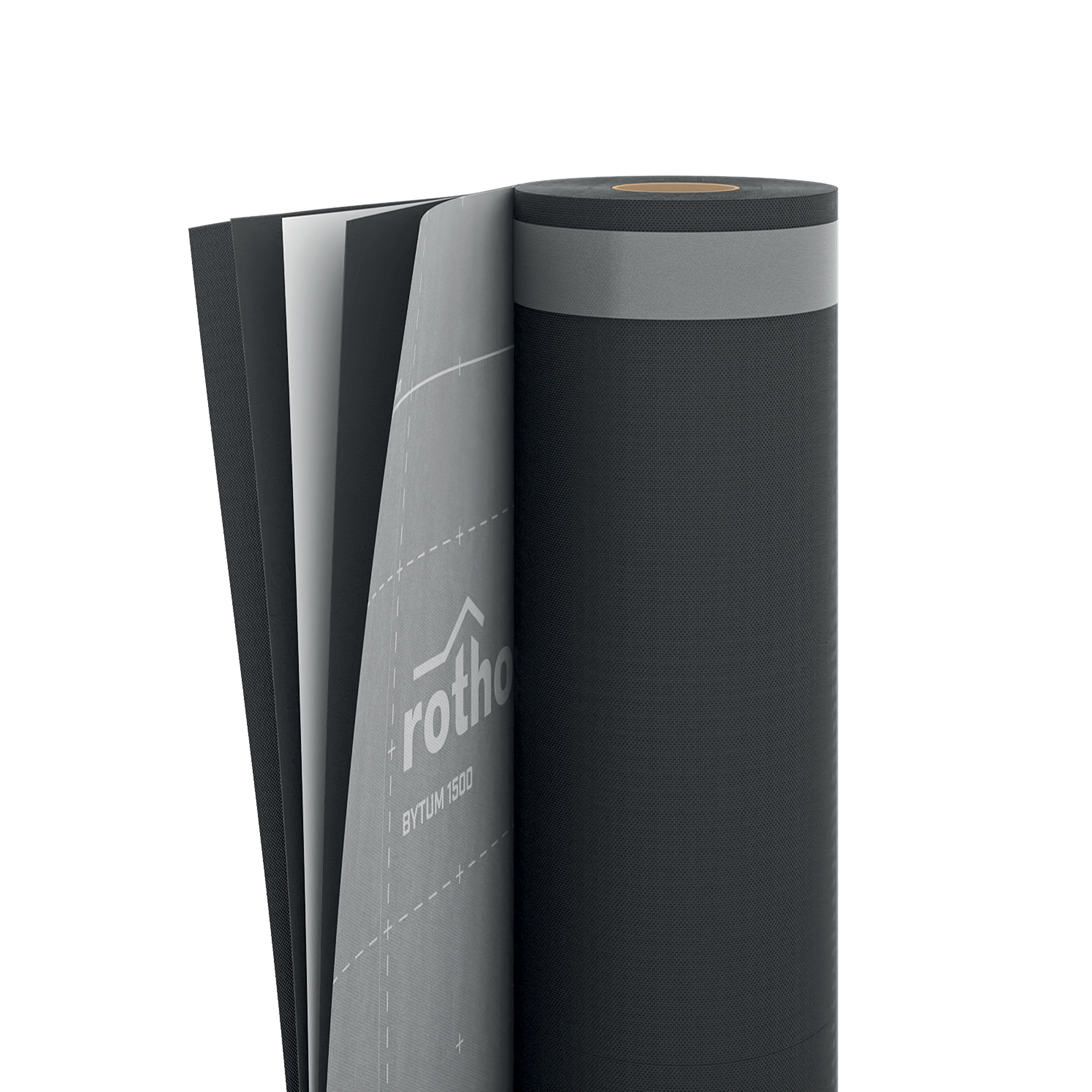

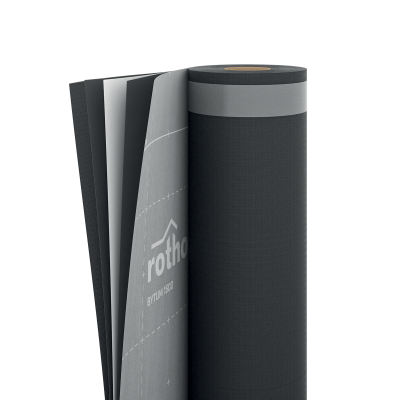

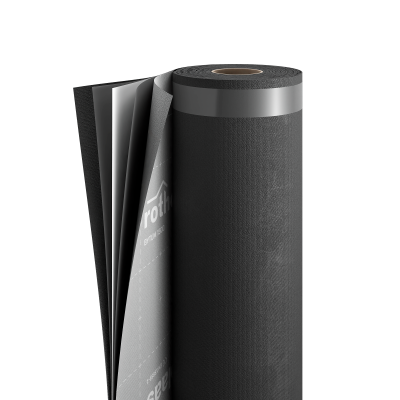

BYTUM 1500

The BYTUM 1500 bituminous underlay control layer guarantees a very high mechanical strength, with consequent durability, thanks to its high mass per unit area. Very strong, in the version with double tape it creates a perfect adhesive joint, ensuring a quick installation and a professional sealing.

BYTUM 1500, the resistant and durable bituminous underlay control layer.

This bituminous underlay control layer must be installed on the outside of the roof. It can also be used as a vapour barrier, especially on uneven surfaces such as concrete floors.

Documents

Technical data sheets
Declaration of performance (DOP) Download
Recommendations for installation

BYTUM 1500

CODE description tape H
[m]
L
[m]
A
[m²]
H
[ft]
L
[ft]
A
[sft]
pcs./pallet
BYT1500 BYTUM 1500 - 1 25 25 3.29 83 270 15
BYTTT1500 BYTUM 1500 TT TT 1 25 25 3.29 83 270 15

Technical Data
EN 13859-1 EN 13707
national-classifications AT Önorm B4119 E-do nsk
national-classifications CH SIA 232 V.v.o. H > 90mm UD (g)
national-classifications DE ZVDH USB-A UDB-A
national-classifications FR DTU 31.2 E1 Sd3 TR2
national-classifications IT UNI 11564 P SR3 A
BITUMEN B A SED

Mass per unit area EN 1849-1 1500 g/m² 4.92 oz/ft²
Thickness EN 1849-2 1,3 mm 51 mil
Water vapour transmission (Sd) EN 1931 120 m 0.029 PERM
MD/CD tensile strength EN 12311-1 600 / 400 N/50mm 69 / 46 lb/in
Elongation MD/CD EN 12311-1 40 / 40 % -
Resistance to nail tearing MD/CD EN 12310-1 220 / 230 N 49 / 52 lbf
Watertightness EN 1928 class W1 -
Thermal resistance - -40 / 100 °C -40 / 212 °F
Reaction to fire EN 13501-1 class E -
Resistance to penetration of air EN 12114 0 m³/(m²·h·50Pa) 0 cfm/ft² at 50Pa
Thermal conductivity (λ) - 0,2 W/(m·K) 1.39 (BTU·in)/(h·ft²·°F)
Specific heat - 175 J/(kg·K) -
Density - ca. 1300 kg/m³ -
Water vapour resistance factor (μ) - ca. 20000 -
UV stability EN 13859-2 3 months -
Exposure to weather - 3 weeks -
After artificial ageing - watertightness EN 1297 / EN 1928 class W1 -
After artificial ageing - maximum tensile force MD/CD EN 1297 / EN 12311-1 500 / 300 N/50mm 57 / 34 lb/in
After artificial ageing - elongation EN 1297 / EN 12311-1 40 / 40 % -
Flexibility at low temperatures EN 1109 -20 / °C -4 / °F

Specifications

Supply and installation of bituminous undertile screen, type BYTUM 1500
CE marking according to : EN 13859-1

Property:

– Mass per unit area : 1500
– Water vapour trasmission (Sd) (m) : 120
– Maximum tensile force MD/CD (N/50mm) : 600/400
– Elongation MD/CD (%) : 40/40
– Resistance to tearing MD/CD (N) : 220/230
– Watertightness (class) : classe W1
– VOC emission (COV) (%(class A+)) : 0
– Temperature resistance (°C) : -40/+100
– Reaction to fire (class) : classe E

Indicazioni di posa per: PARETE

BYTUM 1500 is laid parallel to the dock beam or the floor if laid on a wall. The second layer must be overlapped by at least 15 centimetres. Each layer must be fixed to the substrate with a mechanical fastener. (ex: HAMMER STAPLER, HAND STAPLER o PNEU STAPLER). It is also advisable to overlap the sheets by at least 30 centimetres at the butt joints. In order to achieve correct air and water sealing, we recommend the use of ALU BAND, SEAL BAND, EASY BAND, SPEEDY BAND, SOLID BAND, FLEXY BAND, SMART BAND, PLASTER BAND, DOUBLE BAND, SUPRA BAND, BUTYL BAND, MEMBRANE GLUE, SUPERB GLUE, ECO GLUE, FIRE SEALING, FIRE FOAM, FIRE STRIPE, FRONT BAND UV 232 or in the case of rough surfaces (such as rough OSB) FLEXI BAND, PRIMER SPAY, PRIMER .

Indicazioni di posa per: TETTO

BYTUM 1500 is placed parallel to the eaves line, starting from the lower edge of the roof. The second layer must be overlapped by at least 10-20 centimetres to the previous one (depending on the slope of the roof), as indicated on the layout according to UNI 11470:2013. The sheet must be applied on a continuous support with a mechanical fastening device. (ex: HAMMER STAPLER, HAND STAPLER o PNEU STAPLER). Once at the top of the roof, it is advisable for the membrane to protrude beyond the ridge line by at least 30 centimetres to ensure a perfect overlap with the strips of sheet that will overlap on the other side of the roof. It is also recommended that the sheets overlap by at least 30 cm even at the end joints. To achieve correct air and water sealing, we recommend the use of ALU BAND, SEAL BAND, EASY BAND, SPEEDY BAND, SOLID BAND, FLEXY BAND, SMART BAND, PLASTER BAND, DOUBLE BAND, SUPRA BAND, BUTYL BAND, MEMBRANE GLUE, SUPERB GLUE, ECO GLUE, FIRE SEALING, FIRE FOAM, FIRE STRIPE, FRONT BAND UV 232.If there is an integrated double adhesive strip, it can replace the correct air and water sealing.

Composition

top layer non-woven PP fabric
compound bituminous mixture
REINFORCING LAYER PL fabric
compound bituminous mixture
bottom layer non-woven PP fabric
