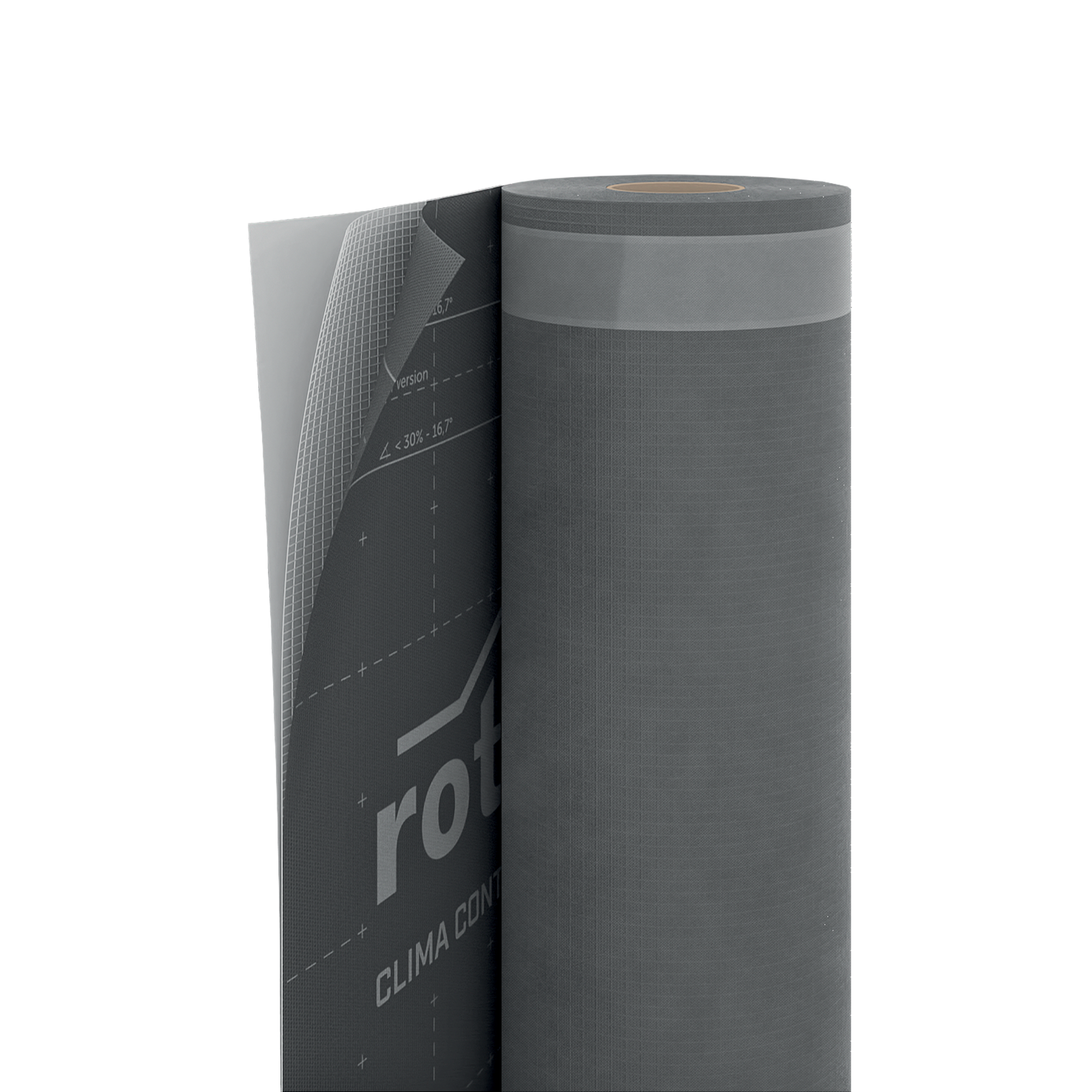

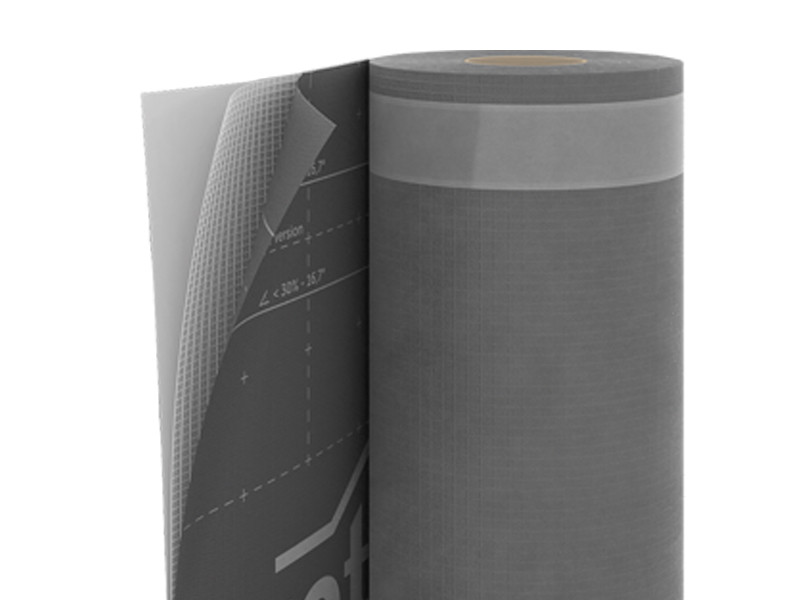

MEMBRANE WITH VARIABLE VAPOUR DIFFUSION AND REINFORCEMENT GRID
CLIMA CONTROL NET 160
CLIMA CONTROL NET 160 is the membrane with variable vapour diffusion that protects from weather and is breathable when internal relative humidity is too high, and serves as a vapour control membrane when internal humidity is at suitable levels. It is the ideal membrane to increase energy performance for packages and solutions for reconditioning of existing structures.
CLIMA CONTROL NET 160: breathable membrane and vapour barrier in a single solution.
Thanks to its special composition and reinforcing grid, the CLIMA CONTROL NET 160 membrane is not affected by mechanical stresses caused by staples, nails or wear caused by walking.
The special PA film gives the product the ability to adapt to the hygrometric conditions of the building. If the membrane comes into contact with high humidity levels, it transforms from a vapour control layer into a breathable product, guaranteeing that the structure remains dry.
It is one of the products for which the EPD and LCA environmental declarations have been developed.
Documents
| Technical data sheets | |
|---|---|
| Declaration of performance (DOP) | Download |
| Xml-File WUFI | |
| Recommendations for installation | |
| Environmental Product Declaration (EPD) | |
| Test Report |
CLIMA CONTROL NET 160
| CODE | description | tape | H
[m]
|
L
[m]
|
A
[m²]
|
H
[ft]
|
L
[ft]
|
A
[sft]
|
pcs./pallet |
|---|---|---|---|---|---|---|---|---|---|
| CLIMATT160 | CLIMA CONTROL NET 160 TT | TT | 1.5 | 50 | 75 | 4' 11'' | 164 | 807 | 25 |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Mass per unit area | EN 1849-2 | 160 g/m² | 0.52 oz/ft² |
| Thickness | EN 1849-2 | 0,5 mm | 20 mil |
| Variable water vapour transmission (Sd) | EN 12572 | 0,5 / 5 m | 6.993 / 0.699 PERM |
| Water vapour transmission (dry cup) | ASTM E96/ E96M | 2.68 PERM | - |
| Water vapour transmission (dry cup) | ASTM E96/ E96M | 153 ng/(s·m²·Pa) | - |
| Water vapour transmission (wet cup) | ASTM E96/ E96M | 7.91 PERM | - |
| Water vapour transmission (wet cup) | ASTM E96/ E96M | 452 ng/(s·m²·Pa) | - |
| Tensile strength MD/CD | EN 12311-2 | 400 / 270 N/50mm | 46 / 31 lb/in |
| Elongation MD/CD | EN 12311-2 | 20 / 20 % | - |
| Resistance to nail tearing MD/CD | EN 12310-1 | 240 / 250 N | 54 / 56 lbf |
| Watertightness | EN 1928 | conforming | - |
| Thermal resistance | - | -40 / 80 °C | -40 / 176 °F |
| Reaction to fire | EN 13501-1 | class E | - |
| Resistance to penetration of air | EN 12114 | 0 m³/(m²·h·50Pa) | 0 cfm/ft² at 50Pa |
| Water vapour resistance - after artificial ageing | EN 1296 / EN 1931 | conforming | - |
| Water vapour resistance - in the presence of alkalis | EN 1847 / EN 12311-2 | npd | - |
| Thermal conductivity (λ) | - | 0,3 W/(m·K) | 2.08 (BTU·in)/(h·ft²·°F) |
| Specific heat | - | 1800 J/(kg·K) | - |
| Density | - | ca. 320 kg/m³ | - |
| Variable water vapour resistance factor (μ) | - | ca. 1000 / 10000 | - |
| VOC content | - | 0 % | - |
| UV stability | EN 13859-2 | 3 months | - |
| Exposure to weather | - | 4 weeks | - |
| Water column | ISO 811 | > 250 cm | > 98.4252 in |
Specifications
Supply and installation of variable diffusion membrane with reinforcement mesh, type CLIMA CONTROL NET 160
CE marking according to : EN 13984
Property:
– Mass per unit area : 160
– Water vapour trasmission (Sd) (m) : 0,5/5
– Maximum tensile force MD/CD (N/50mm) : 400/270
– Elongation MD/CD (%) : 20/20
– Resistance to tearing MD/CD (N) : 240/250
– Watertightness (class) : conforme
– VOC emission (COV) (%(class A+)) : 0
– Temperature resistance (°C) : -40/+80
– Reaction to fire (class) : classe E
Indicazioni di posa per: PARETE
CLIMA CONTROL NET 160 is laid parallel to the dock beam or the floor if laid on a wall. The second layer must be overlapped by at least 15 centimetres. Each layer must be fixed to the substrate with a mechanical fastener. (ex: HAMMER STAPLER, HAND STAPLER o PNEU STAPLER). It is also advisable to overlap the sheets by at least 30 centimetres at the butt joints. In order to achieve correct air and water sealing, we recommend the use of ALU BAND, SEAL BAND, EASY BAND, SPEEDY BAND, SOLID BAND, FLEXY BAND, SMART BAND, PLASTER BAND, DOUBLE BAND, SUPRA BAND, BUTYL BAND, MEMBRANE GLUE, SUPERB GLUE, ECO GLUE, FIRE SEALING, FIRE FOAM, FIRE STRIPE, FRONT BAND UV 224 or in the case of rough surfaces (such as rough OSB) FLEXI BAND, PRIMER SPAY, PRIMER .
Indicazioni di posa per: TETTO

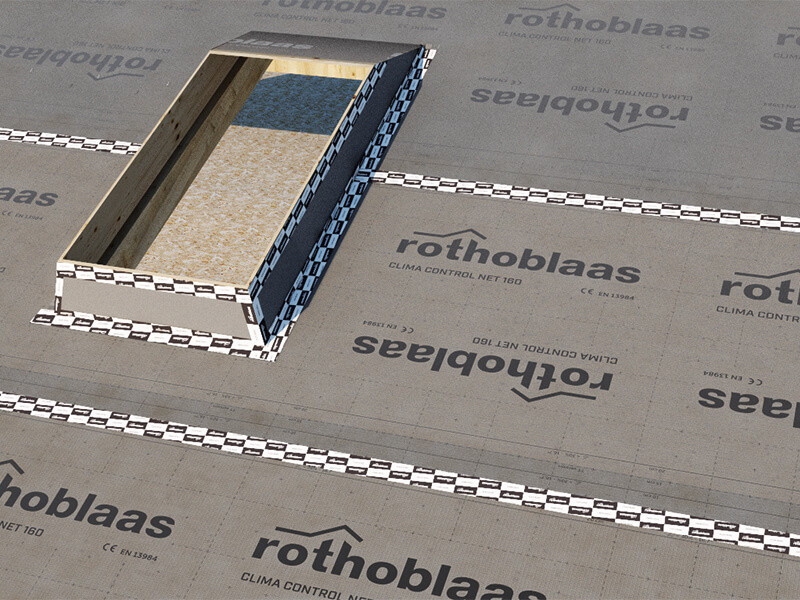

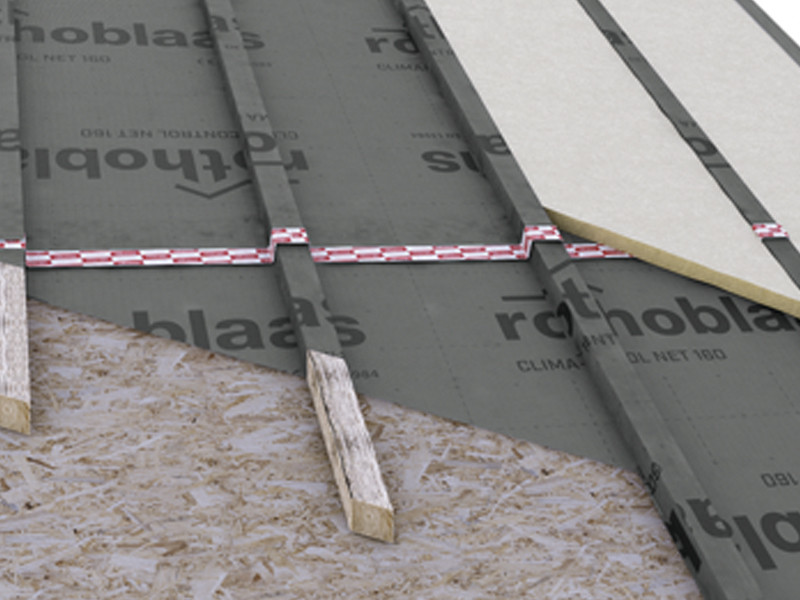

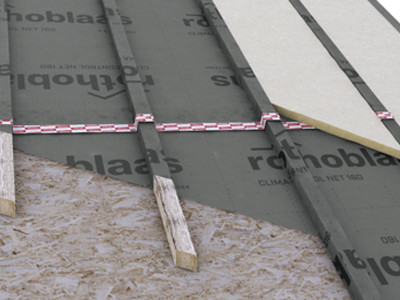

CLIMA CONTROL NET 160 is placed parallel to the eaves line, starting from the lower edge of the roof. The second layer must be overlapped by at least 10-20 centimetres to the previous one (depending on the slope of the roof), as indicated on the layout according to UNI 11470:2013. The sheet must be applied on a continuous support with a mechanical fastening device. (ex: HAMMER STAPLER, HAND STAPLER o PNEU STAPLER). Once at the top of the roof, it is advisable for the membrane to protrude beyond the ridge line by at least 30 centimetres to ensure a perfect overlap with the strips of sheet that will overlap on the other side of the roof. It is also recommended that the sheets overlap by at least 30 cm even at the end joints. To achieve correct air and water sealing, we recommend the use of ALU BAND, SEAL BAND, EASY BAND, SPEEDY BAND, SOLID BAND, FLEXY BAND, SMART BAND, PLASTER BAND, DOUBLE BAND, SUPRA BAND, BUTYL BAND, MEMBRANE GLUE, SUPERB GLUE, ECO GLUE, FIRE SEALING, FIRE FOAM, FIRE STRIPE, FRONT BAND UV 224.If there is an integrated double adhesive strip, it can replace the correct air and water sealing.
Composition
| top layer | non-woven PP fabric |
|---|---|
| REINFORCING LAYER | PE reinforcing grid |
| middle layer | PA functional film |
| bottom layer | non-woven PP fabric |
