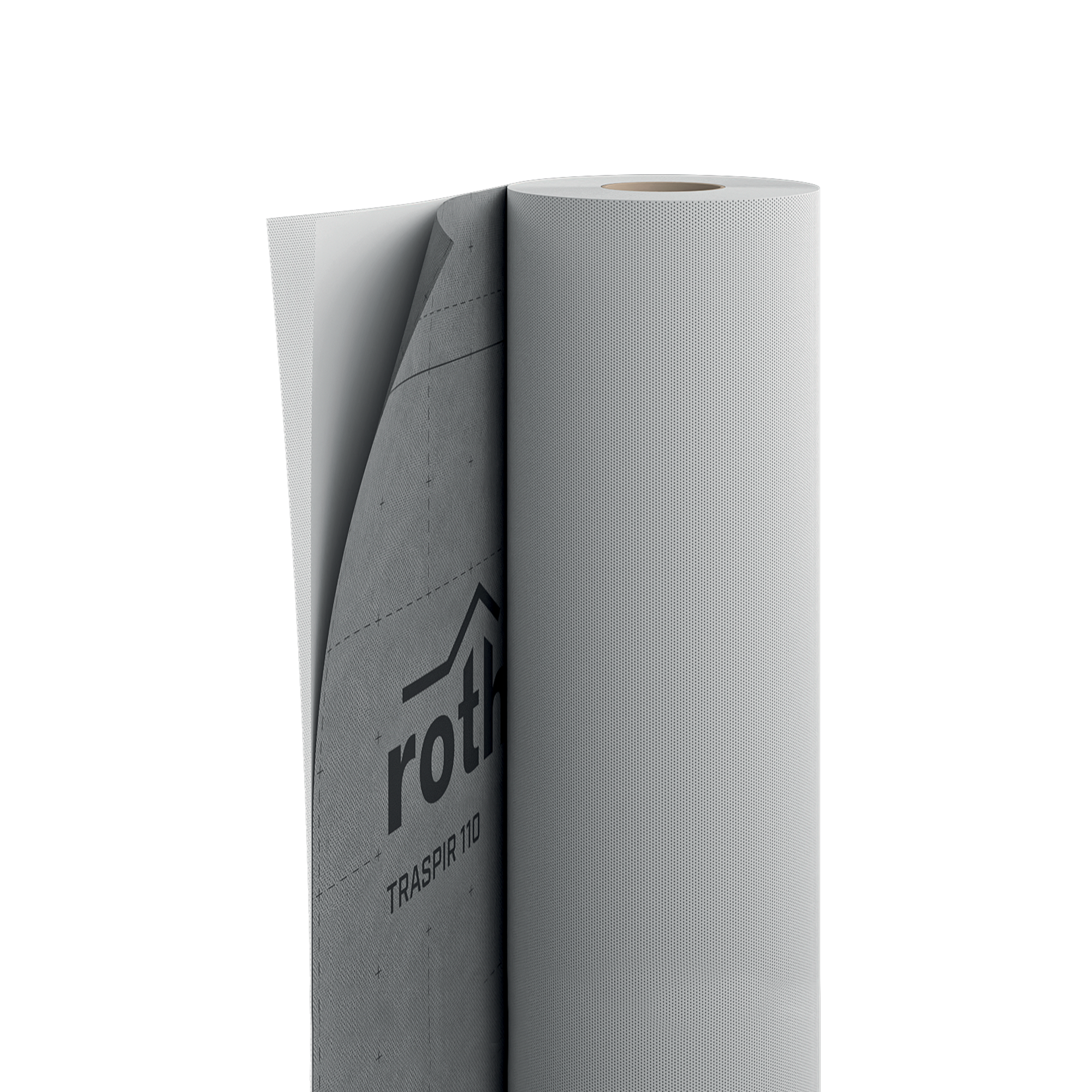

HIGHLY BREATHABLE MEMBRANE
TRASPIR 110
The highly breathable membrane TRASPIR 110 is designed to optimise wind tightness by limiting the unconditional passage of air to protect the structure from the entry of cold draughts in winter or hot draughts in summer.
Certified by SINTEF for enhanced quality assurance and by the French CSTB in class R1, it consists of a microporous film and polypropylene protective layers. TRASPIR 110 can be applied to both the external and internal sides of walls and roofs. It is also available in a 3-metre version for even faster installation times. TRASPIR 110, the highly breathable, strong and lightweight membrane for roof and wall installation
Documents
| Technical data sheets | |
|---|---|
| Declaration of performance (DOP) | Download |
| Xml-File WUFI | |
| Recommendations for installation | |
| Environmental Product Declaration (EPD) |
TRASPIR 110
| CODE | description | tape | H
[m]
|
L
[m]
|
A
[m²]
|
H
[ft]
|
L
[ft]
|
A
[sft]
|
pcs./pallet |
|---|---|---|---|---|---|---|---|---|---|
| T110 | TRASPIR 110 | - | 1.5 | 50 | 75 | 4' 11'' | 164 | 807 | 36 |
| T11030 | TRASPIR 110 3m | - | 3 | 50 | 150 | 9' 10 1/8'' | 164 | 1615 | 36 |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Mass per unit area | EN 1849-2 | 112 g/m² | 0.37 oz/ft² |
| Thickness | EN 1849-2 | 0,4 mm | 16 mil |
| Water vapour transmission (Sd) | EN 1931 | 0,03 m | 116.55 PERM |
| Water vapour transmission (dry cup) | ASTM E96/ E96M | 101 PERM | - |
| Water vapour transmission (dry cup) | ASTM E96/ E96M | 5810 ng/(s·m²·Pa) | - |
| Tensile strength MD/CD | EN 12311-1 | 250 / 165 N/50mm | 29 / 19 lb/in |
| Elongation MD/CD | EN 12311-1 | 50 / 70 % | - |
| Resistance to nail tearing MD/CD | EN 12310-1 | 115 / 135 N | 26 / 30 lbf |
| Watertightness | EN 1928 | class W1 | - |
| Thermal resistance | - | -40 / 80 °C | -40 / 176 °F |
| Reaction to fire | EN 13501-1 | class E | - |
| Resistance to penetration of air | EN 12114 | < 0,02 m³/(m²·h·50Pa) | < 0.001 cfm/ft² at 50Pa |
| Thermal conductivity (λ) | - | 0,3 W/(m·K) | 2.08 (BTU·in)/(h·ft²·°F) |
| Specific heat | - | 1800 J/(kg·K) | - |
| Density | - | ca. 264 kg/m³ | - |
| Water vapour resistance factor (μ) | - | ca. 50 | - |
| VOC content | - | 0 % | - |
| UV stability | EN 13859-2 | 3 months | - |
| Exposure to weather | - | 2 weeks | - |
| Water column | ISO 811 | > 280 cm | > 110.236224 in |
| After artificial ageing - watertightness | EN 1297 / EN 1928 | class W1 | - |
| After artificial ageing - maximum tensile force MD/CD | EN 1297 / EN 12311-1 | 220 / 145 N/50mm | 25 / 17 lb/in |
| After artificial ageing - elongation | EN 1297 / EN 12311-1 | 40 / 60 % | - |
| Flexibility at low temperatures | EN 1109 | -30 / °C | -22 / °F |
| Driving rain test | TU Berlin | - | - |
| Water penetration resistance of exterior walls at 300Pa | ASTM E331 | passed | - |
| Air barrier (before and after ageing) | CAN/ULC-S741 | conforming | - |
| Air barrier | ASTM E2178 | passed | - |
Specifications
Supply and installation of highly breathable membrane, type TRASPIR 110
CE marking according to : EN 13859-1/2
Property:
– Mass per unit area : 112
– Water vapour trasmission (Sd) (m) : 0,03
– Maximum tensile force MD/CD (N/50mm) : 250/165
– Elongation MD/CD (%) : 50/70
– Resistance to tearing MD/CD (N) : 115/135
– Watertightness (class) : classe W1
– VOC emission (COV) (%(class A+)) : 0
– Temperature resistance (°C) : -40/+80
– Reaction to fire (class) : classe E
Indicazioni di posa per: PARETE

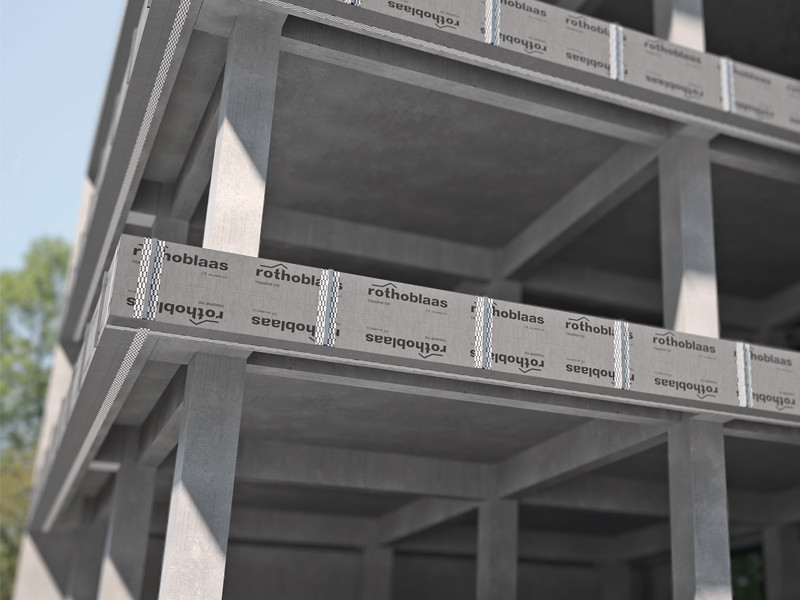

TRASPIR 110 is laid parallel to the dock beam or the floor if laid on a wall. The second layer must be overlapped by at least 15 centimetres. Each layer must be fixed to the substrate with a mechanical fastener. (ex: HAMMER STAPLER, HAND STAPLER o PNEU STAPLER). It is also advisable to overlap the sheets by at least 30 centimetres at the butt joints. In order to achieve correct air and water sealing, we recommend the use of EASY BAND, SPEEDY BAND, FLEXI BAND, FLEXI BAND UV, SOLID BAND, PLASTER BAND, SMART BAND, FACADE BAND UV, FRONT BAND UV, FRONT BAND UV 210, DOUBLE BAND, SUPRA BAND, BUTYL BAND, OUTSIDE GLUE, FIRE SEALING, FIRE STRIPE or in the case of rough surfaces (such as rough OSB) FLEXI BAND, PRIMER SPAY, PRIMER .
Indicazioni di posa per: TETTO
TRASPIR 110 is placed parallel to the eaves line, starting from the lower edge of the roof. The second layer must be overlapped by at least 10-20 centimetres to the previous one (depending on the slope of the roof), as indicated on the layout according to UNI 11470:2013. The sheet must be applied on a continuous support with a mechanical fastening device. (ex: HAMMER STAPLER, HAND STAPLER o PNEU STAPLER). Once at the top of the roof, it is advisable for the membrane to protrude beyond the ridge line by at least 30 centimetres to ensure a perfect overlap with the strips of sheet that will overlap on the other side of the roof. It is also recommended that the sheets overlap by at least 30 cm even at the end joints. To achieve correct air and water sealing, we recommend the use of EASY BAND, SPEEDY BAND, FLEXI BAND, FLEXI BAND UV, SOLID BAND, PLASTER BAND, SMART BAND, FACADE BAND UV, FRONT BAND UV, FRONT BAND UV 210, DOUBLE BAND, SUPRA BAND, BUTYL BAND, OUTSIDE GLUE, FIRE SEALING, FIRE STRIPE.If there is an integrated double adhesive strip, it can replace the correct air and water sealing.
Composition
| TOP LAYER | non-woven PP fabric |
|---|---|
| middle layer | PP breathable film |
| BOTTOM LAYER | non-woven PP fabric |
