TRASPIR EVO 135
MONOLITHIC BREATHABLE MEMBRANE
The monolithic structure of the membrane guarantees excellent durability over time, thanks to the special polymers used.

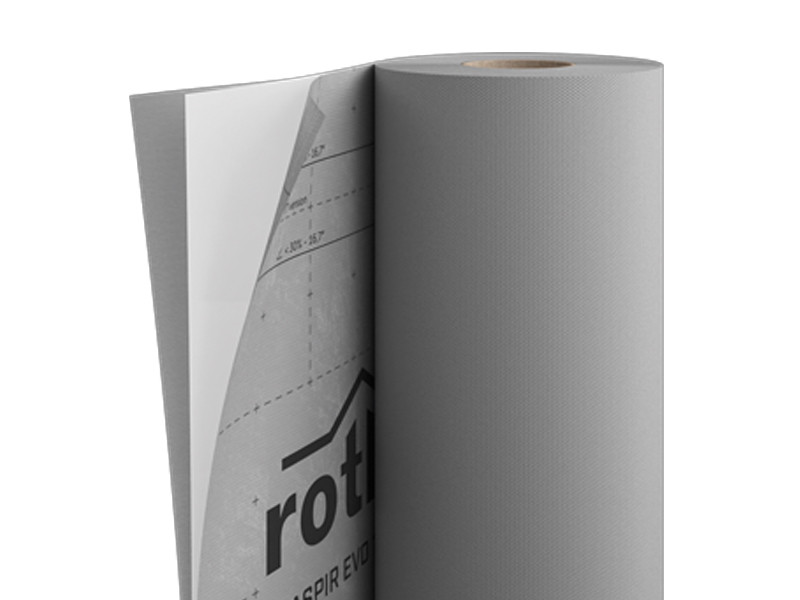

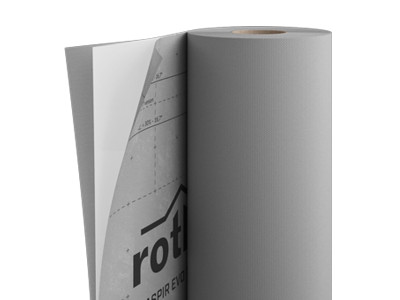

The TT version offers fast installation and professional sealing thanks to the integrated double tape.
High protection against heavy rain during temporary exposure to weather during construction
TRASPIR EVO 135
| CODE | description | tape | H
[m]
|
L
[m]
|
A
[m²]
|
H
[ft]
|
L
[ft]
|
A
[sft]
|
pcs./pallet |
|---|---|---|---|---|---|---|---|---|---|
| TEVO135 | TRASPIR EVO 135 | - | 1.5 | 50 | 75 | 4' 11'' | 164 | 807 | 30 |
| TTTEVO135 | TRASPIR EVO 135 TT | TT | 1.5 | 50 | 75 | 4' 11'' | 164 | 807 | 30 |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Mass per unit area | EN 1849-2 | 135 g/m² | 0.44 oz/ft² |
| Thickness | EN 1849-2 | 0,45 mm | 18 mil |
| Water vapour transmission (Sd) | EN 1931 | 0,1 m | 34.965 US perm |
| Tensile strength MD/CD | EN 12311-1 | 200 / 160 N/50mm | 23 / 18 lbf/in |
| Elongation MD/CD | EN 12311-1 | 90 / 90 % | - |
| Resistance to nail tearing MD/CD | EN 12310-1 | 160 / 190 N | 36 / 43 lbf |
| Watertightness | EN 1928 | class W1 | - |
| Resistance to temperature | - | -40 / 100 °C | -40 / 212 °F |
| Reaction to fire | EN 13501-1 | class E | - |
| Resistance to penetration of air | EN 12114 | < 0,02 m³/(m²·h·50Pa) | < 0.001 cfm/ft² at 50Pa |
| Thermal conductivity (λ) | - | 0,3 W/(m·K) | 0.17 BTU/(h·ft·°F) |
| Specific heat | - | 1800 J/(kg·K) | - |
| Density | - | ca. 300 kg/m³ | - |
| Water vapour resistance factor (μ) | - | ca. 220 | - |
| Watertightness at 100°C after artificial ageing | EN 1297 / EN 1928 | class W1 | - |
| After artificial ageing - Tensile strength MD/CD | EN 1297 / EN 12311-1 | 160 / 130 N/50mm | 18 / 15 lb/in |
| After artificial ageing - elongation | EN 1297 / EN 12311-1 | 60 / 60 % | - |
| VOC | - | not relevant | - |
Composition
| TOP LAYER | non-woven PP fabric |
|---|---|
| middle layer | - |
| BOTTOM LAYER | non-woven PP fabric |
Specifications
TRASPIR EVO 135
Supply and installation of monolithic breathable membrane, like TRASPIR EVO 135.
Composition
From top layer to bottom layer:
non-woven PP fabric;
breathable monolithic film;
non-woven PP fabric.
Properties
Mass per unit area [g/m²]: 135
Thickness [mm]: 0,45
Water vapour transmission (Sd)[m]: 0,1
Tensile strength MD/CD [N/50 mm]: 200/160
Elongation MD/CD [%]: 90/90
Resistance to nail tearing MD/CD [N]: 160/190
Watertightness: W1 (EN 1928)
Reaction to fire: E (EN 13501-1)
Resistance to temperature [C°]: -40/100
UV stability: 1000h (8 months)
VOC: not applicable
Standards and certifications
CE marked in accordance with EN13859-1/2
AUS 4200.1 Class 4
Description
The application surface must be dry, free of dust and grease. Surface elements must be removed so that the membrane is not damaged during application.

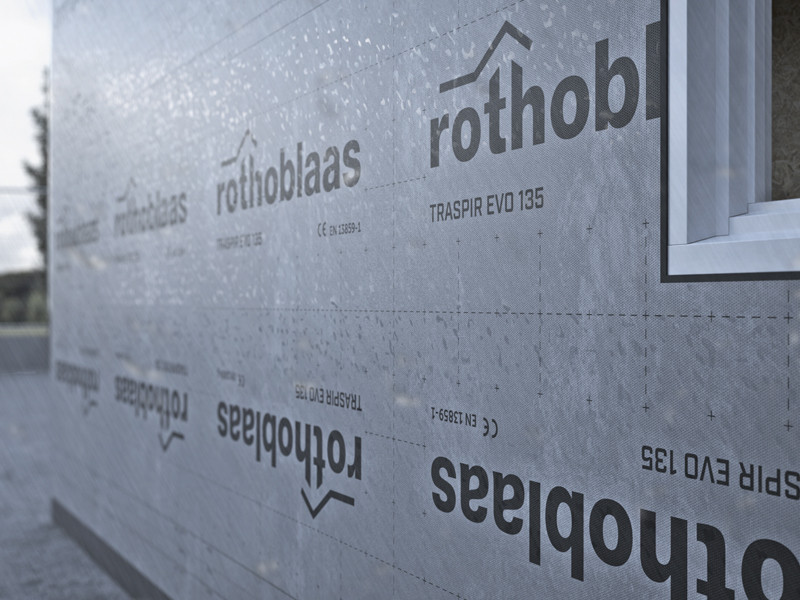

Recommended use: direct UV protection is guaranteed. Installation is therefore permitted on both the internal and external sides of the building envelope.

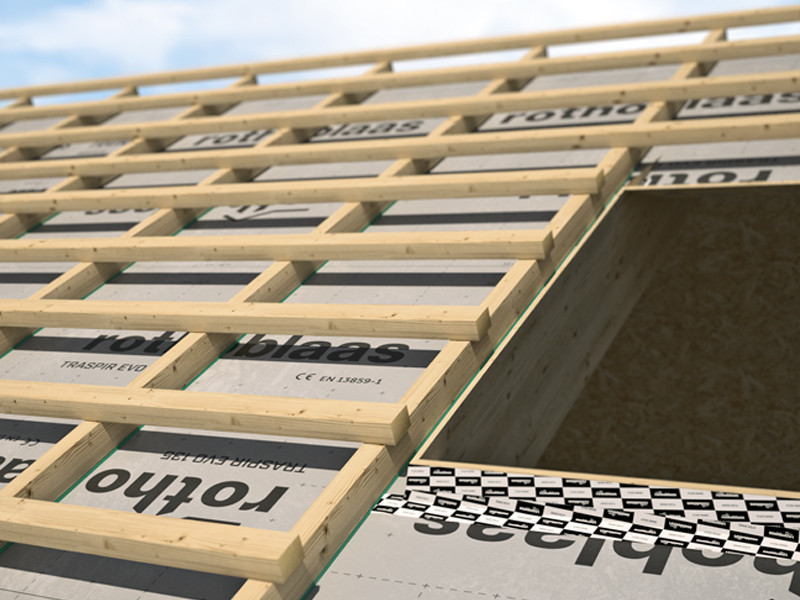

Installation: Unroll the membrane. If the version without double-sided adhesive strips is used, sealing must be carried out using tape such as: FLEXY BAND, FLEXY BAND UV, SPEEDY BAND, or EASY BAND.
Ensure that the overlap between the membranes is at least 15 cm to achieve an optimal seal.
To ensure correct and professional installation, the use of a nail sealing point is required.
Further details regarding installation can be found in the specific instructions provided by the supplier.
