HIGHLY BREATHABLE MONOLITHIC MEMBRANE RESISTANT TO UV RAYS

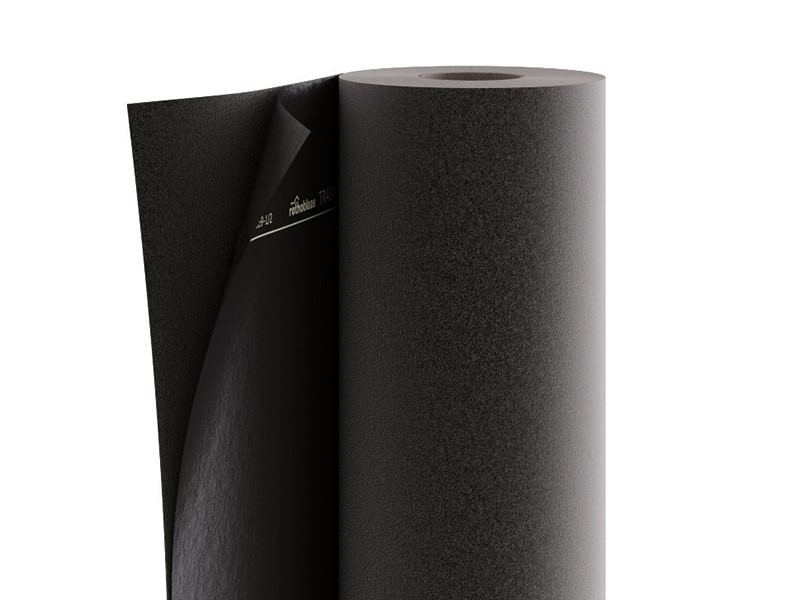

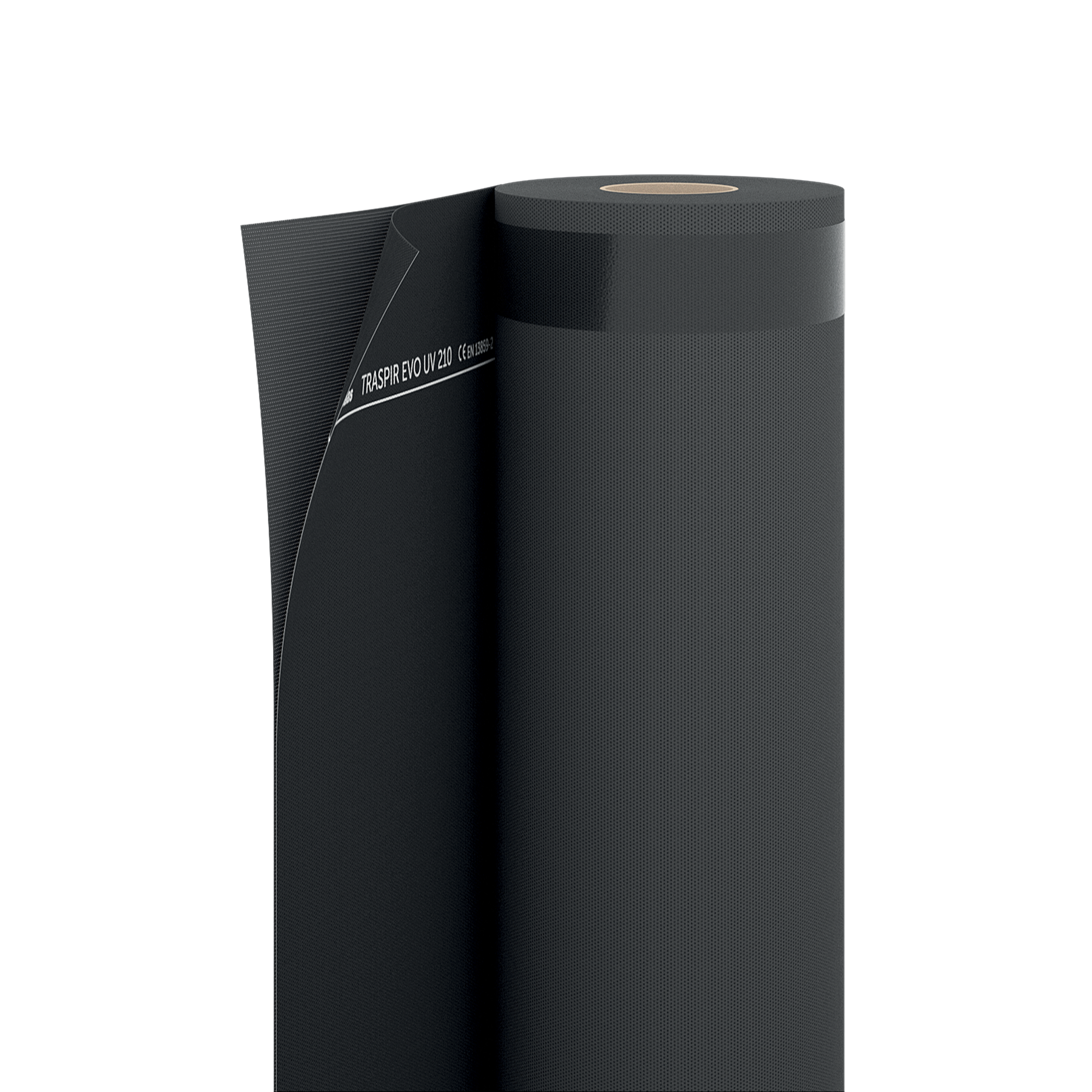

TRASPIR EVO UV 210

TRASPIR EVO UV 210 is the highly breathable monolithic membrane characterized by exceptional UV resistance and excellent flame retardant properties. It consists of a monolithic film in acrylic compound coated on a polyester reinforcement and is designed for application on the external side of walls.

Videos

**TRASPIR EVO UV 210: WATERPROOFING, UV STABILITY AND REACTION TO FIRE CAPACITY **

Thanks to the acrylate coated surface, the monolithic structure ensures excellent durability. Flame retardant certification, Euroclass reaction to fire B-s1, d0 based on EN 13501-1. With open joints exposure with a width up to 50 mm and a maximum of 40% uncovered area, TRASPIR EVO UV 210 membrane guarantees permanent UV stability. The aesthetic appearance is excellent: thanks to the mass per unit area and the polyacrylate mix, the membrane guarantees high thermal and dimensional stability, features that prevent the formation of swelling during installation.

The integrated double tape ensures a perfect seal; the final appearance is guaranteed by the use of FRONT BAND UV 210, made with the same support, to finish in with the membrane.

Documents

Technical data sheets
Declaration of performance (DOP) Download
Item specification
Xml-File WUFI
Recommendations for installation
Environmental Product Declaration (EPD)

TRASPIR EVO UV 210

CODE description tape H
[m]
L
[m]
A
[m²]
H
[ft]
L
[ft]
A
[sft]
pcs./pallet
TTTUV210 TRASPIR EVO UV 210 TT TT 1.5 50 75 4' 11'' 164 807 24

Technical Data
EN 13859-2
A S TM
L C A L C A
EPD EPD EP D
national-classifications FR DTU 31.2 E600 J0 C3
national-classifications IT UNI 11470 A/R1
EN 13501-1 B,s1-d0

Property Standard Tested Values USC Conversion
Mass per unit area EN 1849-2 210 g/m² 0.69 oz/ft²
Thickness EN 1849-2 0,3 mm 12 mil
Water vapour transmission (Sd) EN 1931 0,04 m 87.413 PERM
Water vapour transmission (dry cup) ASTM E96/ E96M 41.7 PERM -
Water vapour transmission (dry cup) ASTM E96/ E96M 2380 ng/(s·m²·Pa) -
Tensile strength MD/CD EN 12311-1 300 / 200 N/50mm 34 / 23 lb/in
Elongation MD/CD EN 12311-1 25 / 25 % -
Resistance to nail tearing MD/CD EN 12310-1 120 / 120 N 27 / 27 lbf
Watertightness EN 1928 class W1 -
Thermal resistance - -40 / 120 °C -40 / 248 °F
Reaction to fire EN 13501-1 class B-s1,d0 -
Resistance to penetration of air EN 12114 < 0,03 m³/(m²·h·50Pa) < 0.002 cfm/ft² at 50Pa
Thermal conductivity (λ) - 0,3 W/(m·K) 2.08 (BTU·in)/(h·ft²·°F)
Specific heat - 1800 J/(kg·K) -
Density - ca. 600 kg/m³ -
Water vapour resistance factor (μ) - ca. 130 -
VOC content - 0 % -
UV resistance without final coating EN 13859-2 6 months -
UV stability with joints up to 50 mm wide exposing no more than 40% of the surface EN 13859-2 permanent -
Weathering without final cladding - 10 weeks -
Water column ISO 811 100 cm 39.37008 in
After artificial ageing - watertightness EN 1297 / EN 1928 class W1 -
After artificial ageing - maximum tensile force MD/CD EN 1297 / EN 12311-1 290 / 190 N/50mm 33 / 22 lb/in
After artificial ageing - elongation EN 1297 / EN 12311-1 20 / 20 % -
Flexibility at low temperatures EN 1109 -40 / °C -40 / °F

Specifications

Supply and installation of highly breathable monolithic UV-resistant membrane, type TRASPIR EVO UV 210
CE marking according to : EN 13859-2

Property:

–Mass per unit area : 210
–Water vapour trasmission (Sd) (m) : 0,04
–Maximum tensile force MD/CD (N/50mm) : 300/200
–Elongation MD/CD (%) : 25/25
–Resistance to tearing MD/CD (N) : 120/120
–Watertightness (class) : classe W1
–VOC emission (COV) (%(class A+)) : 0
–Temperature resistance (°C) : -40/+100
–Reaction to fire (class) : B-s1, d0

Indicazioni di posa per: TETTO

TRASPIR EVO UV 210 is placed parallel to the eaves line, starting from the lower edge of the roof. The second layer must be overlapped by at least 10-20 centimetres to the previous one (depending on the slope of the roof), as indicated on the layout according to UNI 11470:2013. The sheet must be applied on a continuous support with a mechanical fastening device. (ex: HAMMER STAPLER, HAND STAPLER o PNEU STAPLER). Once at the top of the roof, it is advisable for the membrane to protrude beyond the ridge line by at least 30 centimetres to ensure a perfect overlap with the strips of sheet that will overlap on the other side of the roof. It is also recommended that the sheets overlap by at least 30 cm even at the end joints. To achieve correct air and water sealing, we recommend the use of EASY BAND, SPEEDY BAND, FLEXI BAND, FLEXI BAND UV, SOLID BAND, PLASTER BAND, SMART BAND, FACADE BAND UV, FRONT BAND UV, FRONT BAND UV 210, DOUBLE BAND, SUPRA BAND, BUTYL BAND, OUTSIDE GLUE, FIRE SEALING, FIRE STRIPE.If there is an integrated double adhesive strip, it can replace the correct air and water sealing.

Indicazioni di posa per: PARETE

TRASPIR EVO UV 210 is laid parallel to the dock beam or the floor if laid on a wall. The second layer must be overlapped by at least 15 centimetres. Each layer must be fixed to the substrate with a mechanical fastener. (ex: HAMMER STAPLER, HAND STAPLER o PNEU STAPLER). It is also advisable to overlap the sheets by at least 30 centimetres at the butt joints. In order to achieve correct air and water sealing, we recommend the use of EASY BAND, SPEEDY BAND, FLEXI BAND, FLEXI BAND UV, SOLID BAND, PLASTER BAND, SMART BAND, FACADE BAND UV, FRONT BAND UV, FRONT BAND UV 210, DOUBLE BAND, SUPRA BAND, BUTYL BAND, OUTSIDE GLUE, FIRE SEALING, FIRE STRIPE or in the case of rough surfaces (such as rough OSB) Insert TRADUCTION from IT FLEXI BAND, PRIMER SPAY, PRIMER .

Composition

top layer breathable monolithic film
REINFORCING LAYER PL fabric
