VAPOUR CONTROL MEMBRANE WITH REINFORCING GRID

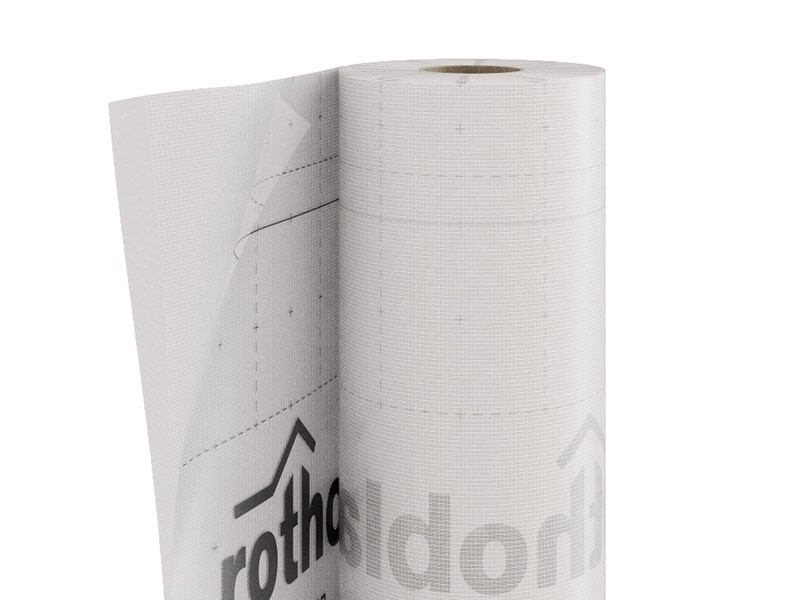

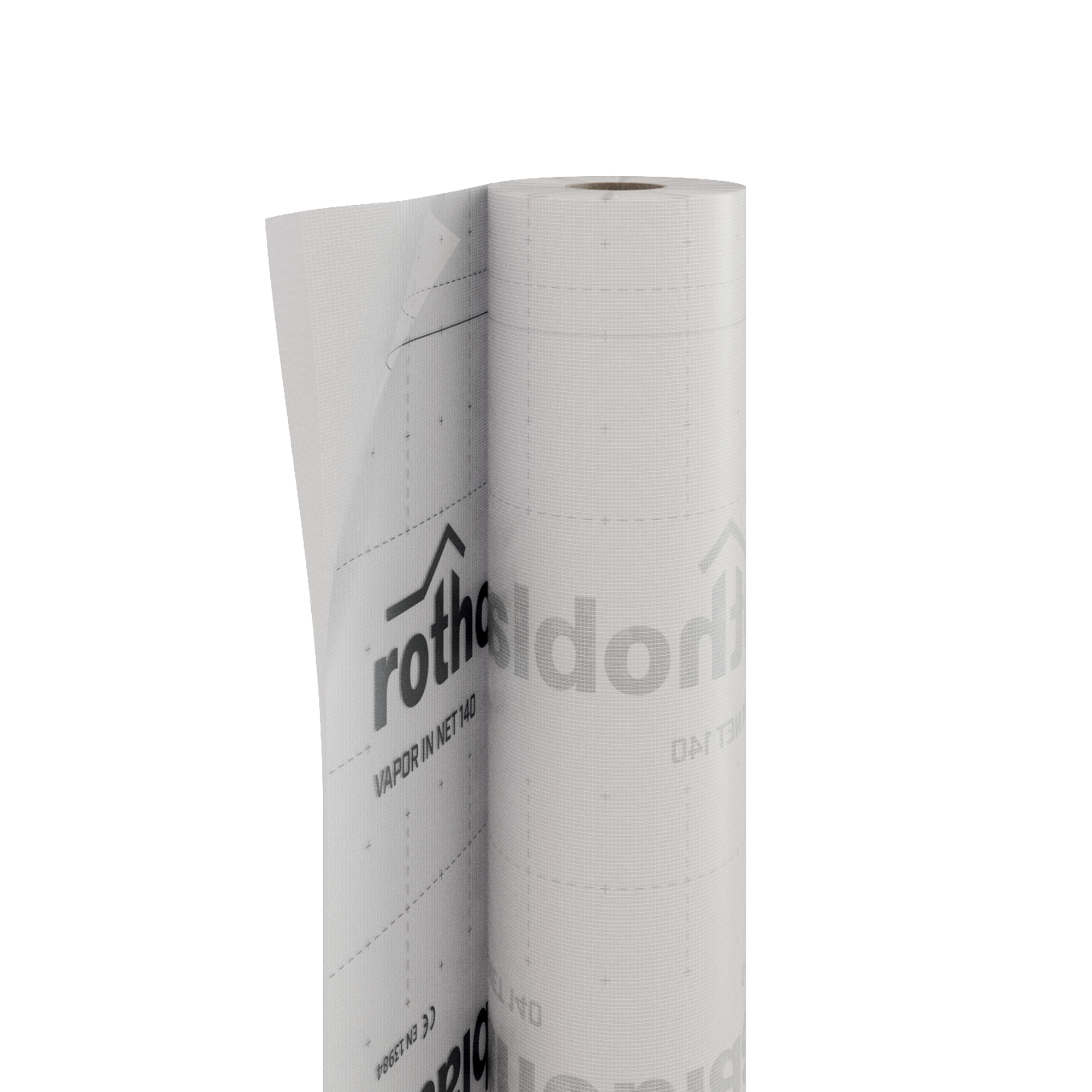

VAPOR IN NET 140

The VAPOR IN NET 140 vapour control membrane for controlling the passage of water vapour in timber structures and houses is the reinforced version of the VAPOR IN 120 membrane, the best seller in our range. It has the same functional film and the same non-woven fabric with the addition of a polypropylene reinforcing grid inside that increases its mechanical performance. It is ideal for frame systems.

VAPOR IN NET 140 vapour control membrane: perfect airtightness and great strength.

The VAPOR IN NET 140 vapour control membrane regulates the passage of moisture into the timber structure, preventing the formation of interstitial condensation within the insulation package and increasing the durability of the structure. VAPOR IN NET 140 is designed for indoor application.

The reinforcing grid offers great strength even in the event of pressure caused by the insulating material being blown, the installation of which gives rise to mechanical tensions that the reinforcement can compensate for, guaranteeing safe installation at all times. It is semi-transparent to simplify installation.

It is one of the products for which the EPD and LCA environmental declarations have been developed.

Documents

Technical data sheets
Declaration of performance (DOP) Download
Recommendations for installation
Environmental Product Declaration (EPD) Download

VAPOR IN NET 140

CODE description tape H
[m]
L
[m]
A
[m²]
H
[ft]
L
[ft]
A
[sft]
pcs./pallet
VV140 - - 1.5 50 75 5 164 807 35

Technical Data
EN 13984
L C A L C A
EPD EPD EP D
national-classifications AT Önorm B3667 DB
national-classifications CH SIA 232 V.v.u.
national-classifications DE ZVDH Dh
national-classifications FR DTU 31.2 pare-vapeur
national-classifications IT UNI 11470 C/R2

Mass per unit area EN 1849-2 140 g/m² 0.46 oz/ft²
Thickness EN 1849-2 0,15 mm 6 mil
Water vapour transmission (Sd) EN 1931 25 m 0.14 PERM
Tensile strength MD/CD EN 12311-2 390 / 360 N/50mm 45 / 41 lb/in
Elongation MD/CD EN 12311-2 18 / 16 % -
Resistance to nail tearing MD/CD EN 12310-1 280 / 260 N 63 / 58 lbf
Watertightness EN 1928 compliant -
Thermal resistance - -20 / 80 °C -4 / 176 °F
Reaction to fire EN 13501-1 class E -
Resistance to penetration of air EN 12114 0 m³/(m²·h·50Pa) 0 cfm/ft² at 50Pa
Water vapour resistance - after artificial ageing EN 1296 / EN 1931 compliant -
Water vapour resistance - in the presence of alkalis EN 1847 / EN 12311-2 npd -
Thermal conductivity (λ) - 0,3 W/(m·K) 2.08 (BTU·in)/(h·ft²·°F)
Specific heat - 1800 J/(kg·K) -
Density - ca. 933 kg/m³ -
Water vapour resistance factor (μ) - ca. 167000 -
VOC content - 0 % -
Indirect exposure to UV rays - 2 weeks -

Specifications

Supply and installation of vapour barrier screen with reinforcing mesh, type VAPOR IN NET 140
CE marking according to : EN 13984

Property:

– Mass per unit area : 140
– Water vapour trasmission (Sd) (m) : 30
– Maximum tensile force MD/CD (N/50mm) : 390/360
– Elongation MD/CD (%) : 18/16
– Resistance to tearing MD/CD (N) : 280/260
– Watertightness (class) : conforme
– VOC emission (COV) (%(class A+)) : 0
– Temperature resistance (°C) : -20/+80
– Reaction to fire (class) : classe E

Indicazioni di posa per: PARETE

VAPOR IN NET 140 is laid parallel to the dock beam or the floor if laid on a wall. The second layer must be overlapped by at least 15 centimetres. Each layer must be fixed to the substrate with a mechanical fastener. (ex: HAMMER STAPLER, HAND STAPLER o PNEU STAPLER). It is also advisable to overlap the sheets by at least 30 centimetres at the butt joints. In order to achieve correct air and water sealing, we recommend the use of ALU BAND, SEAL BAND, EASY BAND, SPEEDY BAND, SOLID BAND, FLEXY BAND, SMART BAND, PLASTER BAND, DOUBLE BAND, SUPRA BAND, BUTYL BAND, MEMBRANE GLUE, SUPERB GLUE, ECO GLUE, FIRE SEALING, FIRE FOAM, FIRE STRIPE, FRONT BAND UV 220 or in the case of rough surfaces (such as rough OSB) FLEXI BAND, PRIMER SPAY, PRIMER .

Indicazioni di posa per: TETTO

VAPOR IN NET 140 is placed parallel to the eaves line, starting from the lower edge of the roof. The second layer must be overlapped by at least 10-20 centimetres to the previous one (depending on the slope of the roof), as indicated on the layout according to UNI 11470:2013. The sheet must be applied on a continuous support with a mechanical fastening device. (ex: HAMMER STAPLER, HAND STAPLER o PNEU STAPLER). Once at the top of the roof, it is advisable for the membrane to protrude beyond the ridge line by at least 30 centimetres to ensure a perfect overlap with the strips of sheet that will overlap on the other side of the roof. It is also recommended that the sheets overlap by at least 30 cm even at the end joints. To achieve correct air and water sealing, we recommend the use of ALU BAND, SEAL BAND, EASY BAND, SPEEDY BAND, SOLID BAND, FLEXY BAND, SMART BAND, PLASTER BAND, DOUBLE BAND, SUPRA BAND, BUTYL BAND, MEMBRANE GLUE, SUPERB GLUE, ECO GLUE, FIRE SEALING, FIRE FOAM, FIRE STRIPE, FRONT BAND UV 220.If there is an integrated double adhesive strip, it can replace the correct air and water sealing.

Composition

top layer vapour control PP film
REINFORCING LAYER reinforcing PP grid
bottom layer non-woven PP fabric
