VAPOUR CONTROL MEMBRANE

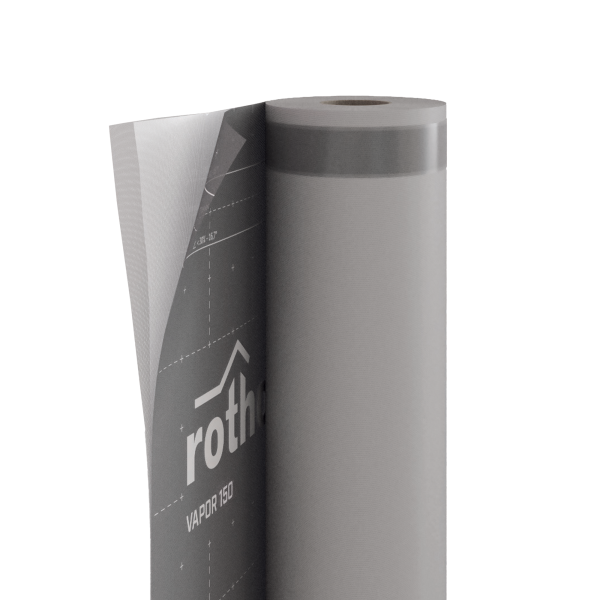

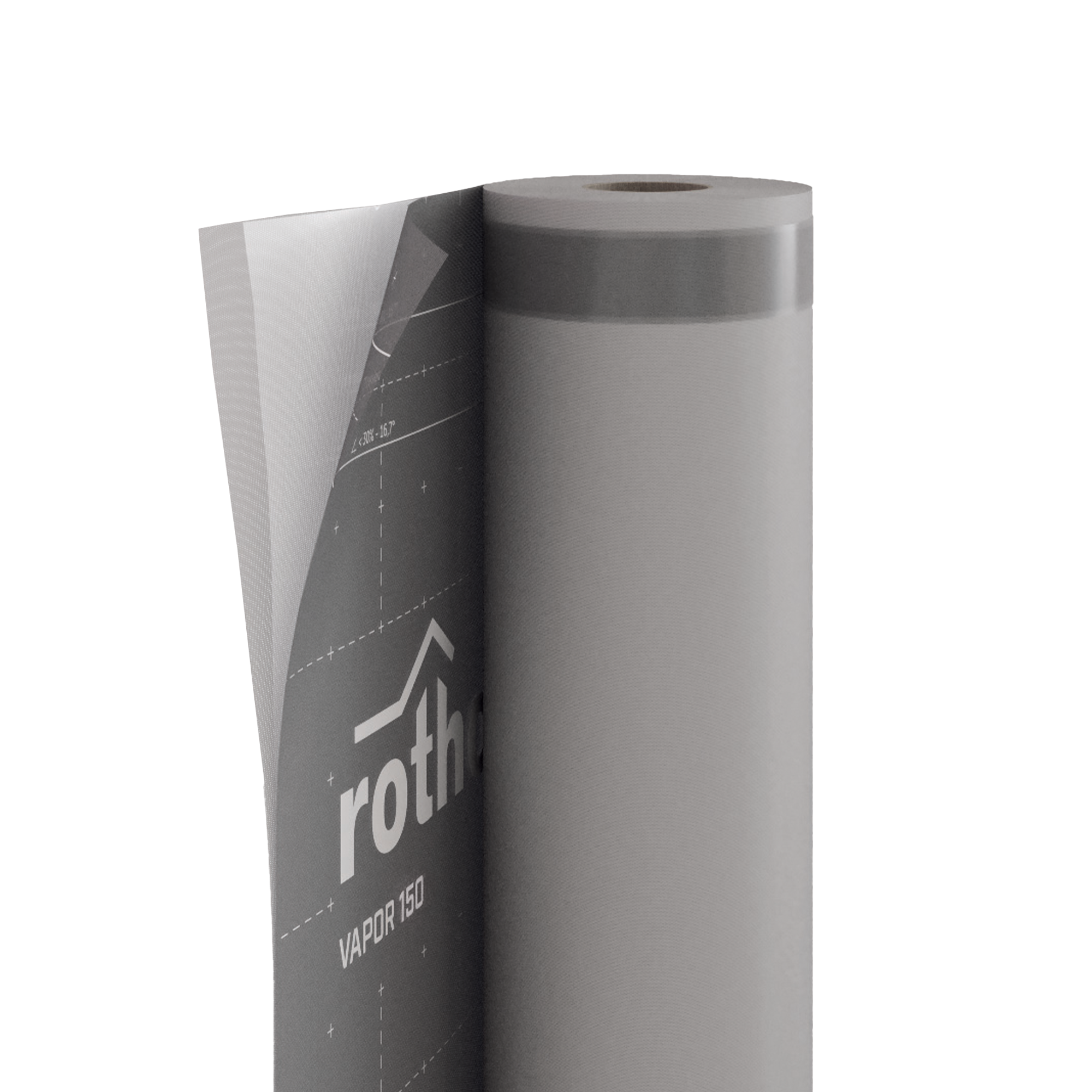

VAPOR 150
The VAPOR 150 vapour control membrane regulates the passage of moisture preventing the formation of interstitial condensation within the insulation package.
It consists of a functional film and polypropylene protective layers and is designed for application both on the inside and outside of roofs and walls.
UV resistant, it can be used directly on top of the wooden plank.
VAPOR 150, the vapour control membrane for water vapour control
Documents
| Technical data sheets | |
|---|---|
| Declaration of performance (DOP) | Download |
| Item specification | |
| Xml-File WUFI | |
| Recommendations for installation |
VAPOR 150
| CODE | description | tape | H
[m]
|
L
[m]
|
A
[m²]
|
H
[ft]
|
L
[ft]
|
A
[sft]
|
pcs./pallet |
|---|---|---|---|---|---|---|---|---|---|
| V150 | VAPOR 150 | - | 1.5 | 50 | 75 | 4' 11'' | 164 | 807 | 30 |
| VTT150 | VAPOR 150 TT | TT | 1.5 | 50 | 75 | 4' 11'' | 164 | 807 | 30 |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Mass per unit area | EN 1849-2 | 150 g/m² | 0.49 oz/ft² |
| Thickness | EN 1849-2 | 0,5 mm | 20 mil |
| Water vapour transmission (Sd) | EN 1931 | 13 m | 0.269 PERM |
| Tensile strength MD/CD | EN 12311-2 | > 250 / 200 N/50mm | > 29 / 23 lb/in |
| Elongation MD/CD | EN 12311-2 | 35 / 40 % | - |
| Resistance to nail tearing MD/CD | EN 12310-1 | > 130 / 150 N | > 29 / 34 lbf |
| Watertightness | EN 1928 | conforming | - |
| Reaction to fire | EN 13501-1 | class E | - |
| Resistance to penetration of air | EN 12114 | < 0,02 m³/(m²·h·50Pa) | < 0.001 cfm/ft² at 50Pa |
| Water vapour resistance - after artificial ageing | EN 1296 / EN 1931 | conforming | - |
| Water vapour resistance - in the presence of alkalis | EN 1847 / EN 12311-2 | npd | - |
| Thermal conductivity (λ) | - | 0,3 W/(m·K) | 2.08 (BTU·in)/(h·ft²·°F) |
| Specific heat | - | 1800 J/(kg·K) | - |
| Density | - | ca. 300 kg/m³ | - |
| Water vapour resistance factor (μ) | - | ca. 26000 | - |
| VOC content | - | 0 % | - |
| UV stability | EN 13859-2 | 2 months | - |
| Exposure to weather | - | 3 weeks | - |
| Water column | ISO 811 | > 250 cm | > 98.4252 in |
Specifications
Supply and installation of vapour barrier screen, type VAPOR 150
CE marking according to : EN 13984
Property:
– Mass per unit area : 150
– Water vapour trasmission (Sd) (m) : 13
– Maximum tensile force MD/CD (N/50mm) : 250/200
– Elongation MD/CD (%) : 35/40
– Resistance to tearing MD/CD (N) : 130/150
– Watertightness (class) : conforme
– VOC emission (COV) (%(class A+)) : 0
– Temperature resistance (°C) : -20/+80
Indicazioni di posa per: TETTO
VAPOR 150 is placed parallel to the eaves line, starting from the lower edge of the roof. The second layer must be overlapped by at least 10-20 centimetres to the previous one (depending on the slope of the roof), as indicated on the layout according to UNI 11470:2013. The sheet must be applied on a continuous support with a mechanical fastening device. (ex: HAMMER STAPLER, HAND STAPLER o PNEU STAPLER). Once at the top of the roof, it is advisable for the membrane to protrude beyond the ridge line by at least 30 centimetres to ensure a perfect overlap with the strips of sheet that will overlap on the other side of the roof. It is also recommended that the sheets overlap by at least 30 cm even at the end joints. To achieve correct air and water sealing, we recommend the use of ALU BAND, SEAL BAND, EASY BAND, SPEEDY BAND, SOLID BAND, FLEXY BAND, SMART BAND, PLASTER BAND, DOUBLE BAND, SUPRA BAND, BUTYL BAND, MEMBRANE GLUE, SUPERB GLUE, ECO GLUE, FIRE SEALING, FIRE FOAM, FIRE STRIPE, FRONT BAND UV 211.If there is an integrated double adhesive strip, it can replace the correct air and water sealing.
Indicazioni di posa per: PARETE
VAPOR 150 is laid parallel to the dock beam or the floor if laid on a wall. The second layer must be overlapped by at least 15 centimetres. Each layer must be fixed to the substrate with a mechanical fastener. (ex: HAMMER STAPLER, HAND STAPLER o PNEU STAPLER). It is also advisable to overlap the sheets by at least 30 centimetres at the butt joints. In order to achieve correct air and water sealing, we recommend the use of ALU BAND, SEAL BAND, EASY BAND, SPEEDY BAND, SOLID BAND, FLEXY BAND, SMART BAND, PLASTER BAND, DOUBLE BAND, SUPRA BAND, BUTYL BAND, MEMBRANE GLUE, SUPERB GLUE, ECO GLUE, FIRE SEALING, FIRE FOAM, FIRE STRIPE, FRONT BAND UV 211 or in the case of rough surfaces (such as rough OSB) Insert TRADUCTION from IT FLEXI BAND, PRIMER SPAY, PRIMER .
Composition
| top layer | non-woven PP fabric |
|---|---|
| middle layer | vapour control PP film |
| bottom layer | non-woven PP fabric |
