HIGH PERFORMANCE VAPOUR CONTROL MEMBRANE

VAPOR EVO 190

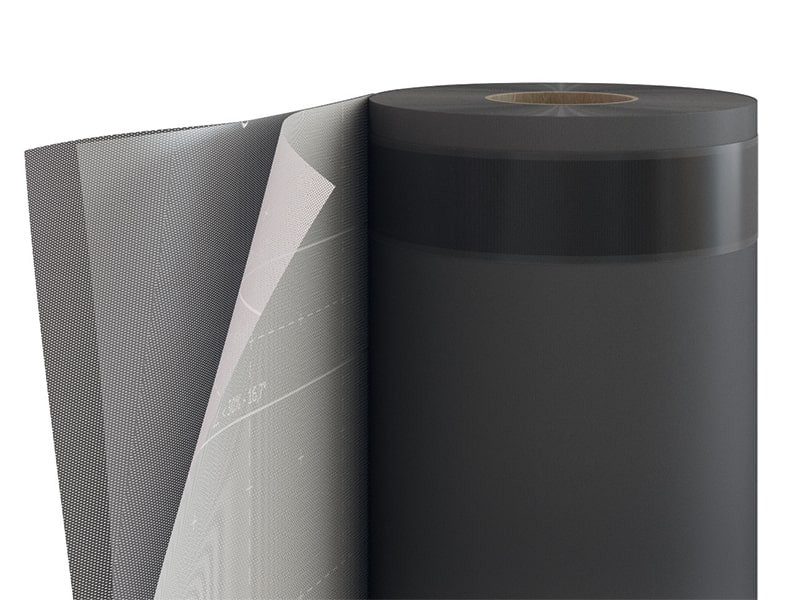

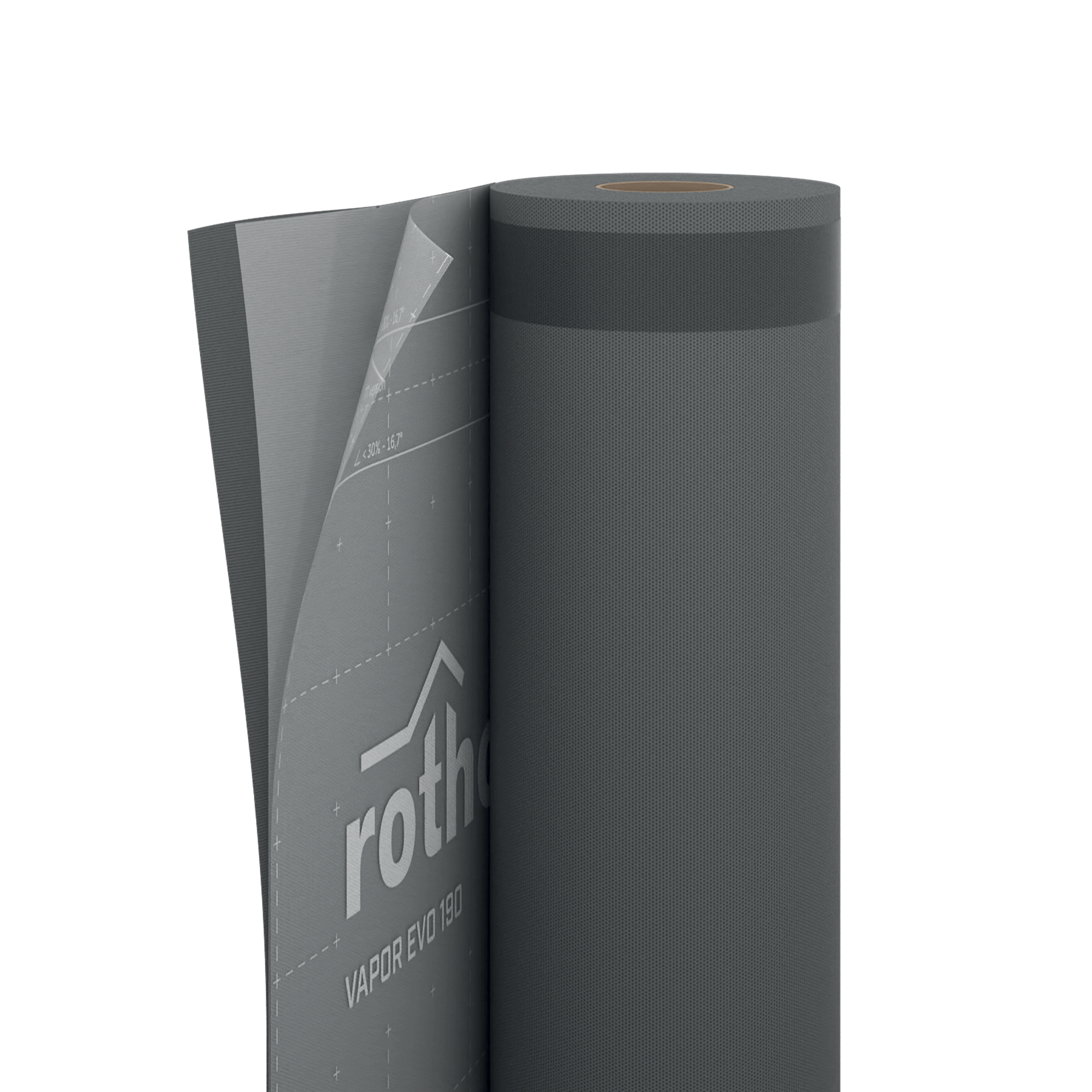

VAPOR EVO 190 is an extraordinary new generation vapour control membrane.

It contains a special film that ensures durability and high UV stability.

The thermal resistance is high: thanks to the special mix of the functional film, the membrane guarantees its performance even when subjected to high thermal stress in extreme climatic conditions.

EN 13984
L C A L C A
national-classifications AT Önorm B3667 DB
national-classifications CH SIA 232 V.v.u. V.v.o. H > 90mm
national-classifications DE ZVDH Db
national-classifications FR DTU 31.2 Bs dve E1 Sd3 TR3
national-classifications IT UNI 11470 B/R3

VAPOR EVO 190, THE VAPOUR CONTROL MEMBRANE WITH SUPERIOR THERMAL RESISTANCE

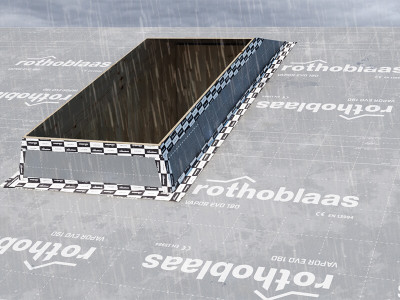

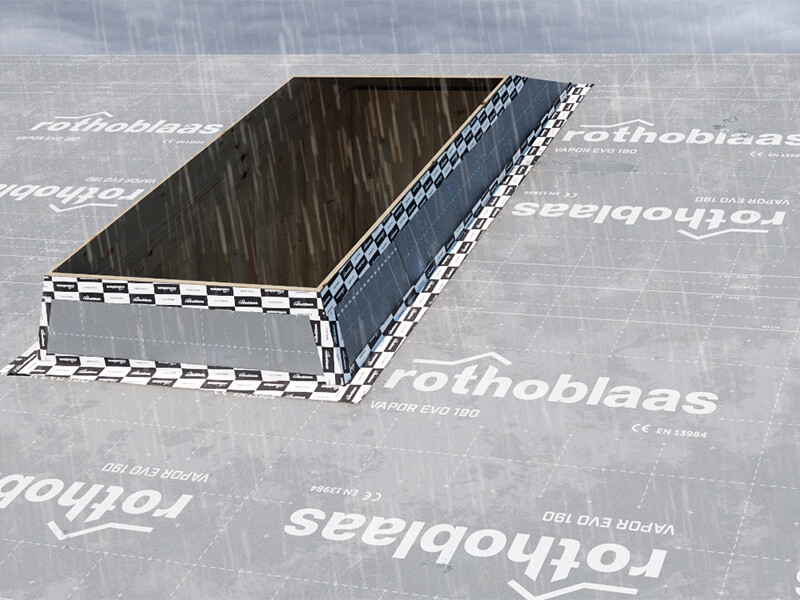

The vapour control membrane VAPOR EVO 190 ensures maximum protection against wear and hard rain during installation in the construction site.

Its formulation achieves UV stability for up to 6 months, offering maximum protection to the roof and underlying structure. The monolithic film guarantees impermeability even under high mechanical wear and tear and contact with aggressive chemicals.

A guarantee of professional installation and sealing, thanks to the integrated double tape and the adherence offered by the lower support fabric.

Find the nearest agent Download the catalogue

Documents

Technical data sheets
Declaration of performance (DOP) Download
Life Cycle Assessment (LCA)
Recommendations for installation
Find the nearest agent Download the catalogue

VAPOR EVO 190

CODE description tape H
[m]
 L
[m]
 A
[m²]
 H
[ft]
 L
[ft]
 A
[sft]
 pcs./pallet
VEVO190 VAPOR EVO 190 - 1.5 50 75 4.93 165 808 25
VTTEVO190 VAPOR EVO 190 TT TT 1.5 50 75 4.93 165 808 25

Technical Data
EN 13984
L C A L C A
national-classifications AT Önorm B3667 DB
national-classifications CH SIA 232 V.v.u. V.v.o. H > 90mm
national-classifications DE ZVDH Db
national-classifications FR DTU 31.2 Bs dve E1 Sd3 TR3
national-classifications IT UNI 11470 B/R3

Mass per unit area EN 1849-2 190 g/m² 0.62 oz/ft²
Thickness EN 1849-2 0,6 mm 24 mil
Water vapour transmission (Sd) EN 1931 5 m 0.699 PERM
MD/CD tensile strength EN 12311-2 480 / 500 N/50mm 55 / 57 lb/in
Elongation MD/CD EN 12311-2 65 / 65 % -
Resistance to nail tearing MD/CD EN 12310-1 265 / 320 N 60 / 72 lbf
Watertightness EN 1928 compliant -
Thermal resistance - 40 / 100 °C 104 / 212 °F
Reaction to fire EN 13501-1 class E -
Resistance to penetration of air EN 12114 0 m³/(m²·h·50Pa) 0 cfm/ft² at 50Pa
Water vapour resistance - after artificial ageing EN 1296 / EN 1931 compliant -
Water vapour resistance - in the presence of alkalis EN 1847 / EN 12311-2 npd -
Thermal conductivity (λ) - 0,3 W/(m·K) 2.08 (BTU·in)/(h·ft²·°F)
Specific heat - 1700 J/(kg·K) -
Density - ca. 316 kg/m³ -
Water vapour resistance factor (μ) - ca. 8300 -
VOC content - 0 % -
UV stability EN 13859-2 6 months -
Exposure to weather - 10 weeks -
Water column ISO 811 600 cm 236.22048 in

Specifications

Supply and installation of high performance vapour barrier screen, type VAPOR EVO 190
CE marking according to : EN 13984

Property:

– Mass per unit area : 190
– Water vapour trasmission (Sd) (m) : 5
– Maximum tensile force MD/CD (N/50mm) : 480/500
– Elongation MD/CD (%) : 65/65
– Resistance to tearing MD/CD (N) : 265/320
– Watertightness (class) : conforme
– VOC emission (COV) (%(class A+)) : 0
– Temperature resistance (°C) : -40/+100
– Reaction to fire (class) : classe E

Indicazioni di posa per: PARETE

VAPOR EVO 190 is laid parallel to the dock beam or the floor if laid on a wall. The second layer must be overlapped by at least 15 centimetres. Each layer must be fixed to the substrate with a mechanical fastener. (ex: HAMMER STAPLER, HAND STAPLER o PNEU STAPLER). It is also advisable to overlap the sheets by at least 30 centimetres at the butt joints. In order to achieve correct air and water sealing, we recommend the use of ALU BAND, SEAL BAND, EASY BAND, SPEEDY BAND, SOLID BAND, FLEXY BAND, SMART BAND, PLASTER BAND, DOUBLE BAND, SUPRA BAND, BUTYL BAND, MEMBRANE GLUE, SUPERB GLUE, ECO GLUE, FIRE SEALING, FIRE FOAM, FIRE STRIPE, FRONT BAND UV 227 or in the case of rough surfaces (such as rough OSB) FLEXI BAND, PRIMER SPAY, PRIMER .

Indicazioni di posa per: TETTO

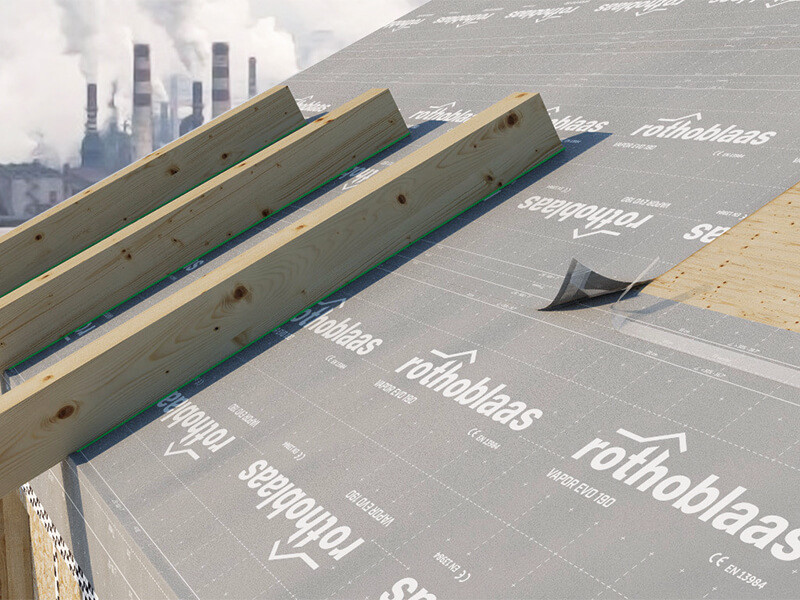

VAPOR EVO 190 is placed parallel to the eaves line, starting from the lower edge of the roof. The second layer must be overlapped by at least 10-20 centimetres to the previous one (depending on the slope of the roof), as indicated on the layout according to UNI 11470:2013. The sheet must be applied on a continuous support with a mechanical fastening device. (ex: HAMMER STAPLER, HAND STAPLER o PNEU STAPLER). Once at the top of the roof, it is advisable for the membrane to protrude beyond the ridge line by at least 30 centimetres to ensure a perfect overlap with the strips of sheet that will overlap on the other side of the roof. It is also recommended that the sheets overlap by at least 30 cm even at the end joints. To achieve correct air and water sealing, we recommend the use of ALU BAND, SEAL BAND, EASY BAND, SPEEDY BAND, SOLID BAND, FLEXY BAND, SMART BAND, PLASTER BAND, DOUBLE BAND, SUPRA BAND, BUTYL BAND, MEMBRANE GLUE, SUPERB GLUE, ECO GLUE, FIRE SEALING, FIRE FOAM, FIRE STRIPE, FRONT BAND UV 227.If there is an integrated double adhesive strip, it can replace the correct air and water sealing.

Composition

top layer non-woven PP fabric
middle layer EVO PET functional film
bottom layer non-woven PP fabric
