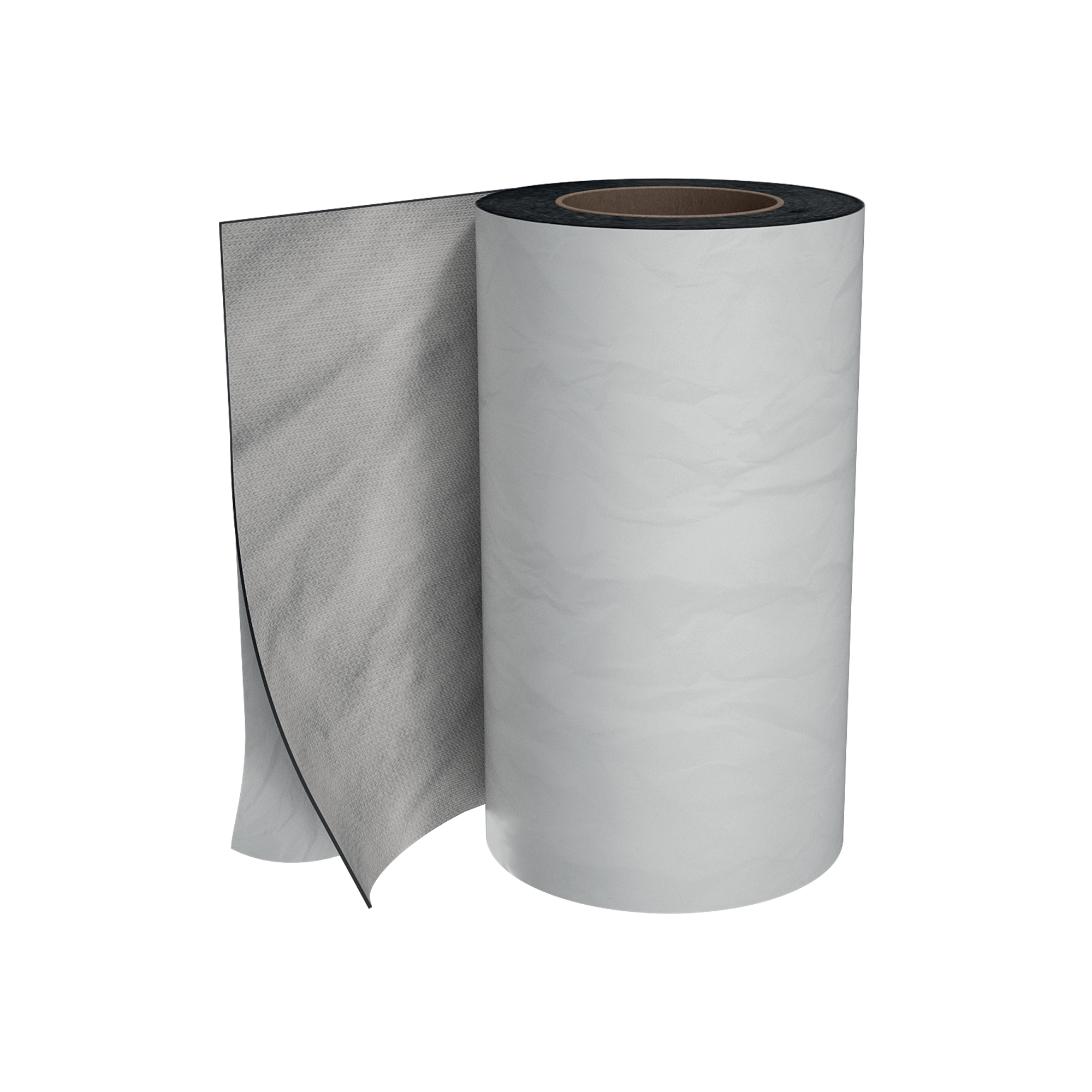

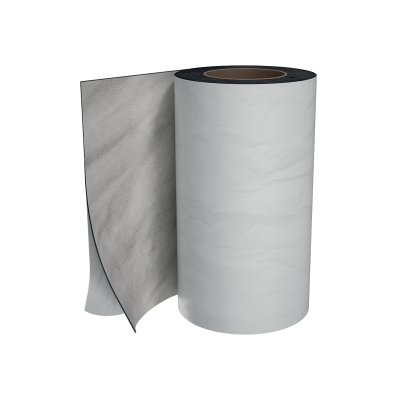

BYTUM BAND
The self-adhesive, plasterable bitumen band BYTUM BAND guarantees good adhesion even on concrete.
Polypropylene means the fabric can be plastered, offering greater versatility.
Description
BYTUM BAND, THE SELF-ADHESIVE, PLASTERABLE WATERPROOFING MEMBRANE
BYTUM BAND protects walls and foundation walls against rising damp over time.
Also suitable as a general sealing wall barrier or window/door node waterproofing product. Thanks to the special formulation of the bituminous compound, the membrane guarantees health safety with regard to emissions.
Documents
-
Technical data sheets
- Technical data sheets Croatian
- Technical data sheets Czech
- Technical data sheets English
- Technical data sheets French
- Technical data sheets German
- Technical data sheets Greek
- Technical data sheets Hungarian
- Technical data sheets Italian
- Technical data sheets Polish
- Technical data sheets Portuguese
- Technical data sheets Romanian
- Technical data sheets Russian
- Technical data sheets Slovene
- Technical data sheets Spanish
BYTUM BAND
| CODE | B
[mm]
|
s
[mm]
|
L
[m]
|
B
[in]
|
s
[mil]
|
L
[ft]
|
pcs. |
|---|---|---|---|---|---|---|---|
| BYTBAND240 | 240 | 1 | 15 | 9.4 | 39 | 49 | 2 |
| BYTBAND370 | 370 | 1 | 15 | 14.6 | 39 | 49 | 1 |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Tensile strength MD/CD | EN 12311-1 | 140 / 105 N/50mm | 16 / 12 lbf/in |
| Elongation MD/CD | EN 12311-1 | 100 / 100 % | - |
| Adhesion strength on concrete at 180° | ASTM D1000 | 2,9 N/mm | 16.56 lbf/in |
| Adhesion of C2E cementitious glue on the product | EN 12004 / EN 1348 | 0,9 N/mm² | 131 lbf/in² |
| Resistance to temperature | - | 30 / 80 °C | 86 / 176 °F |
| VOC emissions | EN 16000 | 8 μg/m³ | - |
| Application temperature | - | 5 / 40 °C | 41 / 104 °F |
| Storage temperature | - | 5 / 40 °C | 41 / 104 °F |
| Reaction to fire | EN 13501-1 | class E | - |
| Exposure to weather | - | 2 weeks | - |
| Initial Tack +23/+5 °C | ASTM D2979 | 7 / 1 N | 1.6 / 0.2 lbf |
Composition
| SUPPORT | non-woven PP fabric |
|---|---|
| GLUE | black adhesive bituminous compound |
| RELEASE LINER | silicone coated paper |
Specifications
BYTUM BAND
Supply and installation of self-adhesive, plasterable bituminous band, type BYTUM BAND.
Composition
From top layer to bottom layer:
-
silicone coated paper;
-
black adhesive bituminous compound;
-
non-woven PP fabric.
Properties
-
Tensile strength MD/CD [N/50 mm]: 140/105
-
Elongation MD/CD [%]: 100/100
-
Adhesion strength on concrete [N/mm]: 2,9
-
Reaction to fire: class E (EN 13501-1)
-
Resistance to temperature [C°]: -30/+80
-
Application temperature [C°]: +5/+40
-
Storage temperature [°C]: +5/+40
-
Exposure to weather: 2 weeks
-
VOC [μg/m3]: 8
Application surface
The application surface must be dry, free of dust and grease, and not be anti-adhesive. Surface elements must be removed so that the band is not damaged during application.
Polypropylene means the fabric can be plastered, offering greater versatility.
Recommended use

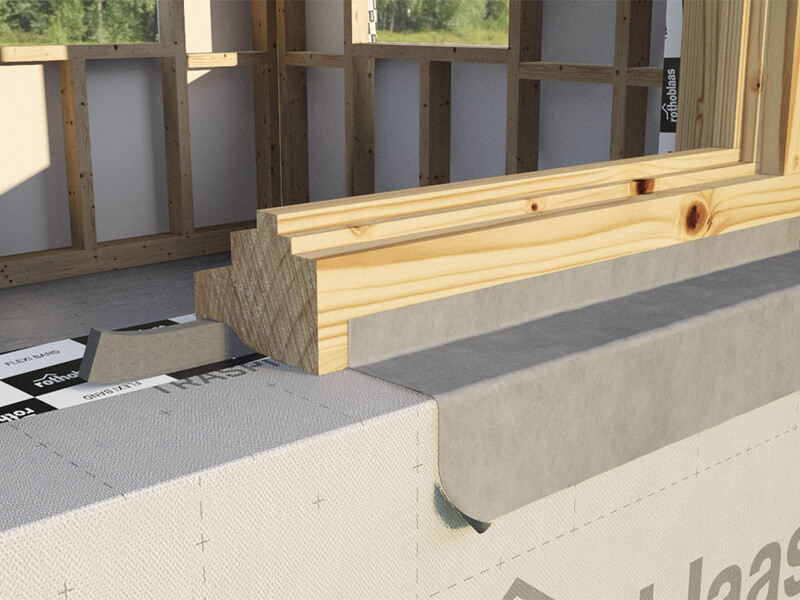

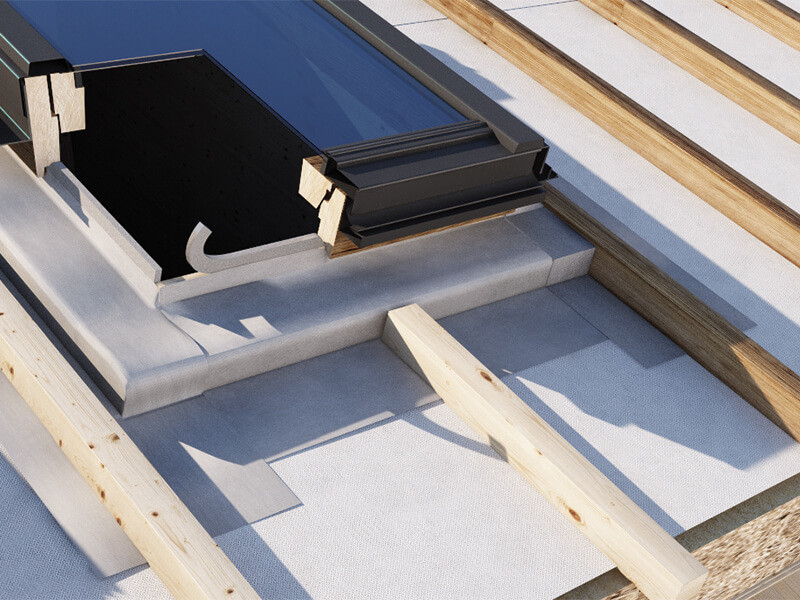

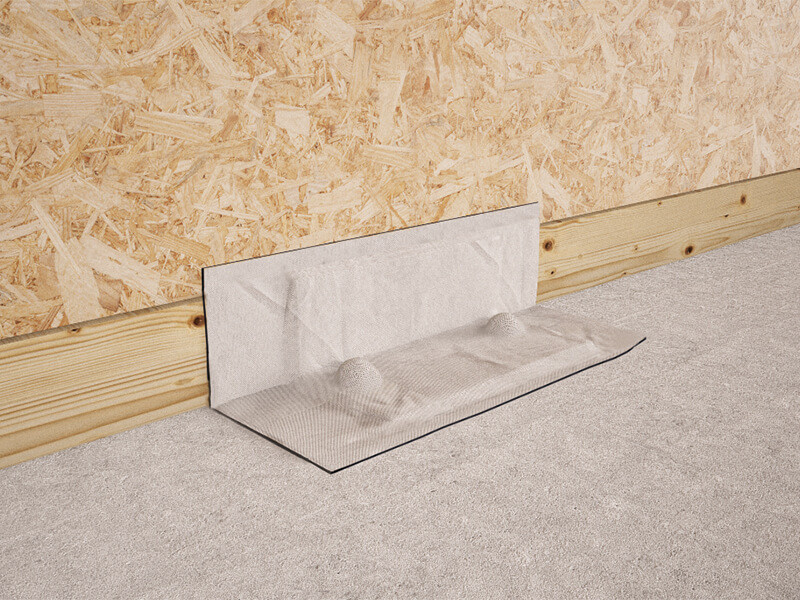

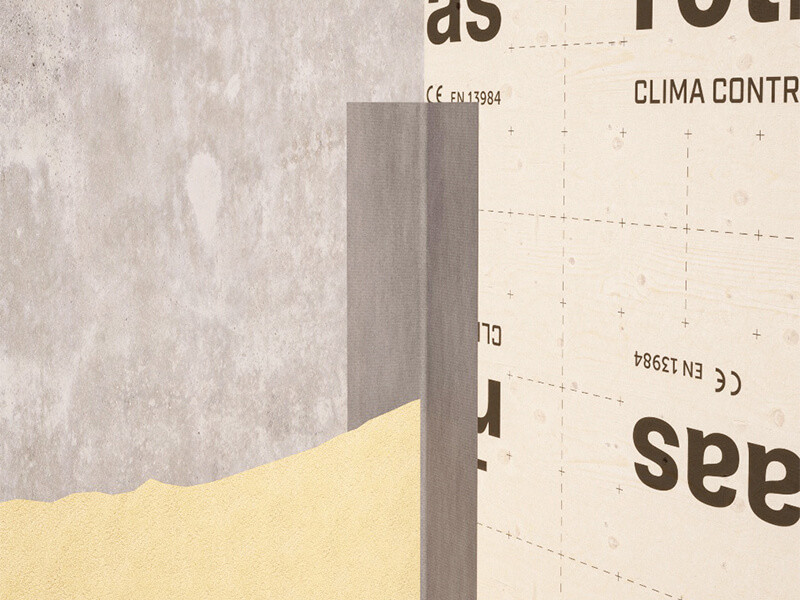

It protects walls and foundation walls against rising damp. Also suitable as a general damp-proof course barrier or window/door node waterproofing product.
The bituminous mixture guarantees good adhesion, even on concrete.
Installation
Unroll the membrane over the surface, progressively remove the release film from the adhesive, and press the membrane firmly to ensure proper adhesion.
Once membrane installation is complete, a pressure roller must be used to ensure perfect adhesion.
In cold climates, the adhesive side of the membrane can be preheated using a hot air gun, such as HOT GUN, to achieve optimal bonding.
