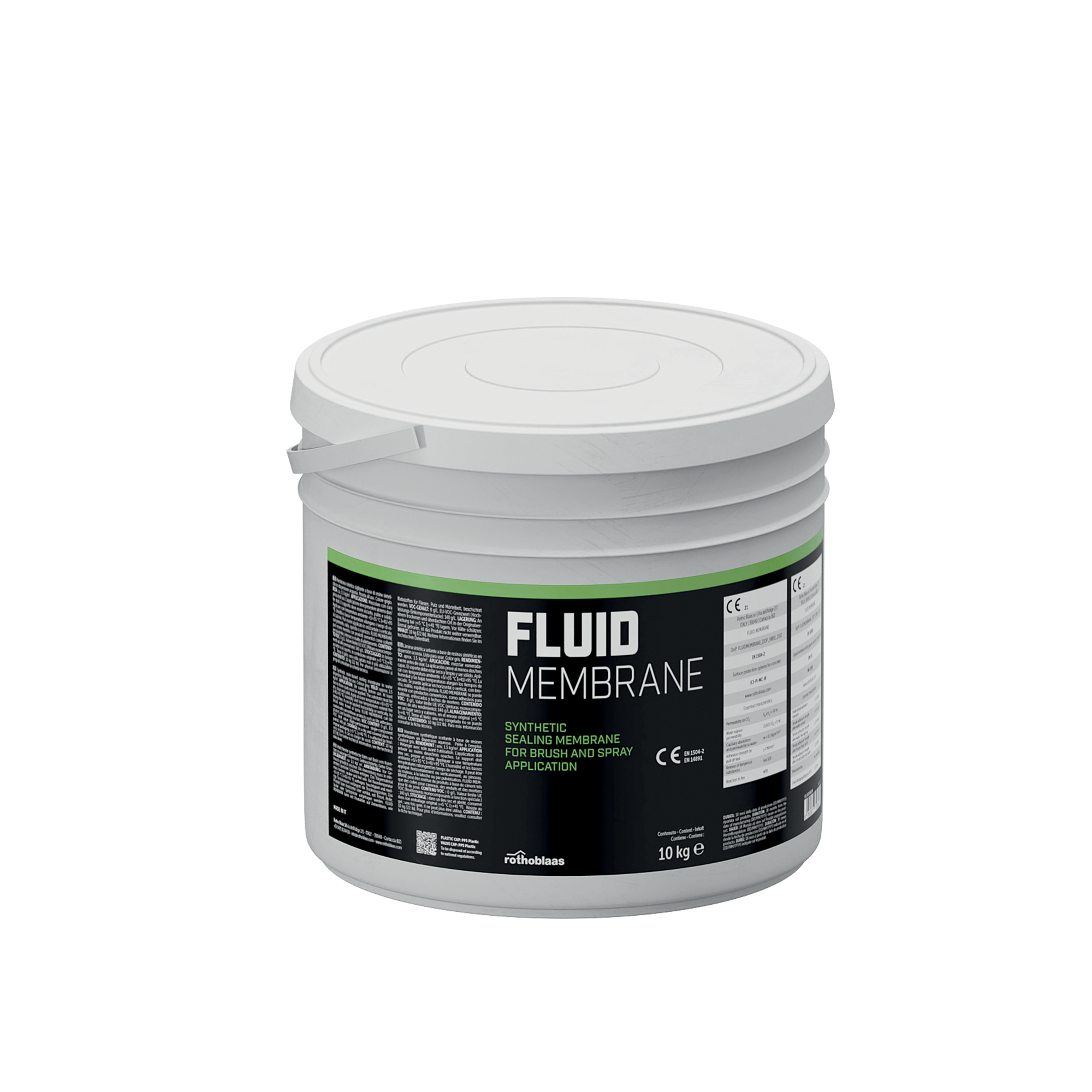

FLUID MEMBRANE
FLUID MEMBRANE is the synthetic waterproofing membrane that can be applied by roller, brush or spray.
It is resistant to water stagnation on the surface even when there is no slope, and is perfect for surfaces in industrial areas or sea areas.
Fluid membrane waterproofing membrane: perfect adhesion, superior durability.
Description
The FLUID MEMBRANE fluid membrane offers also the possibility of inserting a synthetic reinforcement fabric.
The synthetic resin mix is elastic and resistant to any movement of the sealed cracks. Thanks to its formulation, it offers perfect adhesion; is suitable for complex construction details and resists micro-cracks. Odourless, non-toxic and solvent-free product.
Documents
-
Technical data sheets
- Technical data sheets Croatian
- Technical data sheets Czech
- Technical data sheets English
- Technical data sheets French
- Technical data sheets German
- Technical data sheets Greek
- Technical data sheets Hungarian
- Technical data sheets Italian
- Technical data sheets Polish
- Technical data sheets Portuguese
- Technical data sheets Romanian
- Technical data sheets Russian
- Technical data sheets Slovene
- Technical data sheets Spanish
-
Fluid Membrane Coverage Spreadsheet
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Classification (1 ) | EN 14891 | DM O1 | - |
| Classification (2 ) | EN 1504-2 | C PI-MC-IR | - |
| Colour | - | grey | - |
| Density | ISO 2811-1 | 1,45 kg/L | 12.1 lb/gal |
| Material yield per 1 mm thickness | - | ≥ 1,5 kg/m² | - |
| Surface cross-linking time 23 °C / 50% RH (3 ) | - | 4 hours | - |
| Time required for complete drying 23 °C / 50% RH (3 ) | - | 24 / hours | - |
| Dry residue | ISO 3251 | 65 % | - |
| Dynamic viscosity | EN ISO 3219 | 60 Pa·s | - |
| Adhesion on concrete by direct traction | EN 1542 | > 1 N/mm² | > 145 lbf/in² |
| Water permeability (W) | EN 1062-3 | < 0,1 kg/(m²·h⁰’⁵) | - |
| Water vapour resistance factor (μ) | - | ca. 9000 | - |
| Water vapour transmission (Sd) (4 ) | EN ISO 7783 | < 5 m | < 0.699 US perm |
| Permeability to CO2 | EN 1062-2 | > 50 m | - |
| Application temperature | - | 5 / 35 °C | 41 / 95 °F |
| Storage temperature | - | ≥ 5 / °C | ≥ 41 / °F |
| Resistance to temperature | - | -20 / 90 °C | -4 / 194 °F |
| Reaction to fire | EN 13501-1 | class E | - |
| VOC | - | 2,25 % | - |
| VOC | - | 32,65 g/L | - |
Specifications
FLUID MEMBRANE
Supply and installation of a synthetic sealing membrane applicable by brush and spray, Type FLUID MEMBRANE.
Properties
-
Density [kg/L]: 1,45
-
Time required for drying 23 °C/50% RH: 24 h
-
Resistance to temperature [°C]: -20/+90
-
Application temperature (product, ambient and support) [°C]: +5/+35
-
Reaction to fire: class E (EN 13501-1)
-
Material yield [kg/m2]: > 1,5
-
Water vapour transmission (Sd) (0,2 mm) [m]: < 5
-
Storage temperature [C°]: ≥ +5
-
VOC: 2,25 % - 32,65 g/L
Standards and certifications
CE marked in accordance with EN 1504-2, EN 14891
Application surface
The application surface must be dry, free of dust and grease, and not be anti-adhesive.
The synthetic resin mix is elastic and resistant to any movement of the sealed cracks.
Odourless and non-toxic product. Solvent-free.
Recommended use
Thanks to its formulation, it offers perfect adhesion; is suitable for complex construction details and resists micro-cracks. Odourless, non-toxic and solvent-free product.
Resistant to water stagnation on the surface, even when there is no slope. Also suitable for surfaces in industrial areas or in sea areas.

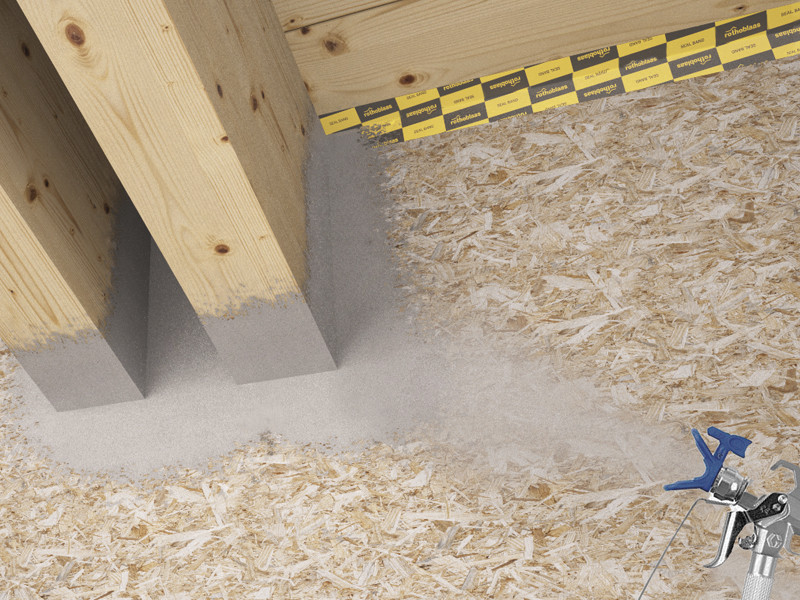

Installation
Applicable by spray, brush and roller.
Once the application is finished, it can be conveniently stored for later use by simply closing the bucket with its lid.
