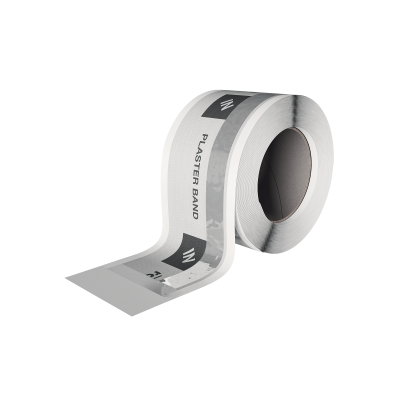

PLASTER BAND IN|OUT
PLASTER BAND IN and PLASTER BAND OUT are high adhesion tapes ideal for application on most surfaces, even at low temperatures. Made of technical fabric, they can be plastered after installation.
Description
PLASTER BAND IN/OUT: vapour control and airtightness tapes that can be plastered.
PLASTER BAND is available in two versions: PLASTER BAND IN for application inside the envelope, PLASTER BAND OUT for application on the outside of the envelope. Even when applied in tight spaces and corners, the PP liner of these two highly adhesive tapes can be removed without risk of failure.
The pre-cut liner allows for quick and easy installation and an high level of aesthetics due to the possibility of concealing the tape behind claddings or plaster.

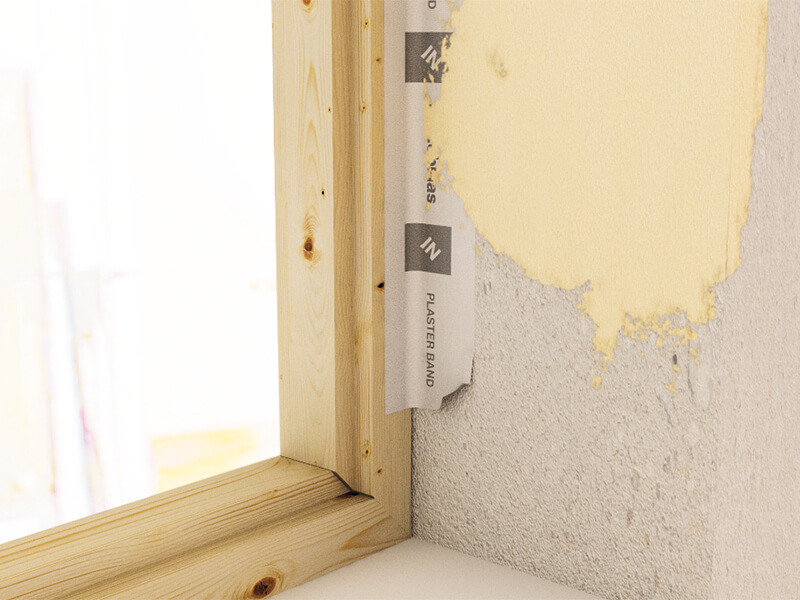

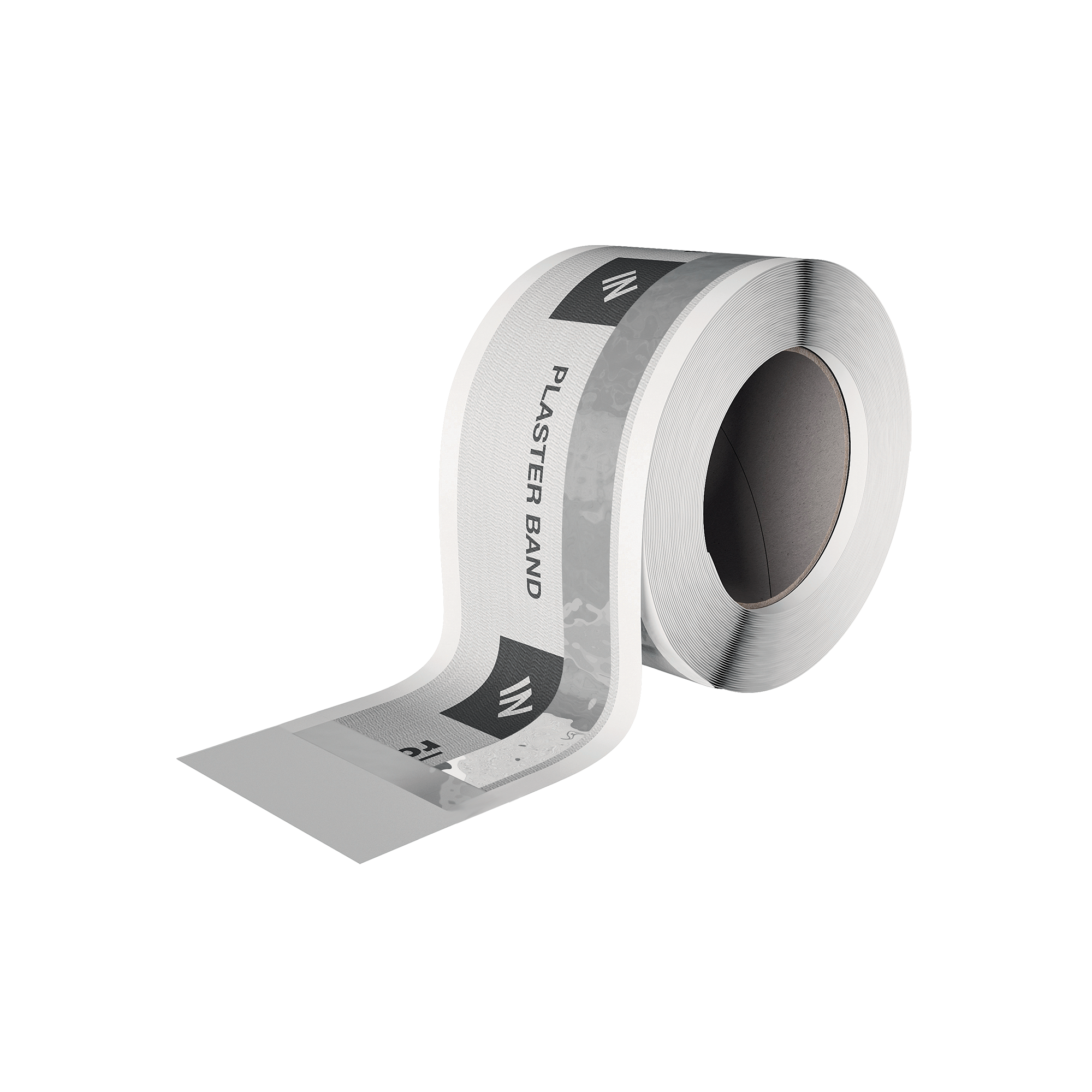

PLASTER BAND IN
| CODE | liner | B
[mm]
|
L
[m]
|
liner
[in]
|
B
[in]
|
L
[ft]
|
pcs. |
|---|---|---|---|---|---|---|---|
| PLASTIN1560 | 15/60 | 75 | 25 | 0.6/2.4 | 3 | 82 | 8 |
| PLASTIN1585 | 15/85 | 100 | 25 | 0.6/3.3 | 3.9 | 82 | 6 |
| PLASTIN15135 | 15/135 | 150 | 25 | 0.6/5.3 | 5.9 | 82 | 4 |
| PLASTIN7520 | 75 | 75 | 25 | 3 | 3 | 82 | 5 |
| PLASTIN10020 | 100 | 100 | 25 | 3.9 | 3.9 | 82 | 4 |
| PLASTIN15020 | 150 | 150 | 25 | 5.9 | 5.9 | 82 | 2 |

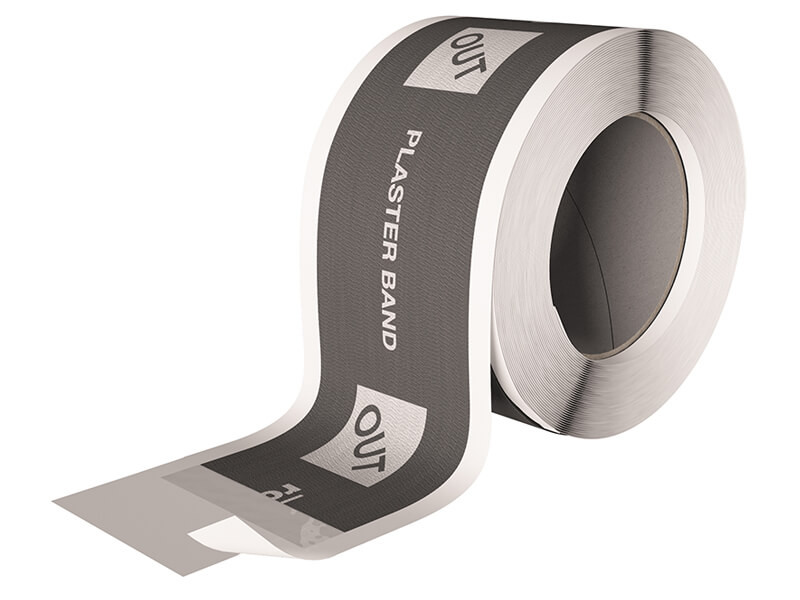

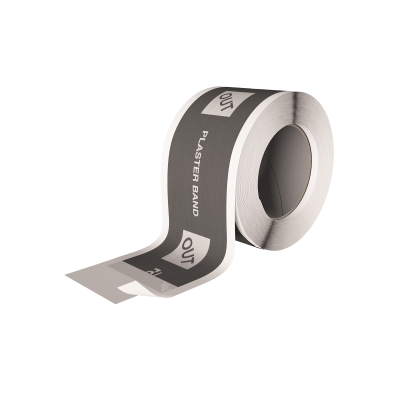

PLASTER BAND OUT
| CODE | liner | B
[mm]
|
L
[m]
|
liner
[in]
|
B
[in]
|
L
[ft]
|
pcs. |
|---|---|---|---|---|---|---|---|
| PLASTOUT1560 | 15/60 | 75 | 25 | 0.6/2.4 | 3 | 82 | 8 |
| PLASTOUT1585 | 15/85 | 100 | 25 | 0.6/3.3 | 3.9 | 82 | 6 |
| PLASTOUT15135 | 15/135 | 150 | 25 | 0.6/5.3 | 5.9 | 82 | 4 |
| PLASTOUT15185 | 15/185 | 200 | 25 | 0.6/7.3 | 7.9 | 82 | 2 |
| PLASTOUT7520 | 75 | 75 | 25 | 3 | 3 | 82 | 5 |
| PLASTOUT10020 | 100 | 100 | 25 | 3.9 | 3.9 | 82 | 4 |
| PLASTOUT15020 | 150 | 150 | 25 | 5.9 | 5.9 | 82 | 2 |
| PLASTOUT20020 | 200 | 200 | 25 | 7.9 | 7.9 | 82 | 2 |
Technical Data PLASTER BAND IN
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Thickness | DIN 53855 | 0,5 mm | 19.7 mil |
| Water vapour transmission (Sd) | EN 1931 / EN ISO 12572 | ca. 10 m | ca. 0.35 US perm |
| Watertightness | EN 14891 | - | - |
| Reaction to fire | EN 13501-1 | class E | - |
| Resistance to temperature | - | 40 / 80 °C | 104 / 176 °F |
| Application temperature (1 ) | - | > 5 / °C | > 41 / °F |
| Storage temperature (2 ) | - | 5 / 25 °C | 41 / 77 °F |
| Exposure to weather | - | 3 month | - |
| Resistance to heavy rain | EN 1027 | ≥ 1050 Pa | - |
| Resistance to penetration of air | EN 12114 | < 0,1 m³/(m²·h·50Pa) | < 0.005 cfm/ft² at 50Pa |
| Solvents | - | no | - |
Technical Data PLASTER BAND OUT
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Thickness | EN 1942 | 0,7 mm | 28 mil |
| Mass per unit area | EN 1849-2 | 360 g/m² | 1.18 oz/ft² |
| Water vapour transmission (Sd) | EN 1931 / EN ISO 12572 | ca. 1 m | ca. 3.497 US perm |
| Tensile strength MD/CD | EN 12311-1 | 290 / 190 N/50mm | 33 / 22 lbf/in |
| Elongation MD/CD | EN 12311-1 | 75 / 135 % | - |
| Watertightness | EN 1928 | class W1 | - |
| Resistance to heavy rain | EN 1027 | ≥ 1050 Pa | - |
| Resistance to penetration of air | EN 1026 | ≤ 0,1 m³/(h·m·daPa⅔) | - |
| UV resistance | - | 12 months | - |
| Reaction to fire | EN 13501-1 | class E | - |
| Solvents | - | no | - |
| Emicode | procedura di prova GEV | EC1 plus | - |
| Resistance to temperature | - | 40 / 80 °C | 104 / 176 °F |
| Application temperature | - | > -10 °C | > 14 °F |
| Storage temperature (1 ) | - | 5 / 25 °C | 41 / 77 °F |
Composition PLASTER BAND IN
| SUPPORT | 2-layer PP vapour control membrane |
|---|---|
| GLUE | acrylic dispersion without solvents |
| RELEASE LINER | easy-release PP film |
Composition PLASTER BAND OUT
| SUPPORT | breathable 2-layer PP membrane |
|---|---|
| GLUE | acrylic dispersion without solvents |
| RELEASE LINER | easy-release PP film |
Specifications
PLASTER BAND IN
Supply and installation of special high-adhesion tape, also suitable for plastering, Type PLASTER BAND IN.
Composition
From top layer to bottom layer:
-
2-layer PP vapour control membrane;
-
acrylic dispersion without solvents;
-
easy-release PP film.
Properties
-
Thickness [mm]: 0,5
-
Watertightness: W1
-
Reaction to fire: class E (EN 13501-1)
-
Exposure to weather: 3 months
-
Solvents: no
Description
The application surface must be dry, free of dust and grease, and not be anti-adhesive. Surface elements must be removed so that the membrane is not damaged during application.
Technical fabric perfect for subsequent plastering, ensuring excellent visual appeal by allowing the tape to be concealed behind claddings and plaster.
the tape features a precut liner that allows for easy and quick installation.
Recommended use: The tape is designed exclusively for indoor applications. Suitable for application on various smooth building substrates, such as timber or OSB panels, without the need for additional surface treatment. If the tape is applied to brick or concrete surfaces, the use of a primer such as PRIMER SPRAY is recommended.
The complete list of approved application surfaces can be found in the specific instructions provided by the manufacturer.
Installation: If applicable, the protective release film may be partially removed from the adhesive side to facilitate installation on both sharp-edged and flat surfaces. The sealing is completed by removing the remaining film and adhering the tape to the support.
Once tape installation is complete, a pressure roller must be used to ensure perfect adhesion.
If concealed taping is required, a version with a second adhesive strip on the carrier side is also available.
Further details regarding installation can be found in the specific instructions provided by the supplier.

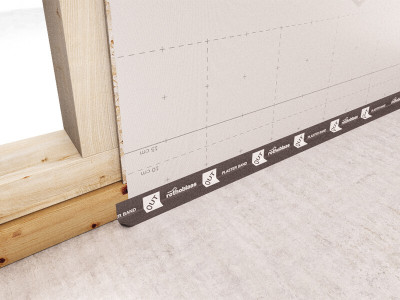

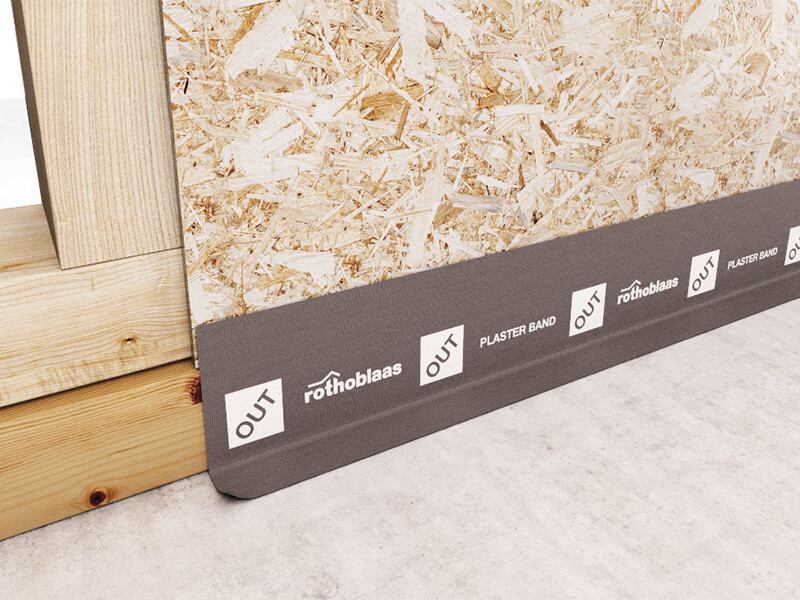

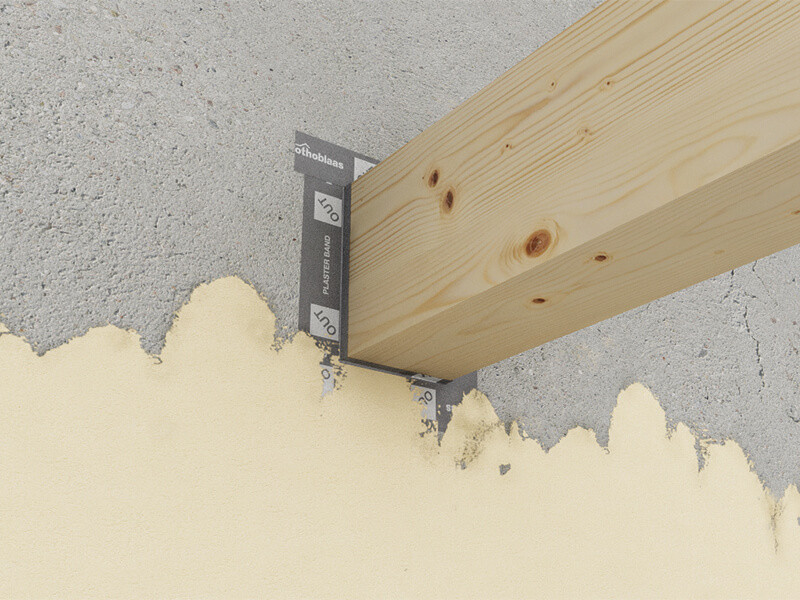

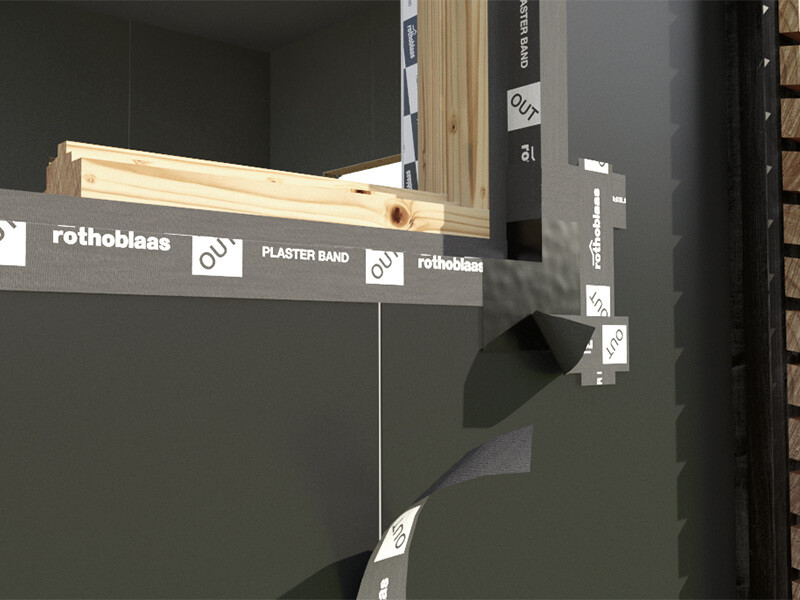

PLASTER BAND OUT
Supply and installation of special high-adhesion tape, also suitable for plastering, Type PLASTER BAND OUT.
Composition
From top layer to bottom layer:
-
breathable 2-layer PP membrane;
-
acrylic dispersion without solvents;
-
easy-release PP film.
Properties
-
Watertightness: W1
-
Reaction to fire: class E (EN 13501-1)
-
Solvents: no
Description
The application surface must be dry, free of dust and grease, and not be anti-adhesive. Surface elements must be removed so that the membrane is not damaged during application.
Technical fabric perfect for subsequent plastering, ensuring excellent visual appeal by allowing the tape to be concealed behind claddings and plaster.
the tape features a precut liner that allows for easy and quick installation.
Recommended use: The tape is designed exclusively for outdoor applications. Suitable for application on various smooth building substrates, such as timber or OSB panels, without the need for additional surface treatment. If the tape is applied to brick or concrete surfaces, the use of a primer such as PRIMER SPRAY is recommended.
The complete list of approved application surfaces can be found in the specific instructions provided by the manufacturer.
Installation: If applicable, the protective release film may be partially removed from the adhesive side to facilitate installation on both sharp-edged and flat surfaces. The sealing is completed by removing the remaining film and adhering the tape to the support.
Once tape installation is complete, a pressure roller must be used to ensure perfect adhesion.
If concealed taping is required, a version with a second adhesive strip on the carrier side is also available.
Further details regarding installation can be found in the specific instructions provided by the supplier.
