TAPE WITH ADHESIVE MOUNTING STRIP, CAN BE PLASTERED
PLASTER BAND LITE
PLASTER BAND LITE is the tape that can be plastered which controls the flow of vapour. Thanks to the integrated adhesive mounting strip, application is quick and easy.
The tape that can be plastered, is available in several variants to ensure tightness on every installation surface.
Also suitable for high thickness values of insulation or cladding due to its width of up to 200 mm.
Videos
PLASTER BAND LITE: VAPOUR CONTROL TAPES WITH PLASTER MESH

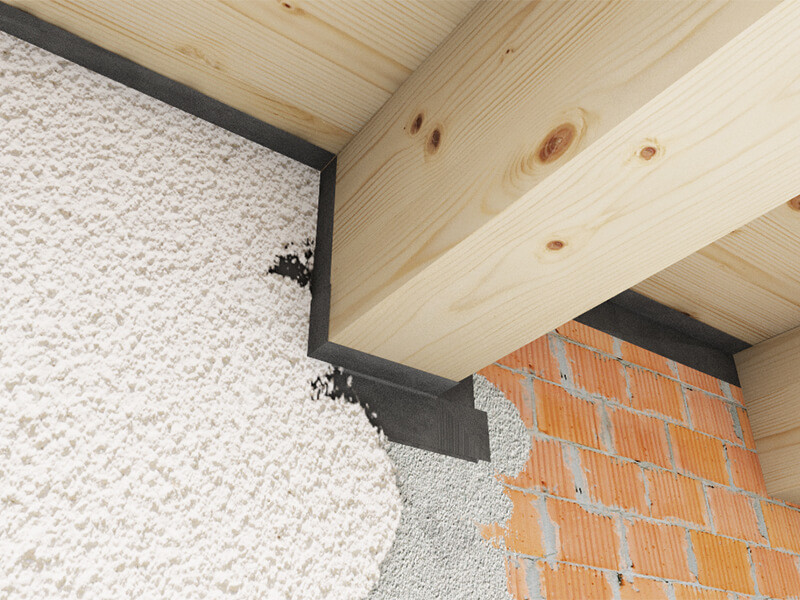

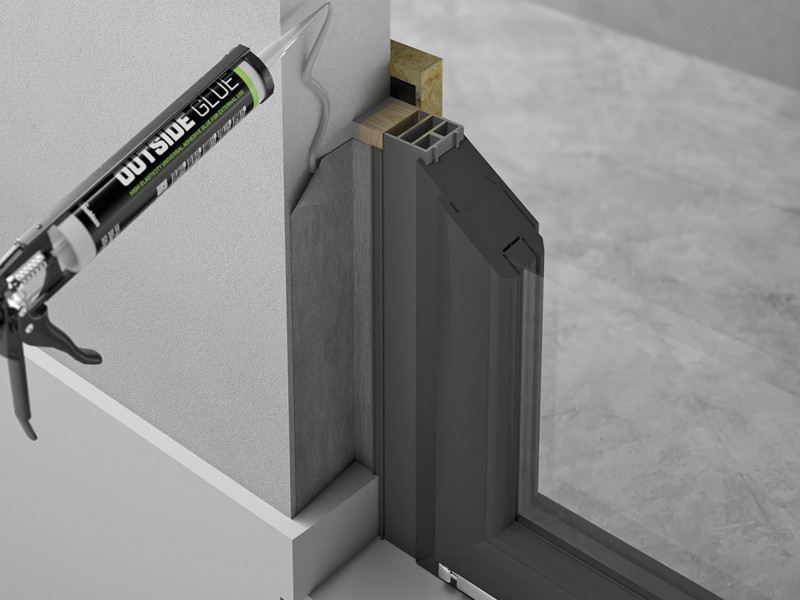

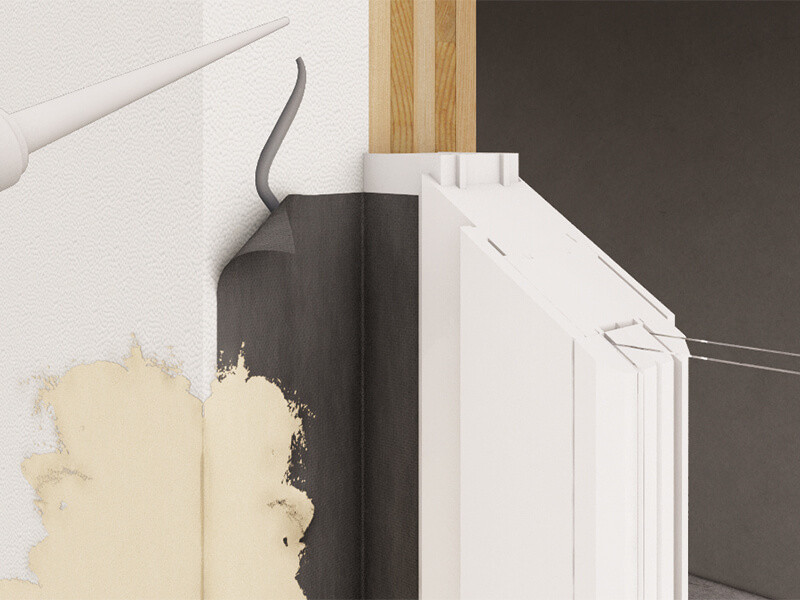

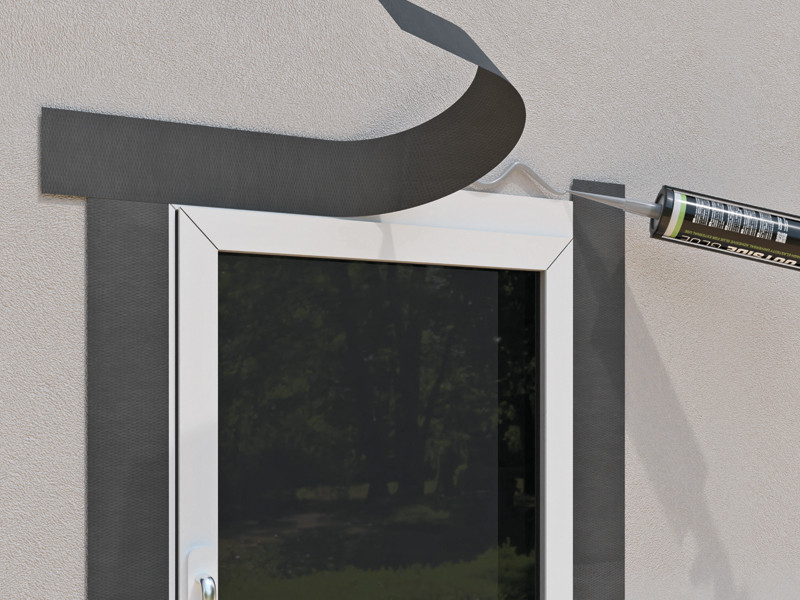

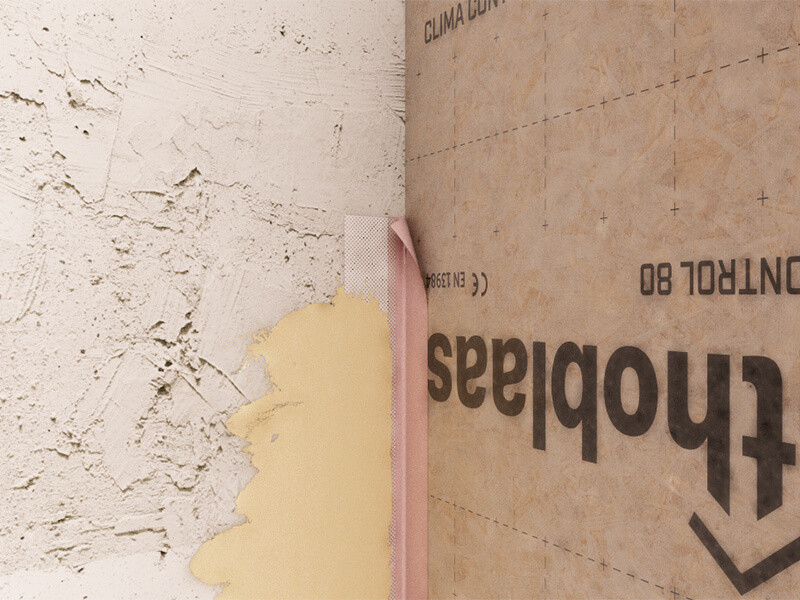

PLASTER BAND LITE tapes that can be plastered are available in two airtight versions for indoor and outdoor use. Indoor it acts as a vapour control layer, outdoor as a breathable layer. Also available in a version with a plaster grid for indoor use.
The tape that can be plastered is made of a breathable membrane with the addition of an adhesive band, which ensures that the tape is also airtight and watertight. The surface of the tape is designed for places which need subsequent smoothing with plaster.
Documents
| Technical data sheets |
|---|

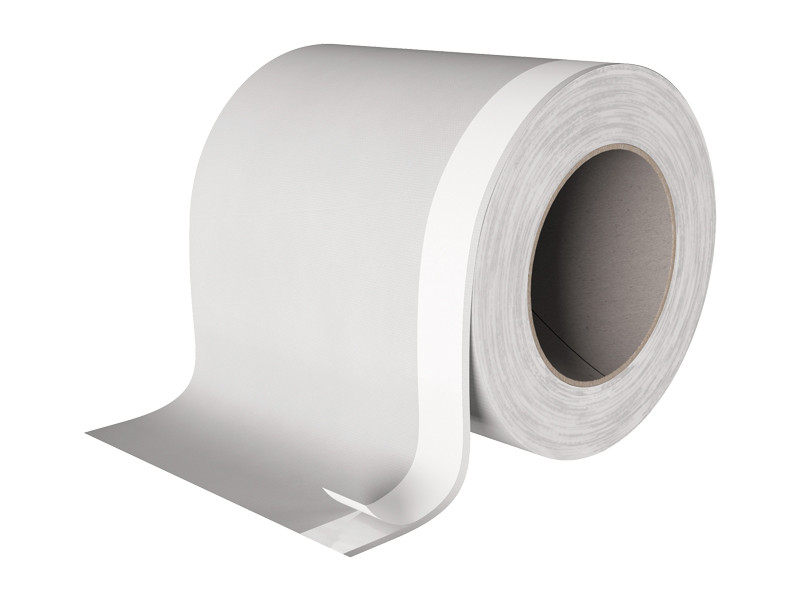

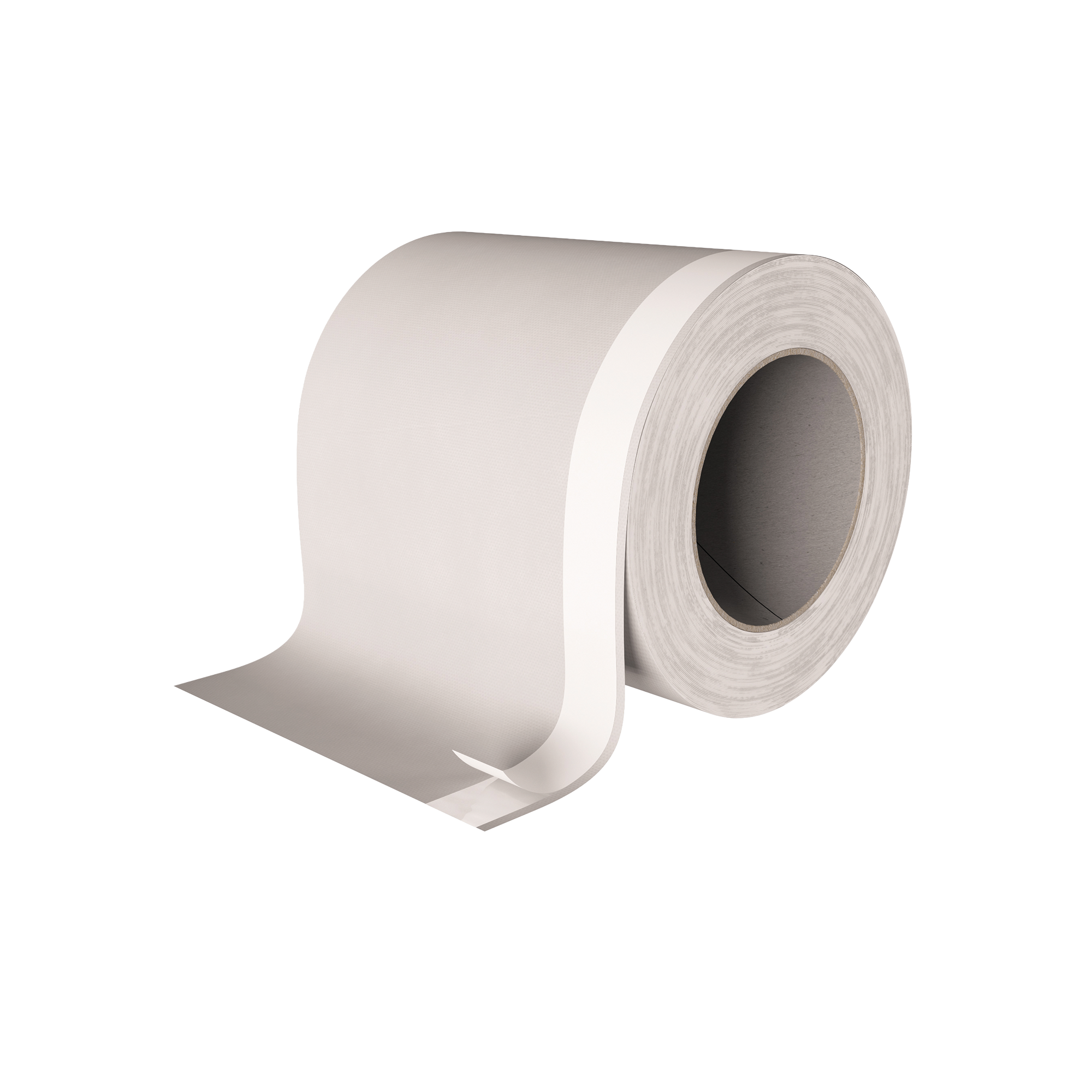

PLASTER BAND LITE IN
| CODE | B
[mm]
|
L
[m]
|
B
[in]
|
L
[ft]
|
pcs. |
|---|---|---|---|---|---|
| PLAIN7520 | 75 | 25 | 3 | 82 | 5 |
| PLAIN10020 | 100 | 25 | 3.9 | 82 | 4 |
| PLAIN15020 | 150 | 25 | 5.9 | 82 | 2 |
| PLAIN20020 | 200 | 25 | 7.9 | 82 | 2 |

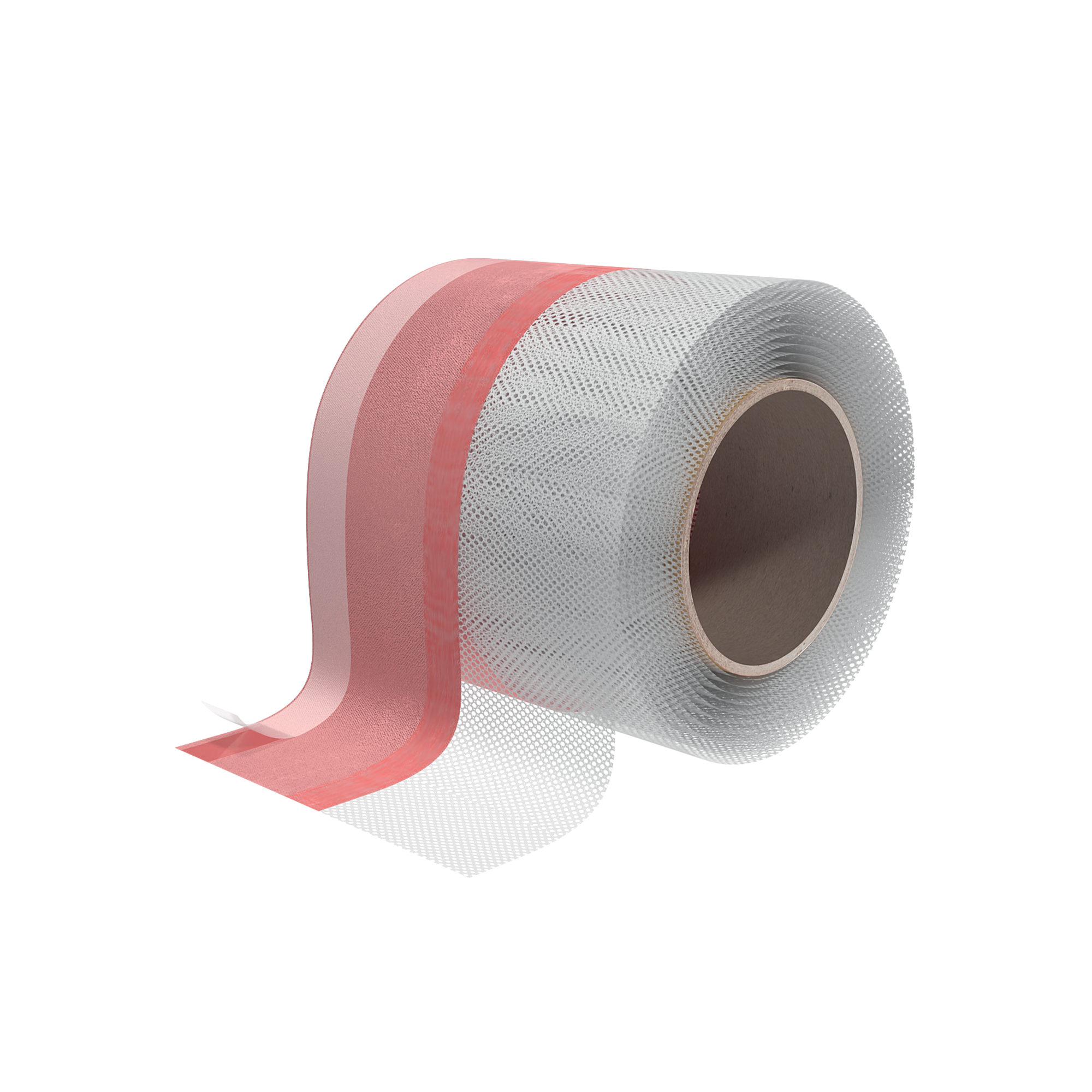

PLASTER BAND LITE IN CON RETE PORTAINTONACO
| CODE | B
[mm]
|
L
[m]
|
B
[in]
|
L
[ft]
|
pcs. |
|---|---|---|---|---|---|
| PLAINN7020 | 130 | 30 | 5.1 | 98 | 1 |
| PLAINN12020 | 180 | 30 | 7.1 | 98 | 1 |

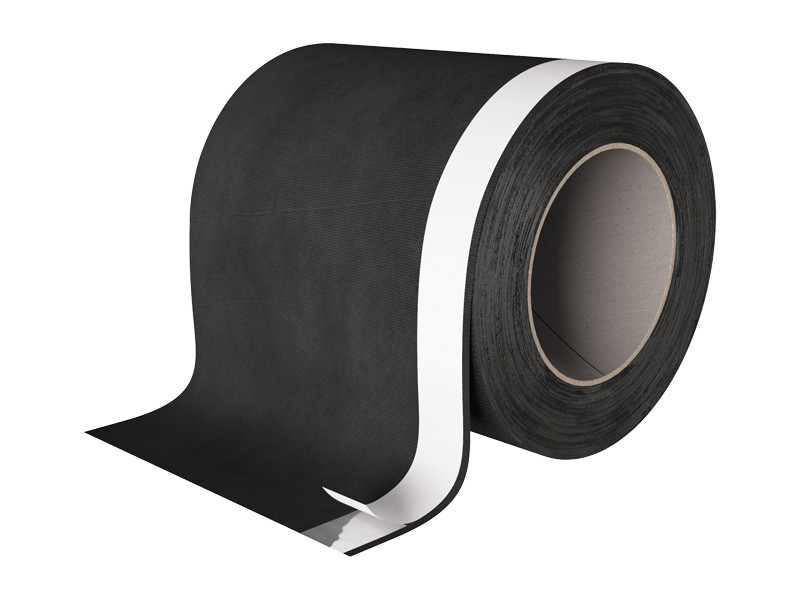

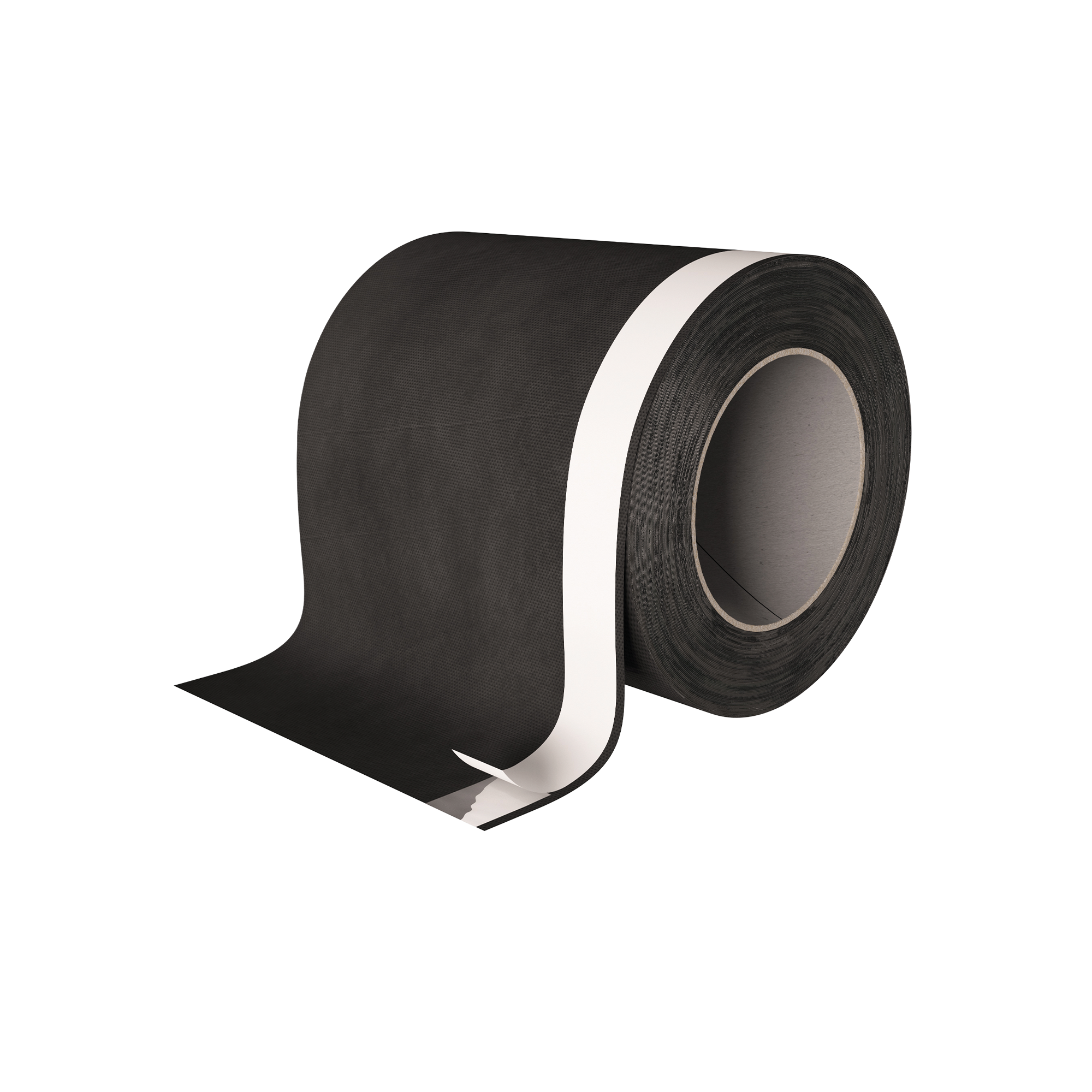

PLASTER BAND LITE OUT
| CODE | B
[mm]
|
L
[m]
|
B
[in]
|
L
[ft]
|
pcs. |
|---|---|---|---|---|---|
| PLAOUT7520 | 75 | 25 | 3 | 82 | 5 |
| PLAOUT10020 | 100 | 25 | 3.9 | 82 | 4 |
| PLAOUT15020 | 150 | 25 | 5.9 | 82 | 2 |
| PLAOUT20020 | 200 | 25 | 7.9 | 82 | 2 |
Technical Data PLASTER BAND LITE OUT
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Thickness | - | 0,5 mm | 19.7 mil |
| Water vapour transmission (Sd) | EN ISO 12572 | ca. 1 m | ca. 3.497 US perm |
| Tensile strength MD/CD | EN 12311-1 | 290 / 190 N/50mm | 33.12 / 21.7 lbf/in |
| Elongation at break point MD/CD | EN 12311-1 | ≥ 40 / 70 % | - |
| Watertightness | EN 1928 | conforming | - |
| UV resistance | - | 3 months | - |
| Solvents | - | no | - |
| Application temperature | - | 5 / 35 °C | 41 / 95 °F |
| Thermal resistance | - | -40 / 80 °C | -40 / 176 °F |
| Storage temperature (1) | - | 5 / 25 °C | 41 / 77 °F |
Technical Data PLASTER BAND LITE IN
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Thickness | - | 0,5 mm | 19.7 mil |
| Water vapour transmission (Sd) | EN ISO 12572 | ca. 10 m | ca. 0.35 US perm |
| Tensile strength MD/CD | EN 12311-1 | 115 / 75 N/50mm | 13.13 / 8.57 lbf/in |
| Elongation at break point MD/CD | EN 12311-1 | ≥ 40 / 70 % | - |
| Watertightness | EN 1928 | conforming | - |
| UV resistance | - | 3 months | - |
| Solvents | - | no | - |
| Application temperature | - | 5 / 35 °C | 41 / 95 °F |
| Thermal resistance | - | -40 / 80 °C | -40 / 176 °F |
| Storage temperature (1) | - | 1 / 25 °C | 34 / 77 °F |
Composition PLASTER BAND LITE OUT
| SUPPORT | breathable three-layer PP membrane |
|---|---|
| GLUE | acrylic dispersion without solvents |
| release liner | easy-release PP film |
Composition PLASTER BAND LITE IN
| SUPPORT | - |
|---|---|
| GLUE | acrylic dispersion without solvents |
| release liner | PP film |
