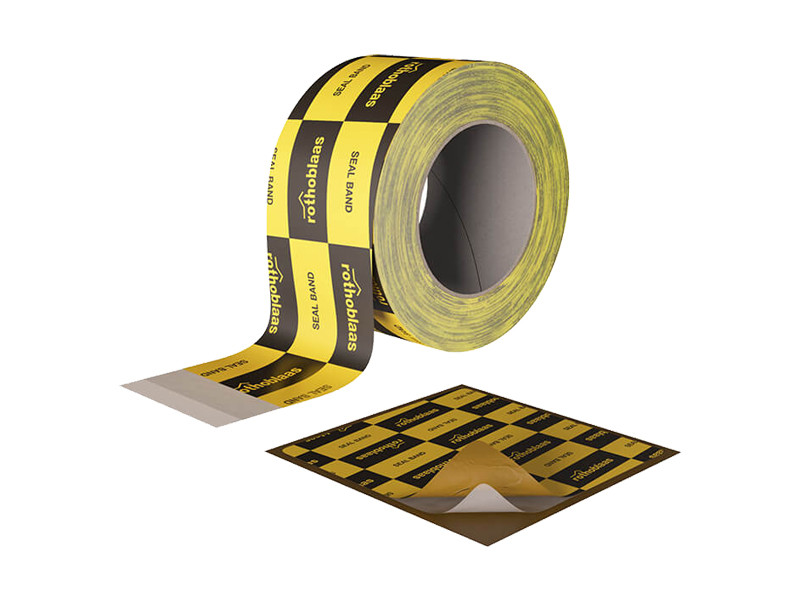

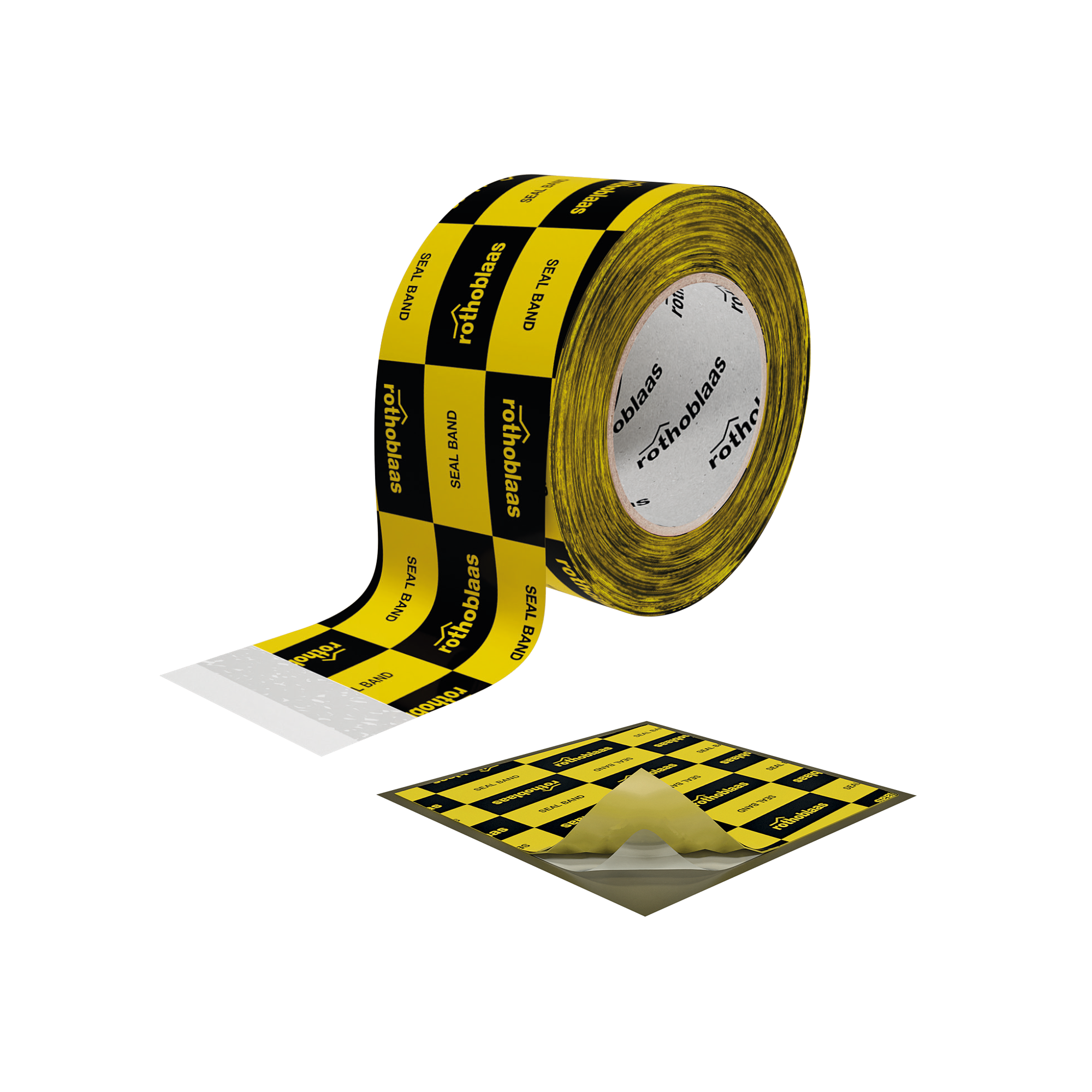

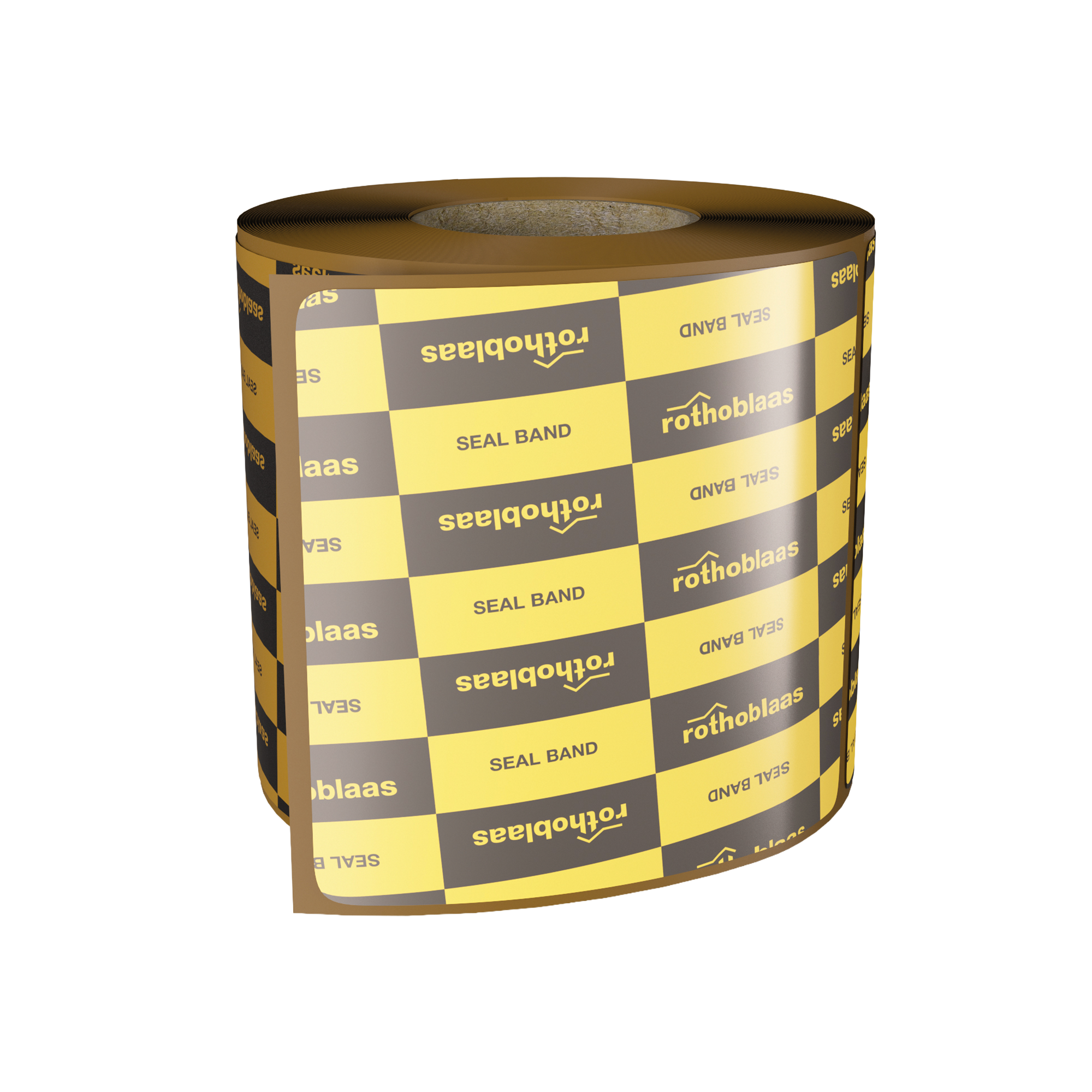

SEAL BAND | SEAL SQUARE

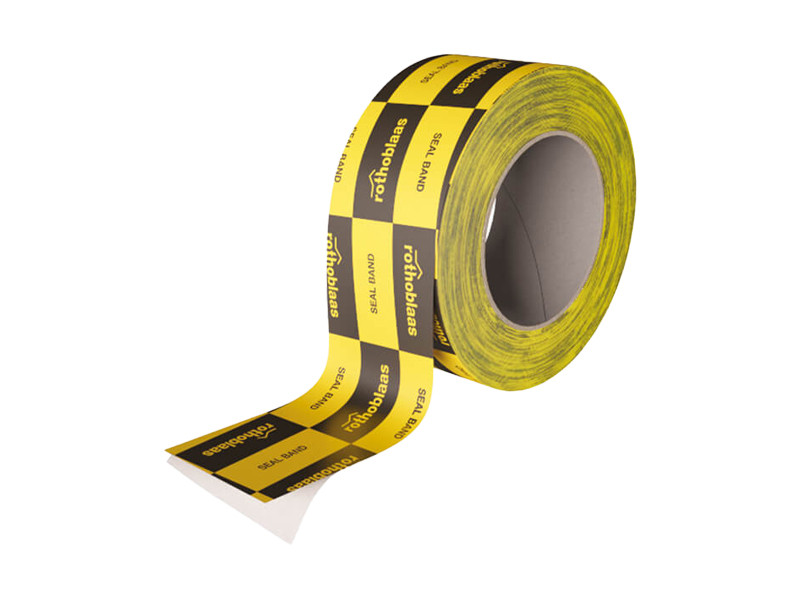

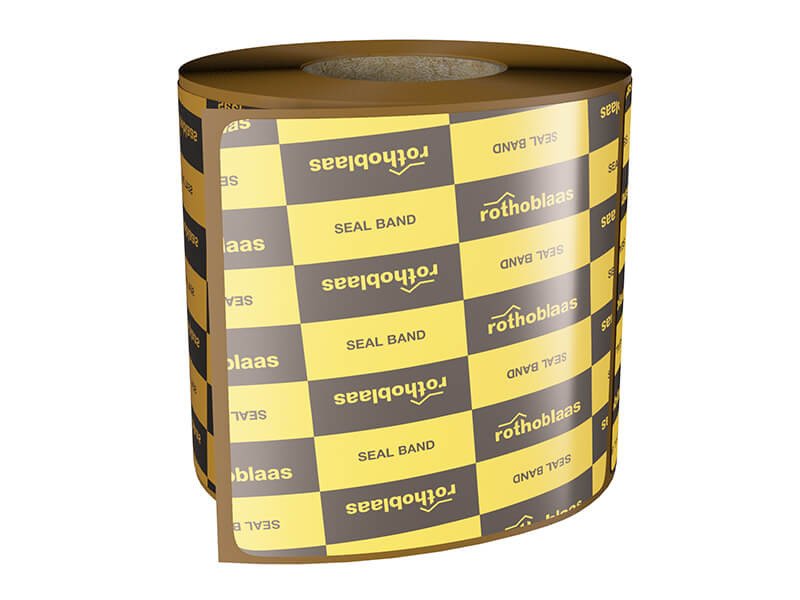

SEAL BAND is the acrylic tape that adheres effectively to all types of timber, for all types of sealing within the building envelope.

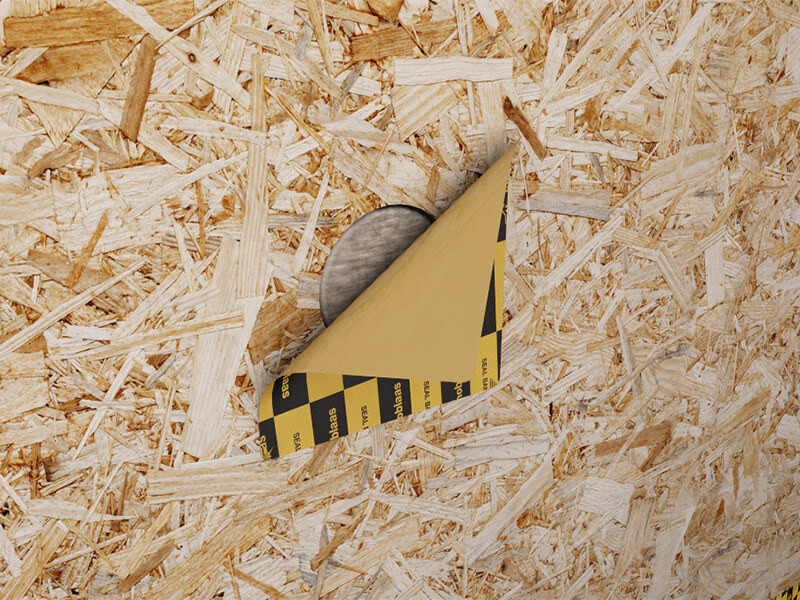

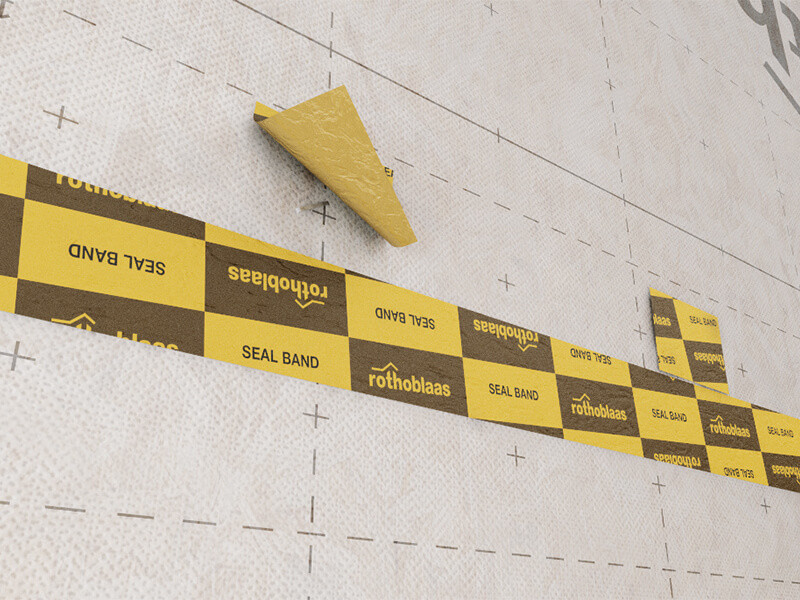

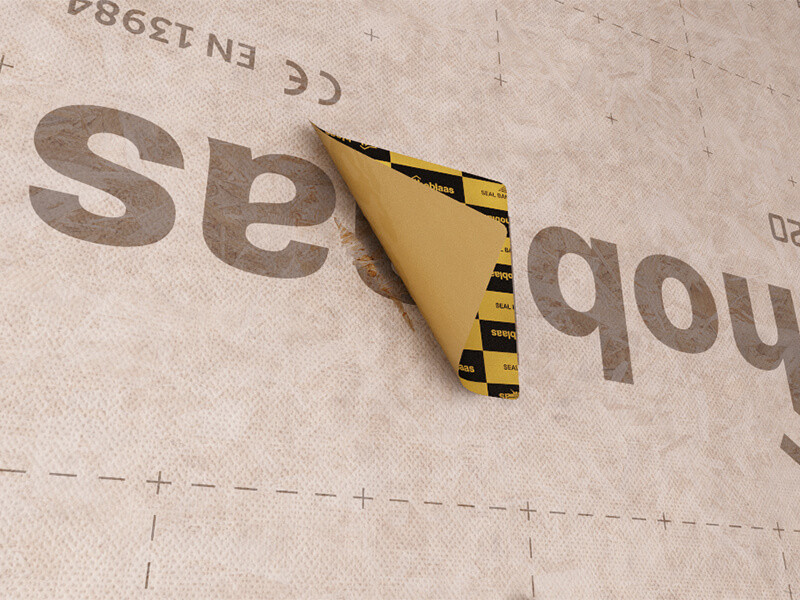

It is also available in the pre-cut SEAL SQUARE version with square shape, ideal for small spot seals or for the blowing technique, where precision is required.
Description
SEAL BAND, THE TAPE FOR INDOOR USE THAT SIMPLIFIES COMPLEX SEALING TASKS

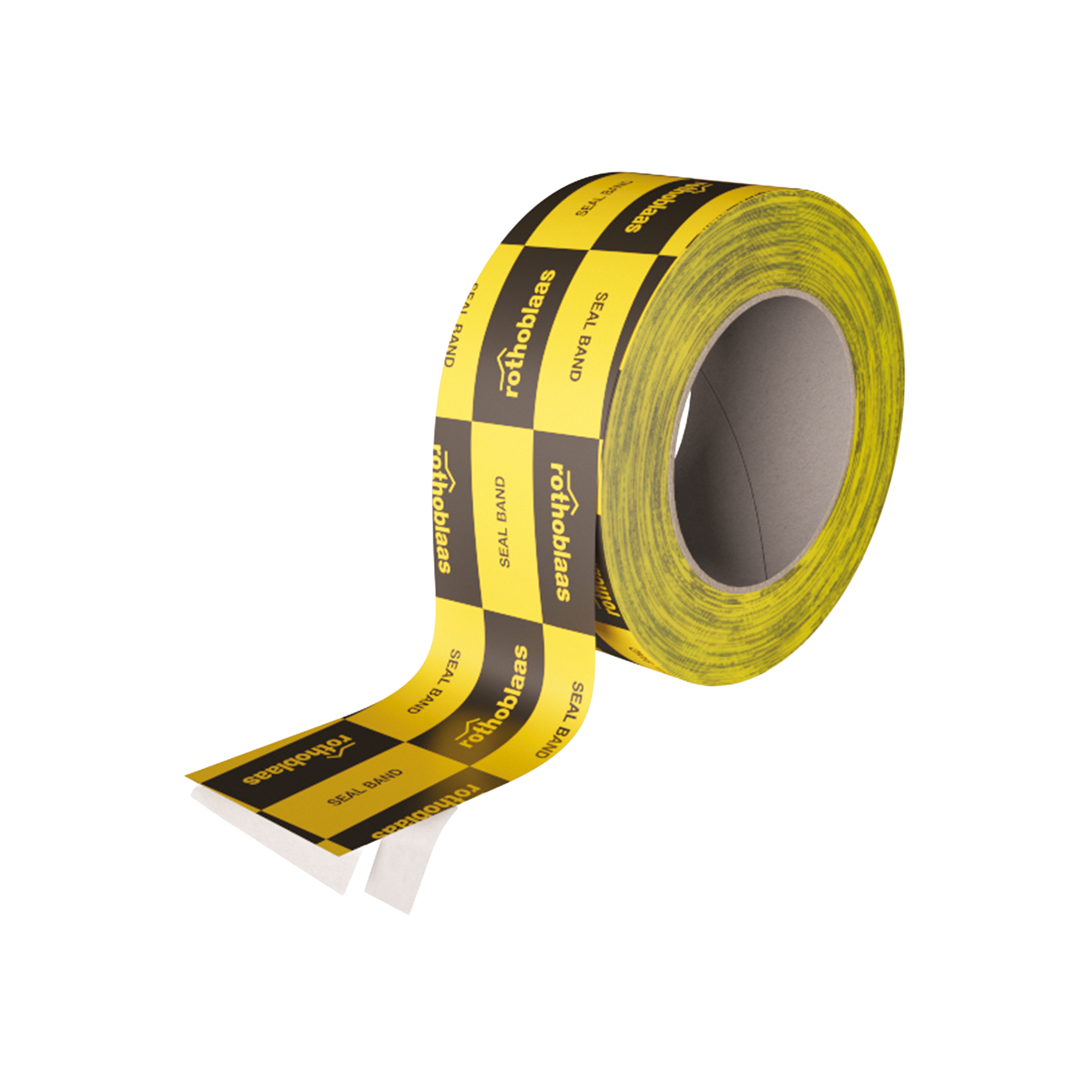

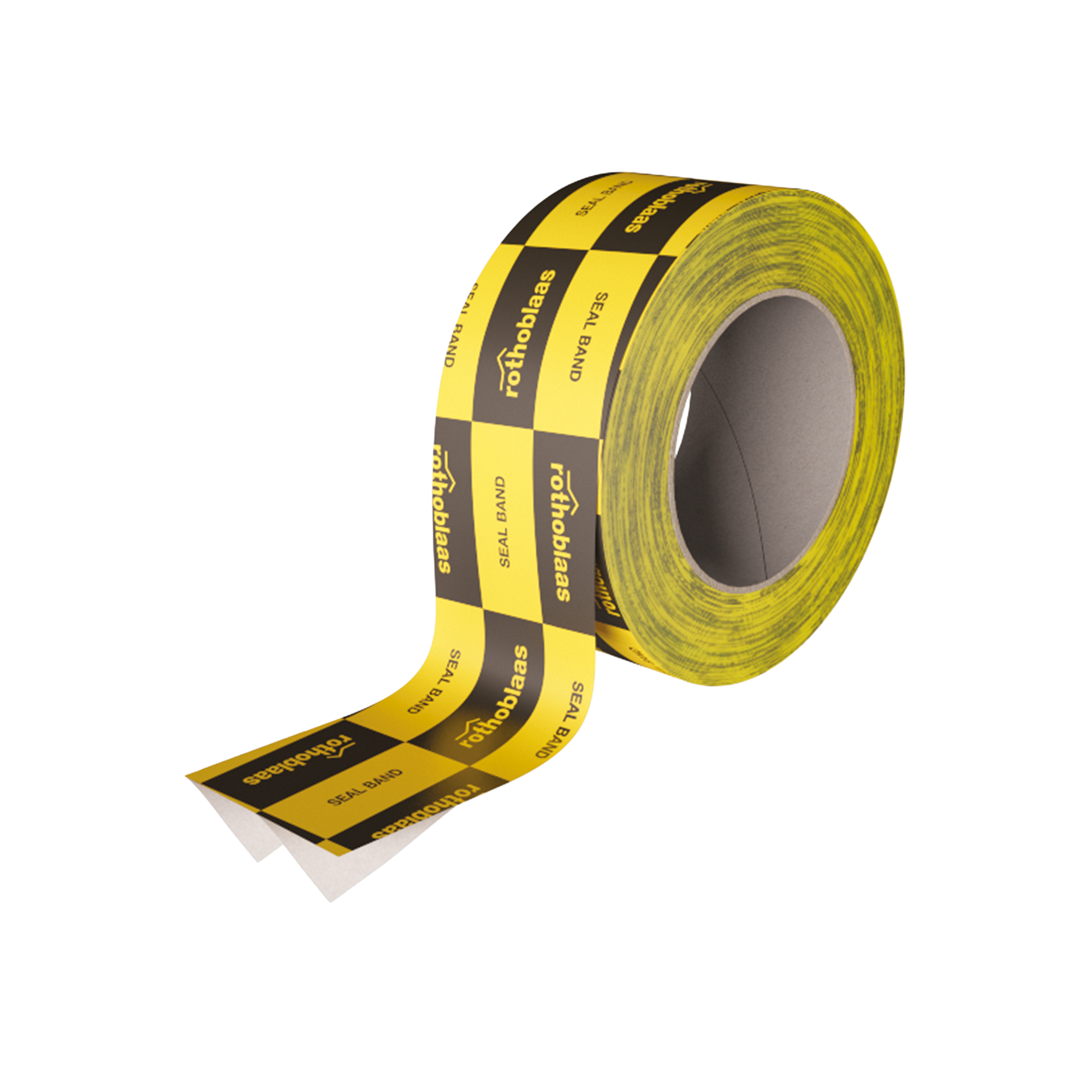

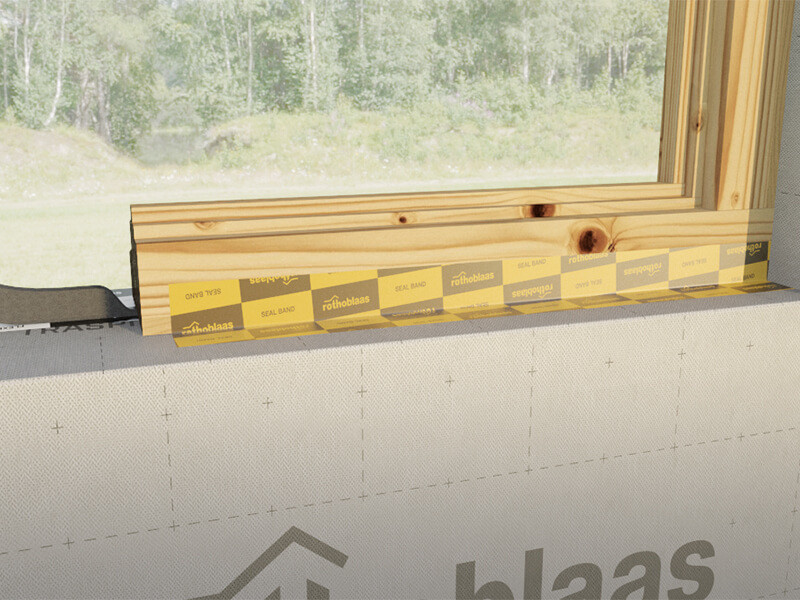

The pre-shapeable carrier allows efficient and agile sealing of concave or convex corners and edges. The SEAL BAND and SEAL SQUARE tapes for indoor use are available with pre-cut liner for quick and easy installation.
Reinforced paper support, ideal for indoor use; airtightness guaranteed over time. The SEAL BAND tape is part of Rothoblaas products tested by the PassiveHouse Institute as airtight certified components.
Documents
-
Technical data sheets
-
Passive House Certificate
SEAL BAND
| CODE | liner | B
[mm]
|
L
[m]
|
liner
[in]
|
B
[in]
|
L
[ft]
|
pcs. |
|---|---|---|---|---|---|---|---|
| SEAL60 | 60 | 60 | 25 | 2.4 | 2.4 | 82 | 10 |
| SEAL1248 | 12 / 48 | 60 | 25 | 0.5 / 1.9 | 2.4 | 82 | 10 |
| SEAL3030 | 30 / 30 | 60 | 25 | 1.2 / 1.2 | 2.4 | 82 | 10 |
SEAL SQUARE
| CODE | B
[mm]
|
H
[mm]
|
L
[m]
|
B
[in]
|
H
[in]
|
L
[ft]
|
pcs. |
|---|---|---|---|---|---|---|---|
| SEAL180 | 180 | 180 | 42 | 7.1 | 7.1 | 138 | 1 |
Technical Data SEAL BAND
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Thickness | - | 0,3 mm | 12 mil |
| Water vapour transmission (Sd) | EN 1931 / EN ISO 12572 | 6 m | 0.583 US perm |
| VOC emissions | EN 16516 | very low | - |
| French VOC classification | ISO 16000 | - | - |
| Resistance to temperature | - | 30 / 100 °C | 86 / 212 °F |
| Application temperature | - | > 0 / 40 °C | > 32 / 104 °F |
| Storage temperature | - | 15 / 25 °C | 59 / 77 °F |
| Adhesion strength on steel at 180° | EN ISO 29862 | ≥ 35 N/10mm | ≥ 19.99 lbf/in |
| Adhesion strength on OSB at 180° after 10 minutes | EN ISO 29862 | 11 N/10mm | 6.3 lbf/in |
| Adhesion strength on OSB at 90° after 10 minutes | EN ISO 29862 | 3,5 N/10mm | 2 lbf/in |
| Adhesion strength (average) on membrane in PP after 24 hours | EN 12316-2 | 15 N/50mm | 1.7 lbf/in |
| Shear adhesion strength of the joint on membrane in PP after 24 hours (1 ) | EN 12317-2 | 120 N/50mm | 13.7 lbf/in |
Technical Data SEAL SQUARE
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Thickness | - | 0,33 mm | 13 mil |
| Adhesion strength on steel | (N/25mm EN 1939) | ≥ 35 N/25mm | ≥ 7.99 lbf/in |
| Water vapour transmission (Sd) | EN 1931 / EN ISO 12572 | 6 m | 0.583 US perm |
| VOC emissions | EN 16516 | - | - |
| French VOC classification | ISO 16000 | A+ | - |
| Emicode | procedura di prova GEV | EC1 plus | - |
| Resistance to temperature | - | 40 / 100 °C | 104 / 212 °F |
| Application temperature | - | > -10 / °C | > 14 / °F |
| Storage temperature (1 ) | - | 15 / 25 °C | 59 / 77 °F |
Composition SEAL BAND
| SUPPORT | paper reinforced with protective film |
|---|---|
| GLUE | acrylic dispersion without solvents |
| RELEASE LINER | silicone coated paper |
Composition SEAL SQUARE
| SUPPORT | paper reinforced with protective film |
|---|---|
| GLUE | acrylic dispersion without solvents |
| RELEASE LINER | silicone coated paper |
Specifications
SEAL BAND | SEAL SQUARE
Supply and installation of single-sided interior tape, Type SEAL BAND | SEAL SQUARE.
Composition
From top layer to bottom layer:
-
paper reinforced with protective film;
-
acrylic dispersion without solvents;
-
silicone coated paper.
Properties
-
Thickness [mm]: 0,3
-
Adhesion strength on OSB at 90° after 10 minutes [N/10 mm]: 3,5
-
Adhesion strength on OSB at 180° after 10 minutes [N/10 mm]: 11,0
-
Adhesion strength (average) on membrane in PP after 24 hours [N/50 mm]: 15,0
-
Shear adhesion strength of the joint on membrane in PP after 24 hours [N/50 mm]: 120,0
-
Water vapour transmission (Sd)[m]: 6
-
Application temperature [°C]: +0/+40
-
Resistance to temperature [C°]: -30/+100
-
Storage temperature [C°]: +15/+25
-
French VOC classification: A+
-
VOC emissions: very low
-
Solvents: no
Description
The application surface must be dry, free of dust and grease, and not be anti-adhesive. Surface elements must be removed so that the membrane is not damaged during application.

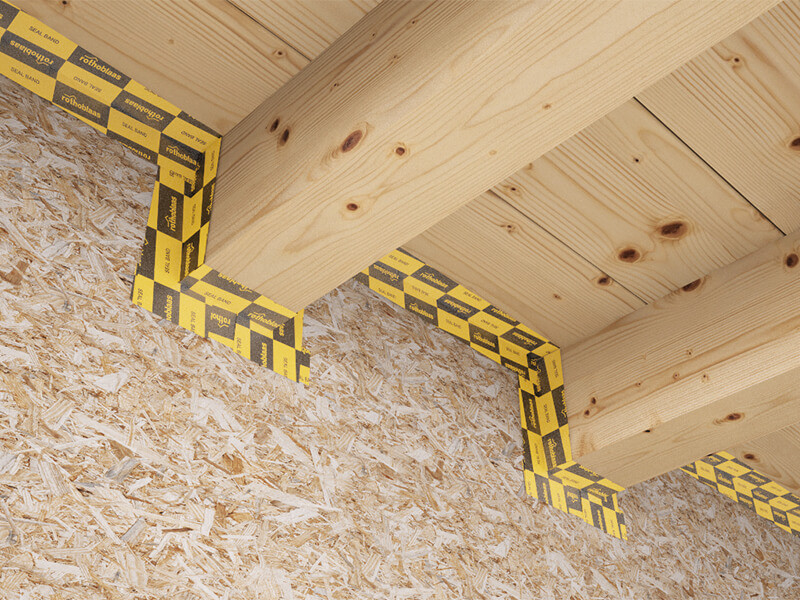

The tape has a pre-shapeable carrier that allows efficient and agile sealing of concave or convex corners and edges.
Recommended use: The tape is designed exclusively for indoor applications. Suitable for application on various smooth building substrates, such as timber or OSB panels, without the need for additional surface treatment. If the tape is applied to brick or concrete surfaces, the use of a primer such as PRIMER SPRAY is recommended.
The complete list of approved application surfaces can be found in the specific instructions provided by the manufacturer.
Installation: If applicable, the protective release film may be partially removed from the adhesive side to facilitate installation on both sharp-edged and flat surfaces. The sealing is completed by removing the remaining film and adhering the tape to the support.
Once tape installation is complete, a pressure roller must be used to ensure perfect adhesion.
