LIFELINE WITH A4 STAINLESS STEEL COMPONENTS
PATROL A4

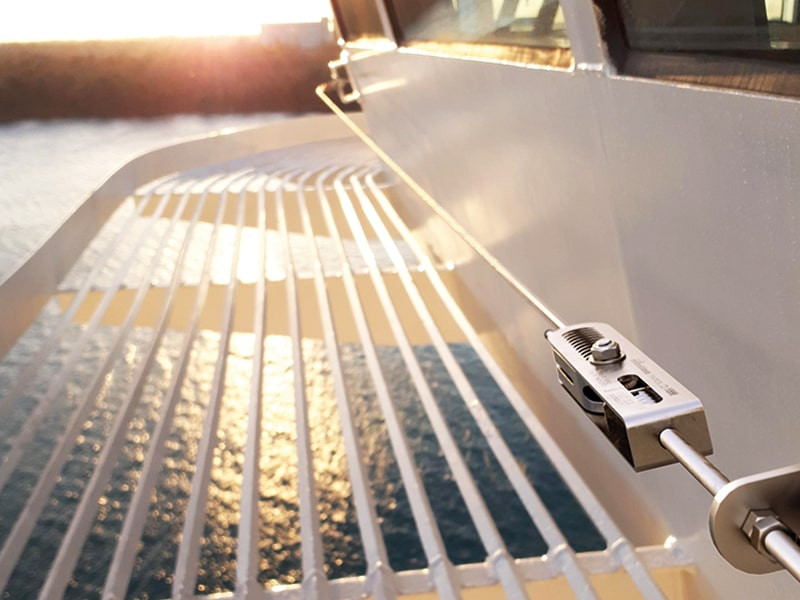

The PATROL A4 lifeline with AISI 316 stainless steel components provides excellent corrosion resistance, ideal for installation in marine and industrial environments. The assembly is quick and easy, directly onto concrete or steel structure.
PATROL A4 lifeline: guaranteed safety and corrosion resistance.

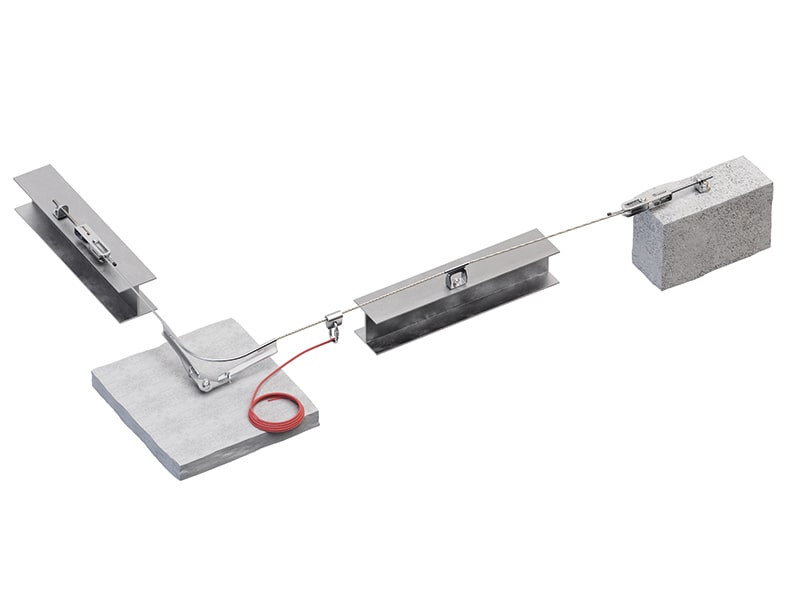

The PATROL A4 stainless steel lifeline has specially designed shuttles that can be used to enable the operator to pass-through bends and intermediate points without ever disconnecting. The lifeline system withstands both plane stresses (360°) and extraction forces, and can be installed on flat roofs, on side walls when creating wall-mounted lifelines, and on ceilings in the creation of overhead lifelines.
The lifeline system withstands both plane stress (360°) and extraction forces, and can be installed on flat roofs, on walls in the creation of lateral lifelines and on ceilings by creating overhead lifelines.
Documents
| Technical data sheets | |
|---|---|
| Declaration of Installation and inspection | |
| Declaration of conformity (SPEAREVOA4) |
TERMINAL ELEMENTS
| CODE | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|
| PATROLENDA4 | AISI 316 stainless steel grade 1.4401 | 40 | 61 | 66 | 1 |
| PARENDA4 | AISI 316 stainless steel grade 1.4401 | 300 | 150 | 300 | 1 |
TENSIONERS AND ENERGY ABSORBERS
| CODE | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|
| SPEARA4 | AISI 316 stainless steel grade 1.4401 EN AW 6082 aluminium | 50 | 33 | 201 | 1 |
| SPEAREVOA4 | AISI 316 stainless steel grade 1.4401 | 57 | 56 | 291 | 1 |
INTERMEDIATE ELEMENTS
| CODE | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|
| PASINTA4 | AISI 316 stainless steel grade 1.4401 | 35 | 86 | 100 | 1 |
| PARINTERA4 | AISI 316 stainless steel grade 1.4401 | 100 | 88 | 120 | 1 |
| OHINTA4 | AISI 316 stainless steel grade 1.4401 | 40 | 86 | 130 | 1 |
ANGLE BRACKETS
| CODE | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|
| PASANGA4 | AISI 316 stainless steel grade 1.4401 | 300 | 69 | 300 | 1 |
| PASANGBENDA4 | AISI 316 stainless steel grade 1.4401 | 54.5 | 102 | 565 | 1 |
| PAREXA4 | AISI 316 stainless steel grade 1.4401 | 326 | 118 | 326 | 1 |
| PAREXBENDA4 | AISI 316 stainless steel grade 1.4401 | 72 | 118 | 565 | 1 |
| PARINA4 | AISI 316 stainless steel grade 1.4401 | 356 | 87 | 356 | 1 |
| PARINBENDA4 | AISI 316 stainless steel grade 1.4401 | 42 | 87 | 565 | 1 |
| OHANGINTA4 | AISI 316 stainless steel grade 1.4401 | 354 | 86 | 354 | 1 |
| OHANGEXTA4 | AISI 316 stainless steel grade 1.4401 | 326 | 86 | 326 | 1 |
| ANGSUPA4 | AISI 316 stainless steel grade 1.4401 | 275 | 16 | 275 | 1 |
DISPOSITIVI SCORREVOLI
| CODE | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|
| OHSLIDEA4 | AISI 316 stainless steel grade 1.4401 | 93 | 47 | 98 | 1 |
