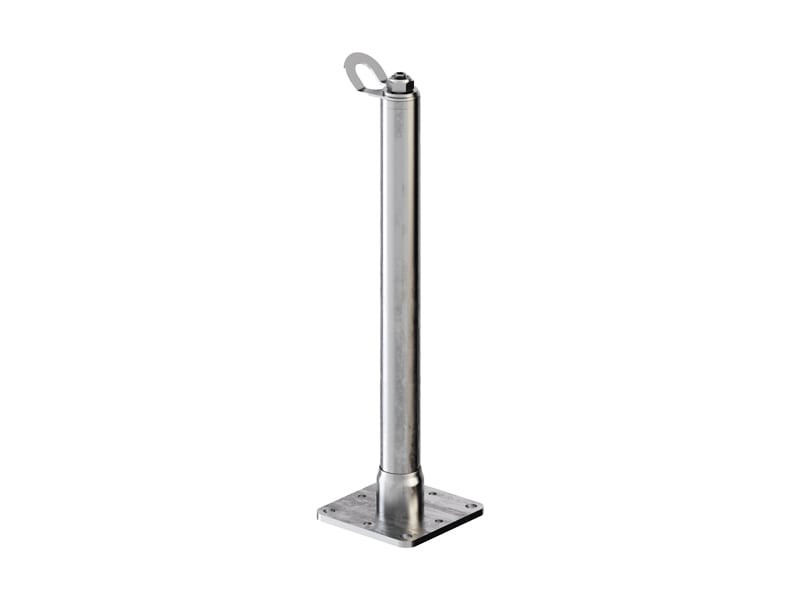

AOS01 + TOWER | TOWER A2
ANCHOR POINT FOR TIMBER, CONCRETE AND STEEL SUBSTRUCTURES
The TOWER and TOWER A2 supports combine with the eyelet AOS01 to create an anchor point. The supports are cylindrical and small, to minimise the visual impact on the roof, and are controlled deformation devices, to limit the transfer of load to the structure.
Description
AOS and TOWER/TOWER A2, anchoring system for various substructures.

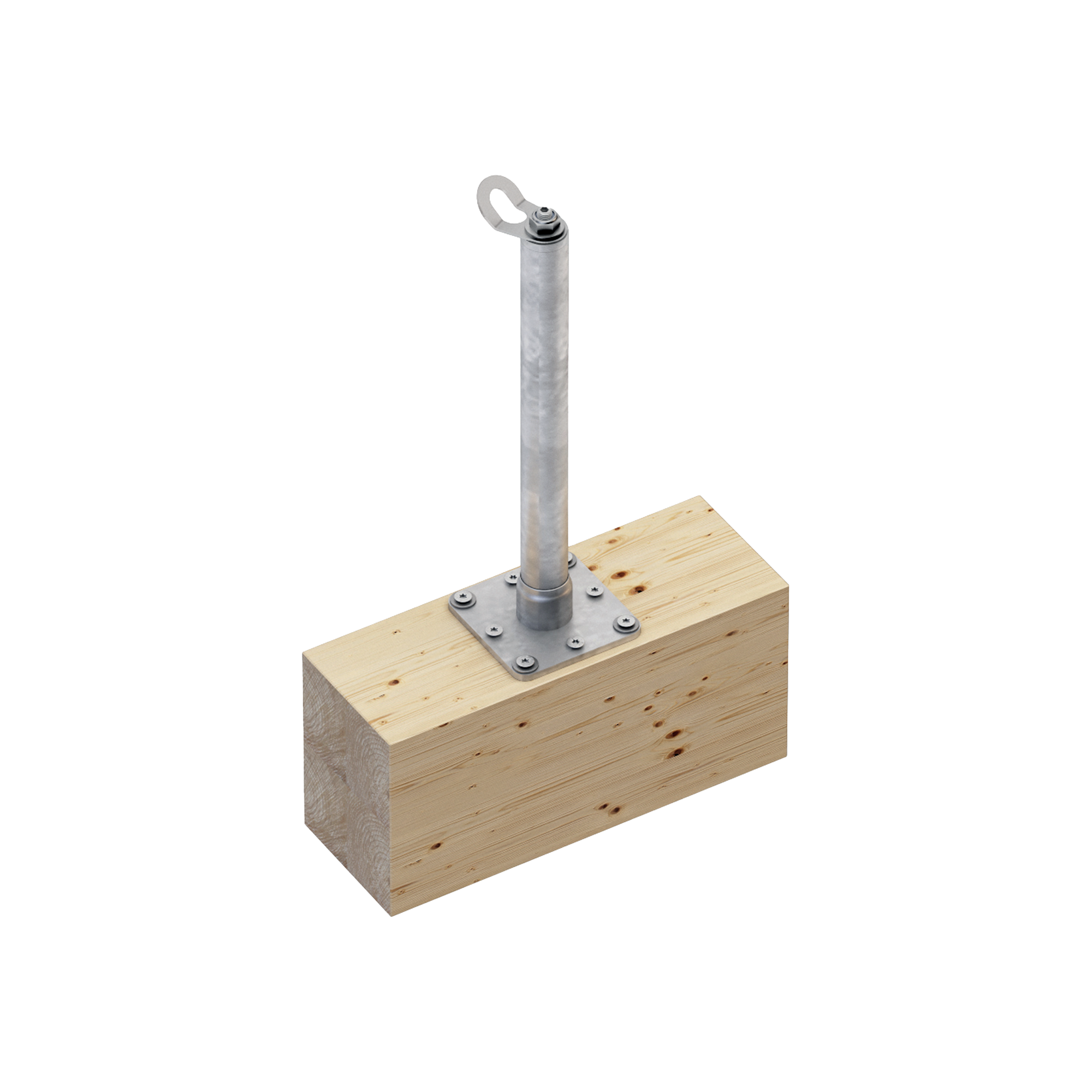

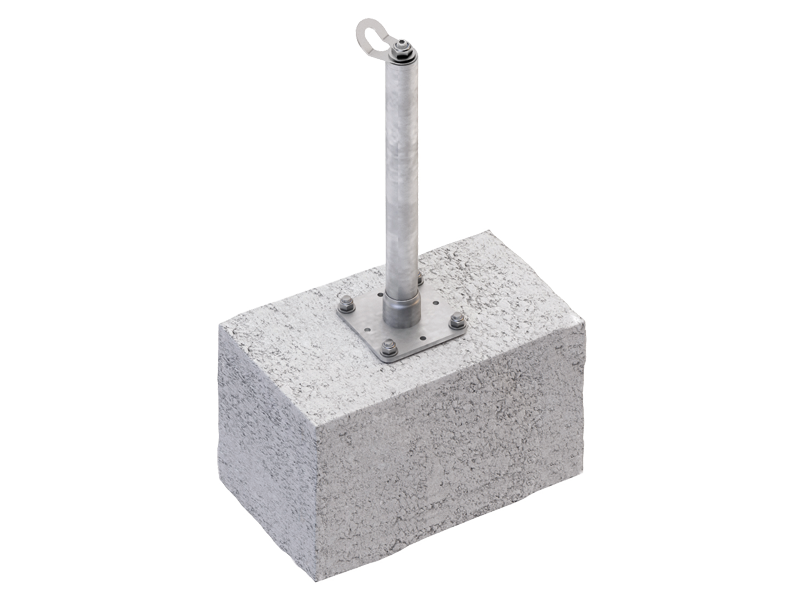

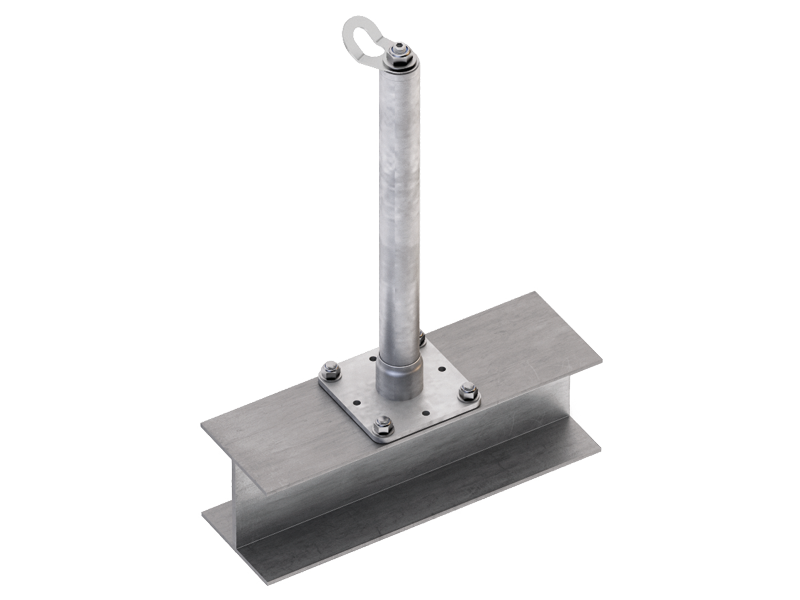

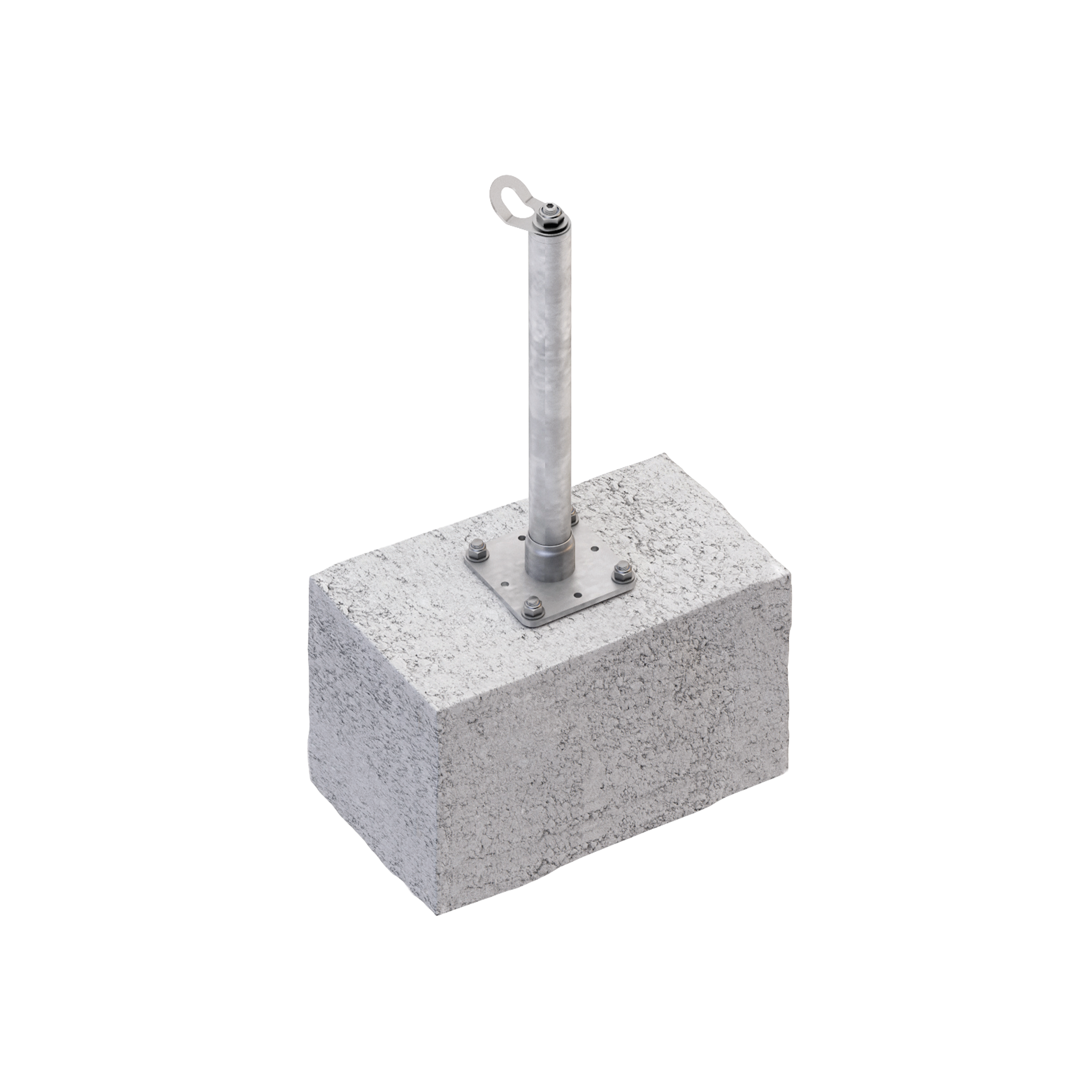

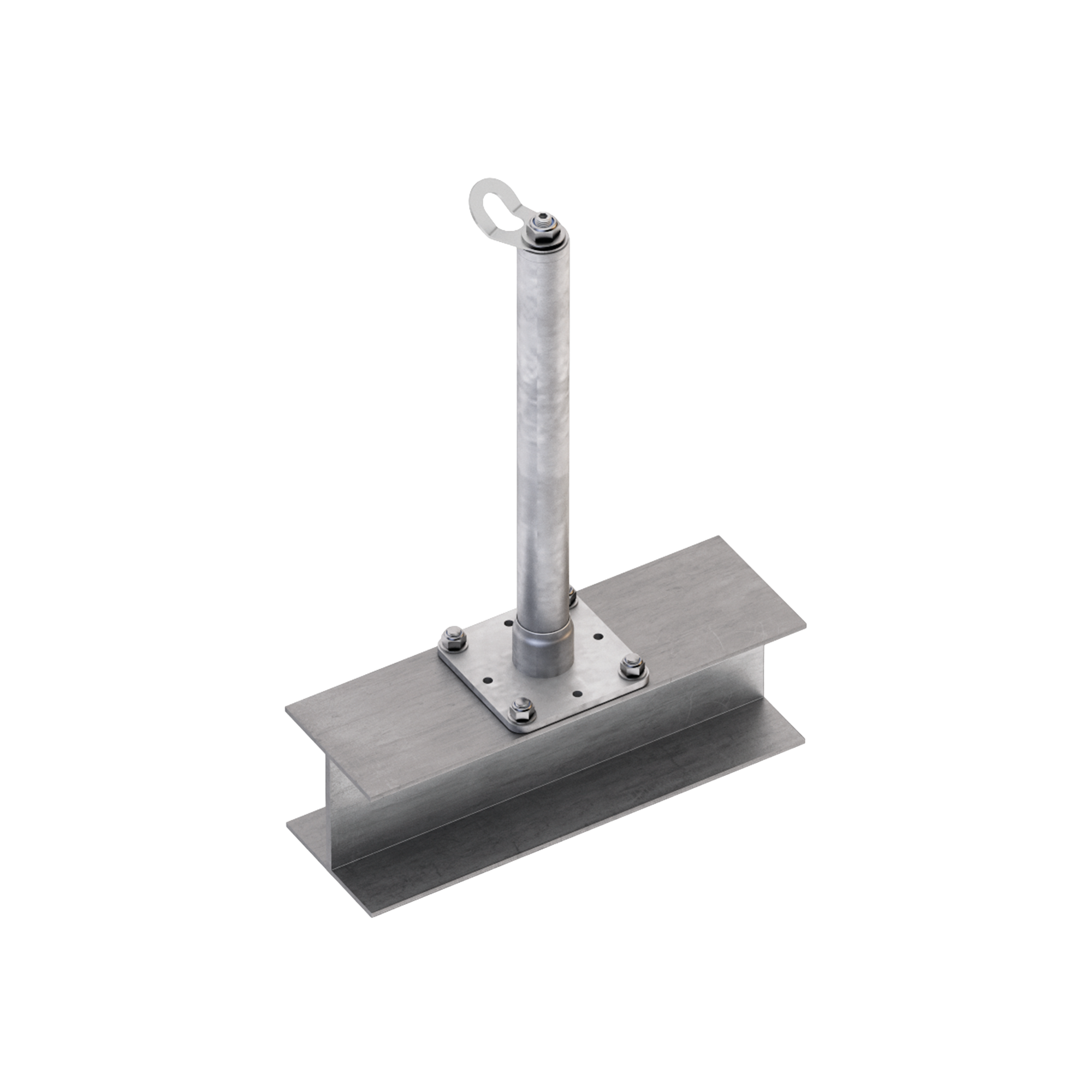

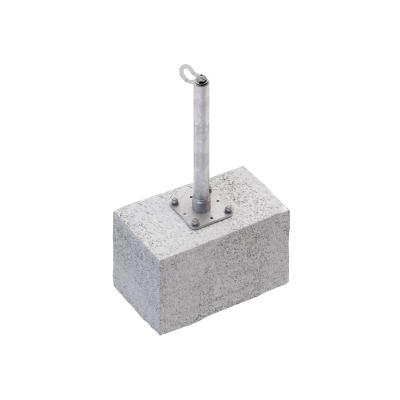

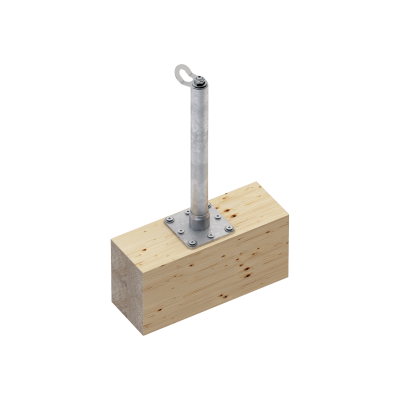

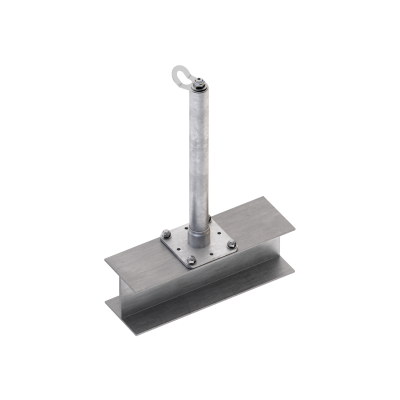

The AOS01 anchor point support can be installed on timber, concrete and steel, and withstands both plane stress (360°) and extraction forces. Support height is between 300 and 600 mm to adapt to different roofing thicknesses.
It is designed for application on flat roofs, sloping roofs and ceilings.
Documents
-
Technical data sheets
-
File BIM.ifc
-
File BIM.rfa
-
Declaration of Installation and inspection

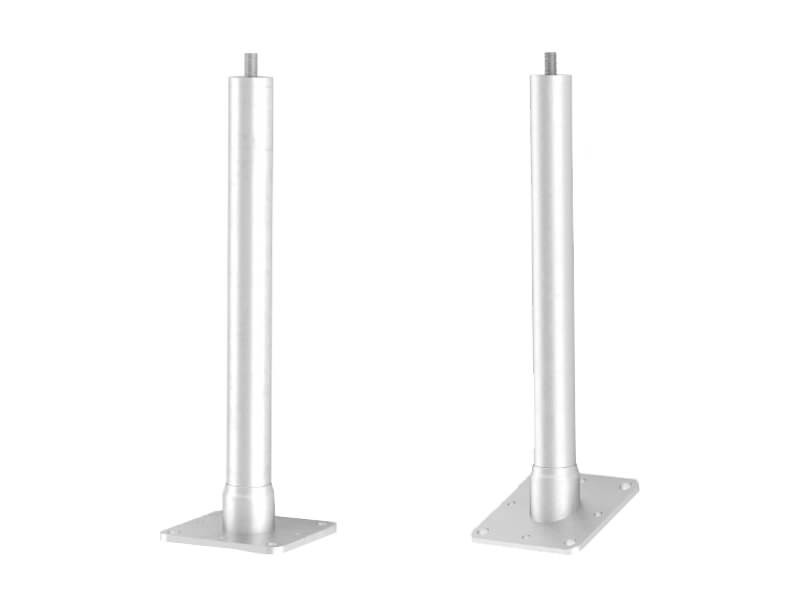

TOWER
| CODE | material | d₁
[mm]
|
B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|---|
| TOWER300 | S235JR zinc-plated steel | 48 | 150 | 300 | 150 | 1 |
| TOWER400 | S235JR zinc-plated steel | 48 | 150 | 400 | 150 | 1 |
| TOWER500 | S235JR zinc-plated steel | 48 | 150 | 500 | 150 | 1 |
| TOWER600 | S235JR zinc-plated steel | 48 | 150 | 600 | 150 | 1 |
| TOWER700 | S235JR zinc-plated steel | 48 | 150 | 700 | 150 | 1 |
| TOWER800 | S235JR zinc-plated steel | 48 | 150 | 800 | 150 | 1 |
| TOWER22500 | S235JR zinc-plated steel | 48 | 150 | 500 | 150 | 1 |
TOWER A2
| CODE | material | B
[mm]
|
P
[mm]
|
H
[mm]
|
pcs. |
|---|---|---|---|---|---|
| TOWERA2300 | AISI 304 stainless steel grade 1.4301 | 150 | 150 | 300 | 1 |
| TOWERA2400 | AISI 304 stainless steel grade 1.4301 | 150 | 150 | 400 | 1 |
| TOWERA2500 | AISI 304 stainless steel grade 1.4301 | 150 | 150 | 500 | 1 |
AOS01
| CODE | material | d₁
[mm]
|
B
[mm]
|
L
[mm]
|
pcs. | |
|---|---|---|---|---|---|---|
| AOS01 | AISI 304 stainless steel grade 1.4301 | 17 | 60 | 98 | 1 | |
| AOS01A4 |
New
|
- | - | - | - | 1 |
