RAILING FASTENING ON TRAPEZOIDAL METAL ROOF
GUARD M

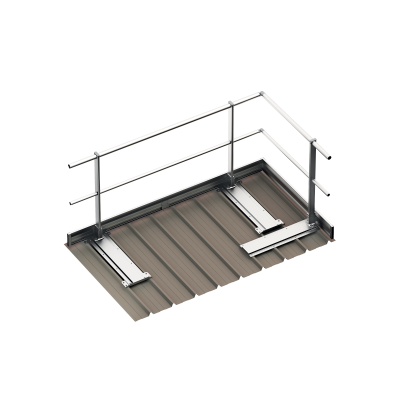

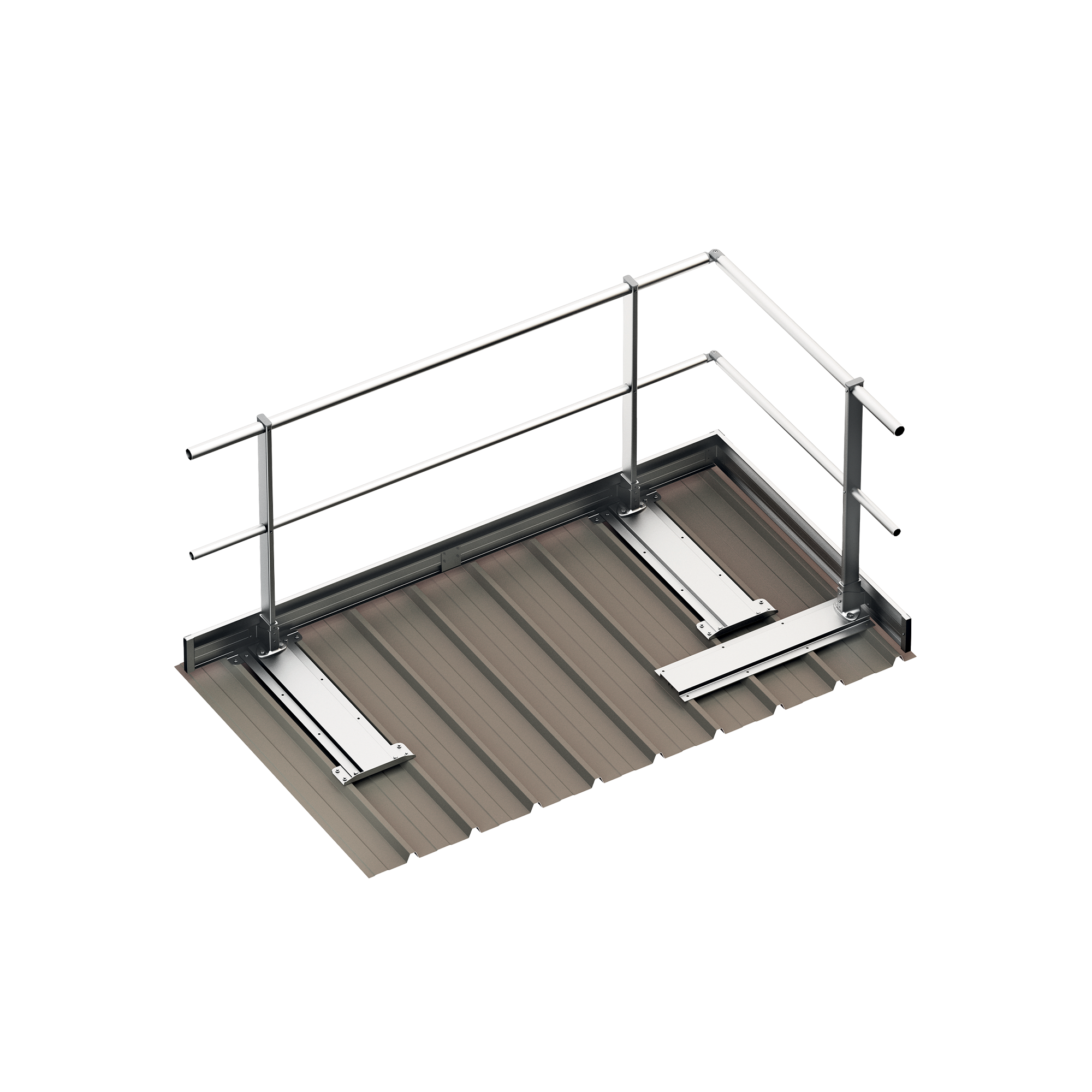

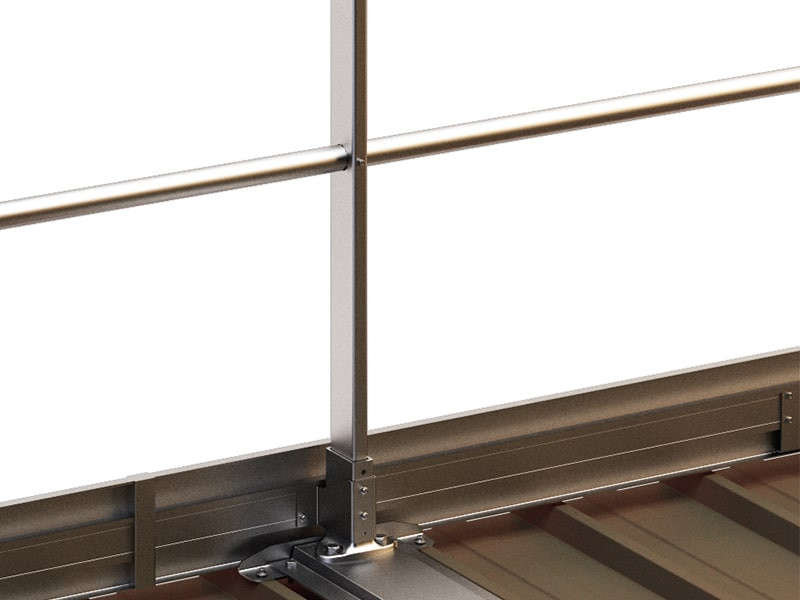

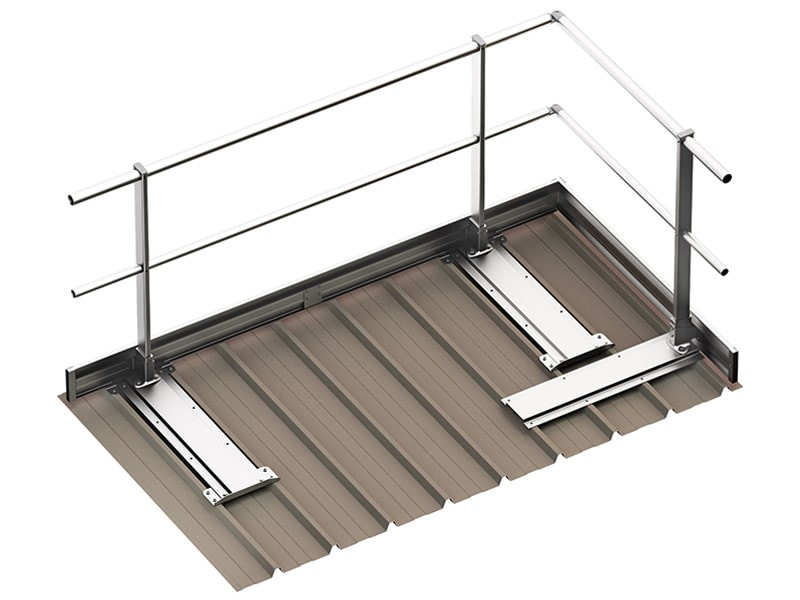

GUARD M is an innovative railing: the special fastening plates for trapezoidal metal sheet make it the ideal system for industrial roofing. Fastening plates are available in the two most common sizes of fret spacing. Two types of plates available: longitudinal and transversal to the axis of the frets.
Assembly is quick and easy: the components are interlocked in place or fastened with self-drilling screws, which are included in the supply. Made of aluminium alloy, the railing is extraordinarily light.
GUARD M, the specific railing for industrial environments.
Documents
| Technical data sheets |
|---|
Installation manual
| Installation manual |
|---|
HANDRAILS AND INTERMEDIATE RAILS
| CODE | description | pcs. |
|---|---|---|
| RBGBAR45 | Ø45 mm handrail with flush-mounted ring nuts L = 3000 mm | 1 |
| RBGBAR35 | Ø35 intermediate rail with flush-mounted ring nuts L = 3000 mm | 1 |
| RBGCAP | - | 1 |
UPRIGHTS
| CODE | description | pcs. |
|---|---|---|

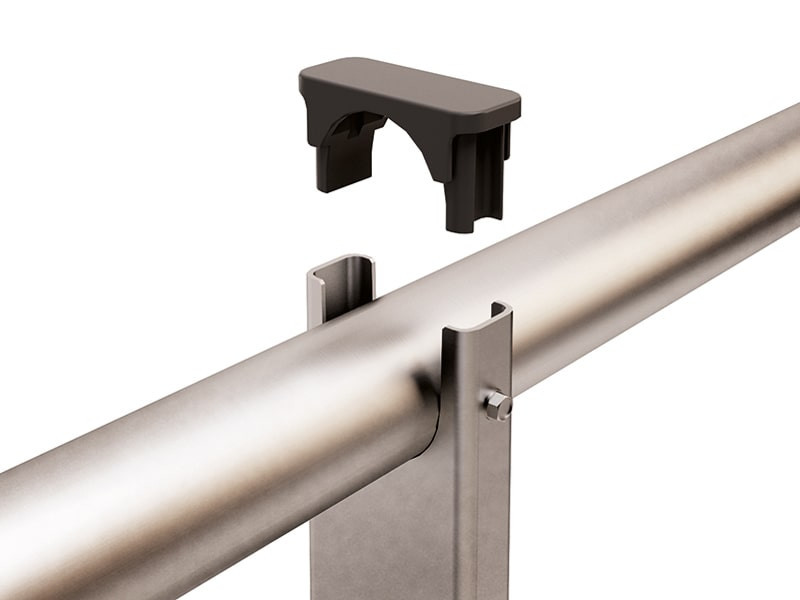

| RBGSUP110 | straight upright H = 1105 mm groove Ø45 mm | 1 |
| RBGSUP118 | straight upright H = 1182 mm groove Ø45 mm | 1 |
| RBGSUP115I | inclined upright H = 1157 mm groove Ø45 mm | 1 |
| RBGSUP760WH | staight strut 760 mm high without intermediate rail | 1 |
TOE BOARD AND ACCESSORIES
| CODE | description | pcs. |
|---|---|---|

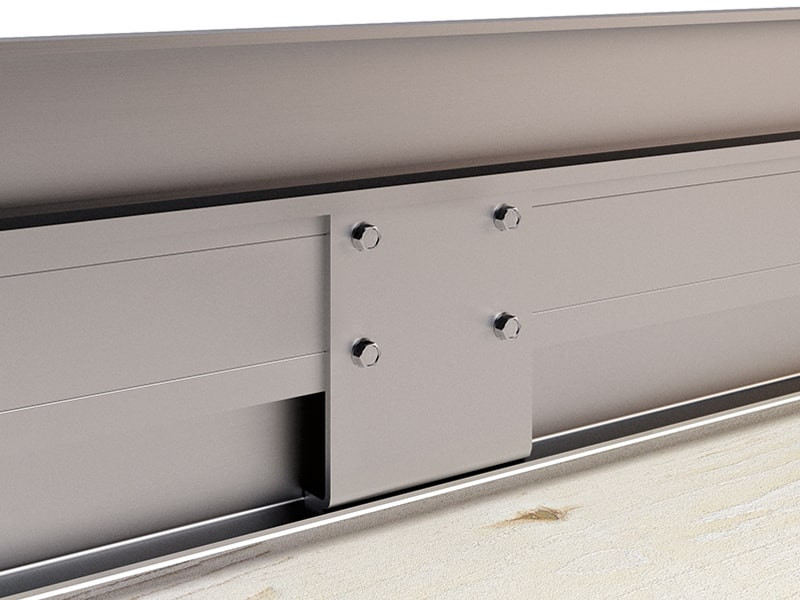

| RBGTB | toe board 3000 x 150 x 19 mm | 1 |
| RBGTBJUN | - | 1 |
| RBGTBCOR | - | 1 |
| RBGTBCAP | - | 1 |
| RBGTBH | support for toe board H = 150 mm | 1 |
BASI PER FISSAGGIO SU LAMIERA GRECATA
| CODE | description | pcs. |
|---|---|---|
| RBGBASE250PA | plate for fastening to trapezoidal sheet metal, pitch 250 mm, parallel to trapezoidal sheet metal (excluding Screws) | 1 |
| RBGBASE333PA | plate for fastening to trapezoidal sheet metal, pitch 333 mm, parallel to trapezoidal sheet metal (excluding Screws) | 1 |
| RBGBASE250PE | plate for fastening to trapezoidal sheet metal, pitch 250 mm, perpendicular to the frets (excluding screws) | 1 |
| RBGBASE333PE | plate for fastening to trapezoidal sheet metal, pitch 333 mm, perpendicular to trapezoidal sheet metal (excluding screws) | 1 |
ACCESSORIES
| CODE | description | pcs. |
|---|---|---|

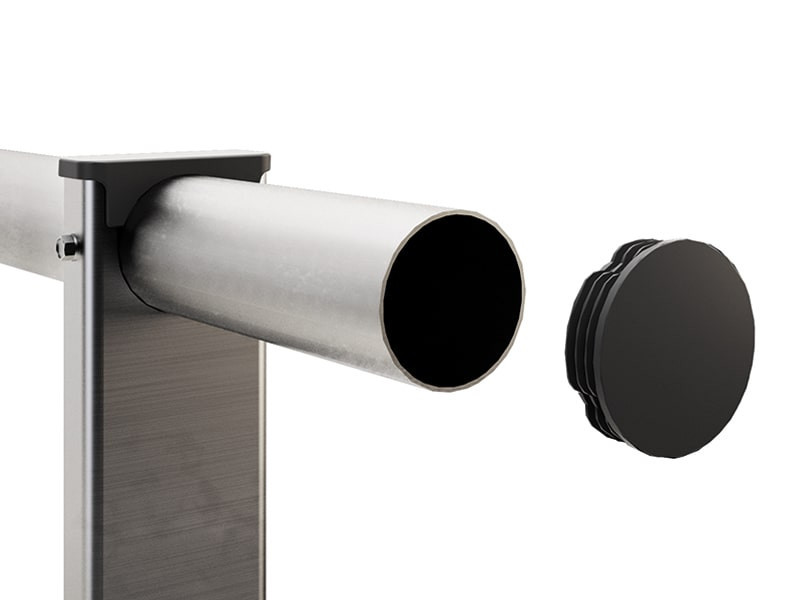

| RBGCAP45 | cap for handrail Ø45 mm | 1 |
| RBGCAP35 | cap for intermediate rail Ø35 mm | 1 |

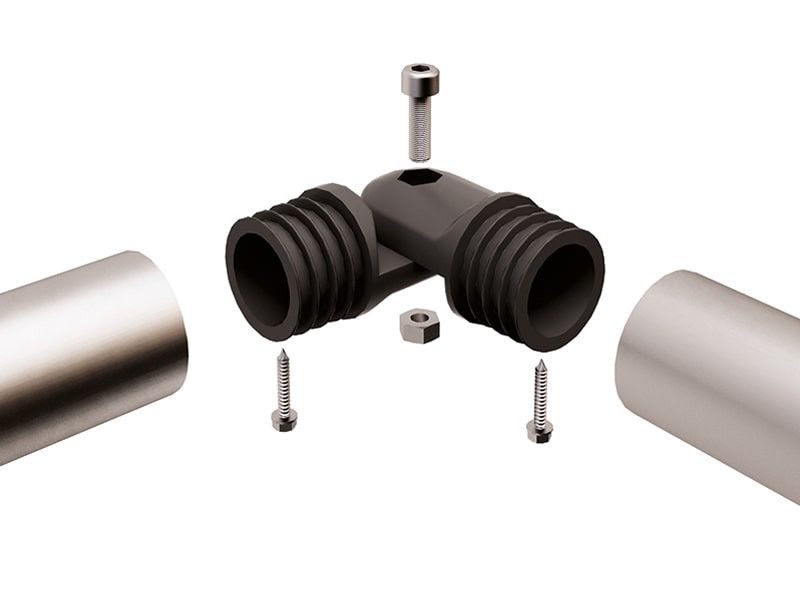

| RBGCOR45 | - | 1 |
| RBGCOR35 | angle bracket for intermediate rail Ø35 mm | 1 |
| RBGCORAL | - | 1 |
| RBGBASEHKIT | waterproofing kit for GUARD H base | 1 |
| RBGWALL45 | end element for handrail Ø45 mm | 1 |
| RBGWALL35 | end element for intermediate rail Ø35 mm | 1 |
| RBGWALLAL | aluminium end element for handrail and intermediate rail | 1 |
FASTENING SCREWS
| CODE | description | pcs. |
|---|---|---|
| RBGSCR4825 | stainless steel self-drilling screw 4,8 x 25 mm | 25 |
| RBGSCR810 | grub screw M8 x 10 (spare part) | 1 |
| RBGSCR4816 | stainless steel self-drilling screw 4,8 x 16 mm | 25 |
SISTEMA RECLINABILE
| CODE | description | pcs. |
|---|---|---|
| RBGSUP110F | pull-down upright H = 1105 mm groove Ø45 mm | 1 |
| RBGSUP100F | pull-down upright H = 1010 mm groove Ø45 mm | 1 |
| RBGBAR45F | handrail without flush-mounted ring nuts Ø45 mm L = 3000 mm | 1 |
| RBGBAR35F | handrail without flush-mounted ring nuts Ø35 mm L = 3000 mm | 1 |
