RAILING VERTICAL AND VERTICAL SPACED FASTENING
GUARD V | GUARD VD

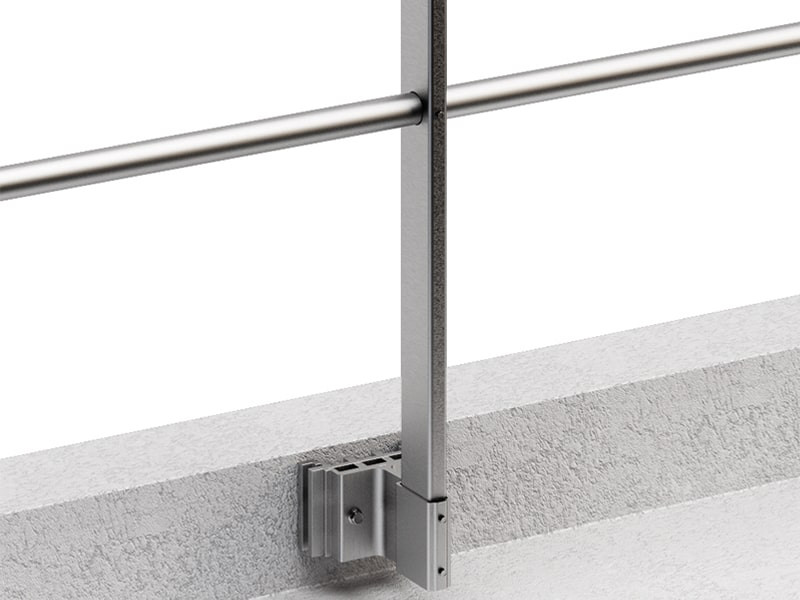

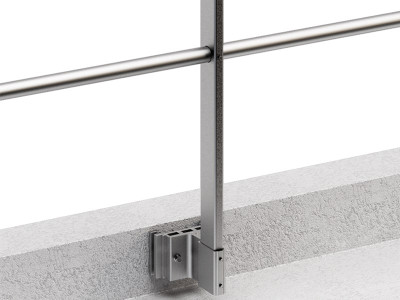

GUARD V and GUARD VD railings are designed for installation on vertical structures. Installation is quick and easy; during installation the uprights can be spaced from the wall on which it is installed by means of aluminium shims.
The components are interlocked in place or fastened with self-drilling screws, which are included in the supply. The GUARD VD version includes a base plate for wall mounting that protrudes by 6 cm.

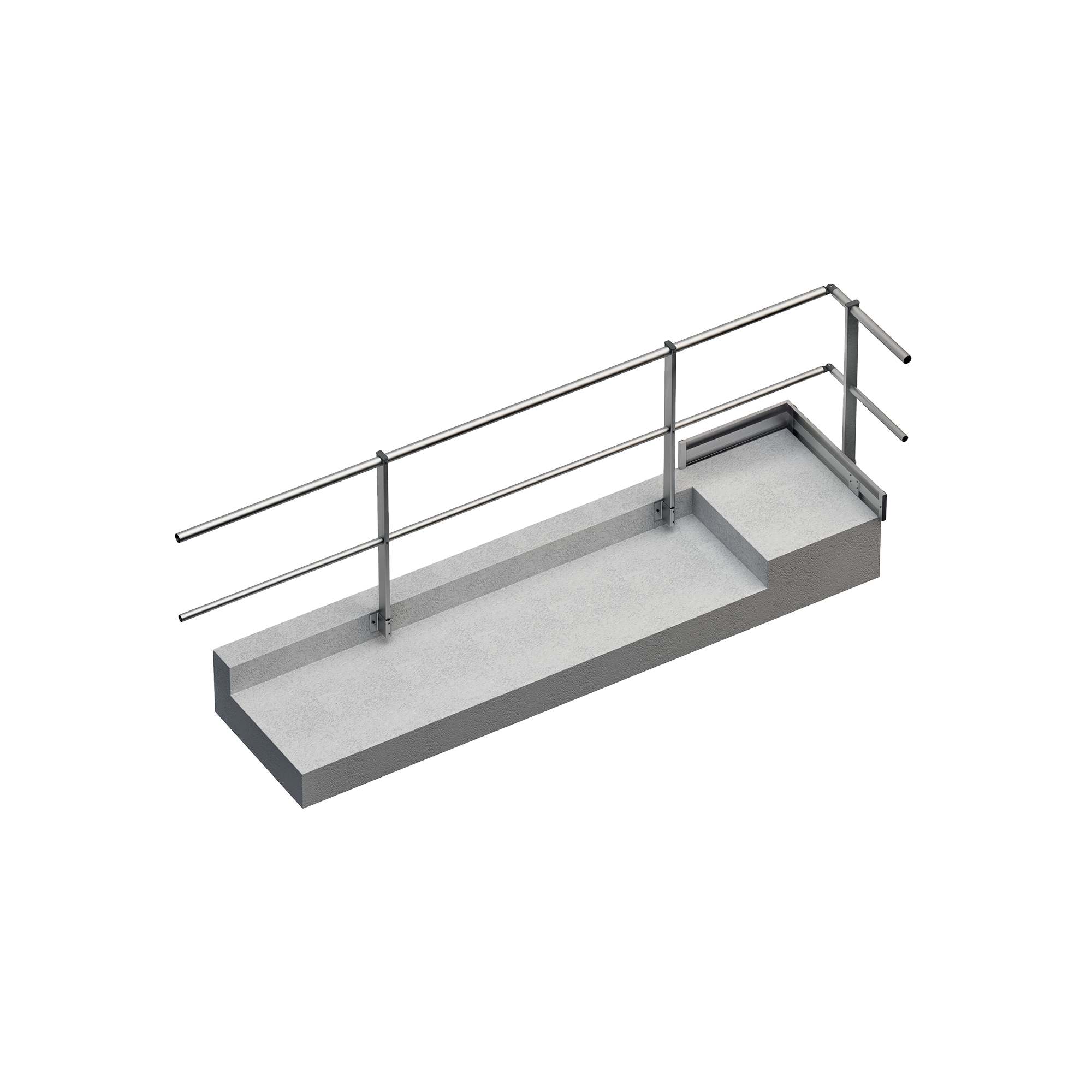

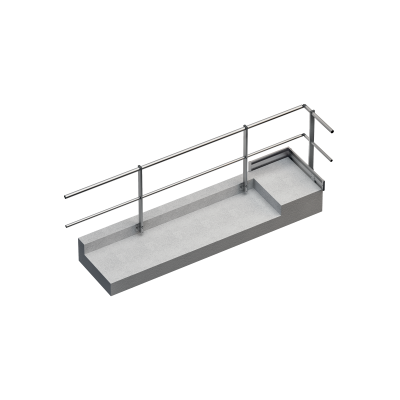

GUARD V and GUARD VD, railings for vertical and spaced vertical fastening.
Documents
| Technical data sheets |
|---|
Installation manual
| Installation manual |
|---|
HANDRAILS AND INTERMEDIATE RAILS
| CODE | description | pcs. |
|---|---|---|
| RBGBAR45 | Ø45 mm handrail with flush-mounted ring nuts L = 3000 mm | 1 |
| RBGBAR35 | Ø35 intermediate rail with flush-mounted ring nuts L = 3000 mm | 1 |
| RBGCAP | - | 1 |
UPRIGHTS - GUARD V/GUARD VD
| CODE | description | pcs. |
|---|---|---|
| RBGSUP118 | straight upright H = 1182 mm groove Ø45 mm | 1 |
| RBGSUP130 | straight upright H = 1300 mm groove Ø45 mm | 1 |
| RBGSUP115I | inclined upright H = 1157 mm groove Ø45 mm | 1 |
TOE BOARD AND ACCESSORIES - GUARD V/GUARD VD
| CODE | description | pcs. |
|---|---|---|
| RBGTB | toe board 3000 x 150 x 19 mm | 1 |
| RBGTBJUN | - | 1 |
| RBGTBCOR | - | 1 |
| RBGTBCAP | - | 1 |
STANDARD BASES - GUARD V/GUARD VD
| CODE | version | pcs. |
|---|---|---|
| RBGBASEV | - | 1 |
| RBGBASEVD | - | 1 |
| RBGDIST | - | 1 |
ACCESSORIES
| CODE | description | pcs. |
|---|---|---|

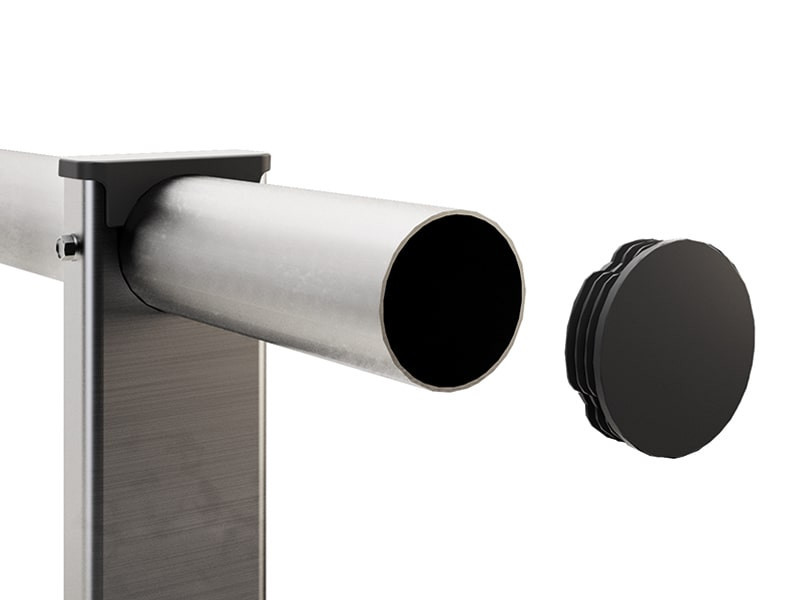

| RBGCAP45 | cap for handrail Ø45 mm | 1 |
| RBGCAP35 | cap for intermediate rail Ø35 mm | 1 |
| RBGCOR45 | - | 1 |
| RBGCOR35 | angle bracket for intermediate rail Ø35 mm | 1 |
| RBGCORAL | - | 1 |
| RBGBASEHKIT | waterproofing kit for GUARD H base | 1 |
| RBGWALL45 | end element for handrail Ø45 mm | 1 |
| RBGWALL35 | end element for intermediate rail Ø35 mm | 1 |
| RBGWALLAL | aluminium end element for handrail and intermediate rail | 1 |
FASTENING SCREWS - GUARD V/GUARD VD
| CODE | description | pcs. |
|---|---|---|
| RBGSCR4816 | stainless steel self-drilling screw 4,8 x 16 mm | 25 |
| RBGSCR4825 | stainless steel self-drilling screw 4,8 x 25 mm | 25 |
| RBGSCR4832 | stainless steel self-drilling screw 4,8 x 32 mm | 25 |
SISTEMA RECLINABILE
| CODE | description | pcs. |
|---|---|---|
| RBGSUP110F | pull-down upright H = 1105 mm groove Ø45 mm | 1 |
| RBGSUP100F | pull-down upright H = 1010 mm groove Ø45 mm | 1 |
| RBGBAR45F | handrail without flush-mounted ring nuts Ø45 mm L = 3000 mm | 1 |
| RBGBAR35F | handrail without flush-mounted ring nuts Ø35 mm L = 3000 mm | 1 |
