PERFORATED PLATE FOR SHEAR LOADS
TITAN PLATE C

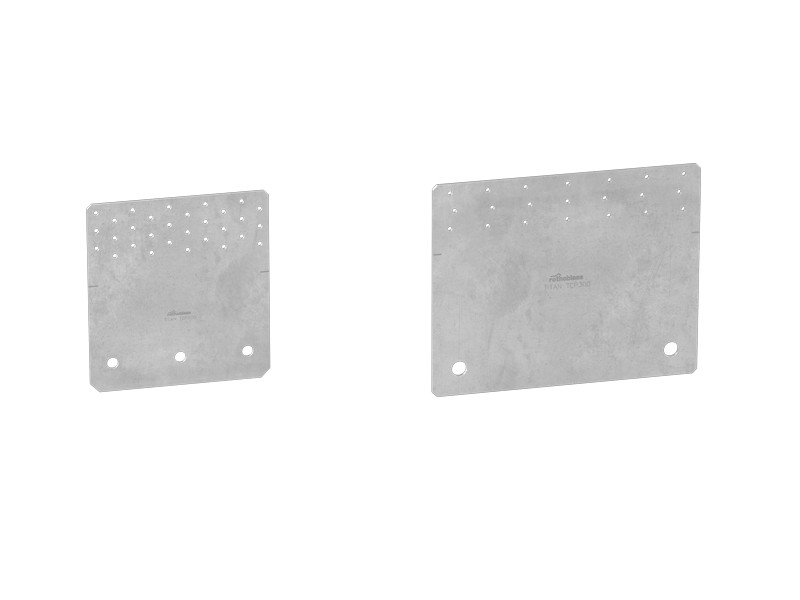

TITAN PLATE C perforated plate is the metal plate for shear loads that can be used for CLT panels and framed panels continuous connection to the substructure.

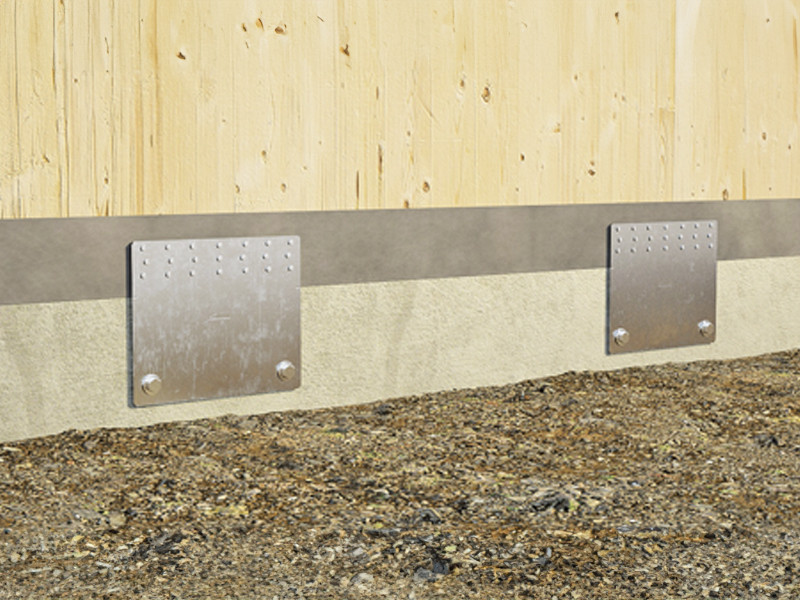

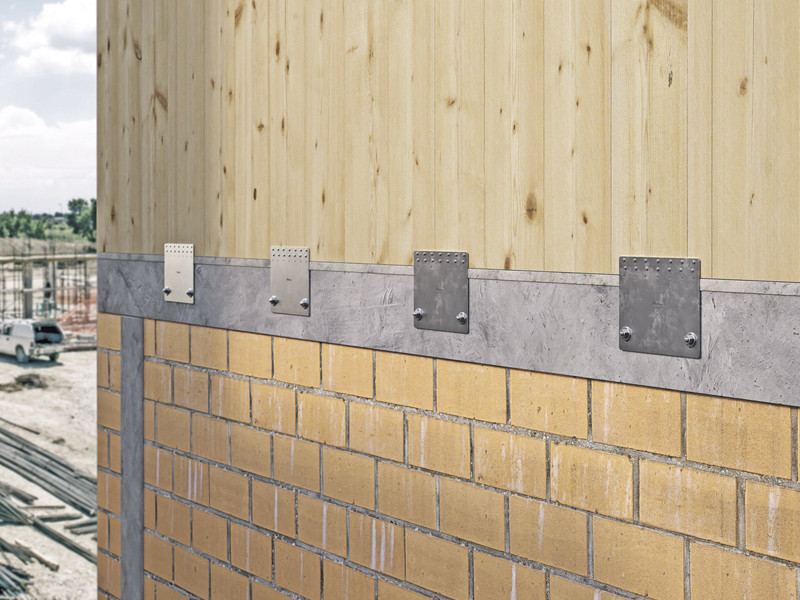

Unlike other perforated plates, it is ideal for making added stories and flat joints in general between elements in concrete or masonry and CLT panels and for creating continuous shear connections. Available in 2 versions.
TITAN PLATE C, the steel perforated plate for timber
TITAN PLATE C, like other perforated metal plates, is designed as a fastening plate with nails or screws, with partial or total fastening, even in the presence of bedding mortar. Among all plates for timber, it offers versatility in the choice of fastening configurations, and is a solution designed, calculated and tested with partial and total fastening, with horizontal or vertical direction of the fibres.

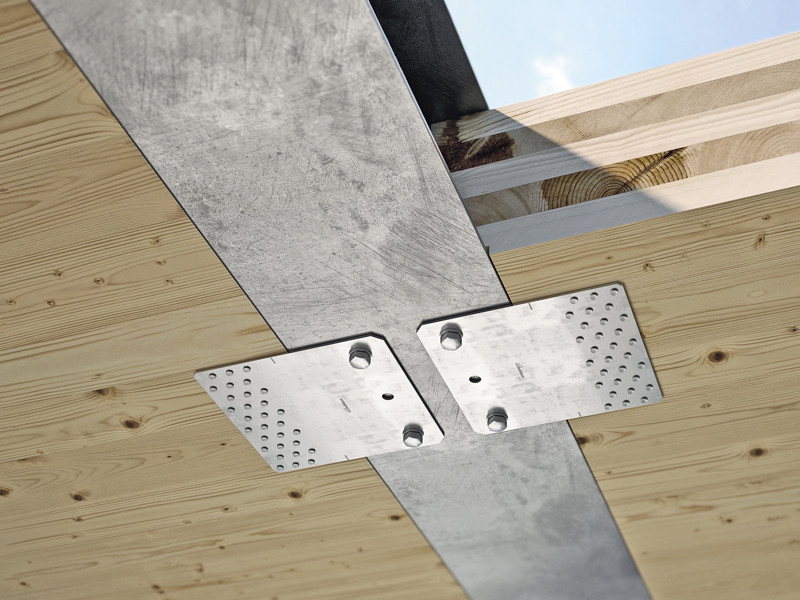

TITAN PLATE C is CE marked according to EN 14545 and is available in TCP300 version with increased thickness optimized for CLT. Plate made of bright zinc plated carbon steel, it is suitable for the construction of timber-to-concrete shear joints for timber panels and beams, and can be used on CLT, LVL, solid timber, glulam, framed structures and timber-based panels.
Documents
| Technical data sheets | |
|---|---|
| Declaration of performance (DOP) | Download |
| Item specification | |
| File CAD | |
| File BIM.ifc | |
| File BIM.rfa |

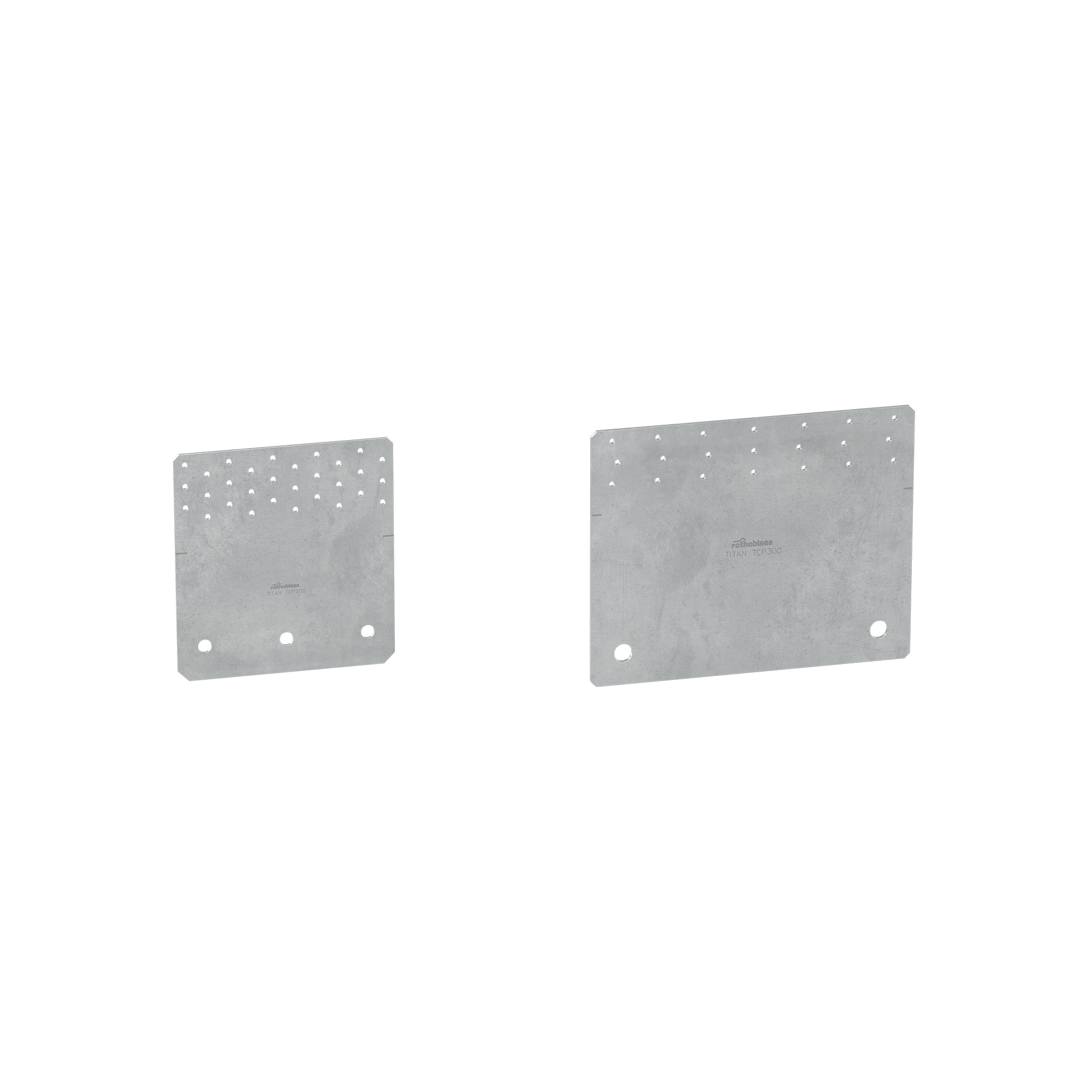

TITAN PLATE TCP
| CODE | B
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|
| TCP200 | 200 | 214 | 3 | 10 |
| TCP300 | 300 | 240 | 4 | 5 |
Specifications
Supply and installation of pate for shear forces for timber structures, Type TITAN PLATE.
CE marking in accordance with EN 14545
Field of use:
- Timber-to-concrete or timber to-steel joints
Material:
- Z275 Bright zinc plated carbon steel, two dimensional perforated plate
Geometry:
- B (mm) = :
- H (mm) = :
- Thickness s (mm) = :
Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
