CONCEALED BRACKET WITH AND WITHOUT HOLES
ALUMIDI

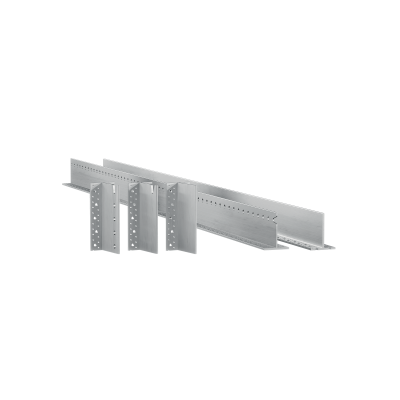

ALUMIDI brackets for glulam or solid timber are made of high strength aluminium alloy.
They are featured by optimal hole spacing both for timber (nails or screws) and reinforced concrete (chemical or screwed anchor) joints.
Videos
ALUMIDI, THE BRACKET FOR CONCEALED TIMBER-TO-CONCRETE CONNECTIONS.
The ALUMIDI bracket for timber is produced by extrusion, therefore without welds. Certified and calculated in all directions (vertical, horizontal and axial), it can be used in mixed-mode bending.
Once installed it is concealed providing a satisfying appearance to the joint and it fulfils the fire safety requirements. A countersink where the first hole is located, simplifies installation facilitating the introduction of the secondary beam from the top.

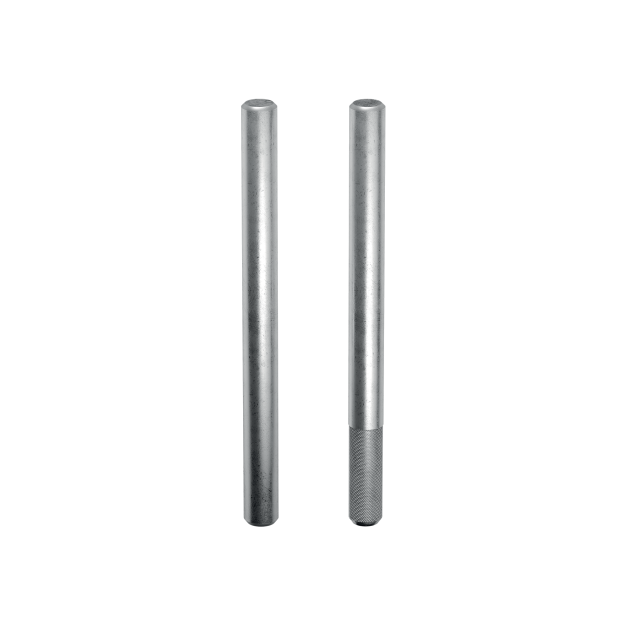

For applications on concrete or other uneven surfaces the SBD self-drilling dowels allow a greater installation tolerance when fastening the timber element. Values are certified, tested and consolidated. ALUMIDI fastening brackets can be used for timber-to-timber and timber-to-concrete shear joints both perpendicular and inclined. Ideal for application on solid timber and glulam, CLT, LVL and timber-based panels.
Documents
| Technical data sheets | |
|---|---|
| Technical data sheets USA | |
| Technical data sheets CANADA | |
| ETA Certificate | |
| Declaration of performance (DOP) | Download |
| Item specification | |
| File CAD | |
| File BIM.ifc | |
| File BIM.rfa |
ALUMIDI WITHOUT HOLES
| CODE | H
[mm]
|
pcs. |
|---|---|---|
| ALUMIDI80 | 80 | 25 |
| ALUMIDI120 | 120 | 25 |
| ALUMIDI160 | 160 | 25 |
| ALUMIDI200 | 200 | 15 |
| ALUMIDI240 | 240 | 15 |
| ALUMIDI2200 | 2200 | 1 |
ALUMIDI WITHOUT HOLES WITH UPPER COUNTERSINK
| CODE | H
[mm]
|
pcs. |
|---|---|---|
| ALUMIDI280N | 280 | 15 |
| ALUMIDI320N | 320 | 8 |
| ALUMIDI360N | 360 | 8 |
| ALUMIDI400N | 400 | 8 |
| ALUMIDI440N | 440 | 8 |
ALUMIDI WITH HOLES
| CODE | H
[mm]
|
pcs. |
|---|---|---|
| ALUMIDI120L | 120 | 25 |
| ALUMIDI160L | 160 | 25 |
| ALUMIDI200L | 200 | 15 |
| ALUMIDI240L | 240 | 15 |
| ALUMIDI280L | 280 | 15 |
| ALUMIDI320L | 320 | 8 |
| ALUMIDI360L | 360 | 8 |
Specifications
ALUMIDI
Supply and installation of concealed bracket without holes for timber structures, Type ALUMIDI.
CE marking in accordance with ETA 09/0361
Field of use:
- Timber-to-timber and timber-to-concrete joints
Material:
- Aluminium alloy three dimensional perforated plate
Geometry:
- H (mm) = : ………………
- Thickness s (mm) = : ………………
Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
ALUMIDI L
Supply and installation of concealed bracket with holes for timber structures, Type ALUMIDI L.
CE marking in accordance with ETA 09/0361
Field of use:
- Timber-to-timber and timber-to-concrete joints
Material:
- Aluminium alloy three dimensional perforated plate
Geometry:
- H (mm) = :
- Thickness s (mm) = :
Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
