BRACE

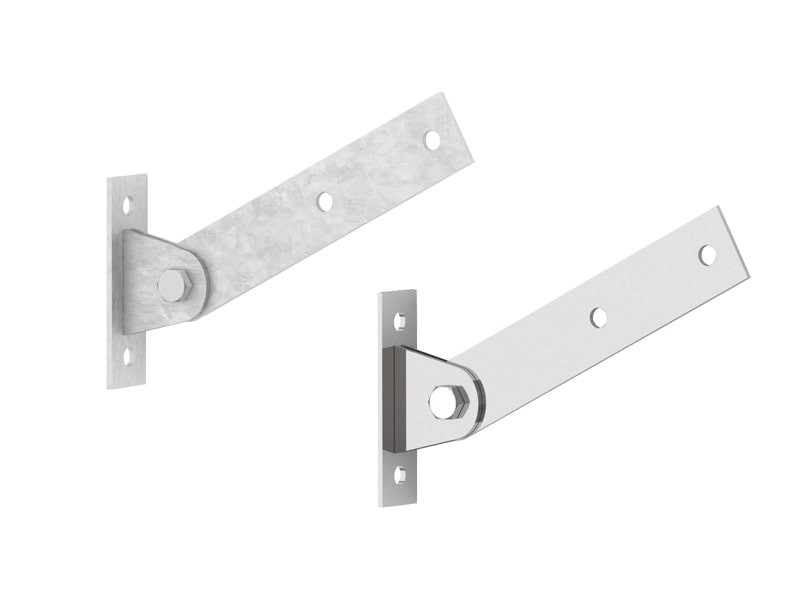

Ideal for reciprocal fastening with variable inclination of rectangular or round columns.
Available in A2 | AISI304 stainless steel to for use in aggressive environments.

Documents

Technical data sheets

BRACE

CODE B
[mm]
H
[mm]
L
[mm]
s
[mm]
pcs.
BRF140 40 140 235 5 1

BRACE A2 | AISI304

CODE B
[mm]
H
[mm]
L
[mm]
s
[mm]
pcs.
BRFI140 40 140 235 5 1

Specifications

Supply and installation of hinged plate, Type BRACE.

Field of use:

  • Joints for timber columns, classes 1, 2 and 3

Material:

  • Hot dip bright zinc plated carbon steel and stainless steel A2 | AISI304

Geometry:

Angle bracket: :

  • H (mm) = :

  • Bottom plate (mm) = :

  • Thickness s (mm) = :

Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
