AB1

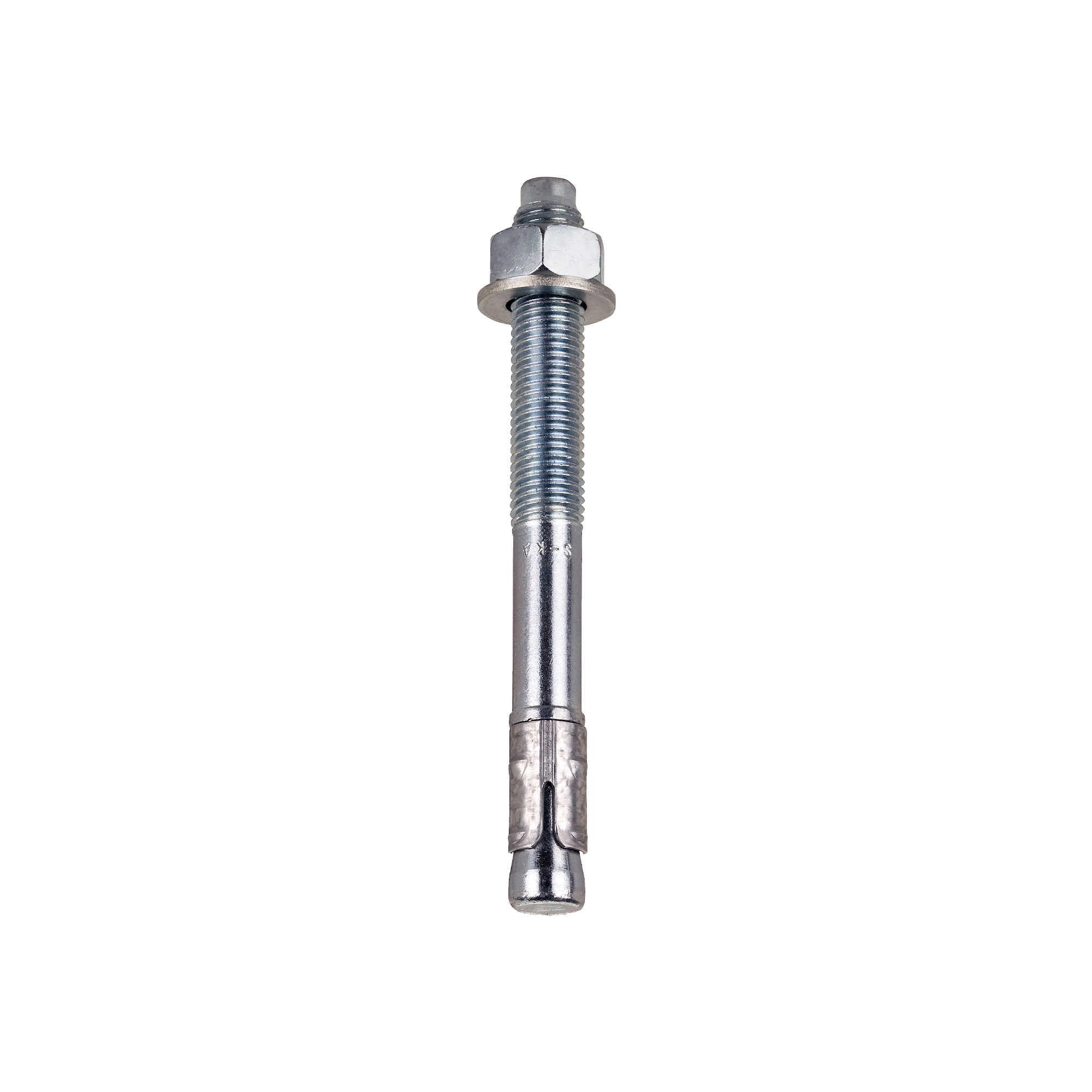

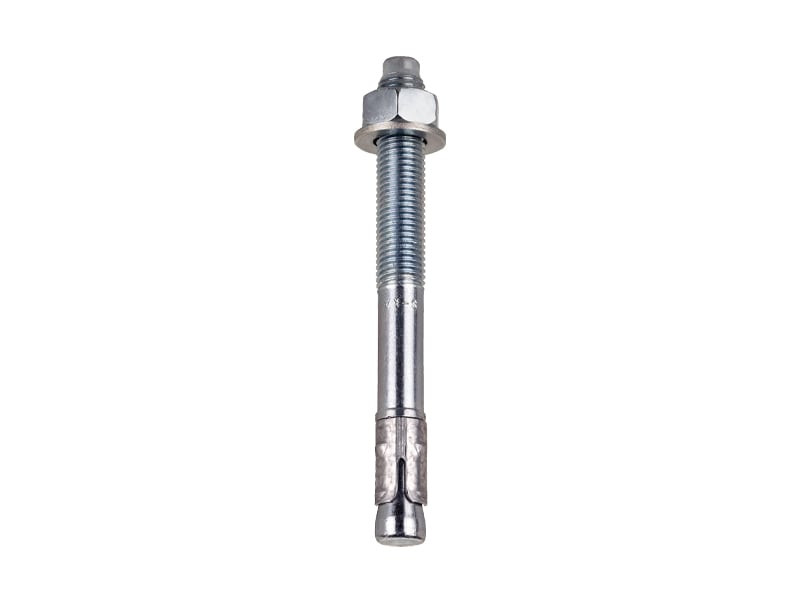

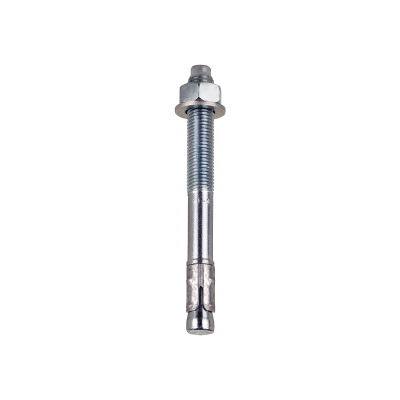

HEAVY-DUTY EXPANSION ANCHOR CE1 AB1

The AB1 heavy duty expansion anchor made of electrogalvanized carbon steel is CE option 1 certified for cracked and uncracked concrete.
It is suitable for dense materials and for through-fastening.

Get in touch with sales

Description
Documents
Codes and dimensions
Related products

Description

AB1, the heavy expansion anchor for concrete

AB1 is the torque-controlled expansion through-anchor that provides R120 fire resistance.

Supplied complete with nut and washer. Seismic performance category C1 e C2 (M10-M12-M16)

Documents

Technical data sheets
Choose a Language
Technical data sheets 2024
Choose a Language
ETA Certificate
Choose a Language
- ETA Certificate English
- ETA Certificate German

AB1

CODE	info	d [mm]	L [mm]	SW	pcs.
AB110135	Item being phased out	M10	135	SW17	25
AB112100	Item being phased out	M12	100	SW19	25
AB112120	Item being phased out	M12	120	SW19	25
AB112150	Item being phased out	M12	150	SW19	25
AB112180	Item being phased out	M12	180	SW19	25

CODE		d [mm]	L [mm]	SW	pcs.
AB1890	New product	M8	90	SW13	100
AB18110	New product	M8	110	SW13	50
AB110105	New product	M10	105	SW17	25
AB110145	New product	M10	145	SW17	25
AB112115	New product	M12	115	SW19	25
AB112125	New product	M12	125	SW19	25
AB112145	New product	M12	145	SW19	15
AB112165	New product	M12	165	SW19	15
AB116145		M16	145	SW24	10
