MCS A2 | AISI304
The MCS A2 | AISI304 wood screw is ideal for fastening metal carpentry elements to timber substructures.
With integrated washer in A2 | AISI304 stainless steel and EPDM sealing gasket, it offers excellent performance in outdoor environments.
Description
MCS A2 | AISI304 wood screws with integrated washer and sealing gasket: infiltration-proof timber-metal joints.
A2 | AISI304 stainless steel screw with integrated A2 | AISI304 stainless steel washer and EPDM gasket.
The A2 | AISI304 stainless steel ensures high resistance to corrosion.

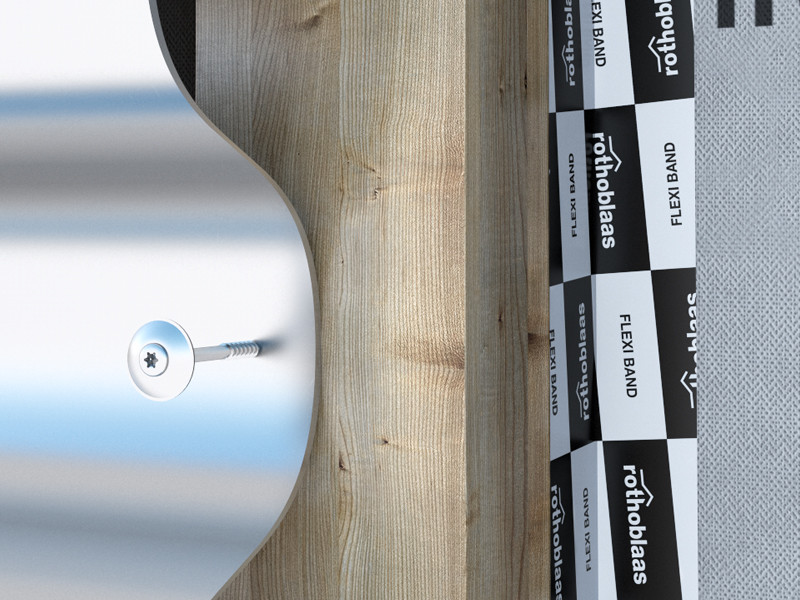

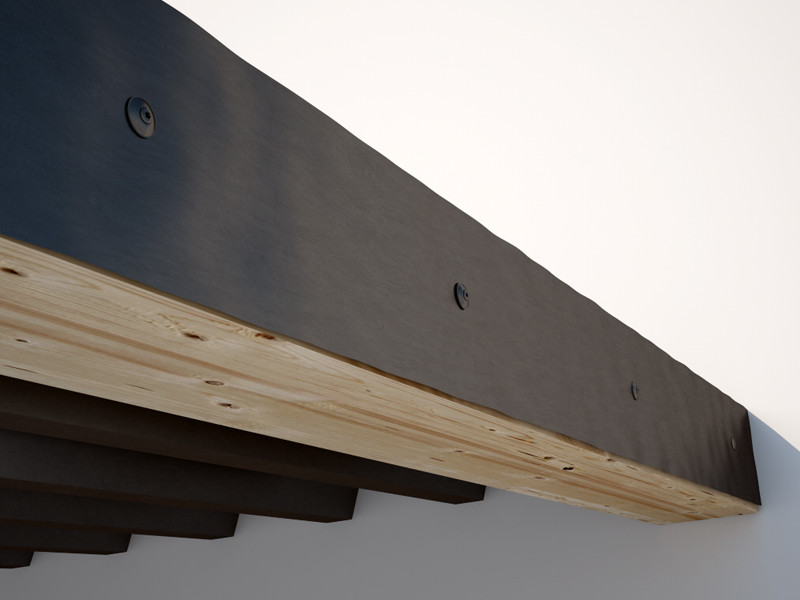

Ideal for fastening to timber corrugated sheet metal of wooden pergolas and outdoor structures.

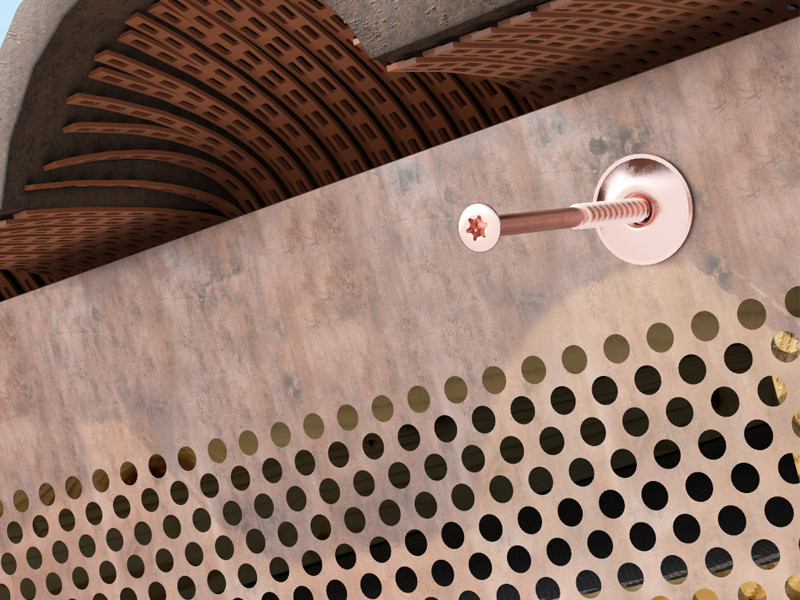

The convex head with Torx slot guarantees secure fastening of sheet metal on wood or plaster.

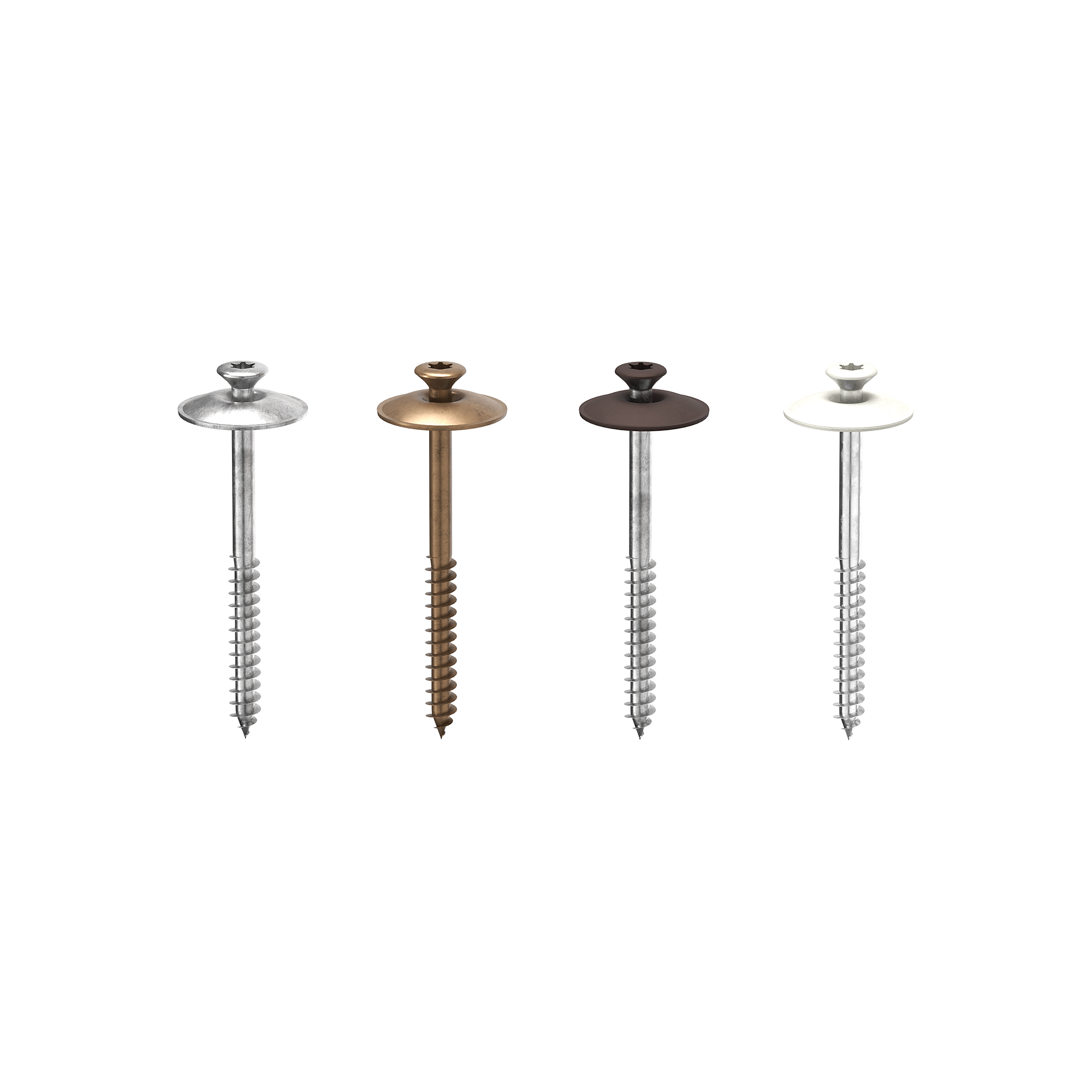

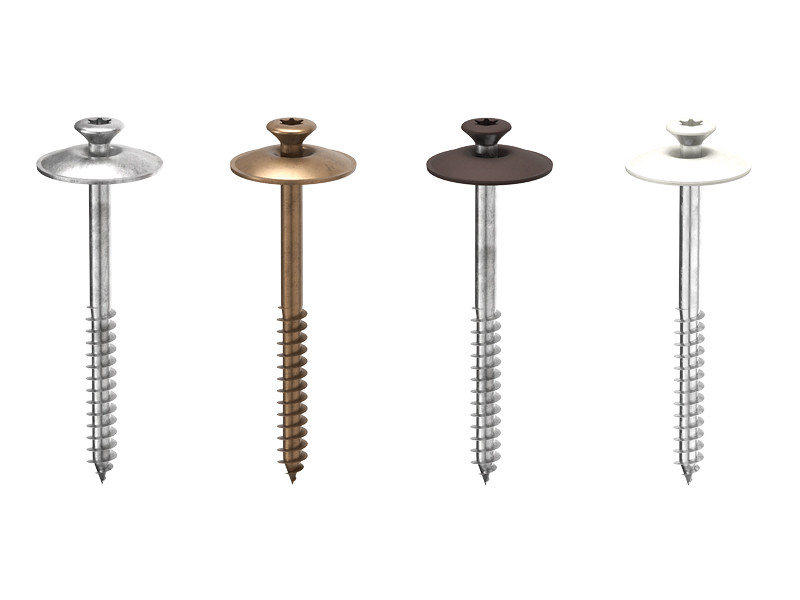

Also available in various colours: copper or chocolate brown. Service classes 1, 2 and 3.
Documents
-
Technical data sheets
- Technical data sheets Chinese
- Technical data sheets Croatian
- Technical data sheets Czech
- Technical data sheets Dutch
- Technical data sheets English Eurocode 5
- Technical data sheets English USA NDS
- Technical data sheets Finnish
- Technical data sheets French
- Technical data sheets German
- Technical data sheets Greek
- Technical data sheets Hungarian
- Technical data sheets Italian
- Technical data sheets Korean
- Technical data sheets Latvia
- Technical data sheets Norwegian
- Technical data sheets Polish
- Technical data sheets Portuguese
- Technical data sheets Romanian
- Technical data sheets Russian
- Technical data sheets Slovak
- Technical data sheets Slovene
- Technical data sheets Spanish
- Technical data sheets Swedish
MCS A2
| CODE | info | d₁
[mm]
|
L
[mm]
|
d₁
[in]
|
L
[in]
|
TX | pcs. |
|---|---|---|---|---|---|---|---|
| MCS4525A2 | - | 4.5 | 25 | 0.18 | 1'' | TX20 | 200 |
| MCS4535A2 | - | 4.5 | 35 | 0.18 | 1 3/8'' | TX20 | 200 |
| MCS4545A2 | - | 4.5 | 45 | 0.18 | 1 3/4'' | TX20 | 200 |
| MCS4560A2 | - | 4.5 | 60 | 0.18 | 2 3/8'' | TX20 | 200 |
| MCS4580A2 | - | 4.5 | 80 | 0.18 | 3 1/8'' | TX20 | 100 |
| MCS45100A2 | - | 4.5 | 100 | 0.18 | 4'' | TX20 | 100 |
| MCS45120A2 | - | 4.5 | 120 | 0.18 | 4 3/4'' | TX20 | 200 |
MCS M: RAL 8017
| CODE | info | d₁
[mm]
|
L
[mm]
|
d₁
[in]
|
L
[in]
|
TX | pcs. |
|---|---|---|---|---|---|---|---|
| MCS4525A2M | - | 4.5 | 25 | 0.18 | 1'' | TX20 | 200 |
| MCS4535A2M | - | 4.5 | 35 | 0.18 | 1 3/8'' | TX20 | 200 |
| MCS4545A2M | - | 4.5 | 45 | 0.18 | 1 3/4'' | TX20 | 200 |
MCS CU
| CODE | info | d₁
[mm]
|
L
[mm]
|
d₁
[in]
|
L
[in]
|
TX | pcs. |
|---|---|---|---|---|---|---|---|
| MCS4525CU | - | 4.5 | 25 | 0.18 | 1'' | TX20 | 200 |
| MCS4535CU | - | 4.5 | 35 | 0.18 | 1 3/8'' | TX20 | 200 |
| MCS4545CU | - | 4.5 | 45 | 0.18 | 1 3/4'' | TX20 | 200 |
| MCS4560CU | - | 4.5 | 60 | 0.18 | 2 3/8'' | TX20 | 200 |
| MCS4580CU | - | 4.5 | 80 | 0.18 | 3 1/8'' | TX20 | 100 |
| MCS45100CU | - | 4.5 | 100 | 0.18 | 4'' | TX20 | 100 |
| MCS45120CU | - | 4.5 | 120 | 0.18 | 4 3/4'' | TX20 | 200 |
MCS B: RAL 9002
| CODE | info | d₁
[mm]
|
L
[mm]
|
d₁
[in]
|
L
[in]
|
TX | pcs. |
|---|---|---|---|---|---|---|---|
| MCS4525A2B | - | 4.5 | 25 | 0.18 | 1'' | TX20 | 200 |
| MCS4545A2B | - | 4.5 | 45 | 0.18 | 1 3/4'' | TX20 | 200 |
