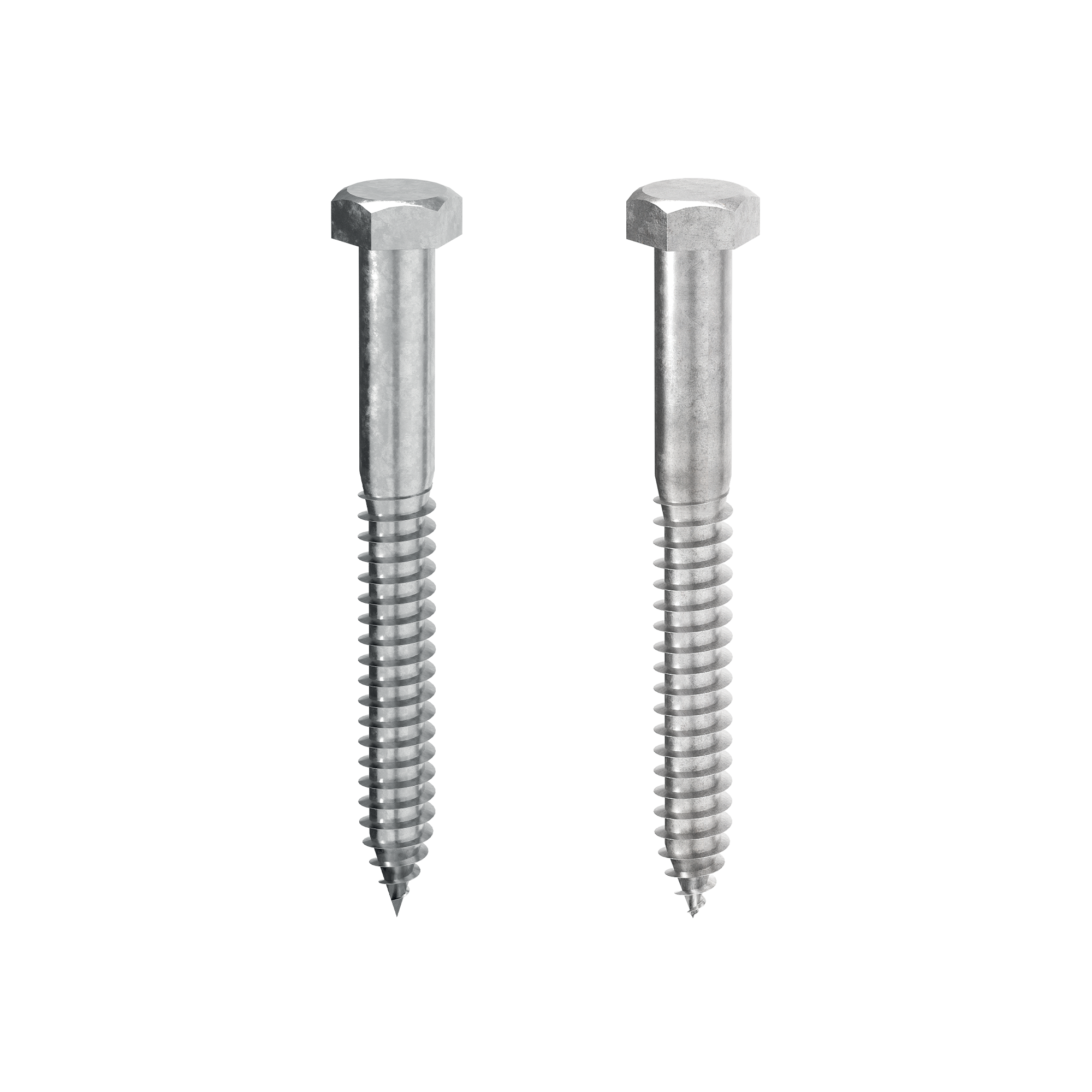

COACH SCREW DIN571
KOP
The KOP coach screw is the historical screw with timeless charm; it has CE marking in accordance with EN 14592.
Also recommended for use with metal plates in steel-wood applications, thanks to its hexagonal head.
Made of carbon steel with bright zinc plated.
Ideal for use with wood-based panels, fibre board panels, glulam, CLT and LVL. Service classes 1 and 2.
Also available in A2 AISI304 stainless steel for outdoor use, service class 3.
Features
FOCUS | coach screw with CE marking |
---|---|
HEAD | hexagonal |
DIAMETER | from 8,0 mm to 16,0 mm |
LENGTH | from 50 mm to 400 mm |
Documents
Technical data sheets | |
---|---|
Technical data sheets USA 🇺🇸 | |
Declaration of performance (DOP) | Download |
Item specification | |
File CAD |
KOP
CODE | d₁
[mm]
|
L
[mm]
|
d₁
[in]
|
L
[in]
|
pcs. |
---|---|---|---|---|---|
KOP850 | 8 | 50 | 0.32 | 1 15/16'' | 100 |
KOP860 | 8 | 60 | 0.32 | 2 3/8'' | 100 |
KOP870 | 8 | 70 | 0.32 | 2 3/4'' | 200 |
KOP880 | 8 | 80 | 0.32 | 3 1/8'' | 100 |
KOP8100 | 8 | 100 | 0.32 | 4'' | 50 |
KOP8120 | 8 | 120 | 0.32 | 4 3/4'' | 50 |
KOP8140 | 8 | 140 | 0.32 | 5 1/2'' | 50 |
KOP8160 | 8 | 160 | 0.32 | 6 1/4'' | 50 |
KOP8180 | 8 | 180 | 0.32 | 7 1/8'' | 50 |
KOP8200 | 8 | 200 | 0.32 | 8'' | 50 |
KOP1050 | 10 | 50 | 0.4 | 1 15/16'' | 50 |
KOP1060 | 10 | 60 | 0.4 | 2 3/8'' | 50 |
KOP1080 | 10 | 80 | 0.4 | 3 1/8'' | 50 |
KOP10100 | 10 | 100 | 0.4 | 4'' | 50 |
KOP10120 | 10 | 120 | 0.4 | 4 3/4'' | 50 |
KOP10140 | 10 | 140 | 0.4 | 5 1/2'' | 50 |
KOP10150 | 10 | 150 | 0.4 | 6'' | 50 |
KOP10160 | 10 | 160 | 0.4 | 6 1/4'' | 50 |
KOP10180 | 10 | 180 | 0.4 | 7 1/8'' | 50 |
KOP10200 | 10 | 200 | 0.4 | 8'' | 50 |
KOP10220 | 10 | 220 | 0.4 | 8 5/8'' | 50 |
KOP10240 | 10 | 240 | 0.4 | 9 1/2'' | 50 |
KOP10260 | 10 | 260 | 0.4 | 10 1/4'' | 50 |
KOP10280 | 10 | 280 | 0.4 | 11'' | 50 |
KOP10300 | 10 | 300 | 0.4 | 11 3/4'' | 50 |
KOP1250 | 12 | 50 | 0.48 | 1 15/16'' | 50 |
KOP1260 | 12 | 60 | 0.48 | 2 3/8'' | 50 |
KOP1270 | 12 | 70 | 0.48 | 2 3/4'' | 50 |
KOP1280 | 12 | 80 | 0.48 | 3 1/8'' | 50 |
KOP1290 | 12 | 90 | 0.48 | 3 1/2'' | 50 |
KOP12100 | 12 | 100 | 0.48 | 4'' | 25 |
KOP12120 | 12 | 120 | 0.48 | 4 3/4'' | 25 |
KOP12140 | 12 | 140 | 0.48 | 5 1/2'' | 25 |
KOP12150 | 12 | 150 | 0.48 | 6'' | 25 |
KOP12160 | 12 | 160 | 0.48 | 6 1/4'' | 25 |
KOP12180 | 12 | 180 | 0.48 | 7 1/8'' | 25 |
KOP12200 | 12 | 200 | 0.48 | 8'' | 25 |
KOP12220 | 12 | 220 | 0.48 | 8 5/8'' | 25 |
KOP12240 | 12 | 240 | 0.48 | 9 1/2'' | 25 |
KOP12260 | 12 | 260 | 0.48 | 10 1/4'' | 25 |
KOP12280 | 12 | 280 | 0.48 | 11'' | 25 |
KOP12300 | 12 | 300 | 0.48 | 11 3/4'' | 25 |
KOP12320 | 12 | 320 | 0.48 | 12 5/8'' | 25 |
KOP12340 | 12 | 340 | 0.48 | 13 3/8'' | 25 |
KOP12360 | 12 | 360 | 0.48 | 14 1/4'' | 25 |
KOP12380 | 12 | 380 | 0.48 | 15'' | 25 |
KOP12400 | 12 | 400 | 0.48 | 15 3/4'' | 25 |
KOP1680 | 16 | 80 | 0.63 | 3 1/8'' | 25 |
KOP16100 | 16 | 100 | 0.63 | 4'' | 25 |
KOP16120 | 16 | 120 | 0.63 | 4 3/4'' | 25 |
KOP16140 | 16 | 140 | 0.63 | 5 1/2'' | 25 |
KOP16150 | 16 | 150 | 0.63 | 6'' | 25 |
KOP16160 | 16 | 160 | 0.63 | 6 1/4'' | 25 |
KOP16180 | 16 | 180 | 0.63 | 7 1/8'' | 25 |
KOP16200 | 16 | 200 | 0.63 | 8'' | 25 |
KOP16220 | 16 | 220 | 0.63 | 8 5/8'' | 25 |
KOP16240 | 16 | 240 | 0.63 | 9 1/2'' | 25 |
KOP16260 | 16 | 260 | 0.63 | 10 1/4'' | 25 |
KOP16280 | 16 | 280 | 0.63 | 11'' | 25 |
KOP16300 | 16 | 300 | 0.63 | 11 3/4'' | 25 |
KOP16320 | 16 | 320 | 0.63 | 12 5/8'' | 25 |
KOP16340 | 16 | 340 | 0.63 | 13 3/8'' | 25 |
KOP16360 | 16 | 360 | 0.63 | 14 1/4'' | 25 |
KOP16380 | 16 | 380 | 0.63 | 15'' | 25 |
KOP16400 | 16 | 400 | 0.63 | 15 3/4'' | 25 |
KOP A2 | AISI304
CODE | d₁
[mm]
|
L
[mm]
|
d₁
[in]
|
L
[in]
|
pcs. |
---|---|---|---|---|---|
AI571850 | 8 | 50 | 0.32 | 1 15/16'' | 100 |
AI571860 | 8 | 60 | 0.32 | 2 3/8'' | 100 |
AI571880 | 8 | 80 | 0.32 | 3 1/8'' | 100 |
AI5718100 | 8 | 100 | 0.32 | 4'' | 100 |
AI5718120 | 8 | 120 | 0.32 | 4 3/4'' | 100 |
AI5711050 | 10 | 50 | 0.4 | 1 15/16'' | 100 |
AI5711060 | 10 | 60 | 0.4 | 2 3/8'' | 100 |
AI5711080 | 10 | 80 | 0.4 | 3 1/8'' | 100 |
AI57110100 | 10 | 100 | 0.4 | 4'' | 50 |
AI57110120 | 10 | 120 | 0.4 | 4 3/4'' | 50 |
AI57110140 | 10 | 140 | 0.4 | 5 1/2'' | 50 |
AI57110160 | 10 | 160 | 0.4 | 6 1/4'' | 50 |
AI57110180 | 10 | 180 | 0.4 | 7 1/8'' | 50 |
AI57110200 | 10 | 200 | 0.4 | 8'' | 50 |
AI57112100 | 12 | 100 | 0.48 | 4'' | 50 |
AI57112120 | 12 | 120 | 0.48 | 4 3/4'' | 25 |
AI57112140 | 12 | 140 | 0.48 | 5 1/2'' | 25 |
AI57112160 | 12 | 160 | 0.48 | 6 1/4'' | 25 |
AI57112180 | 12 | 180 | 0.48 | 7 1/8'' | 25 |
