UNIVERSAL SINGLE-SIDED TAPE WITHOUT RELEASE LINER

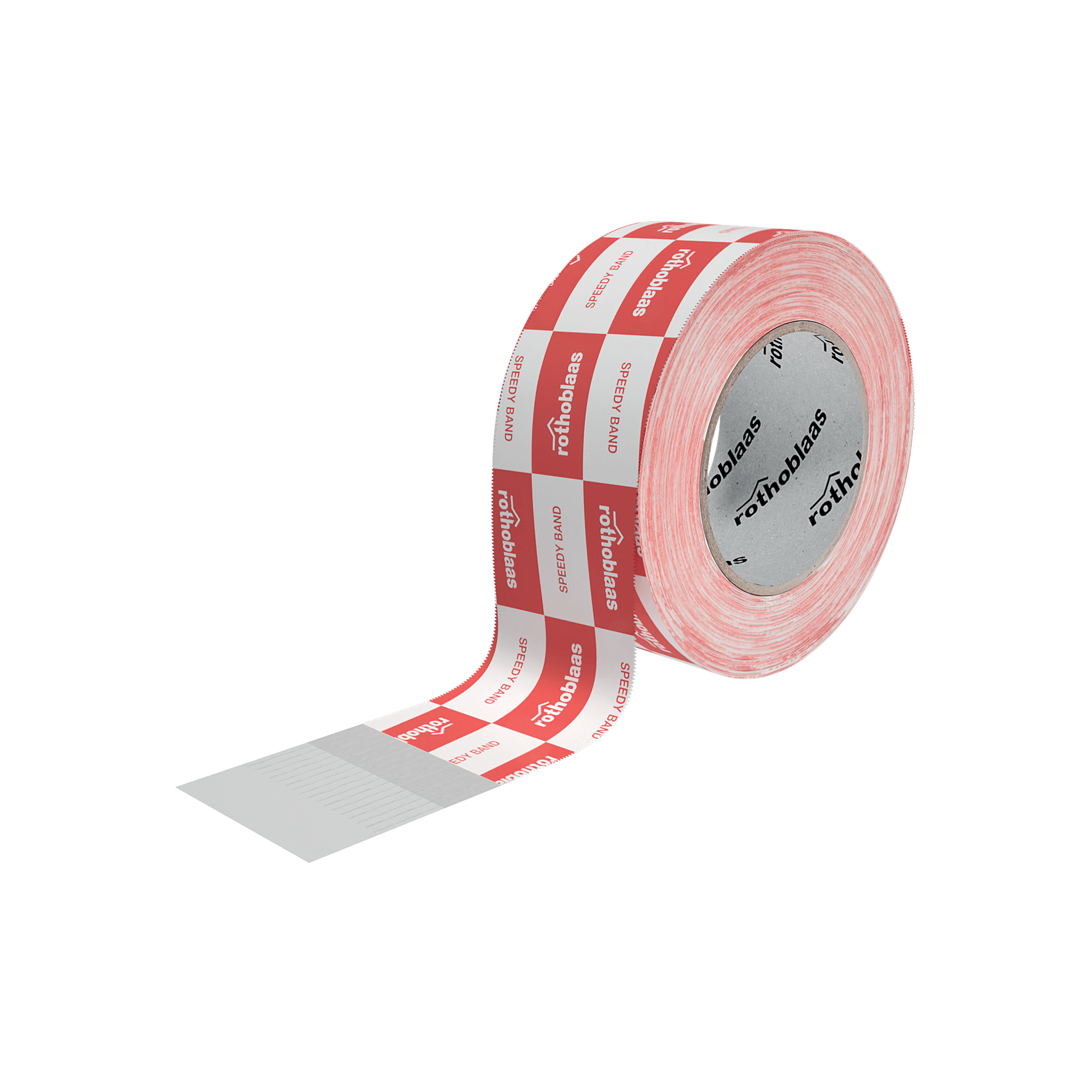

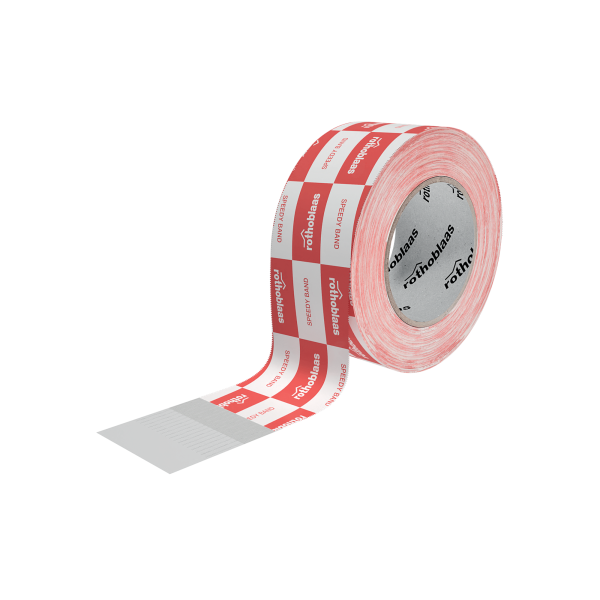

SPEEDY BAND

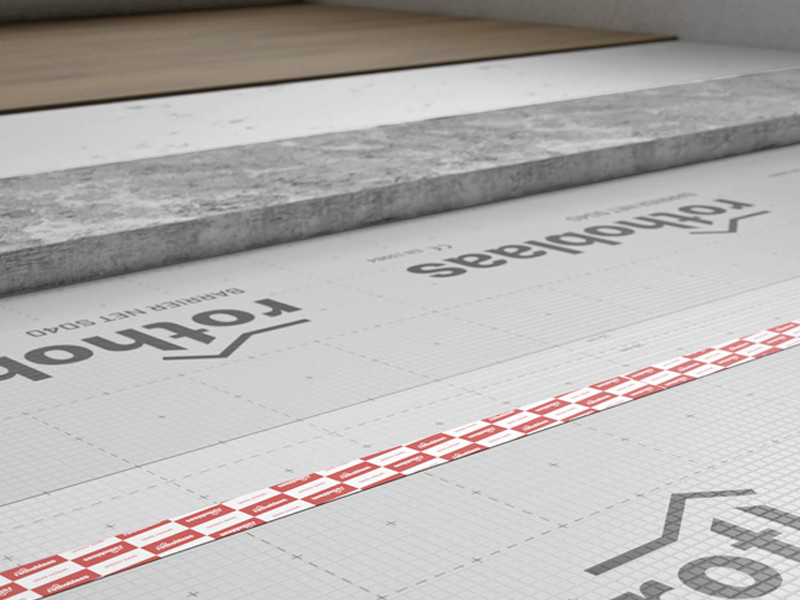

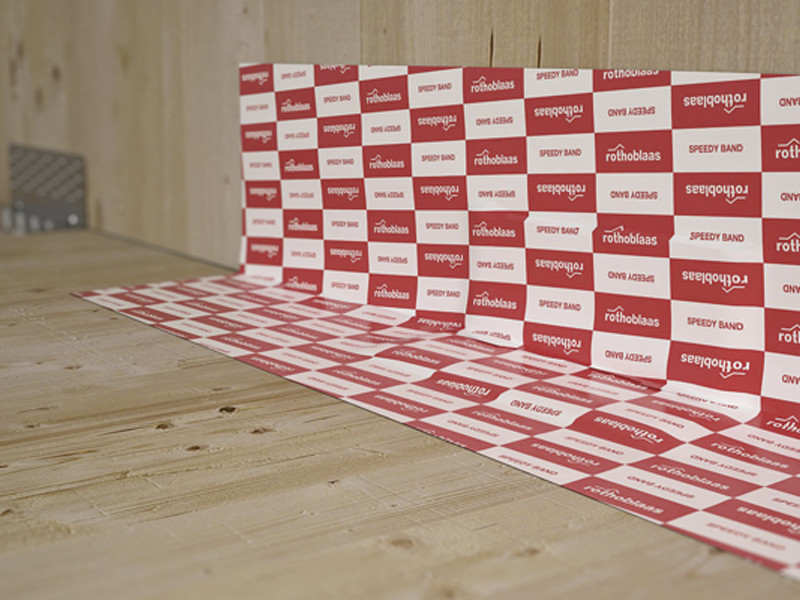

SPEEDY BAND universal tape can be conveniently applied to both the inside and outside of the building envelope, providing a fast and secure seal on most common supports.
The absence of a separating film ensures faster installation and less waste to be disposed of, saving time and resources.
SPEEDY BAND, THE UNIVERSAL TAPE WITHOUT RELEASE LINER THAT REDUCES INSTALLATION TIME
The SPEEDY BAND universal tape without release liner can be easily torn off thanks to the serrated edges that facilitate directional breaking without the use of scissors or cutters.
It is one of Rothoblaas products tested by the PassiveHouse Institute as airtight certified components.
Documents
Technical data sheets
|
|
|---|---|
Passive House Certificate
|
|
File BIM.rfa
|
|
Fire test report
|
SPEEDY BAND
| CODE | B
[mm]
|
L
[m]
|
B
[in]
|
L
[ft]
|
pcs. |
|---|---|---|---|---|---|

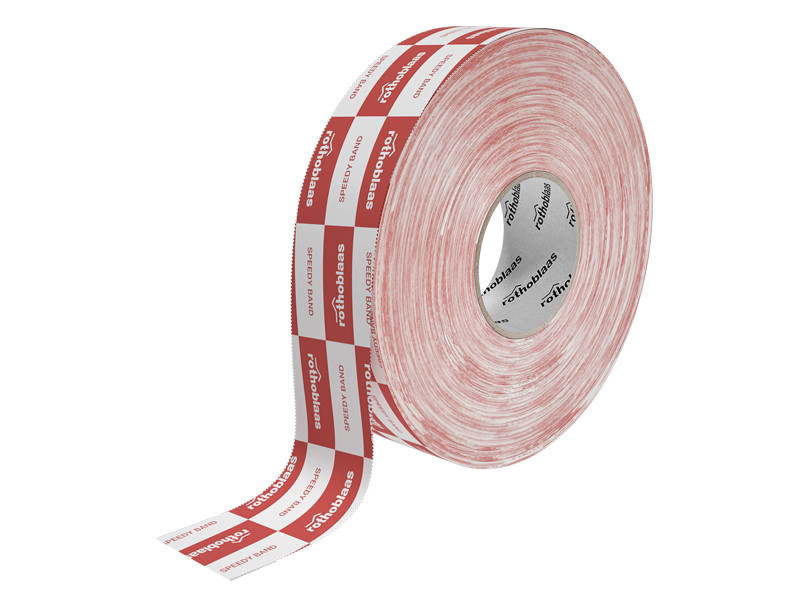

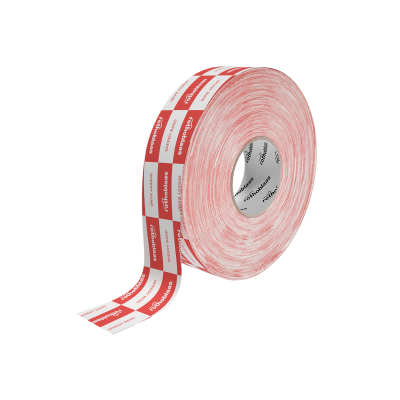

| SPEEDY50XL | 50 | 50 | 2 | 164 | 12 |

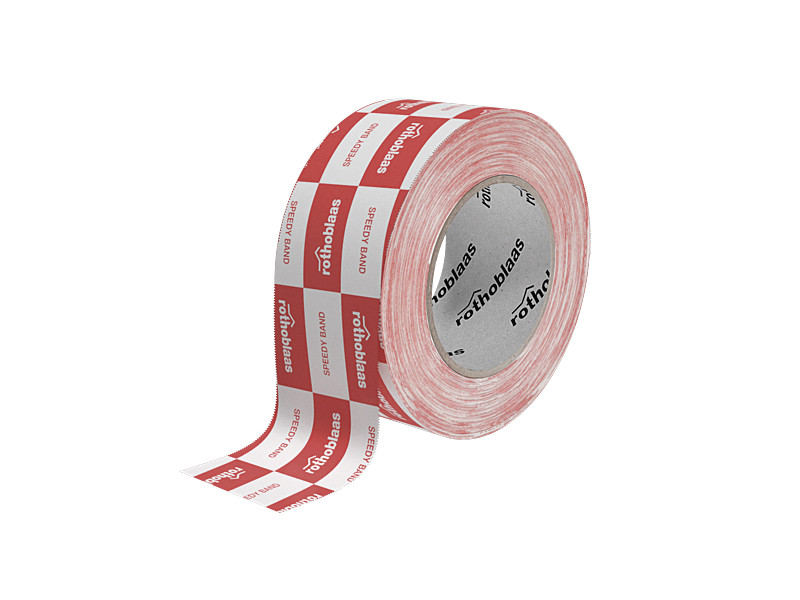

| SPEEDY60 | 60 | 25 | 2.4 | 82 | 10 |

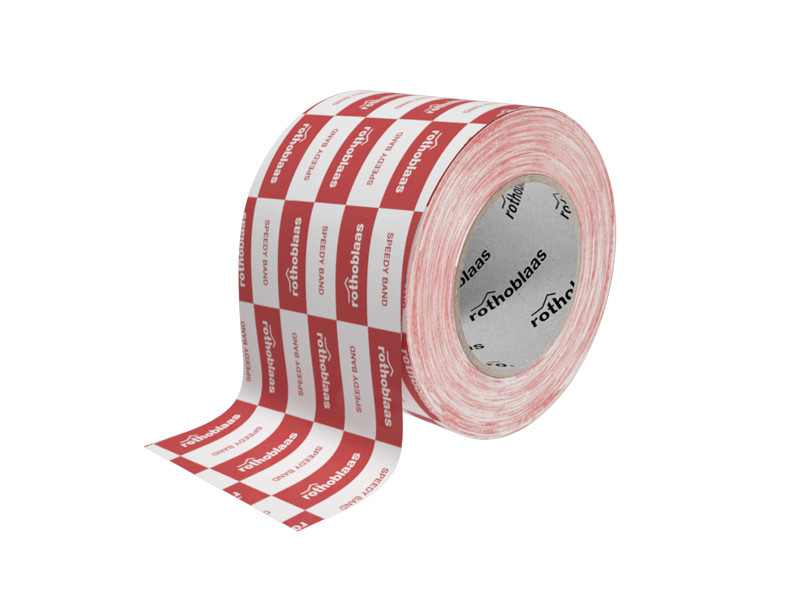

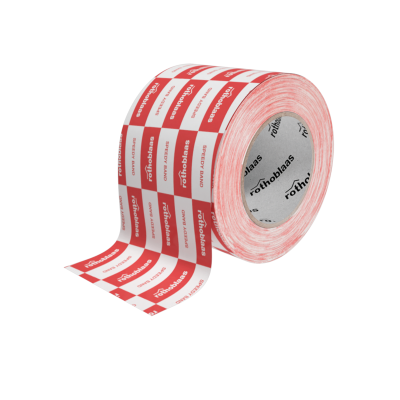

| SPEEDY100 | 100 | 25 | 3.9 | 82 | 6 |

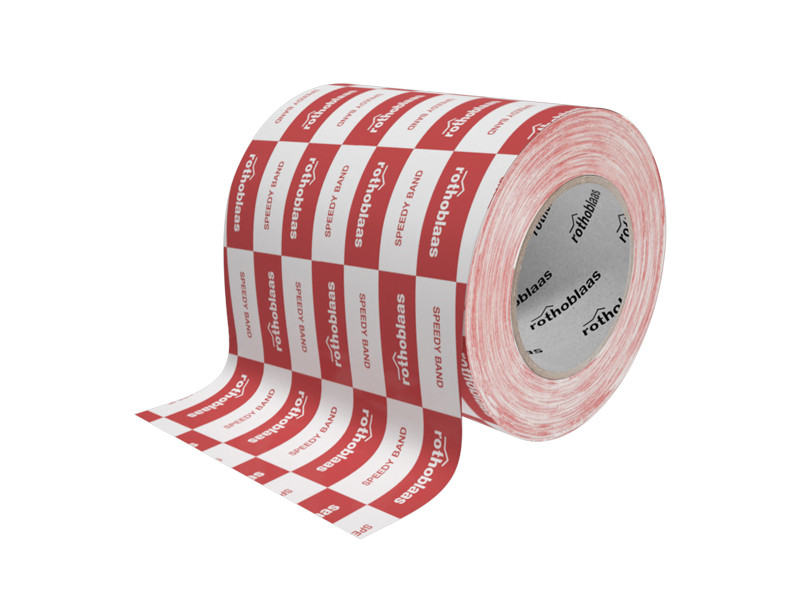

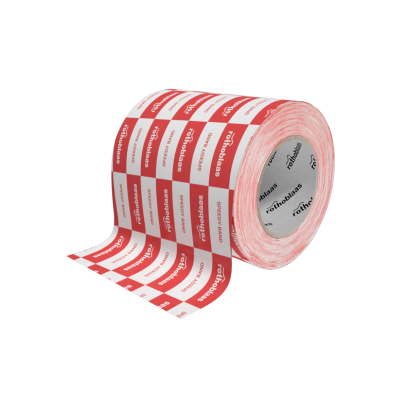

| SPEEDY150 | 150 | 25 | 5.9 | 82 | 4 |

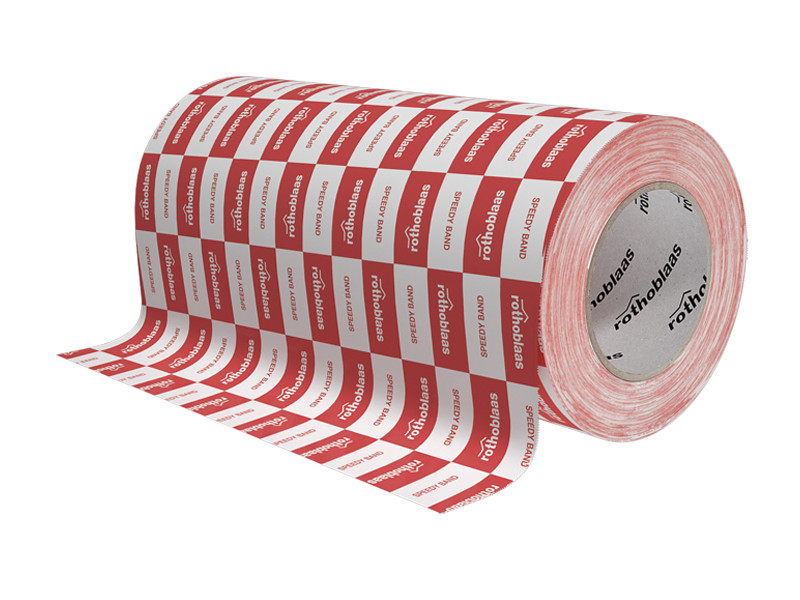

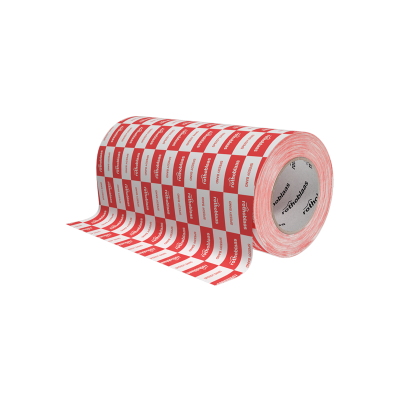

| SPEEDY300 | 300 | 25 | 11.8 | 82 | 2 |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Thickness | AFERA 5006 | 0,25 mm | 9.8 mil |
| Adhesion strength on steel at 90° | AFERA 5001 | ≥ 25 N/25mm | ≥ 5.71 lbf/in |
| Resistenza a trazione del giunto | EN 12317-2 | ≥ 90 N/50mm | ≥ 10.28 lbf/in |
| UV resistance | - | 6 months | - |
| Watertightness | - | compliant | - |
| Solvents | - | no | - |
| Resistance to temperature | - | 40 / 80 °C | 104 / 176 °F |
| Application temperature | - | -10 / 40 °C | 14 / 104 °F |
| Storage temperature | - | 5 / 30 °C | 41 / 86 °F |
| Adhesion strength on OSB at 180° after 10 minutes | EN ISO 29862 | 11 N/10mm | 6.3 lbf/in |
| Adhesion strength on OSB at 90° after 10 minutes | EN ISO 29862 | 4,8 N/10mm | 2.7 lbf/in |
| Adhesion strength (average) on membrane in PP after 24 hours | EN 12316-2 | 26 N/50mm | 3 lbf/in |
| Shear adhesion strength of the joint on membrane in PP after 24 hours (1) | EN 12317-2 | 120 N/50mm | 13.7 lbf/in |
| Water vapour transmission (Sd) | EN 1931 / EN ISO 12572 | 40 m | 0.087 US perm |
| Exposure to weather | - | 12 month | - |
| Classe di resistenza al fuoco su giunto in CLT * (2) | en 1366-4 | EI90 | - |
| French VOC classification | ISO 16000 | A+ | - |
1.
2.
Composition
| SUPPORT | PE film |
|---|---|
| GLUE | solvent-free UV-crosslinked acrylic |
| REINFORCING LAYER | polyester reinforcing grid |
| GLUE | solvent-free UV-crosslinked acrylic |
