New
CPL

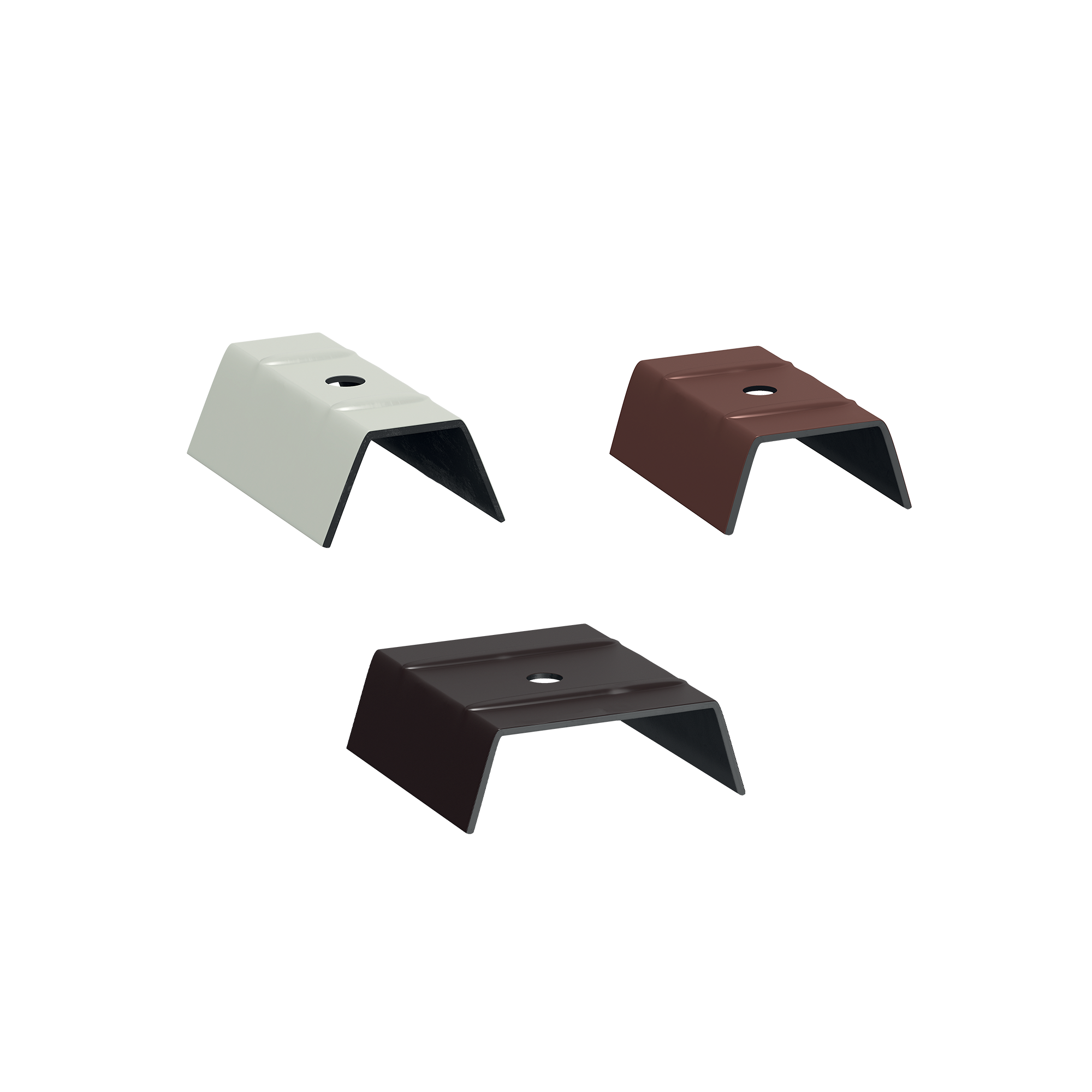

PRE-PAINTED METAL SHEET CAP WITH PE GASKET

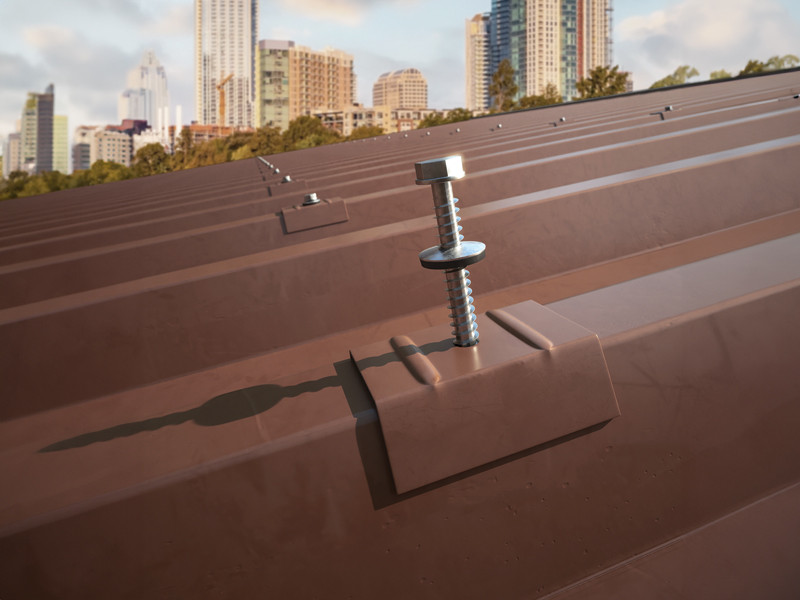

Prepainted carbon steel cap complete with PE gasket for a watertight seal with the sheet. 40 x 50 mm aluminium version.
Full range of sizes for compatibility with different trapezoidal sheet metal sizes on the market.
Available in a variety of colours to suit every roofing aesthetic requirement.
Documents
-
Technical data sheets
CPL - RAL 9002
| CODE | colour | H
[mm]
|
B
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|
| CPLW1528 | Grey White | 16 | 15 | 50 | 50 |
| CPLW2036 | Grey White | 16 | 20 | 50 | 50 |
| CPLW2534 | Grey White | 16 | 25 | 50 | 50 |
| CPLW3040 | Grey White | 16 | 30 | 50 | 50 |
| CPLW4050 | Grey White | 16 | 40 | 50 | 50 |
CPL - RAL 3009
| CODE | colour | H
[mm]
|
B
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|
| CPLR1528 | Oxide red | 16 | 15 | 50 | 50 |
| CPLR2036 | Oxide red | 16 | 20 | 50 | 50 |
| CPLR2534 | Oxide red | 16 | 25 | 50 | 50 |
| CPLR3040 | Oxide red | 16 | 30 | 50 | 50 |
| CPLR4050 | Oxide red | 16 | 40 | 50 | 50 |
CPL - RAL 8017
| CODE | colour | H
[mm]
|
B
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|
| CPLB1528 | Chocolate brown | 16 | 15 | 50 | 50 |
| CPLB2036 | Chocolate brown | 16 | 20 | 50 | 50 |
| CPLB2534 | Chocolate brown | 16 | 25 | 50 | 50 |
| CPLB3040 | Chocolate brown | 16 | 30 | 50 | 50 |
| CPLB4050 | Chocolate brown | 16 | 40 | 50 | 50 |
