  3. LBS EVO

ROUND HEAD SCREW FOR PLATES

LBS EVO

New

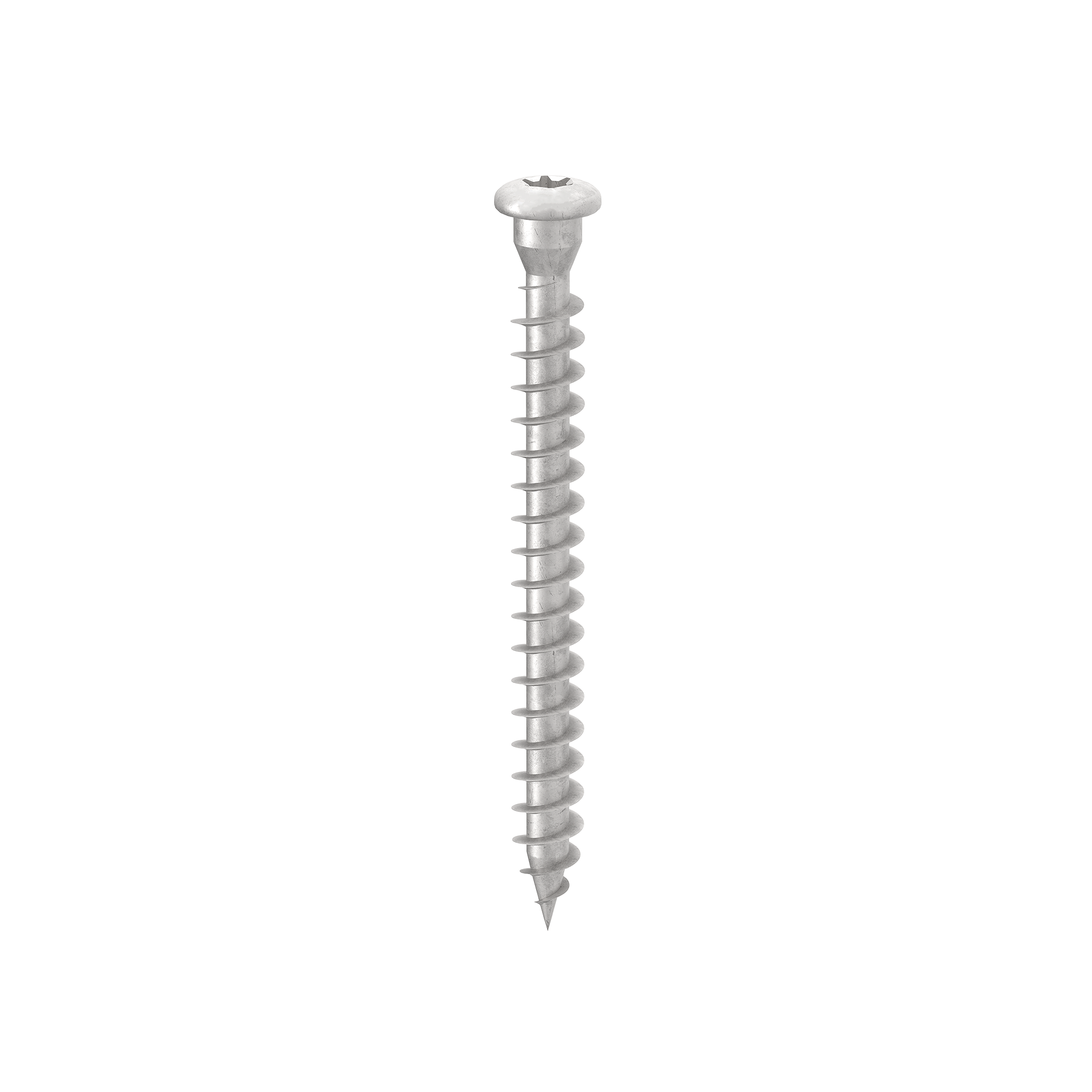

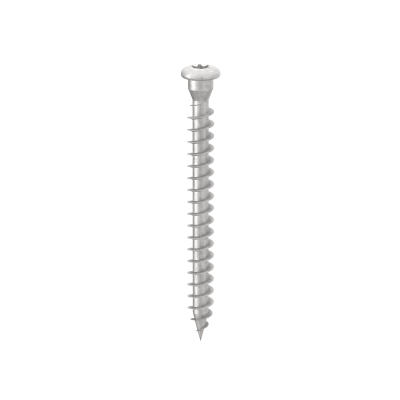

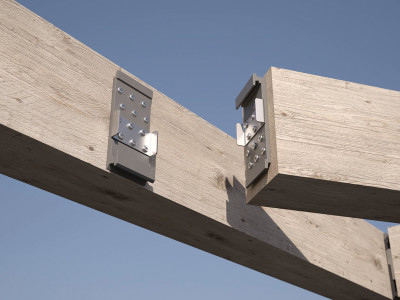

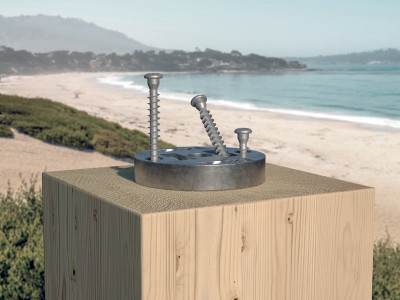

LBS EVO version designed for steel-timber joints for outdoor use. Achieves an interlocking effect with the hole in the plate, thus guaranteeing excellent static performance.

The atmospheric corrosion strength class (C4) of the C4 EVO coating was tested by the Research Institutes of Sweden - RISE. Coating suitable for use in applications on wood with an acidity level (pH) greater than 4, such as spruce, larch and pine (see page 314).

These can be calculated according to Eurocode 5 under thick steel-timber plate connections, even with thin metal elements. Excellent shear strength values.

Documents

Technical data sheets
ICC-ES Evaluation report USA
ICC-ES Listing report CANADA
ETA Certificate
Declaration of performance (DOP) Download
File CAD
File BIM.ifc
File BIM.rfa

LBS EVO

CODE info d₁
[mm]
L
[mm]
b
[mm]
d₁
[in]
L
[in]
b
[in]
TX pcs.
LBSEVO540 - 5 40 36 0.2 1 9/16'' 1 7/16'' TX20 500
LBSEVO550 - 5 50 46 0.2 1 15/16'' 1 13/16'' TX20 200
LBSEVO560 - 5 60 56 0.2 2 3/8'' 2 3/16'' TX20 200
LBSEVO570 - 5 70 66 0.2 2 3/4'' 2 5/8'' TX20 200
LBSEVO780 - 7 80 75 0.28 3 1/8'' 2 15/16'' TX30 100
LBSEVO7100 - 7 100 95 0.28 4'' 3 3/4'' TX30 100
