LOCK T MINI

CONCEALED TIMBER-TO-TIMBER CONNECTOR

LOCK T MINI is the innovative hook plate for completely concealed timber-to-timber joints.
It can be easily disassembled, is ideal for the construction of small temporary structures and can be used concealed even with elements of reduced section.

Optimal for small structures, gazebos and furniture, both in indoor and outdoor applications.

Get in touch with sales

Description

LOCK T MINI: POWERFUL, RELIABLE, REMOVABLE, IDEAL FOR AGGRESSIVE ENVIRONMENTS.

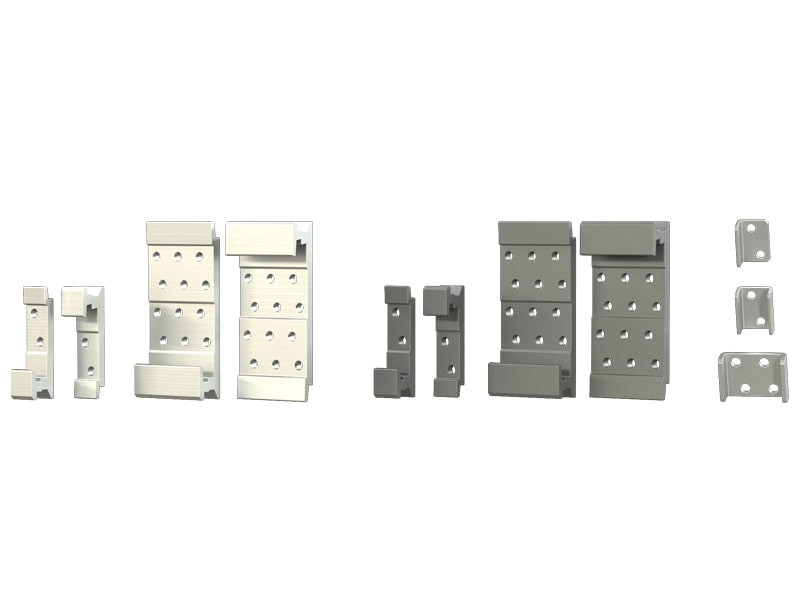

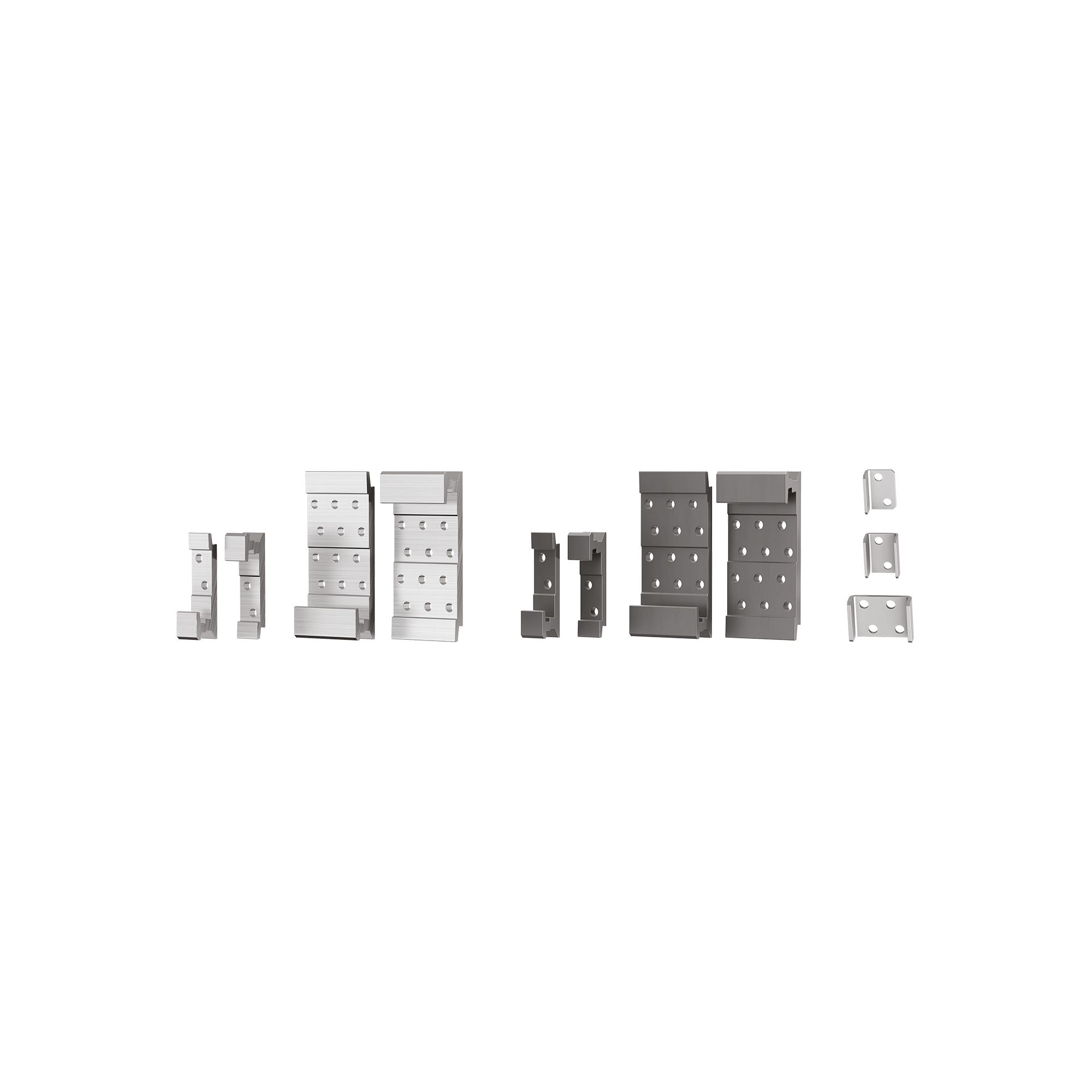

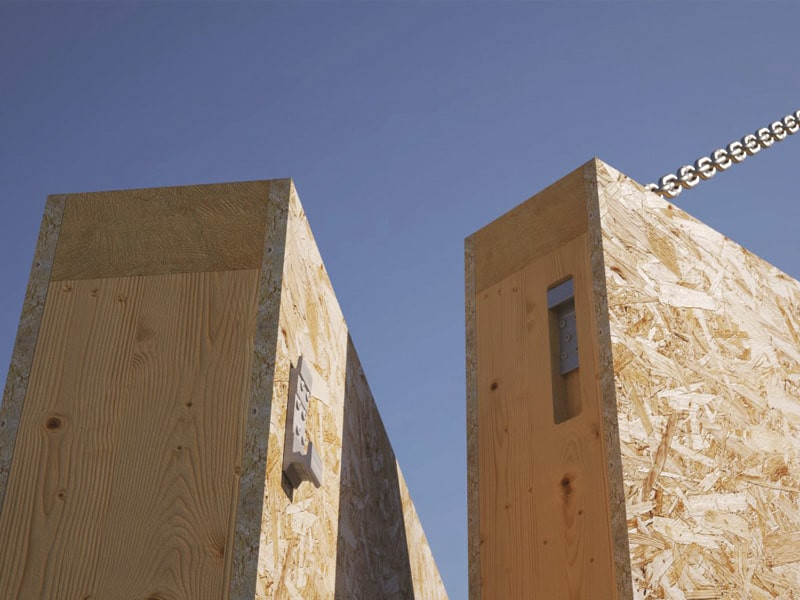

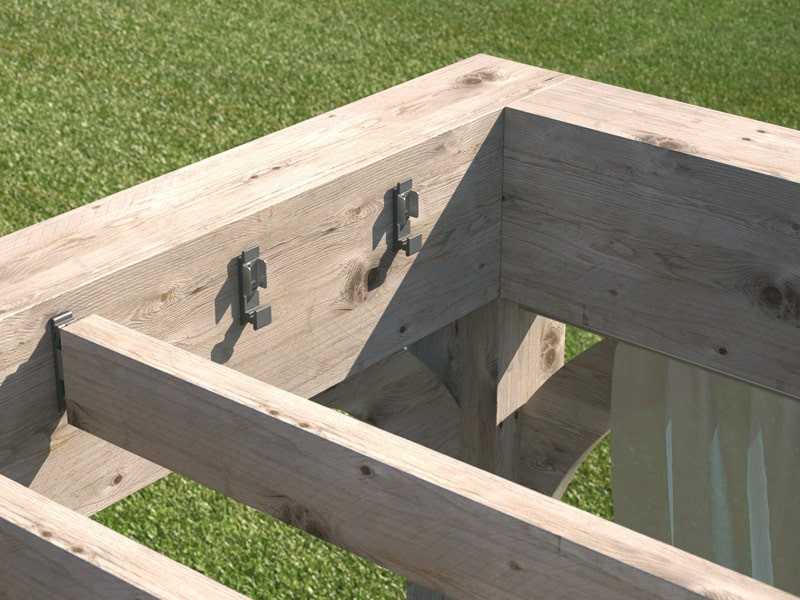

LOCK T MINI consists of an aluminium alloy three dimensional perforated plate. It provides excellent installation tolerance and can be installed in a variety of configurations: with grooving in the main element or secondary beam for a concealed installation, or without special cuts for an exposed installation.

The LOCK T MINI timber-to-timber joint plate is available in two versions: standard or EVO, painted in an exclusive graphite black. Both versions can be used with three varieties of screws: martensitic stainless steel, carbon steel and C4 EVO coated. The ideal combination of connector and screw fulfils all fastening requirements, such as aggressive environments or the presence of aggressive timber containing tannin, such as chestnut and oak.

The LOCK STOP lateral locking plates and the vertical anti-slip screw provide certified strengths in all directions in each configuration.
The grooved joint in the main element makes it possible to fulfil the fire safety requirements.

Thanks to the assembly with only one type of screw, installation of LOCK T MINI is quick and easy. The two parts of the connector can be pre-installed on timber elements off site, without the need for on-site fastening.

Documents

LOCK T MINI

CODE B
[mm]
 H
[mm]
 P
[mm]
 B
[in]
 H
[in]
 P
[in]
 pcs.
DOP
LOCKT1880 17.5 80 20 11/16'' 3 1/8'' 13/16'' 50
LOCKT3580 35 80 20 1 3/8'' 3 1/8'' 13/16'' 50
LOCKT35100 35 100 20 1 3/8'' 4'' 13/16'' 50
LOCKT35120 35 120 20 1 3/8'' 4 3/4'' 13/16'' 25
LOCKT53120 52.5 120 20 2 1/16'' 4 3/4'' 13/16'' 25

LOCK T MINI EVO

CODE B
[mm]
 H
[mm]
 P
[mm]
 B
[in]
 H
[in]
 P
[in]
 pcs.
DOP
LOCKTEVO1880 17.5 80 20 11/16'' 3 1/8'' 13/16'' 50
LOCKTEVO3580 35 80 20 1 3/8'' 3 1/8'' 13/16'' 50
LOCKTEVO35100 35 100 20 1 3/8'' 4'' 13/16'' 50
LOCKTEVO35120 35 120 20 1 3/8'' 4 3/4'' 13/16'' 25
LOCKTEVO53120 52.5 120 20 2 1/16'' 4 3/4'' 13/16'' 25

LOCK STOP

CODE B
[mm]
 H
[mm]
 P
[mm]
 s
[mm]
 B
[in]
 H
[in]
 P
[in]
 s
[in]
 pcs.
DOP
LOCKSTOP5 19 27.5 13 1.5 3/4'' 1 1/16'' 1/2'' 0.059 100 -
LOCKSTOP5U 21.5 27.5 13 1.5 7/8'' 1 1/16'' 1/2'' 0.059 50 -
LOCKSTOP35 41 28.5 13 2.5 1 5/8'' 1 1/8'' 1/2'' 0.098 50
