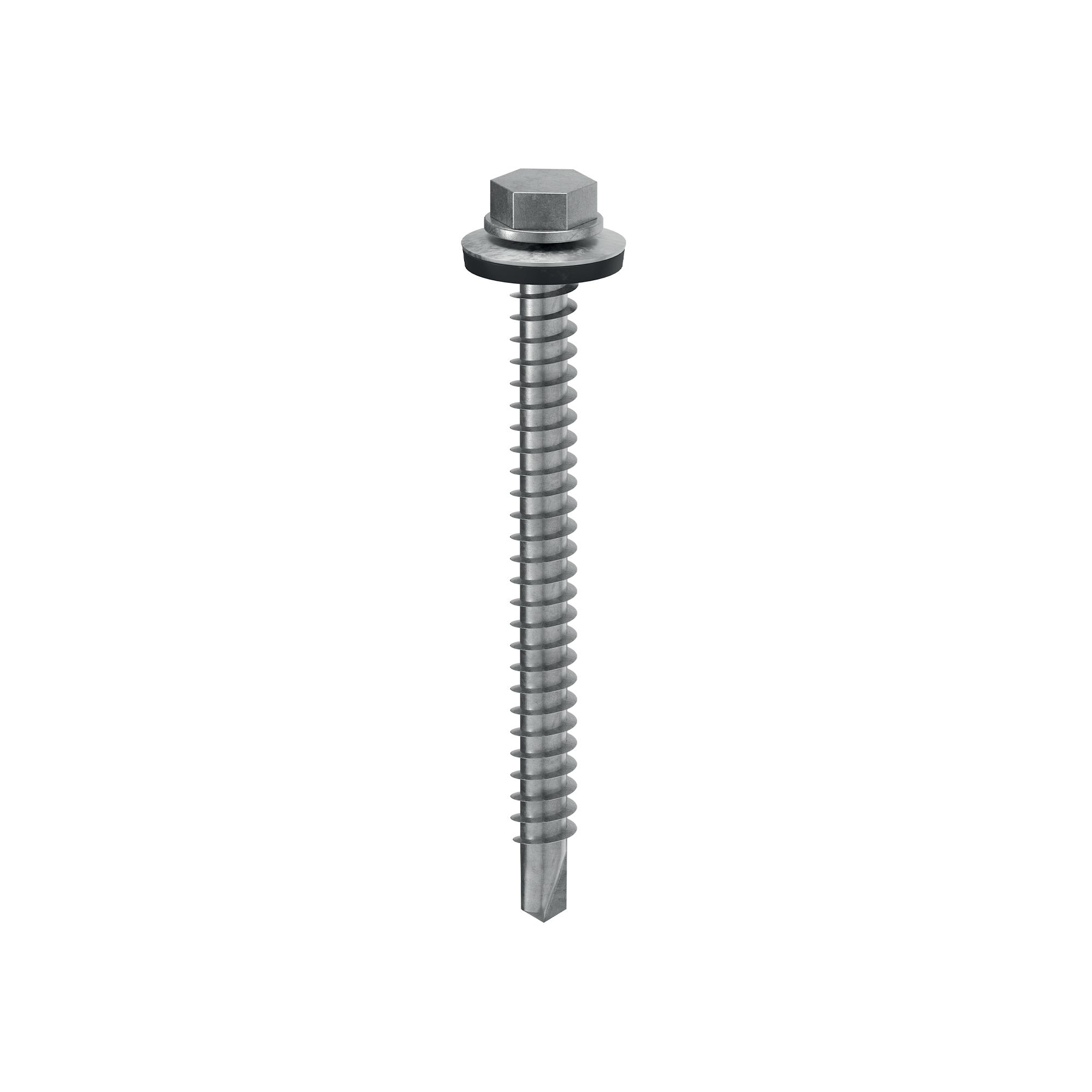

SELF-DRILLING SCREW FOR STEEL, HEXAGONAL HEAD
SAR
New
Self-perforating tip with bleeder geometry for excellent drilling capacity (up to 6 mm on steel).
Self-tapping thread for steel and hexagonal head with dummy washer SW 10.

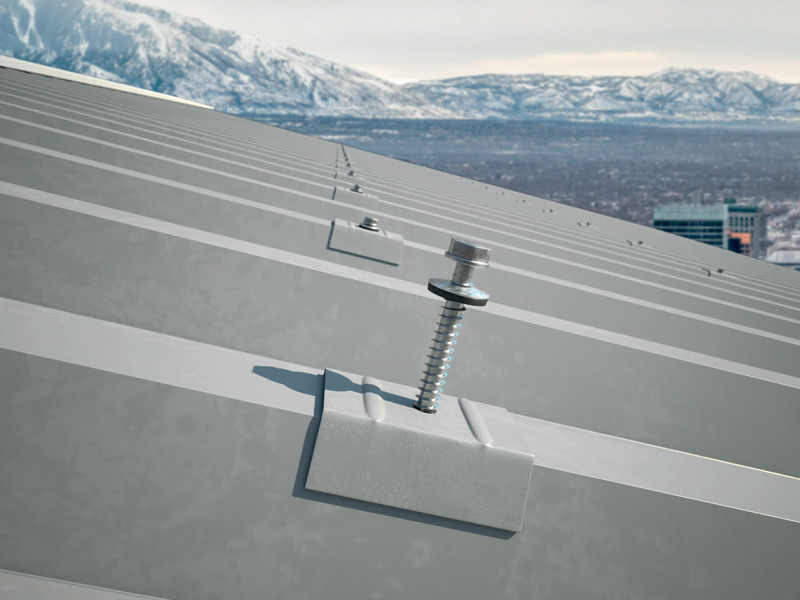

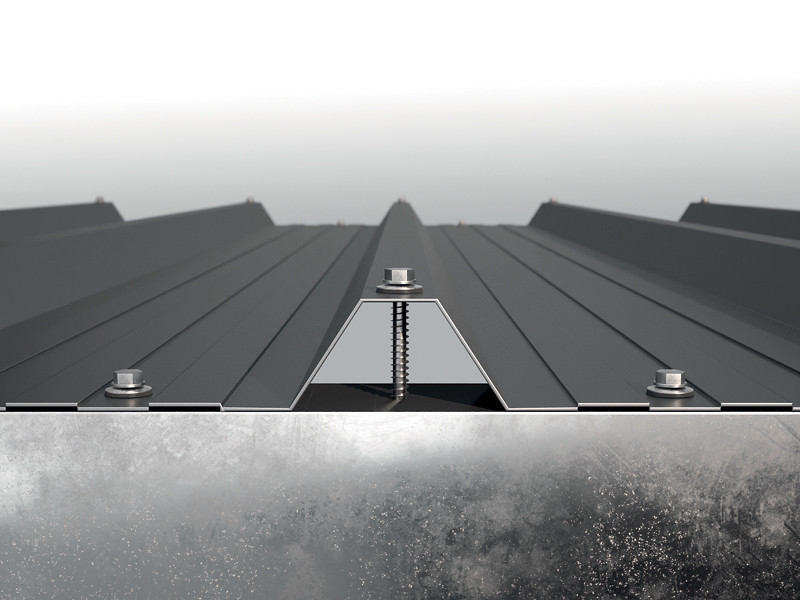

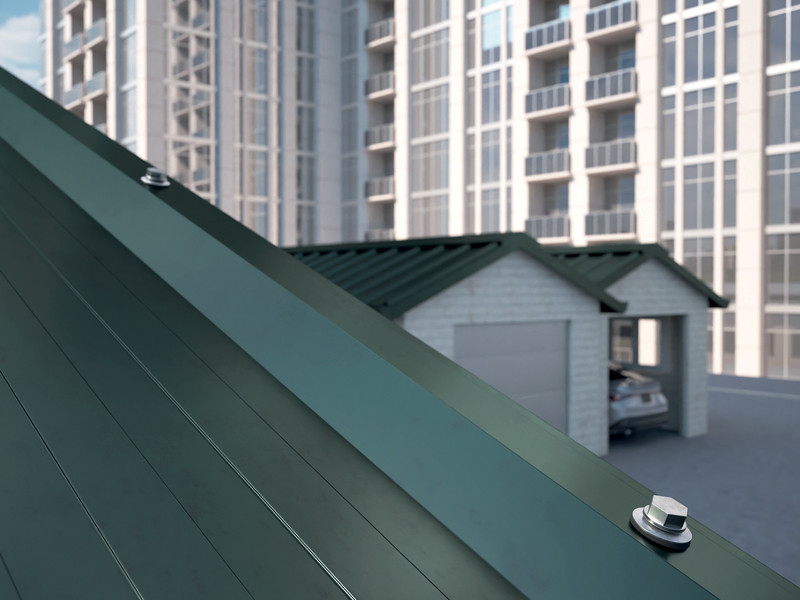

Complete with integrated washer with EPDM seal for watertight fastening.
Documents
| Technical data sheets | |
|---|---|
| Technical data sheets USA 🇺🇸 | |
| File CAD |
SAR
| CODE | d₁
[mm]
|
L
[mm]
|
d₁
[in]
|
L
[in]
|
pcs. |
|---|---|---|---|---|---|
| SAR6360 | 6.3 | 60 | 0.25 | 2 3/8'' | 100 |
| SAR6370 | 6.3 | 70 | 0.25 | 2 3/4'' | 100 |
| SAR6380 | 6.3 | 80 | 0.25 | 3 1/8'' | 100 |
| SAR63100 | 6.3 | 100 | 0.25 | 4'' | 100 |
| SAR63120 | 6.3 | 120 | 0.25 | 4 3/4'' | 100 |
| SAR63140 | 6.3 | 140 | 0.25 | 5 1/2'' | 100 |
| SAR63160 | 6.3 | 160 | 0.25 | 6 1/4'' | 100 |
| SAR63180 | 6.3 | 180 | 0.25 | 7 1/8'' | 100 |
| SAR63200 | 6.3 | 200 | 0.25 | 8'' | 100 |
