BITUMINOUS TILE
SHINGLE
SHINGLE is the bituminous tile CE marked according to ETA that acts as a final waterproof layer on the roof. Weatherproof and acoustically insulated against heavy rain and, thanks to its grit top layer, ensures permanent UV stability.
SHINGLE, the bituminous tile with permanent UV stability.

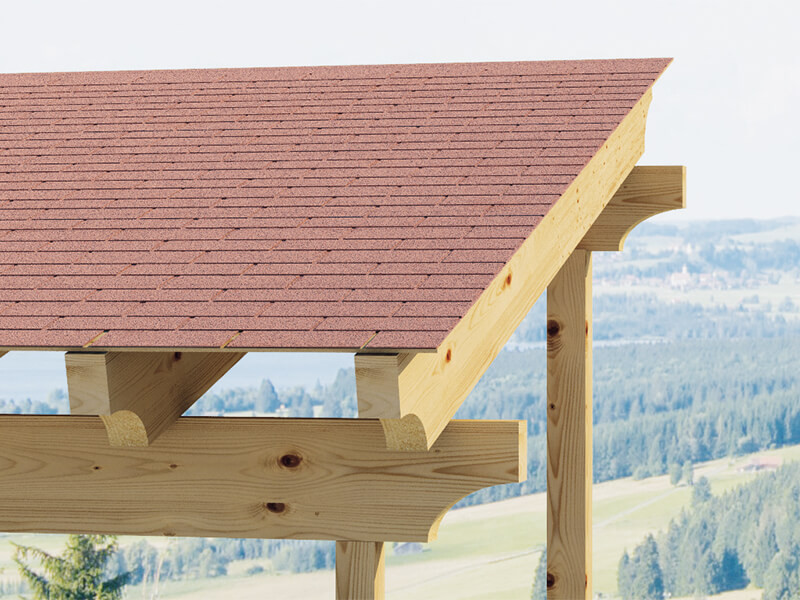

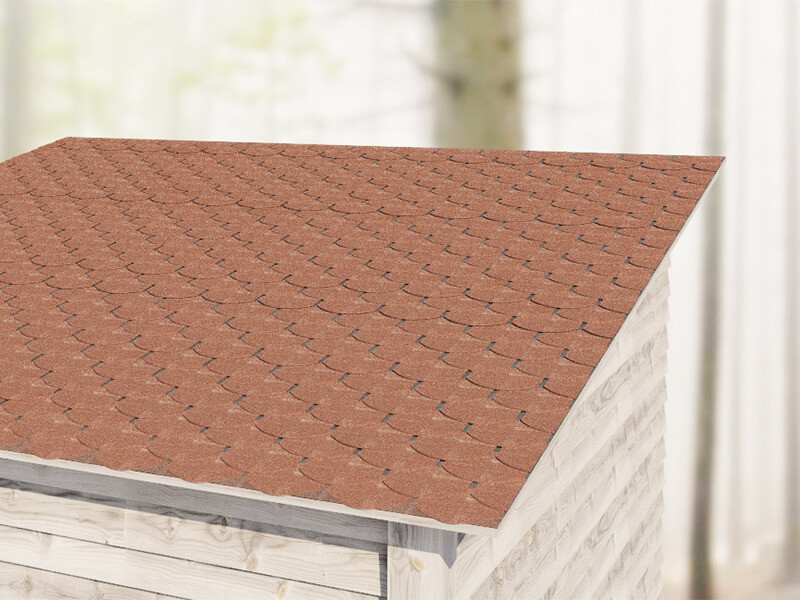

The SHINGLE bituminous tile is easy to transport thanks to the small size of the package (80 cm x 34 cm) and the low weight (approx. 20kg). . It is the ideal solution for roofing small structures such as canopies, pergolas or porches.
It is also excellent in combination with BYTUM 400 bituminous underlay control layer for effective waterproofing even on low roof slopes.
Documents
| Technical data sheets | |
|---|---|
| Declaration of performance (DOP) |

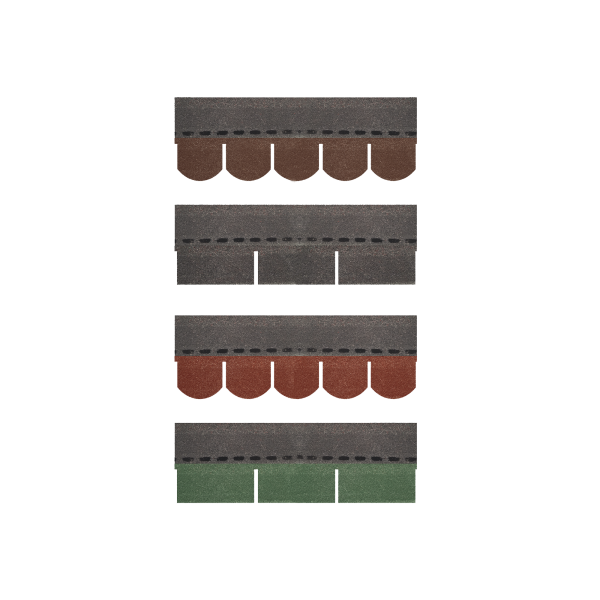

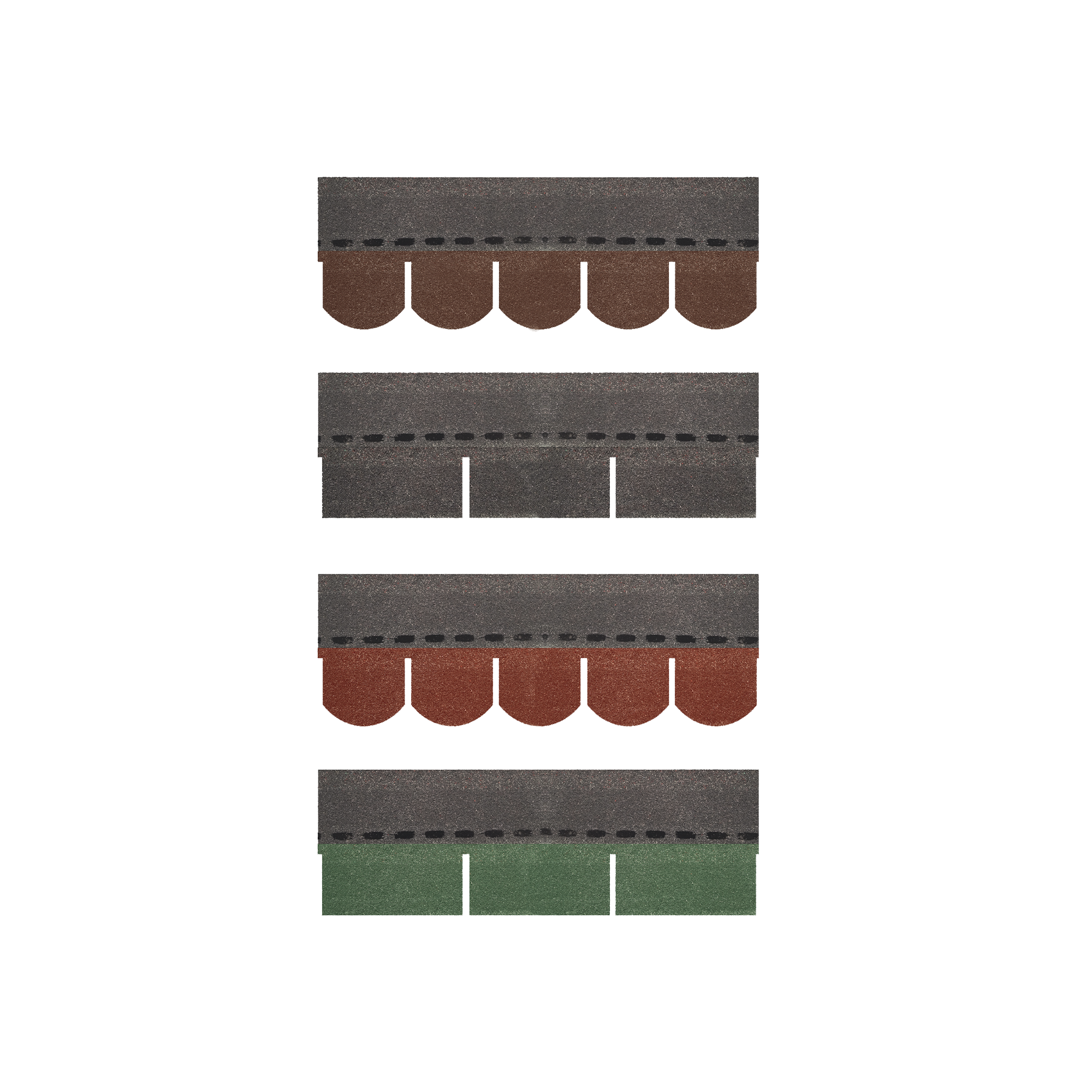

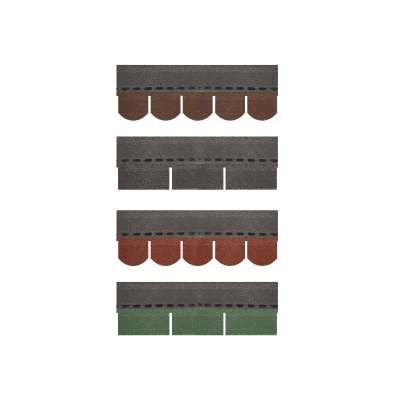

SHINGLE
| CODE | version | B
[mm]
|
L
[mm]
|
B
[in]
|
L
[in]
|
colour | pcs. |
|---|---|---|---|---|---|---|---|
| SHIREDR | Rectangular | 777 | 336 | 30.6 | 13.2 | red | 18 |
| SHIBROR | Rectangular | 777 | 336 | 30.6 | 13.2 | brown | 18 |
| SHIGRER | Rectangular | 777 | 336 | 30.6 | 13.2 | green | 18 |
| SHIBLAR | Rectangular | 777 | 336 | 30.6 | 13.2 | black | 18 |
| SHIREDB | beaver | 808 | 336 | 31.8 | 13.2 | red | 17 |
| SHIBROB | beaver | 808 | 336 | 31.8 | 13.2 | brown | 17 |
| SHIGREB | beaver | 808 | 336 | 31.8 | 13.2 | green | 17 |
| SHIBLAB | beaver | 808 | 336 | 31.8 | 13.2 | black | 17 |
Technical Data SHINGLE RECTANGULAR
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Mass per unit area | ETA-07/0266 | 9600 g/m² | 31.46 oz/ft² |
| Thickness | - | 3 mm | 118 mil |
| Tensile strength MD/CD | EN 544 | 750 / 550 N/50mm | 86 / 63 lb/in |
| Elongation MD/CD | EN 544 | 3,5 / 3,5 % | - |
| Resistance to nail tearing MD/CD | EN 544 | 120 / N | 27 / lbf |
| Water impermeability (bitumen mass) | ETA-07/0266 | 896 g/m² | 2.936242 oz/ft² |
| Thermal resistance | - | -20 / 80 °C | -4 / 176 °F |
| Reaction to fire | EN 13501-1 | class E | - |
| External fire performance | EN 13501-5 | BROOF class (t1) | - |
| After artificial ageing - maximum tensile force MD/CD | EN 544 | 600 / 400 N/50mm | 69 / 46 lb/in |
| After artificial ageing - resistance to nail tearing MD/CD | EN 544 | 100 / N | 22 / lbf |
| After artificial ageing - hot slipping | EN 544 | < 2 mm | < 0.07874 in |
| After artificial ageing - grit adhesion | EN 544 | < 2,5 g | < 0.088185 oz |
| Flexibility at low temperatures | EN 1109 | -20 / °C | -4 / °F |
| Bitumen density | ETA-07/0266 | 1,2 kg/L | - |
| Application temperature | ETA-07/0266 | 0 / 40 °C | 32 / 104 °F |
| Water absorption | EN 544 | 2 % | - |
| UV stability | - | - | - |
Technical Data SHINGLE BIBER
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Mass per unit area | ETA-07/0266 | 9000 g/m² | 29.49 oz/ft² |
| Thickness | - | 3 mm | 118 mil |
| Tensile strength MD/CD | EN 544 | 750 / 550 N/50mm | 86 / 63 lb/in |
| Elongation MD/CD | EN 544 | 3,5 / 3,5 % | - |
| Resistance to nail tearing MD/CD | EN 544 | 100 / N | 22 / lbf |
| Water impermeability (bitumen mass) | ETA-07/0266 | 896 g/m² | 2.936242 oz/ft² |
| Thermal resistance | - | -20 / 80 °C | -4 / 176 °F |
| Reaction to fire | EN 13501-1 | class E | - |
| External fire performance | EN 13501-5 | BROOF class (t1) | - |
| After artificial ageing - maximum tensile force MD/CD | EN 544 | 600 / 400 N/50mm | 69 / 46 lb/in |
| After artificial ageing - resistance to nail tearing MD/CD | EN 544 | 100 / N | 22 / lbf |
| After artificial ageing - hot slipping | EN 544 | < 2 mm | < 0.07874 in |
| After artificial ageing - grit adhesion | EN 544 | < 2,5 g | < 0.088185 oz |
| Flexibility at low temperatures | EN 1109 | -20 / °C | -4 / °F |
| Bitumen density | ETA-07/0266 | 1,2 kg/L | - |
| Application temperature | ETA-07/0266 | 0 / 40 °C | 32 / 104 °F |
| Water absorption | EN 544 | 2 % | - |
| UV stability | - | - | - |
Specifications
Supply and installation of bitumen shingle (Canadian), type SHINGLE
Property:
– Mass per unit area : 9,6/9
– Water vapour trasmission (Sd) (m) :
– Maximum tensile force MD/CD (N/50mm) : >600/400
– Elongation MD/CD (%) : 3,5/3,5
– Resistance to tearing MD/CD (N) : >100
– Watertightness (class) : 896 kg/m2
– VOC emission (COV) (%(class A+)) : 0
– Temperature resistance (°C) : -20/+80
– Reaction to fire (class) : classe E
Indicazioni di posa per: PARETE
SHINGLE is laid parallel to the dock beam or the floor if laid on a wall. The second layer must be overlapped by at least 15 centimetres. Each layer must be fixed to the substrate with a mechanical fastener. (ex: HAMMER STAPLER, HAND STAPLER o PNEU STAPLER). It is also advisable to overlap the sheets by at least 30 centimetres at the butt joints. In order to achieve correct air and water sealing, we recommend the use of ALU BAND, SEAL BAND, EASY BAND, SPEEDY BAND, SOLID BAND, FLEXY BAND, SMART BAND, PLASTER BAND, DOUBLE BAND, SUPRA BAND, BUTYL BAND, MEMBRANE GLUE, SUPERB GLUE, ECO GLUE, FIRE SEALING, FIRE FOAM, FIRE STRIPE, FRONT BAND UV 236 or in the case of rough surfaces (such as rough OSB) FLEXI BAND, PRIMER SPAY, PRIMER .
Indicazioni di posa per: TETTO
SHINGLE is placed parallel to the eaves line, starting from the lower edge of the roof. The second layer must be overlapped by at least 10-20 centimetres to the previous one (depending on the slope of the roof), as indicated on the layout according to UNI 11470:2013. The sheet must be applied on a continuous support with a mechanical fastening device. (ex: HAMMER STAPLER, HAND STAPLER o PNEU STAPLER). Once at the top of the roof, it is advisable for the membrane to protrude beyond the ridge line by at least 30 centimetres to ensure a perfect overlap with the strips of sheet that will overlap on the other side of the roof. It is also recommended that the sheets overlap by at least 30 cm even at the end joints. To achieve correct air and water sealing, we recommend the use of ALU BAND, SEAL BAND, EASY BAND, SPEEDY BAND, SOLID BAND, FLEXY BAND, SMART BAND, PLASTER BAND, DOUBLE BAND, SUPRA BAND, BUTYL BAND, MEMBRANE GLUE, SUPERB GLUE, ECO GLUE, FIRE SEALING, FIRE FOAM, FIRE STRIPE, FRONT BAND UV 236.If there is an integrated double adhesive strip, it can replace the correct air and water sealing.
Composition SHINGLE RECTANGULAR
| top layer | - |
|---|---|
| compound | - |
| REINFORCING LAYER | - |
| compound | - |
| bottom layer | - |
Composition SHINGLE BIBER
| top layer | - |
|---|---|
| compound | - |
| REINFORCING LAYER | - |
| compound | - |
| bottom layer | - |
