MONOLITHIC BREATHABLE MEMBRANE RESISTANT TO UV RAYS

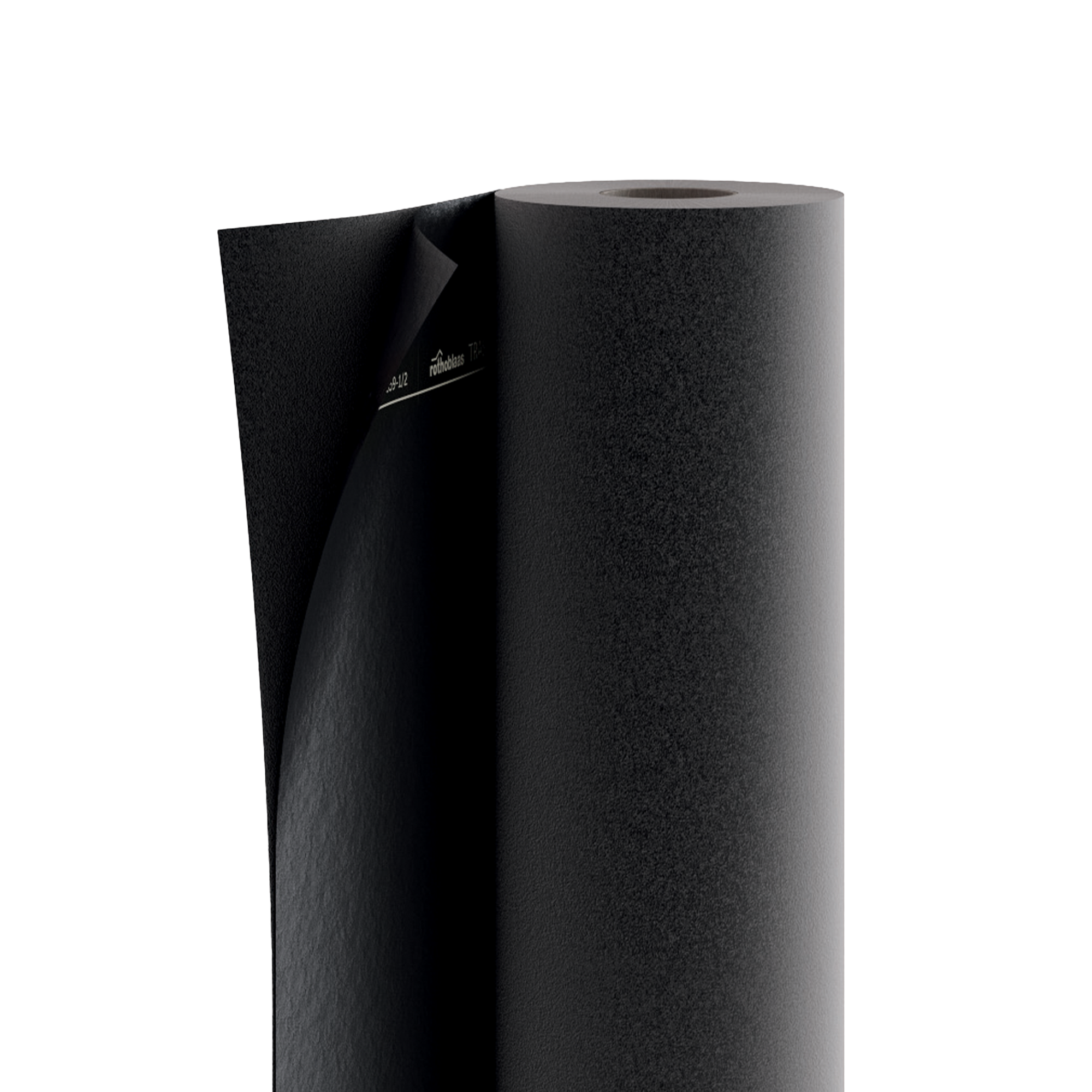

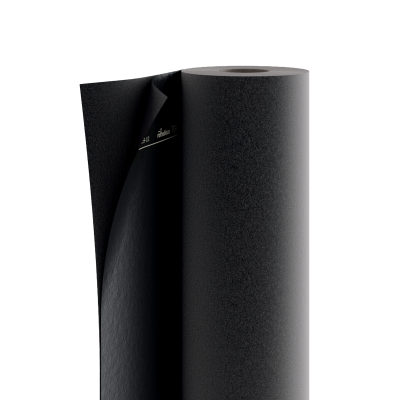

TRASPIR FELT EVO UV 210
TRASPIR FELT EVO UV 210 is the monolithic breathable membrane with exceptional UV resistance. It is the ideal solution for creating discontinuous coating of ventilated façades with grouting up to 30 mm wide.
TRASPIR FELT EVO UV 210: waterproofing and UV stability in one solution.
It consists of a monolithic breathable PU layer on a polyester reinforcement and is designed for application on the external side of walls.
Documents
| Technical data sheets | |
|---|---|
| Declaration of performance (DOP) | Download |
| Recommendations for installation |
TRASPIR FELT EVO UV 210
| CODE | description | tape | H
[m]
|
L
[m]
|
A
[m²]
|
H
[ft]
|
L
[ft]
|
A
[sft]
|
pcs./pallet |
|---|---|---|---|---|---|---|---|---|---|
| TUV210 | TRASPIR FELT EVO UV 210 | - | 1.5 | 50 | 75 | 4' 11'' | 164 | 807 | 28 |
| TUV21030 | TRASPIR FELT UV 210 3.0 m | - | 3 | 50 | 150 | 9' 10 1/8'' | 164 | 1615 | 16 |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Mass per unit area | EN 1849-2 | 210 g/m² | 0.69 oz/ft² |
| Thickness | EN 1849-2 | 1 mm | 39 mil |
| Water vapour transmission (Sd) | EN 1931 | 0,1 m | 34.965 PERM |
| Tensile strength MD/CD | EN 12311-1 | 380 / 420 N/50mm | 43 / 48 lb/in |
| Elongation MD/CD | EN 12311-1 | 40 / 55 % | - |
| Resistance to nail tearing MD/CD | EN 12310-1 | 220 / 210 N | 49 / 47 lbf |
| Watertightness | EN 1928 | class W1 | - |
| Thermal resistance | - | -40 / 80 °C | -40 / 176 °F |
| Reaction to fire | EN 13501-1 | class B-s1,d2 | - |
| Resistance to penetration of air | EN 12114 | < 0,02 m³/(m²·h·50Pa) | < 0.001 cfm/ft² at 50Pa |
| Thermal conductivity (λ) | - | 0,2 W/(m·K) | 1.39 (BTU·in)/(h·ft²·°F) |
| Specific heat | - | 1300 J/(kg·K) | - |
| Density | - | ca. 210 kg/m³ | - |
| Water vapour resistance factor (μ) | - | ca. 150 | - |
| VOC content | - | 0 % | - |
| UV resistance without final coating | EN 13859-2 | 4 months | - |
| UV stability with joints up to 30 mm wide exposing no more than 30% of the surface | EN 13859-2 | permanent | - |
| Weathering without final cladding | - | 8 weeks | - |
| Water column | ISO 811 | > 300 cm | > 118.11024 in |
| After artificial ageing - watertightness | EN 1297 / EN 1928 | class W1 | - |
| After artificial ageing - maximum tensile force MD/CD | EN 1297 / EN 12311-1 | 340 / 380 N/50mm | 39 / 43 lb/in |
| After artificial ageing - elongation | EN 1297 / EN 12311-1 | 35 / 50 % | - |
| Flexibility at low temperatures | EN 1109 | -30 / °C | -22 / °F |
| Driving rain test | TU Berlin | passed | - |
Specifications
Supply and installation of highly breathable monolithic UV-resistant membrane, type TRASPIR FELT EVO UV 210
CE marking according to : EN 13859-1/2
Property:
– Mass per unit area : 210
– Water vapour trasmission (Sd) (m) : 0,1
– Maximum tensile force MD/CD (N/50mm) : 380/420
– Elongation MD/CD (%) : 40/55
– Resistance to tearing MD/CD (N) : 220/210
– Watertightness (class) : classe W1
– VOC emission (COV) (%(class A+)) : 0
– Temperature resistance (°C) : -40/+80
– Reaction to fire (class) : B-s1, d0
Indicazioni di posa per: PARETE
TRASPIR FELT EVO UV 210 is laid parallel to the dock beam or the floor if laid on a wall. The second layer must be overlapped by at least 15 centimetres. Each layer must be fixed to the substrate with a mechanical fastener. (ex: HAMMER STAPLER, HAND STAPLER o PNEU STAPLER). It is also advisable to overlap the sheets by at least 30 centimetres at the butt joints. In order to achieve correct air and water sealing, we recommend the use of EASY BAND, SPEEDY BAND, FLEXI BAND, FLEXI BAND UV, SOLID BAND, PLASTER BAND, SMART BAND, FACADE BAND UV, FRONT BAND UV, FRONT BAND UV 210, DOUBLE BAND, SUPRA BAND, BUTYL BAND, OUTSIDE GLUE, FIRE SEALING, FIRE STRIPE or in the case of rough surfaces (such as rough OSB) FLEXI BAND, PRIMER SPAY, PRIMER .
Indicazioni di posa per: TETTO
TRASPIR FELT EVO UV 210 is placed parallel to the eaves line, starting from the lower edge of the roof. The second layer must be overlapped by at least 10-20 centimetres to the previous one (depending on the slope of the roof), as indicated on the layout according to UNI 11470:2013. The sheet must be applied on a continuous support with a mechanical fastening device. (ex: HAMMER STAPLER, HAND STAPLER o PNEU STAPLER). Once at the top of the roof, it is advisable for the membrane to protrude beyond the ridge line by at least 30 centimetres to ensure a perfect overlap with the strips of sheet that will overlap on the other side of the roof. It is also recommended that the sheets overlap by at least 30 cm even at the end joints. To achieve correct air and water sealing, we recommend the use of EASY BAND, SPEEDY BAND, FLEXI BAND, FLEXI BAND UV, SOLID BAND, PLASTER BAND, SMART BAND, FACADE BAND UV, FRONT BAND UV, FRONT BAND UV 210, DOUBLE BAND, SUPRA BAND, BUTYL BAND, OUTSIDE GLUE, FIRE SEALING, FIRE STRIPE.If there is an integrated double adhesive strip, it can replace the correct air and water sealing.
Composition
| top layer | breathable monolithic PU film |
|---|---|
| REINFORCING LAYER | PL fabric |
