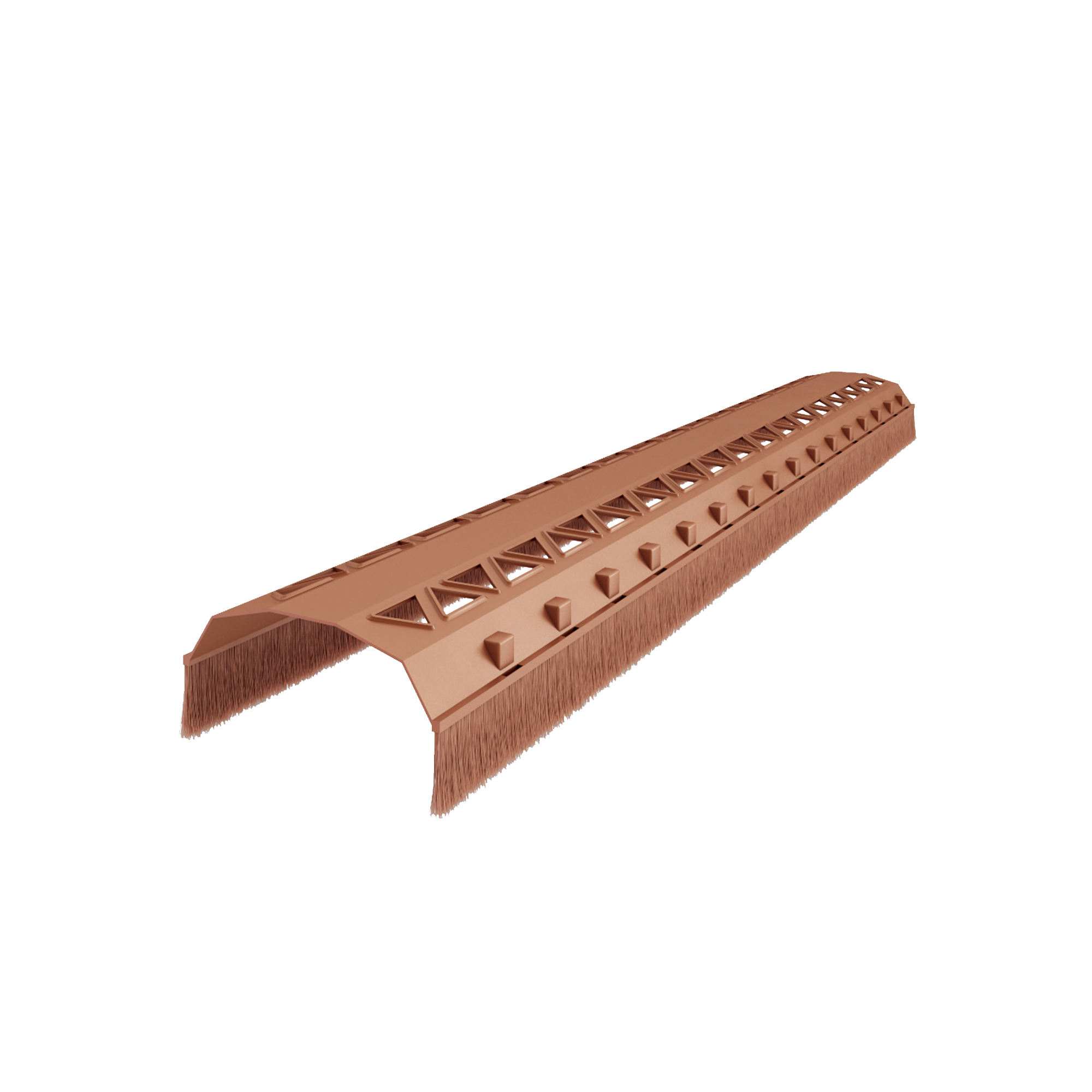

BRUSH VENT
BRUSH VENT, the rigid under-ridge with side brushes, acts as a connection between the tiles and the ridge, guaranteeing the outflow of air and at the same time blocking any water infiltration.
Description
Quick installation and durability with BRUSH VENT, the under-ridge with brushes.
Thanks to the soft bristles, which provide effective protection against the intrusion of water and foreign elements, the under-ridge easily adapts to the profile of the roof without the need for modelling, ensuring quick installation.
The ventilation elements are one metre long and 17,5 cm wide.
They are flexible to adapt to different ridge sizes and have UV-stabilised brushes for increased durability. BRUSH VENT is made of PVC and is available in three different colours, brick red, black and brown to suit different types of roofing and therefore the colour of the tiles or ridge tiles.
Documents
-
Technical data sheets
- Technical data sheets Croatian
- Technical data sheets Czech
- Technical data sheets English
- Technical data sheets French
- Technical data sheets German
- Technical data sheets Greek
- Technical data sheets Hungarian
- Technical data sheets Italian
- Technical data sheets Polish
- Technical data sheets Portuguese
- Technical data sheets Romanian
- Technical data sheets Russian
- Technical data sheets Slovene
- Technical data sheets Spanish
BRUSH VENT
| CODE | B
[mm]
|
H
[mm]
|
L
[m]
|
B
[in]
|
H
[in]
|
L
[ft]
|
material | colour | RAL | pcs. |
|---|---|---|---|---|---|---|---|---|---|---|
| BRUVENRED175 | 175 | 75 | 1 | 6.9 | 3 | 3 | PVC | BRICK RED | 8004 | 20 |
| BRUVENBRO175 | 175 | 75 | 1 | 6.9 | 3 | 3 | PVC | BROWN | 8019 | 20 |
| BRUVENBLA175 | 175 | 75 | 1 | 6.9 | 3 | 3 | PVC | BLACK | 9005 | 20 |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Screen length | - | 60 mm | 2.4 in |
| Air passage | - | ≥ 200 cm²/m | - |
| UV resistance | - | permanent | - |
| Resistance to temperature | - | -20 / 80 °C | -4 / 176 °F |
