PEAK HOOK
RIDGE FASTENING HOOK FOR FLAT AND SHAPED TILES

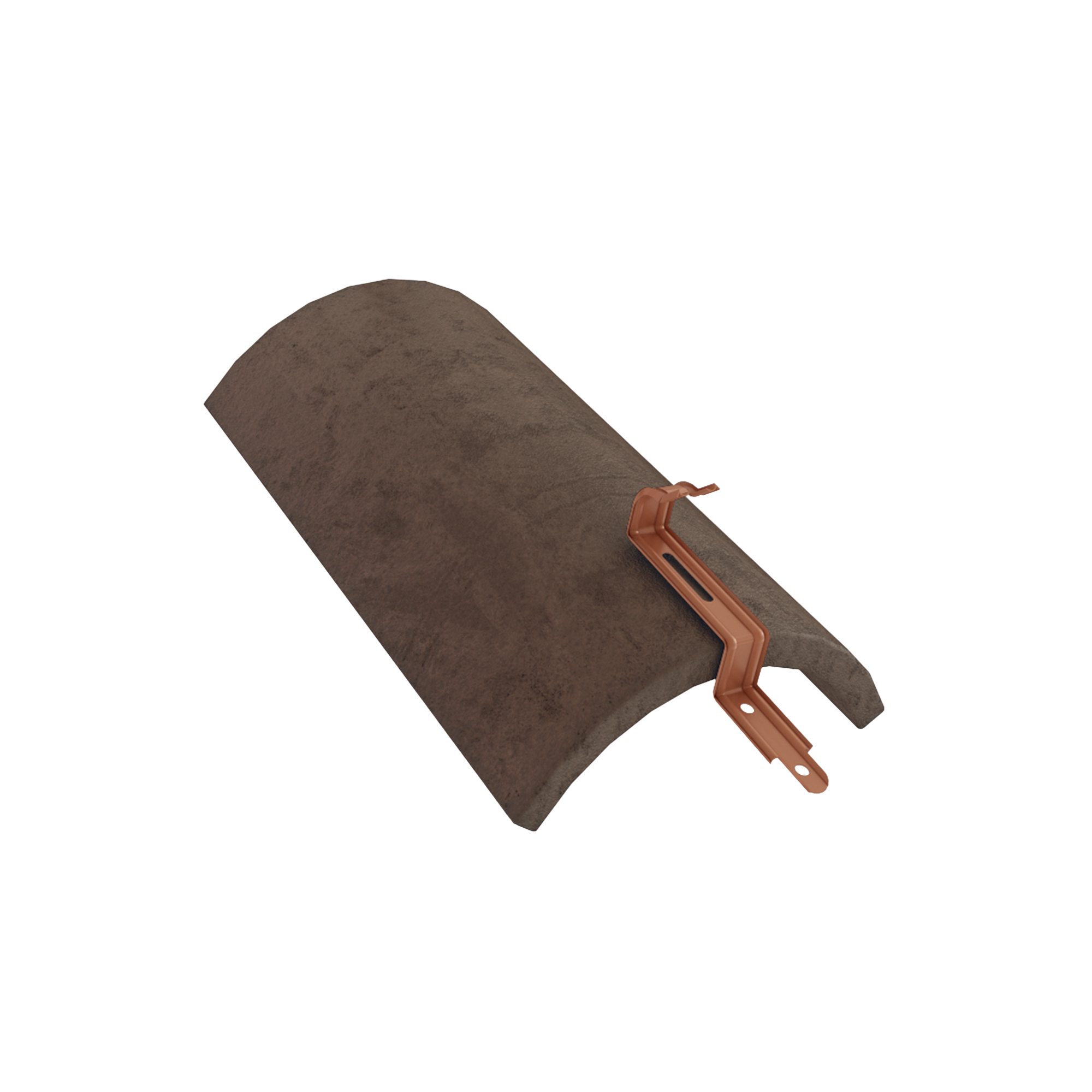

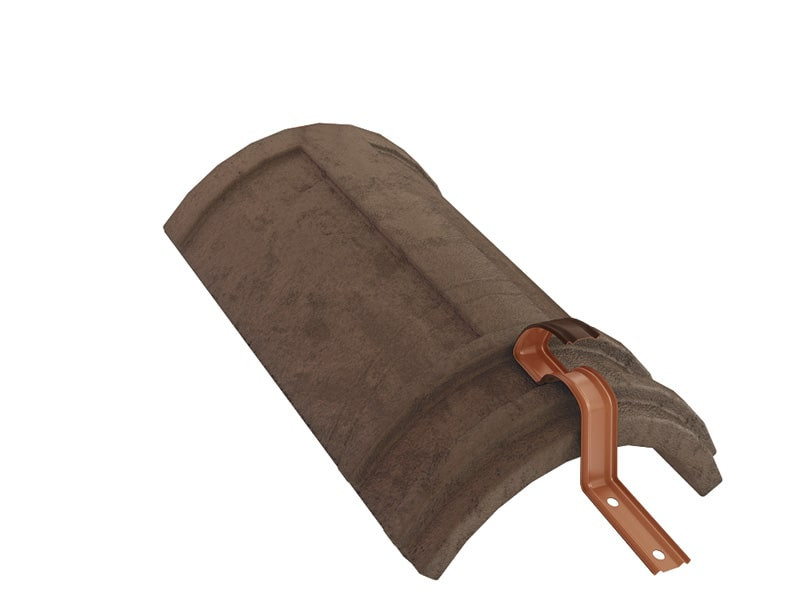

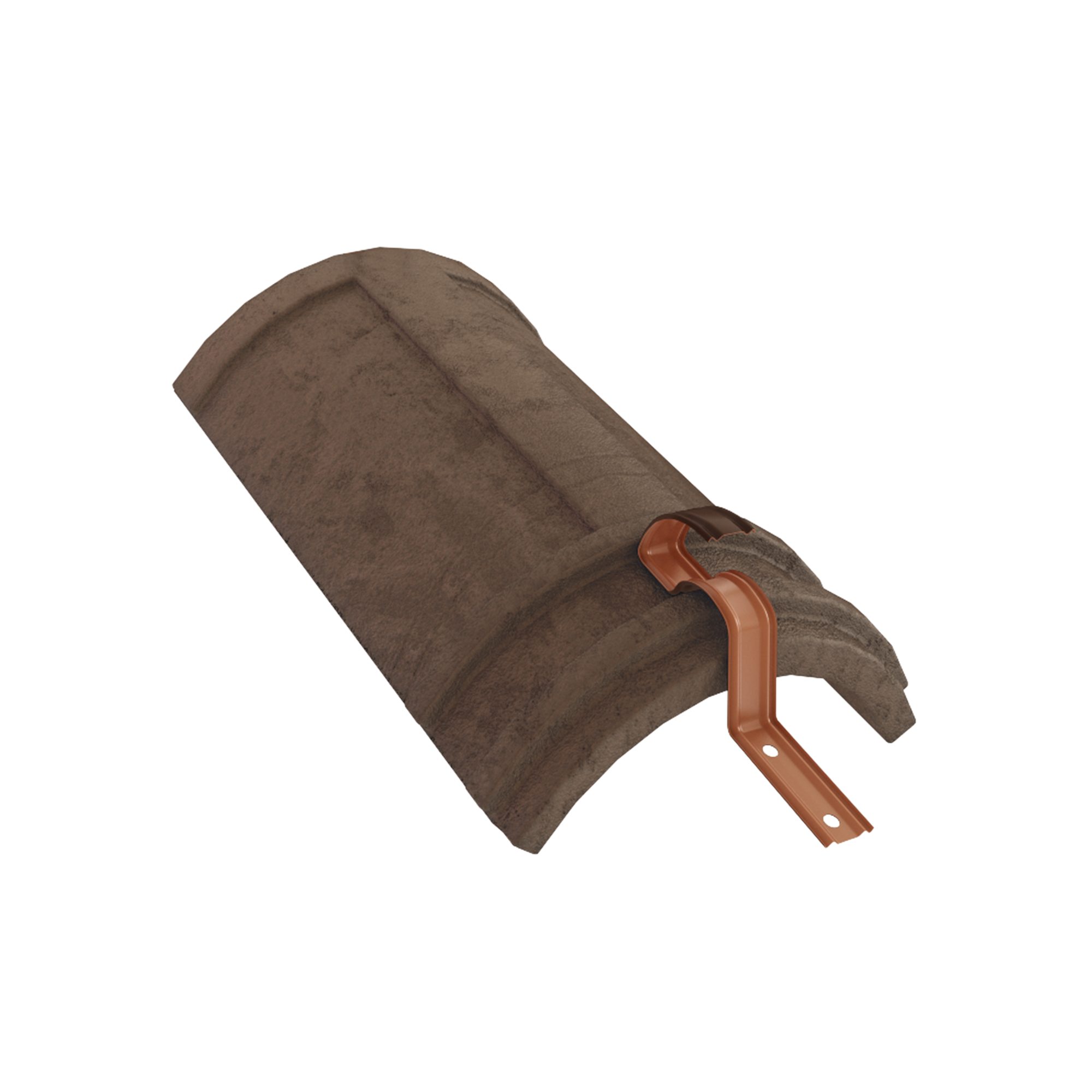

PEAK HOOK is a ridge fastening hook available in two versions: for plain or shaped tiles.
Description
PEAK HOOK, the ideal ridge fastening hooks for dry installation of the roof covering.
Indispensable for correct dry installation of the roof covering, they are available in three colours to adapt to any type of roofing. The ridge is installed without foam or mortar, in accordance with UNI 9460.
Documents
-
Technical data sheets
- Technical data sheets Croatian
- Technical data sheets Czech
- Technical data sheets English
- Technical data sheets French
- Technical data sheets German
- Technical data sheets Greek
- Technical data sheets Hungarian
- Technical data sheets Italian
- Technical data sheets Polish
- Technical data sheets Portuguese
- Technical data sheets Romanian
- Technical data sheets Russian
- Technical data sheets Slovene
- Technical data sheets Spanish
PEAK HOOK
| CODE | B
[mm]
|
P
[mm]
|
B
[in]
|
P
[in]
|
version | material | colour | RAL | pcs. |
|---|---|---|---|---|---|---|---|---|---|
| PUNIRED | 115 | 18 | 4.5 | 0.7 | universal | aluminium | BRICK RED | 8004 | 50 |
| PUNIBRO | 115 | 18 | 4.5 | 0.7 | universal | aluminium | BROWN | 8017 | 50 |
| PUNIANT | 115 | 18 | 4.5 | 0.7 | universal | aluminium | ANTHRACITE | 7021 | 50 |
| PCURRED | 80 | 18 | 3.1 | 0.7 | shaped | aluminium | BRICK RED | 8004 | 50 |
| PCURBRO | 80 | 18 | 3.1 | 0.7 | shaped | aluminium | BROWN | 8017 | 50 |
| PCURANT | 80 | 18 | 3.1 | 0.7 | shaped | aluminium | ANTHRACITE | 7021 | 50 |
