RIGID UNDER-RIDGE KIT
PEAK VENT AISI 430

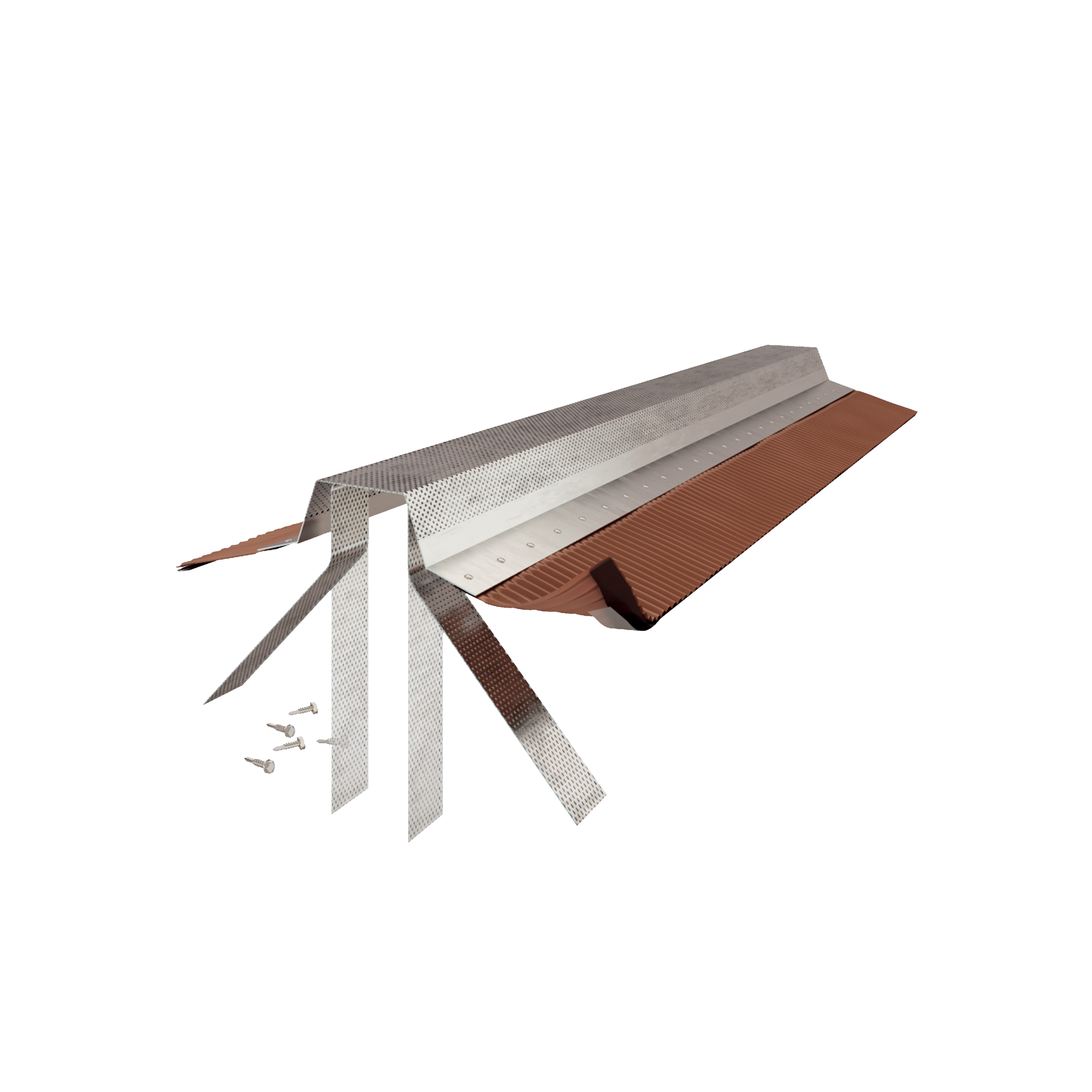

The PEAK VENT AISI 430 rigid under-ridge kit is a modular set complete with under-ridge, screws and adjustable brackets for correct ventilation of your roof.
PEAK VENT AISI 430, rigid under-ridge in a modular kit.

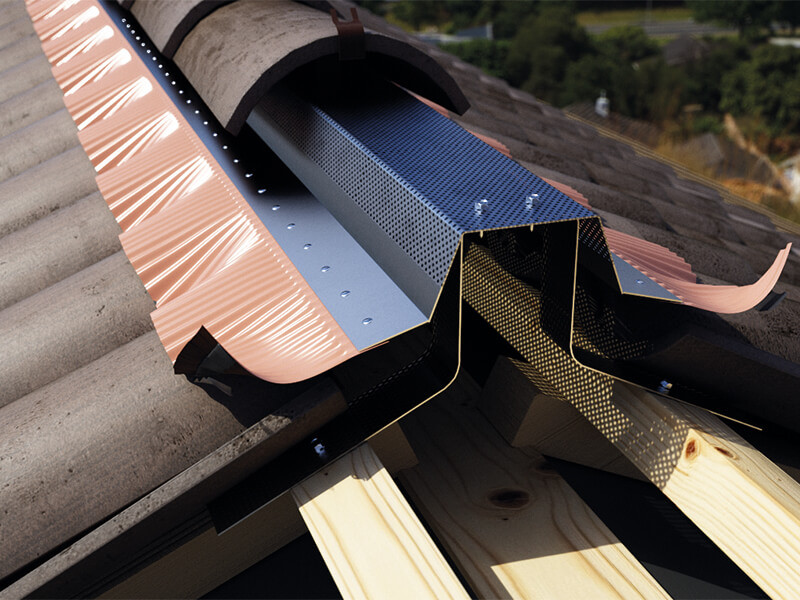

The robust stainless steel grid and pleated aluminium wings guarantee constant ventilation and permanent UV stability over time. The perforation of the linear element and support brackets ensures perfect ventilation over time, without the need for additional supports.
The great advantage of this element is that, thanks to the perforated cap and support brackets, it achieves perfect ventilation of the under-ridge. The kit consists of stainless steel elements, pre-painted aluminium and butyl tape. Also available with black straps.
Documents
| Technical data sheets |
|---|
PEAK VENT AISI 430
| CODE | B
[mm]
|
L
[m]
|
H
[mm]
|
B
[in]
|
L
[ft]
|
H
[in]
|
colour | RAL | pcs. |
|---|---|---|---|---|---|---|---|---|---|
| PVENTREDI380 | 400 | 1 | - | 15.7 | 3 | - | BRICK RED | 2001 | 5 |
| PVENTBLAI380 | 400 | 1 | - | 15.7 | 3 | - | BLACK | 9005 | 5 |
| CODE | d
[mm]
|
H
[mm]
|
H
[in]
|
colour | RAL | pcs. |
|---|---|---|---|---|---|---|
| PVENTSCREW | 5.5 | 13 | 0.5 | - | - | 20 |
| PVENTPLATE | - | 230 | 9.1 | - | - | 72 |
| CODE | B
[mm]
|
H
[mm]
|
B
[in]
|
H
[in]
|
pcs. |
|---|---|---|---|---|---|
| PVENTPLATE | 50 | 230 | 2 | 9.1 | 72 |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Butyl tape width | - | 20 mm | 0.8 in |
| Air passage | - | 500 cm²/m | - |
| Butyl tape thermal resistance | - | -40 / 90 °C | -40 / 194 °F |
| Application temperature | - | 5 / 40 °C | 41 / 104 °F |
| UV resistance (aluminium straps) | - | permanent | - |
| Water tightness (when installed under tiles) | - | conforming | - |
| Storage temperature | - | 5 / 30 °C | 41 / 86 °F |
