METAL BATTEN-HOLDERS

SUPPORT BATTEN

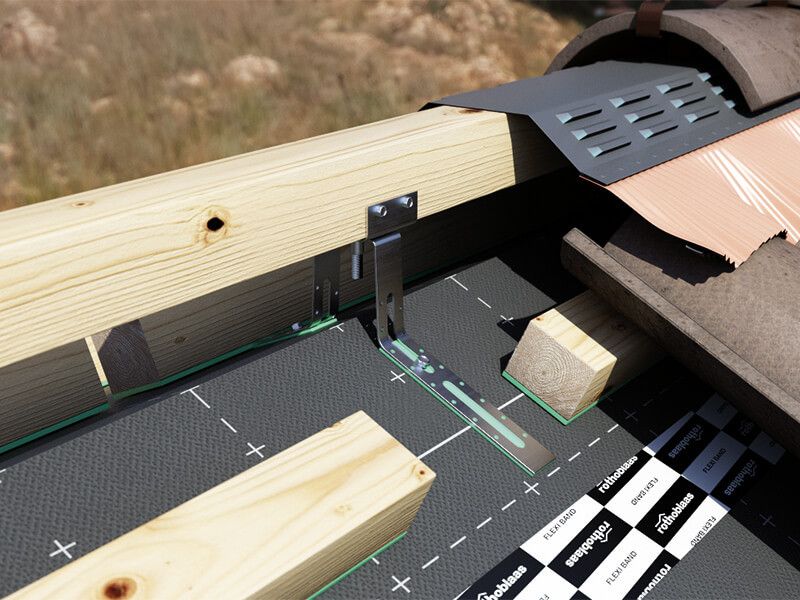

SUPPORT BATTEN metal batten-holders are indispensable for installing the under-ridge and the roof covering in accordance with the regulations governing the art of good building, using mechanical fasteners to fasten the under-ridge batten without using mortar or foam.

SUPPORT BATTEN the stainless steel batten holders for your timber or concrete roofs.

The SUPPORT BATTEN batten-holders are made of stainless steel for perfect durability and weather resistance. The range provides adaptability to all possible types of construction: for both timber and concrete roofs.

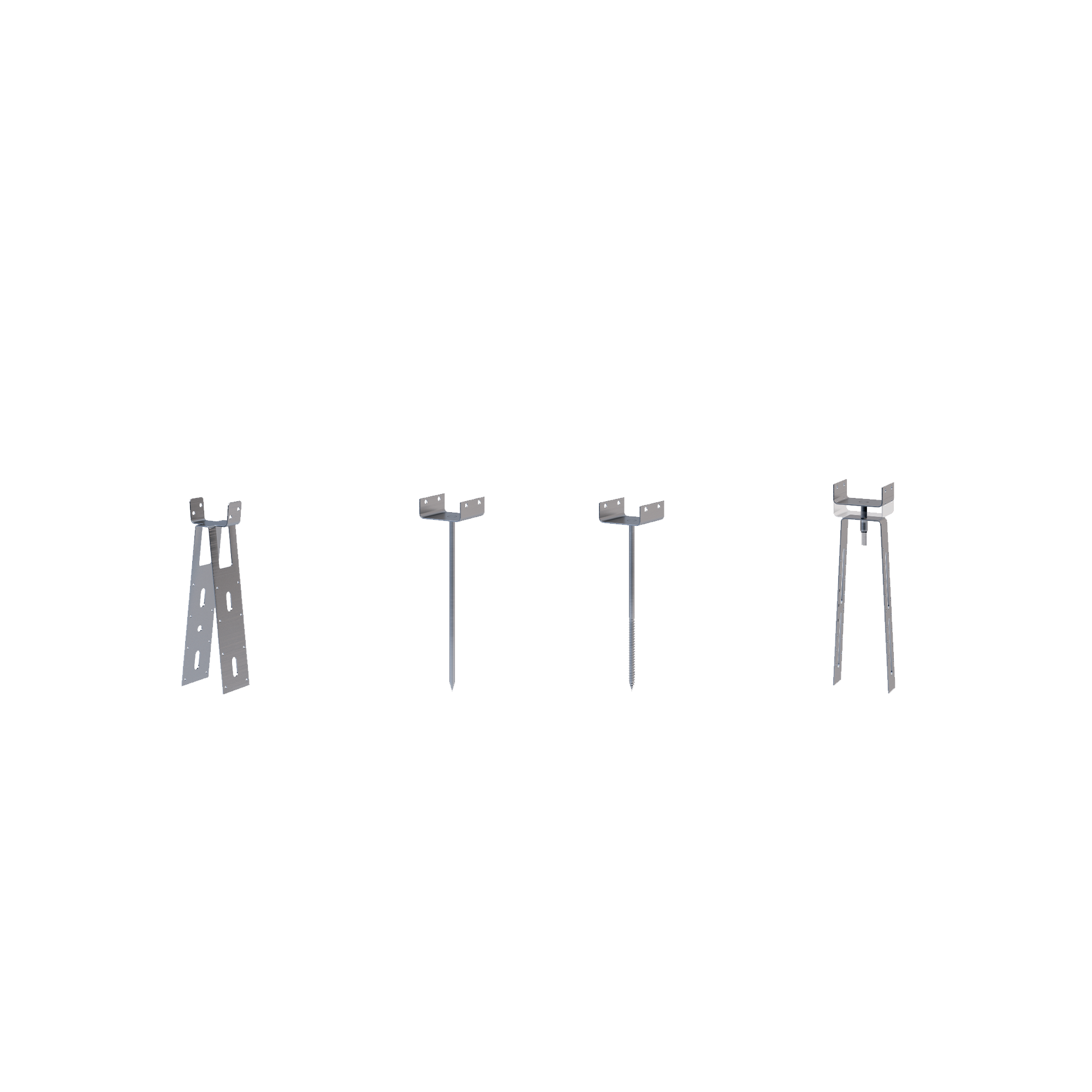

The different models of SUPPORT BATTEN batten-holders are adjustable in height and available in various sizes to ensure the stability of the roof ridge without the need for foam or mortar. Wide range with different fixing and adjustment methods depending on the type of ridge and the thickness to be compensated for by the batten.

Documents

Technical data sheets

SUPPORT BATTEN

CODE H
[mm]
B
[mm]
H
[in]
B
[in]
version material pcs.
SUPPORTUNI 210 50 8.27 1.97 universal steel DX51D 50
SUPPORTNAIL 280 50 11.03 1.97 with nail steel DX51D 50
SUPPORTSCREW 260 50 10.24 1.97 with screw steel DX51D 50
SUPPORTLEVEL 240 50 9.45 1.97 adjustable steel DX51D 50
