L PRE-SHAPED HOOKS FOR PLAIN TILES
TILE STOP L

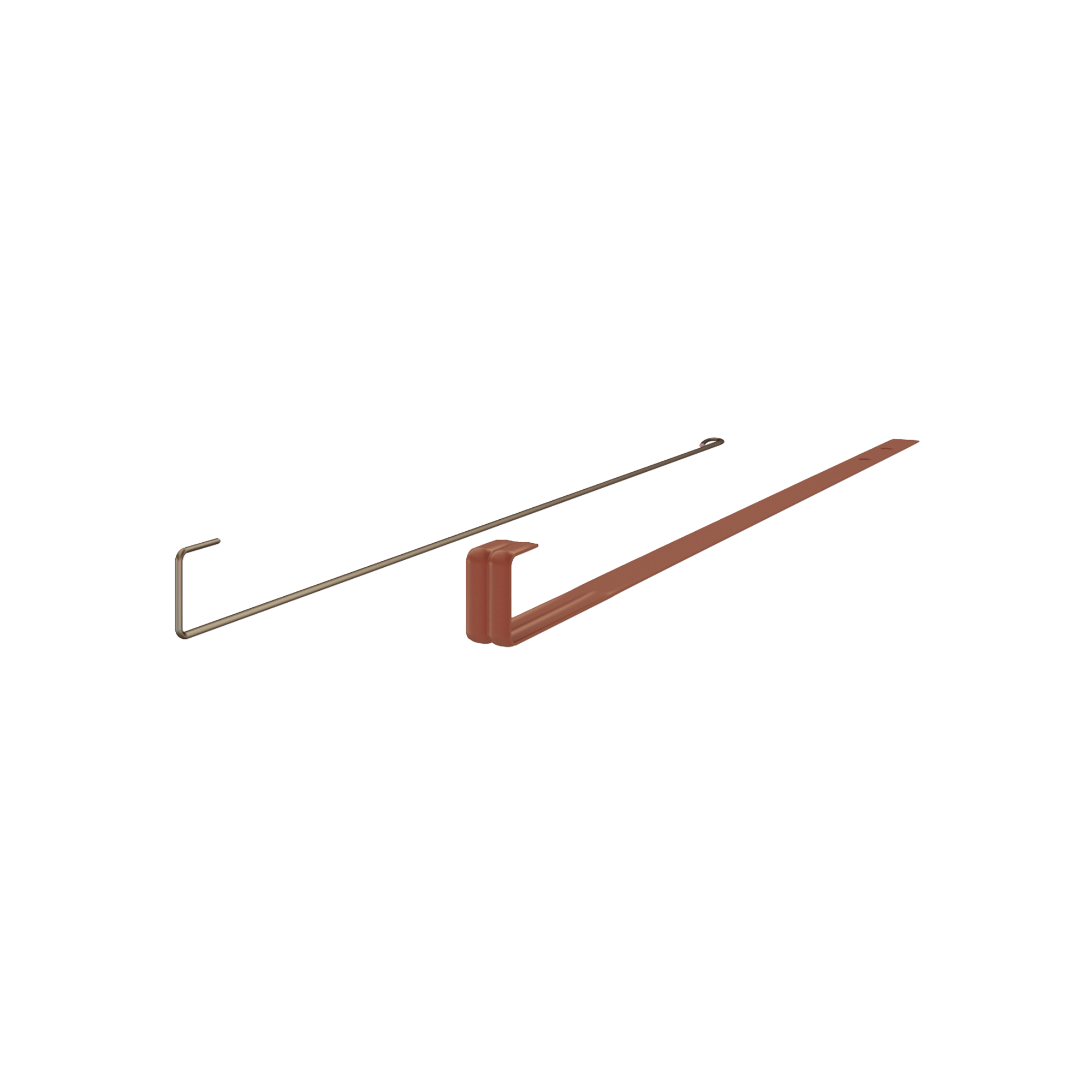

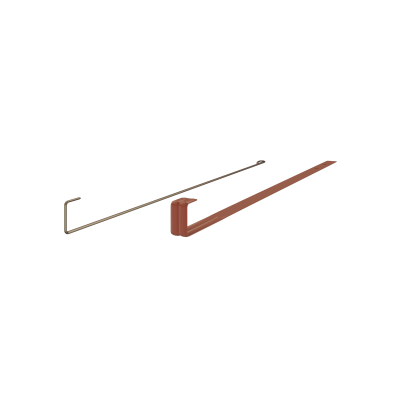

TILE STOP L is the line of L-shaped hooks for plain tiles. TILE STOP L pre-shaped hooks are used for the first row of tiles on the roof pitch when creating a roof covering with plain tiles.
TILE STOP L, the L-shaped hooks that serve as mullion hooks.
The TILE STOP L-shaped hooks are available in different materials and sizes; the hook can be 16 or 20 mm high. They are 280 mm long and are available in stainless steel and copper-coated stainless steel strip.
Two versions in pre-painted sheet metal in Siena red and brown colour to blend in with the chosen colour of the roof tiles. TILE STOP L pre-shaped hooks can be used as mullion hooks on which the weight of the upper rows of tiles can be transferred.
Indispensable in order to create a professional roofing system as required by the Italian UNI 9460 standard, they avoid using foam or mortar and guarantee a stable and long-lasting roofing system, making it easier to replace and maintain the roofing system.
Documents
| Technical data sheets |
|---|
TILE STOP L
| CODE | L
[mm]
|
H
[mm]
|
L
[in]
|
H
[in]
|
material | colour | RAL | pcs. |
|---|---|---|---|---|---|---|---|---|
| TSLI28016 | 280 | 16 | 11 | 0.6 | steel AISI 204 | STEEL | - | 200 |
| TSLI28020 | 280 | 20 | 11 | 0.8 | steel AISI 204 | STEEL | - | 200 |
| TSLRED28016 | 280 | 16 | 11 | 0.6 | pre-painted metal sheet | BRICK RED | 3009 | 200 |
| TSLRED28020 | 280 | 20 | 11 | 0.8 | pre-painted metal sheet | BRICK RED | 3009 | 200 |
| TSLBRO28016 | 280 | 16 | 11 | 0.6 | pre-painted metal sheet | BROWN | 8019 | 200 |
| TSLBRO28020 | 280 | 20 | 11 | 0.8 | pre-painted metal sheet | BROWN | 8019 | 200 |
| TSLCOP28016 | 280 | 16 | 11 | 0.6 | stainless steel tape | COPPER | - | 200 |
| TSLCOP28020 | 280 | 20 | 11 | 0.8 | stainless steel tape | COPPER | - | 200 |
